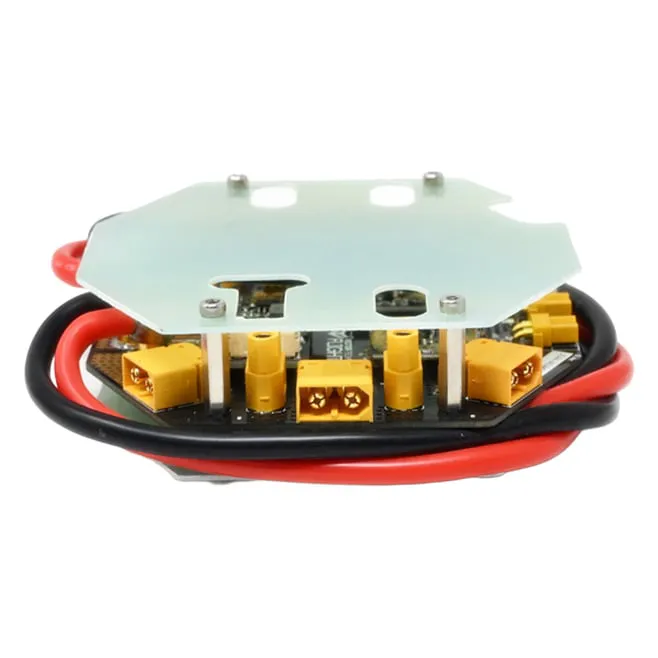

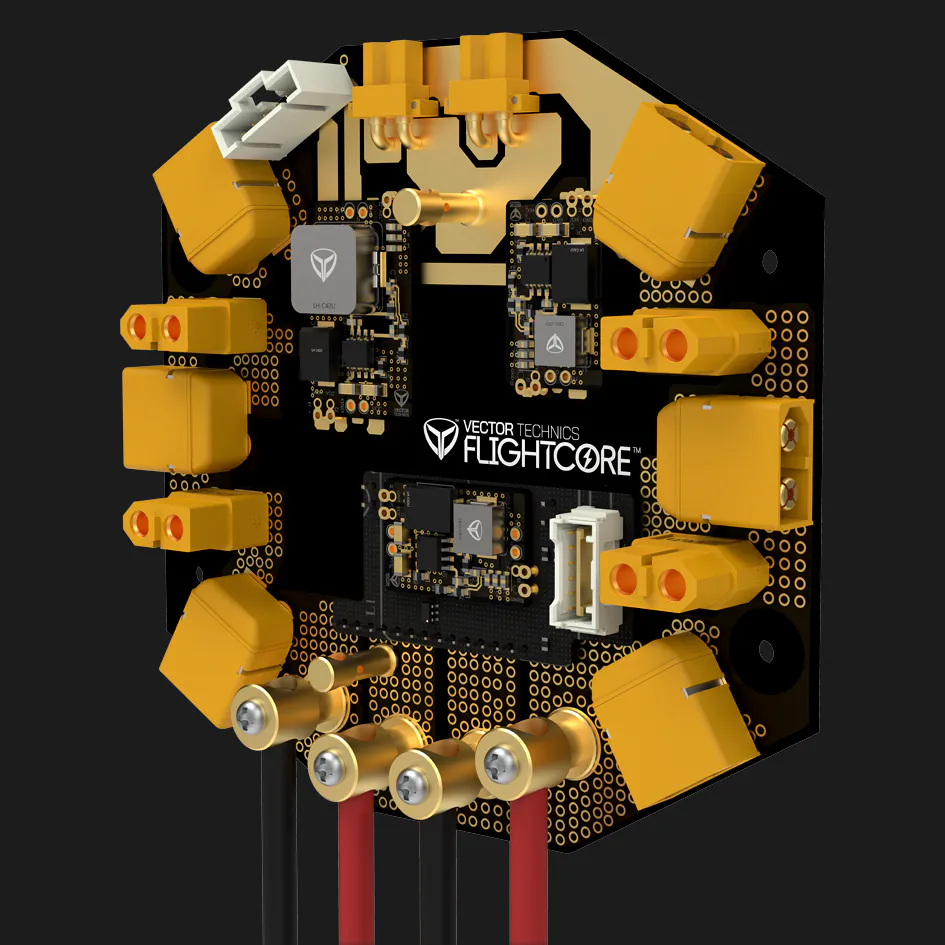

Vector Technics Flightcore MK2 PDB 6S-14S
SKU VECTOR-PDB-FLIGHTCORE-MK2
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Vector Technics Flightcore MK2 is a high-voltage power distribution board for heavy-lift and long-range multirotors running 6S to 14S LiPo power.
Key features
Accepts 22.2-58.8V (6S-14S LiPo) input on a 4-layer PCB rated for 180°C continuous operation.
Six XT60 outputs feed motor ESCs, four further XT60 outputs power payload equipment.
Two XT30 auxiliary outputs cover accessories such as cameras or telemetry radios.
Modular 12V and 5V BECs deliver 2A continuous each for flight-stack and payload electronics.
Built-in overcurrent and short-circuit protection guards the 5V and 12V regulators.
Specifications
Input voltage: 22.2-58.8 V (6S-14S)
PCB: 4-layer, 180°C rated
Outputs: 6 x XT60 (motors), 4 x XT60 (payload), 2 x XT30 (auxiliary)
BEC: 12 V and 5 V, 2 A continuous
Dimensions: 110 x 116 x 25 mm
Weight: 156 g
Size your battery and ESC wiring for the board's high-voltage range, and confirm every downstream component is rated for the LiPo voltage you plan to run.
- Input Voltage
- 6–14S
- Made in India
- Yes
- Brand
- Vector Technics
