Tarot TL60-10 Power Distribution Module XT60
₹1,299Incl. GST
SKU TAROT-TL60-10-XT60
Made in India: NoBrand: TarotWeight: 43 gBattery Connector: XT-60
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

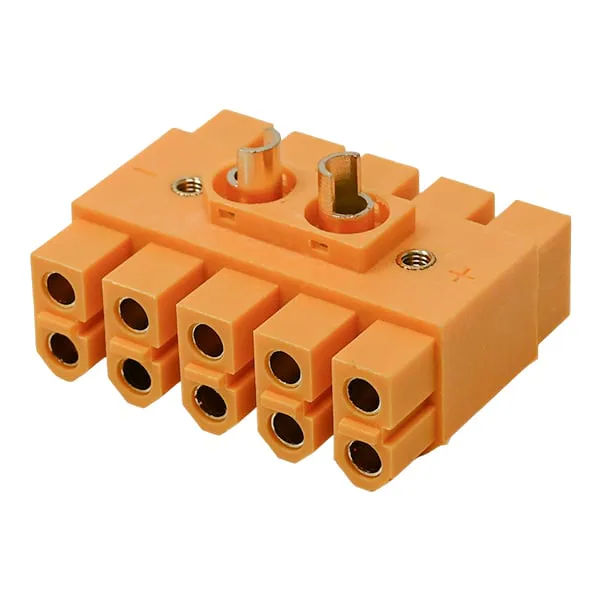

The Tarot TL60-10 is a power distribution module for custom FPV and multirotor builds using XT60 power connections. It provides a central high-current connection point for routing battery power to compatible ESCs and other onboard electronics.
Key features
- XT60 compatibility: Designed for systems using XT60 connectors.
- Contact material: Uses purple copper with gold-plated contacts for the main power path.
- Power layout: Centralises battery wiring for a cleaner connection between the battery, ESCs and onboard electronics.
- Build use: Suits custom drone layouts where a dedicated distribution module is preferred.
Specifications
- Current rating: up to 200 A
- Outputs: 10 (one-in, ten-out)
- Construction: one-piece solid copper conductors, gold-plated contacts
- Housing: injection-moulded, UL94V-0 flame-retardant, sheathed solder ports (no heat-shrink needed)
- Mounting: M3, 27 mm hole spacing
- Dimensions: 44 x 24 x 16 mm
- Weight: 43 g

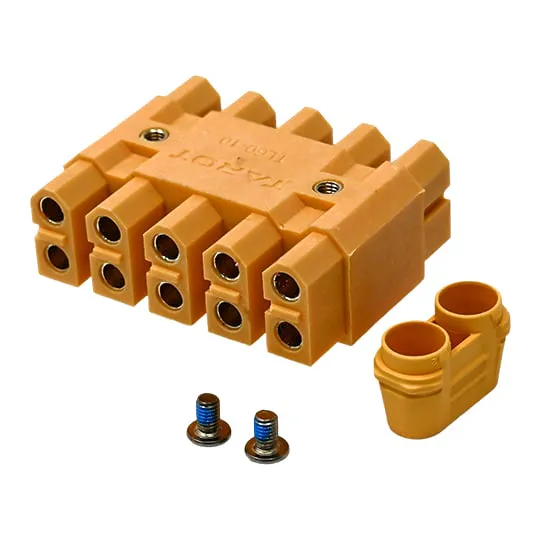

- In the box: module, 2x M3 x 5 mm screws
Match the module to the frame layout and battery connector before soldering. Check polarity, clearance and the expected current path during installation; XT60 compatibility does not by itself confirm suitability for every power system.
The solid copper core draws a lot of heat, so solder the main power leads with a 100 W iron.
