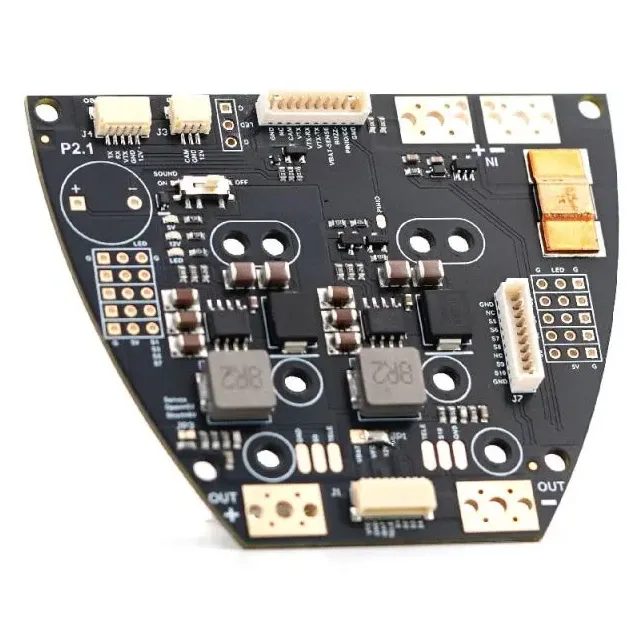

TBS Lucid Wing PDB

The TBS Lucid Wing PDB adapts the compact 20x20mm TBS Lucid flight controller family for fixed-wing and flying-wing builds, replacing a multirotor 4-in-1 ESC with structured battery power routing and servo breakout. It suits any wing with up to four control servos and one or two motors, not only TBS's own airframes.

Key features

• Handles up to 60V (14S) input, with a current sensor rated for 90A continuous and 200A burst.
• Two regulated accessory rails: 12V at 4A for LEDs and the FC, plus a jumper-selectable 5V or 8V rail at 4A for servos.
• Onboard headers for a BLHeli or AM32 ESC with telemetry, a 3-pin analogue camera and a 5-pin analogue VTX.
• Fits both 20x20mm and 30.5x30.5mm iNav or ArduPilot flight controllers, with FC voltage input switchable between VBat and the 12V rail.

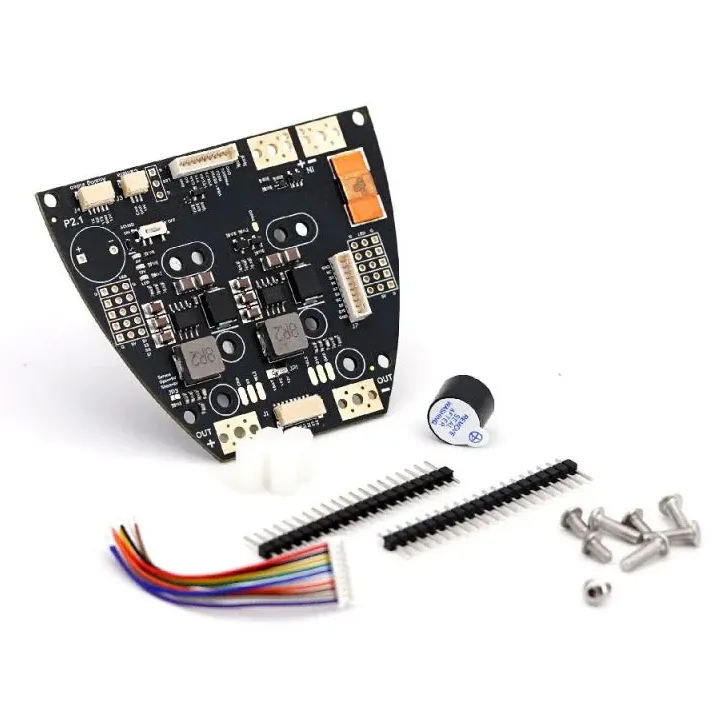

• Ships with a 2x20 servo pin header block and the mounting hardware needed to fit a compatible FC.

Specifications

• Max input voltage: 60V (14S)
• Current sensor: 90A continuous, 200A burst
• Accessory rails: 12V 4A; 5V/8V (selectable) 4A
• Supported servos/motors: up to 4 servos, 1-2 motors

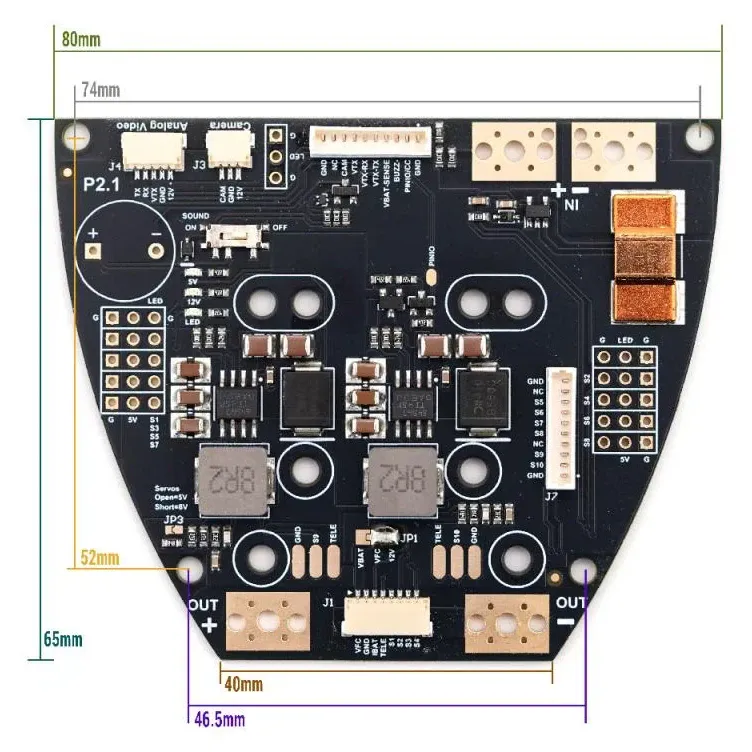

• Compatible FC mounting: 20x20mm, 30.5x30.5mm

Pair it with a TBS Lucid 20x20 FC Freestyle or Lucid H7 flight controller (sold separately) to build a complete wing stack without a tangle of point-to-point wiring.
