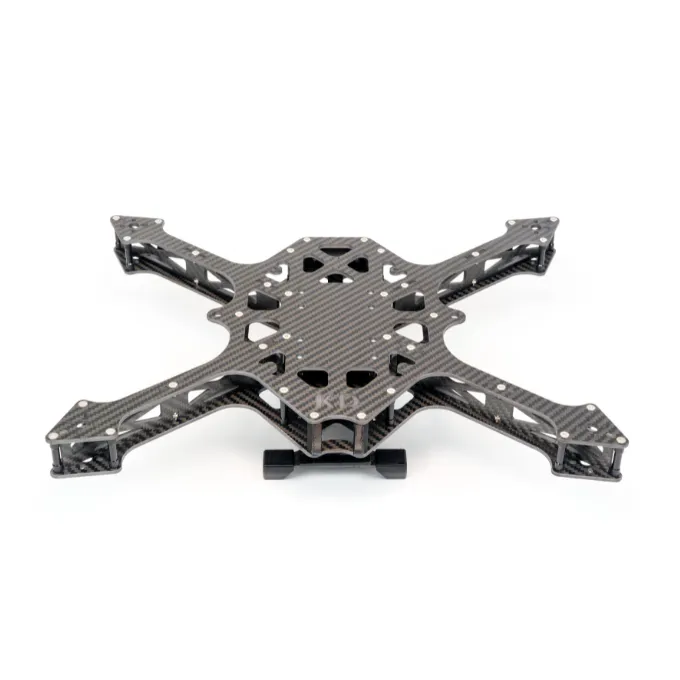

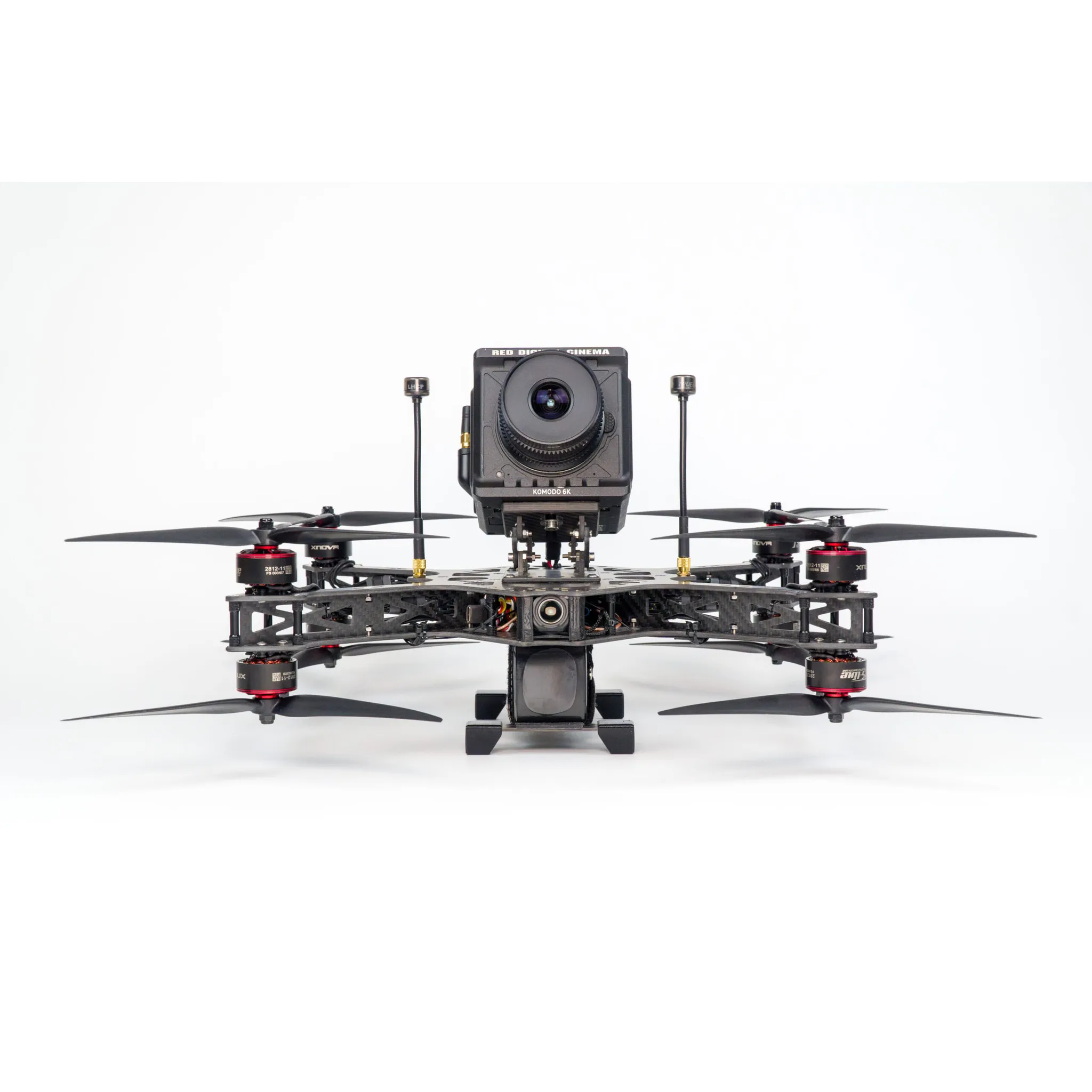

The KD Drones KD9 is a 9-inch X8 cinelifter frame built around a unique I-beam layout of vertical arms clamped between two continuous carbon plates, designed to carry cinema cameras such as the RED Komodo, Sony FX6 or Freefly Ember.
Key features
- X8 motor layout for redundancy and lift on camera payloads, and can also be run as an X4 by fitting four motors instead of eight.
- Bottom-mounted battery with an integrated battery plate that doubles as landing gear, keeping the centre of gravity low.
- KDCM/DAC camera mount holes sit centred and slightly forward, reaching 10 degrees of tilt prop-free on a 9mm lens and 0 degrees on a 15mm lens.
- Generous internal space with multiple 30.5x30.5, 20x20 and 25.5x25.5mm stack/VTX mounting points and zip-tie slots for tidy wiring.
Specifications
- Weight: 446 g (+35 g with the battery plate)
- Size: 284 x 361 x 31 mm
- Motor pattern: 16x16 mm and 19x19 mm
- Camera mount: KDCM/DAC, 61 x 50.8 mm M4 holes
Ships with T700 carbon top/bottom plates, four arms and a battery plate, hardware, 3D-printed parts, a mounted XT90 power connector, two XT30 female camera-power leads and battery straps; camera mount, GPS, motors, ESC, flight controller, propellers and battery are sold separately.
| Prop Size | 9" |
|---|---|
| Brand | KD Drones |
| Weight | 446 g |
| Mounting Size | 30.5x30.5 |
| Motor Mount | 19x19mm, 16x16mm |
