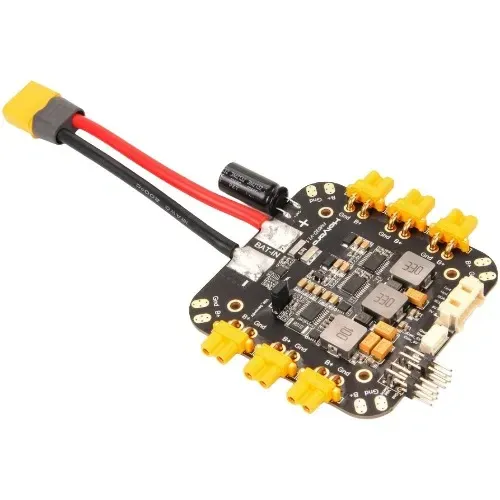

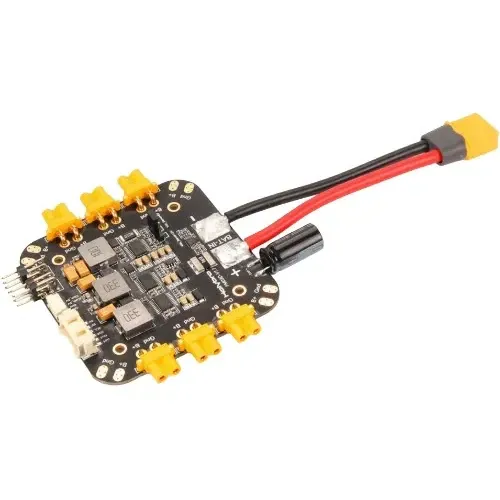

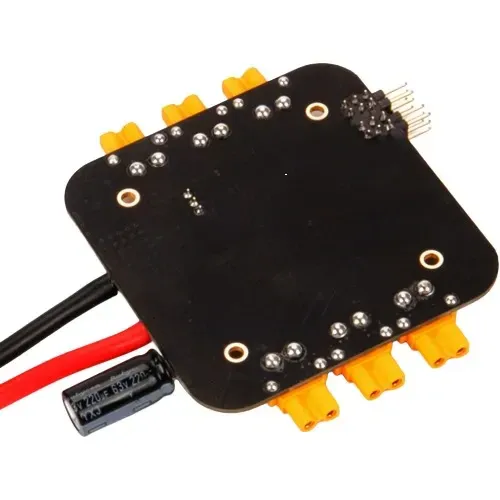

Holybro PM03D Power Module & PDB (Up to 6S, 60A)

The Holybro PM03D combines a digital power module and a power distribution board for Pixhawk 5X, 6X and newer flight controllers. Designed for multirotors such as the Holybro X500 V2, it feeds the motor ESCs from one XT60 battery input and reports voltage and current to the flight controller over I2C. Choose the version with XT30 connectors pre-soldered on the outputs, or the one without them if you prefer to solder ESC leads straight to the pads.

Key features

• Up to 6S input, 60 A rated and 120 A for under 60 s, with current sensing up to 164 A.
• Two 5.2 V / 3 A regulators: one dedicated to the flight controller through the CLIK-Mate cable, the other shared by a JST-GH 4-pin port and two 5.2 V triple-row headers for a companion computer or peripherals.
• Selectable 8 V or 12 V output on triple-row headers for cameras, video gear and other accessories.
• XT30 outputs plus solder pads at each corner, all at battery voltage, for ESCs and peripherals.
• Plug and play with QGroundControl and Mission Planner, with no extra setup.

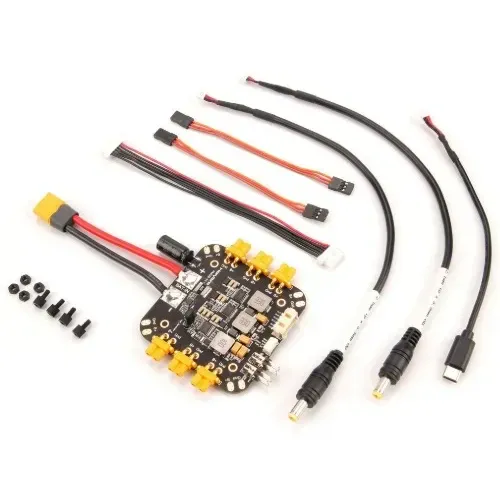

• Ready-to-fit kit: XT60 battery lead and 220 µF 63 V capacitor pre-soldered, CLIK-Mate 6-pin cable, JST-GH to USB-C and to 2.1/2.5 x 5.5 mm barrel-plug leads, Dupont leads and nylon standoffs.

Specifications

• Max input: 6S LiPo
• Rated current: 60 A (120 A for under 60 s)
• Max current sensing: 164 A
• Regulated outputs: 2x 5.2 V / 3 A, 1x 8 V or 12 V selectable / 3 A
• Battery connector: XT60
• Dimensions: 84 x 78 x 12 mm (excluding wires)
• Mounting: 45 x 45 mm
• Weight: 59 g

It needs a flight controller that reads an I2C power monitor; it is not compatible with analogue-input boards such as the Pixhawk 6C and 6C Mini, Pixhawk 4 and 4 Mini, pix32 v5 or Durandal.
