Holybro PDB 300A Power Distribution Board (XT90/
SKU HOLYBRO-PDB-300A-SIDE
Connector: Side Entry
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Holybro PDB 300A is a heavy-duty power distribution board for large multirotors, eVTOLs and industrial drones, splitting battery power to ESCs, the flight controller and accessories through pre-soldered XT90 and XT30 outputs. It is designed to work with Holybro's PM08-series power modules and comes in side-entry and top-entry versions.
Key features
300A continuous, 1000A burst current capacity.

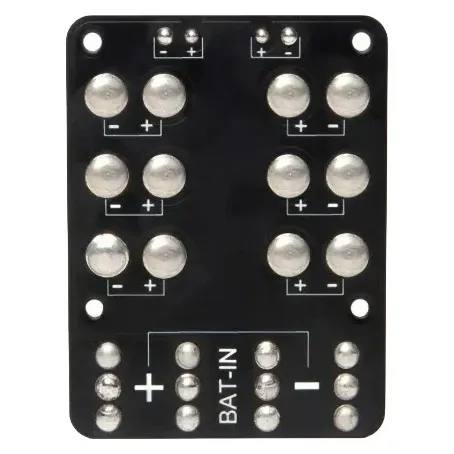

10 oz copper PCB for low resistance and better heat dissipation under sustained load.

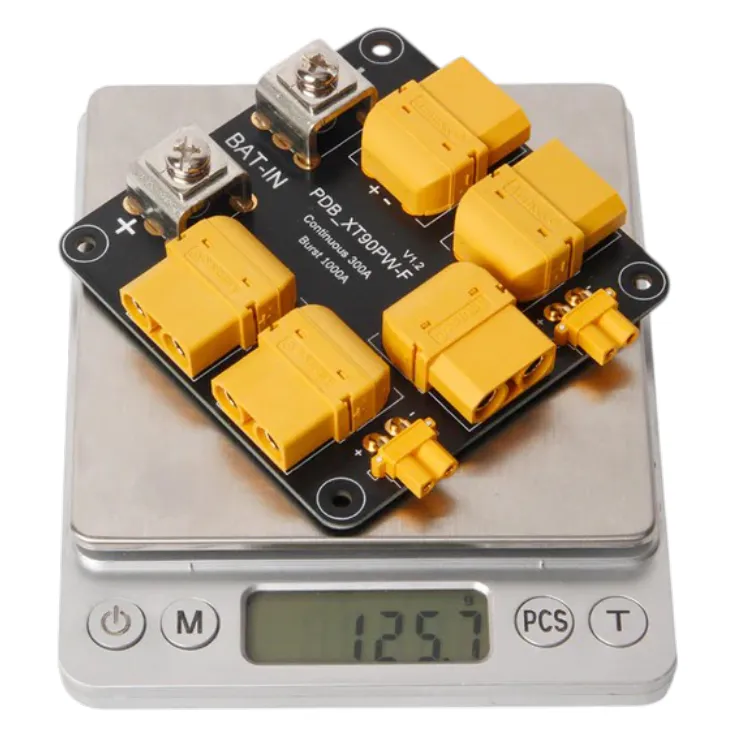

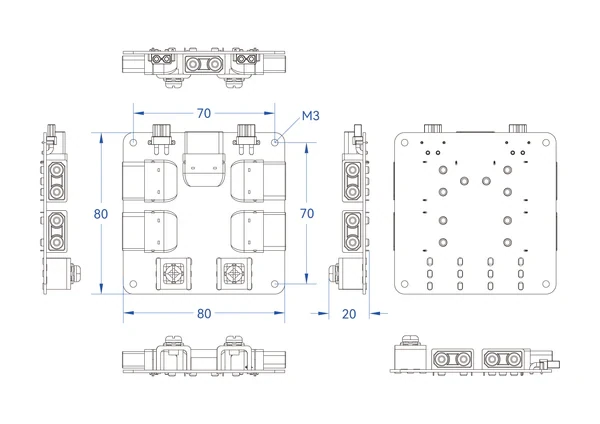

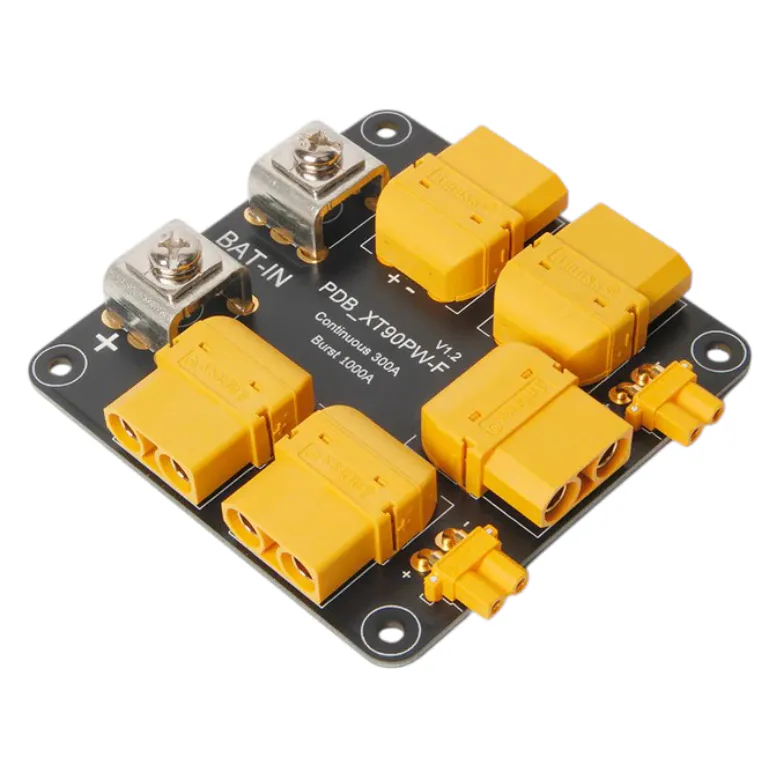

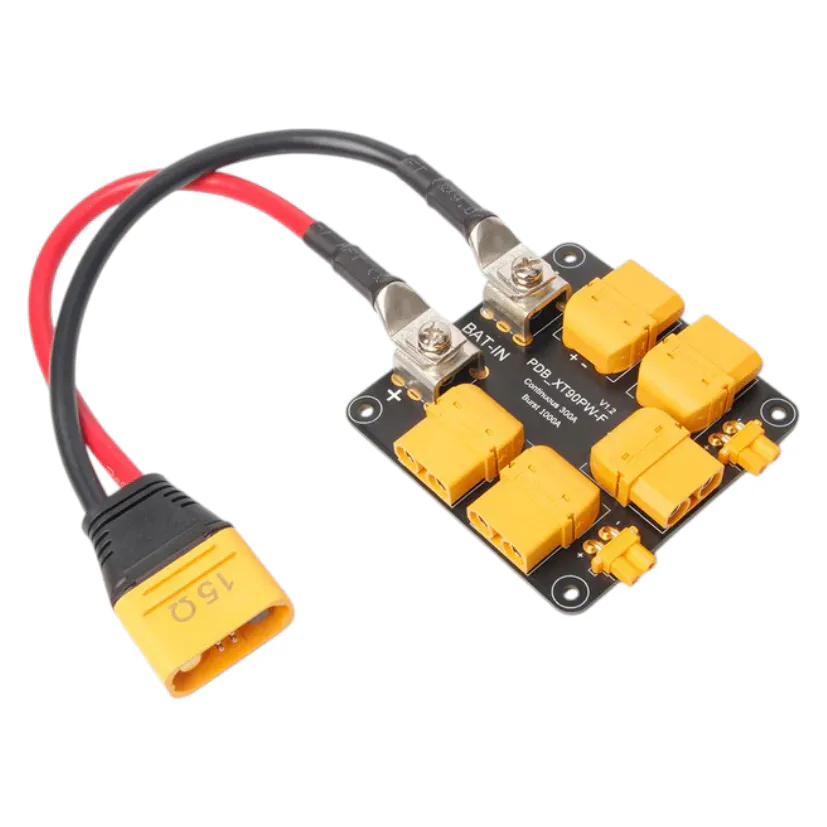

Side Entry: 5 XT90 and 2 XT30 connectors facing sideways, pre-soldered.

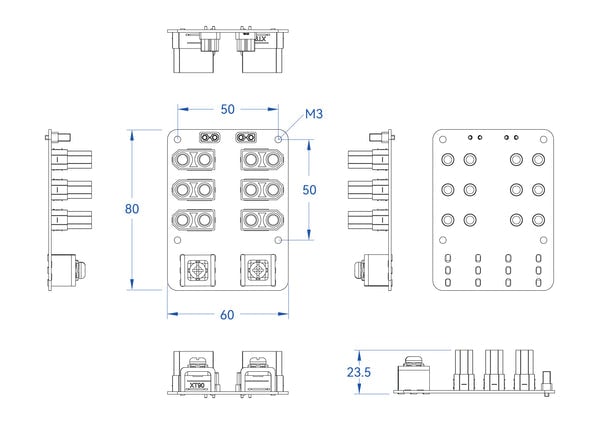

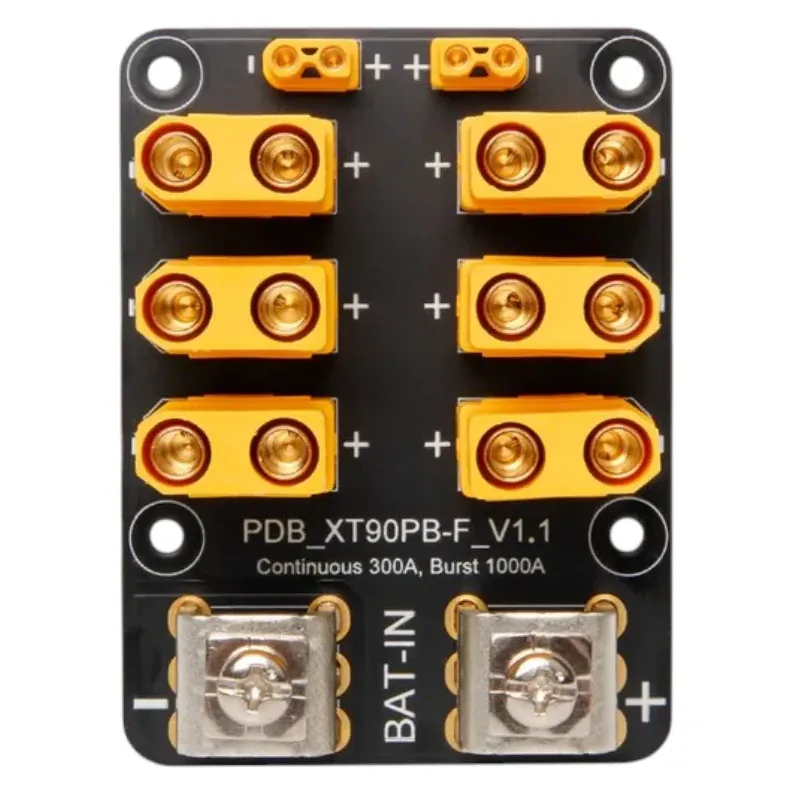

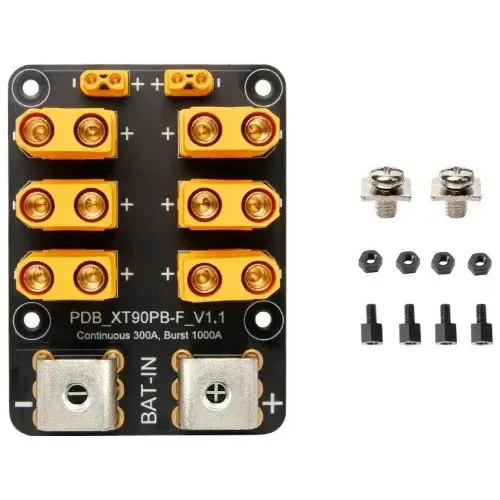

Top Entry: 6 XT90 and 2 XT30 connectors facing upwards, pre-soldered.

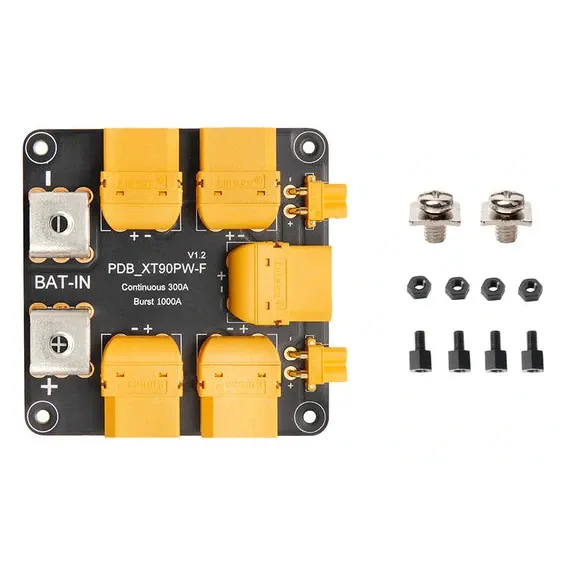

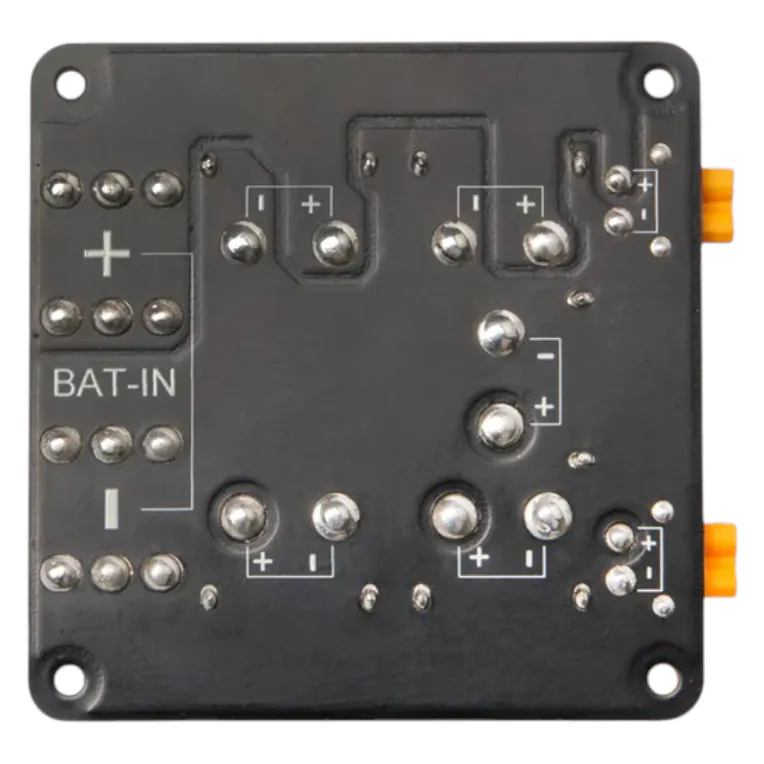

High-current screw terminals for the main power feed, plus M3 mounting holes.
Specifications
Continuous / burst current: 300A / 1000A
PCB copper: 10 oz
Side Entry outputs: 5 × XT90, 2 × XT30
Top Entry outputs: 6 × XT90, 2 × XT30
Main input: high-current screw terminals
Mounting: M3 holes

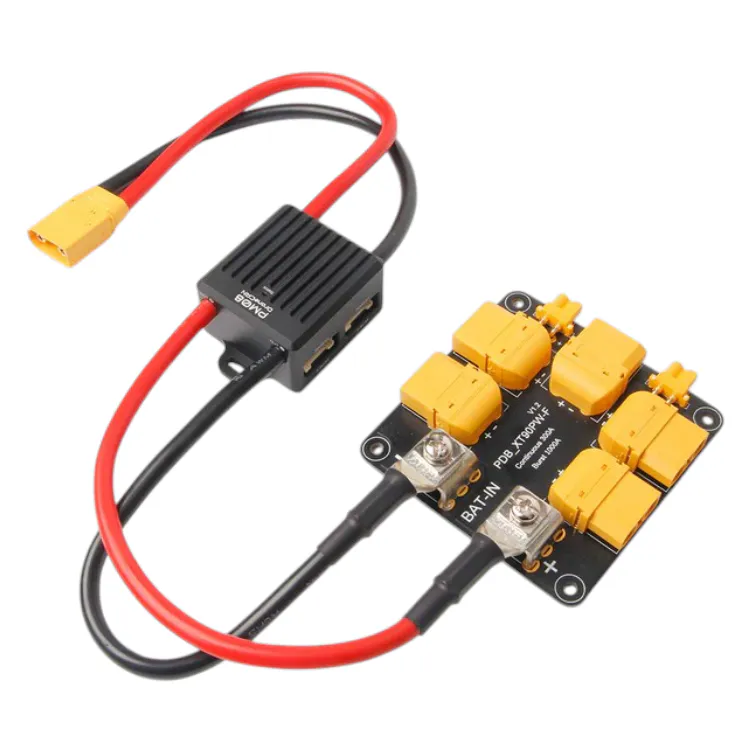

Compatible power modules: PM08 series
Side entry keeps leads running flat for low-profile frame bays; top entry suits builds with clearance above the board and gives one extra XT90 output.
| Made in India | No |
|---|---|
| Brand | Holybro |
| Battery Connector | XT-90 |
| Continuous Current | 300 A |
