CubePilot Here3+ RTK GPS with iStand
SKU CUBEPILOT-HERE3PLUS-ISTAND
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

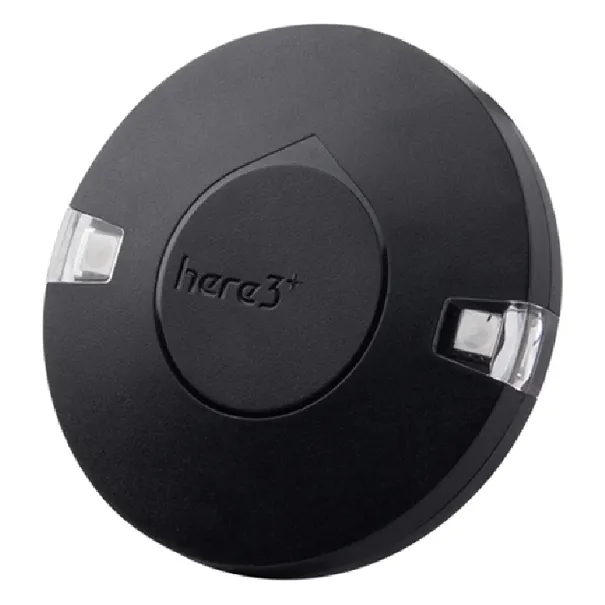

The CubePilot Here3+ is an RTK-capable GNSS and compass module bundled with an iStand mounting base, designed for ArduPilot and PX4 flight controllers. It brings centimetre-level RTK correction to autonomous copters, fixed-wing aircraft, agriculture drones and mapping platforms where GPS drift affects mission accuracy.
Key features
- RTK support for centimetre-level positioning (0.025 m) when paired with a correction input such as a base station
- Tracks GPS L1C/A, GLONASS L1OF and BeiDou B1I constellations, with an integrated three-axis compass for heading
- Dual-core STM32H757 processor communicating over the DroneCAN protocol for high data rates and noise immunity
- Carbon-fibre housing on a vibration-damped iStand mount, supplied with an Allen key and mounting bolts for a clean install
Specifications
- GNSS receiver: u-blox M8P-2
- Accuracy: 2.5 m 3D fix, 0.025 m RTK
- Navigation update rate: 8 Hz
- Processor: STM32H757, 400 MHz
- Sensors: ICM42688 IMU, RM3100 compass
- Protocol: DroneCAN, 8 Mbit/s
- Operating temperature: -40 to 85 C

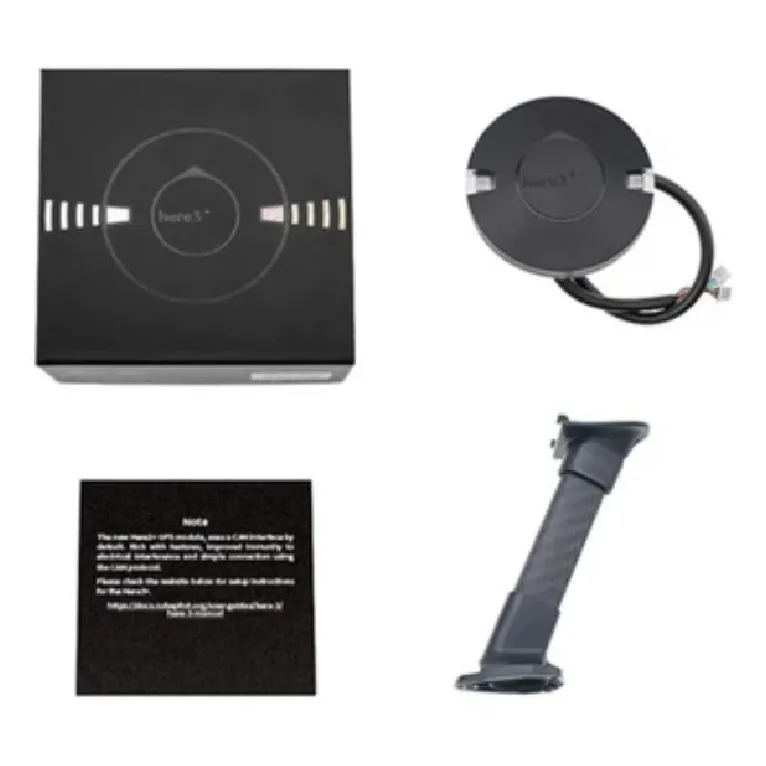

- In the box: Here3+ module, iStand, Allen key, 5 nuts, 5 bolts
Suited to builds where GPS drift affects the outcome — waypoint navigation, surveying, precision agriculture and autonomous return-to-home. Not intended for racing or freestyle FPV quads running Betaflight.
| Compass Included | Yes |
|---|---|
| Made in India | No |
| Brand | CubePilot |
| RTK Support | Yes |
| GNSS Chipset | u-blox M8P |
