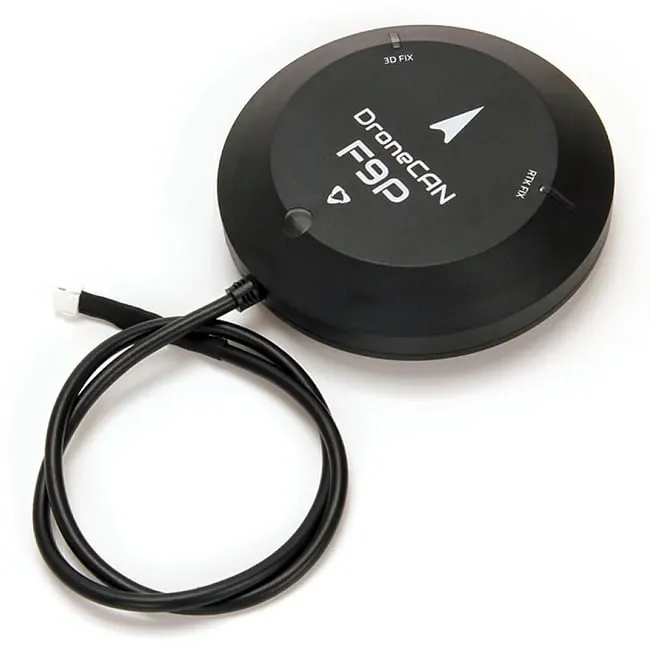

Holybro DroneCAN H-RTK F9P Rover GNSS Module (42cm)

The Holybro DroneCAN H-RTK F9P Rover is a high-precision GNSS receiver built for professional ArduPilot and PX4 applications, including heavy-lift multirotors, agricultural drones, and autonomous ground vehicles. By transitioning from traditional UART to the robust DroneCAN protocol, this module ensures fault-tolerant, high-speed data transmission while dramatically reducing EMI susceptibility. Powered by the industry-standard ZED-F9P chipset, it delivers rapid satellite acquisition and stable centimetre-level RTK positioning.

Key features

• Powered by the multi-band u-blox ZED-F9P module for concurrent reception of GPS, GLONASS, Galileo, and BeiDou
• DroneCAN protocol (1Mbit/s) provides superior noise immunity and allows simple daisy-chaining with other CAN peripherals
• Delivers centimetre-level navigation accuracy when paired with a fixed RTK base station
• Integrated magnetometer for reliable yaw alignment in complex magnetic environments
• Includes a 42cm cable configuration, ideal for routing through larger commercial airframes or rover chassis

Specifications

• GNSS Chipset: u-blox ZED-F9P
• Protocol: DroneCAN (1Mbit/s)
• Supported Constellations: GPS, GLONASS, Galileo, BeiDou
• GNSS bands: B1I, B2I, E1B/C, E5b, L1C/A, L1OF, L2C, L2OF
• Max Update Rate: 8Hz (RTK), 20Hz (raw)
• Positioning Accuracy: 3D fix 1.5m, RTK 0.01m
• Time to first fix: cold start 29 s or less, hot start 1 s or less
• Working Voltage: 4.75-5.25V
• Current draw: approx. 250 mA
• Processor: STM32G473
• Antenna: ceramic patch with 20 dB LNA
• Cable length: 42 cm
• Dimensions: 80mm diameter x 20mm height
• Weight: 123g
• Compass: Integrated (BMM150 or IST8310)
• Supported Firmware: ArduPilot, PX4
• In the box: fixed carbon fibre GPS mount

This Rover module is designed specifically to be mounted on the moving vehicle. It is the definitive choice for builders who require survey-grade navigation accuracy and the wiring reliability of a CAN bus architecture.
