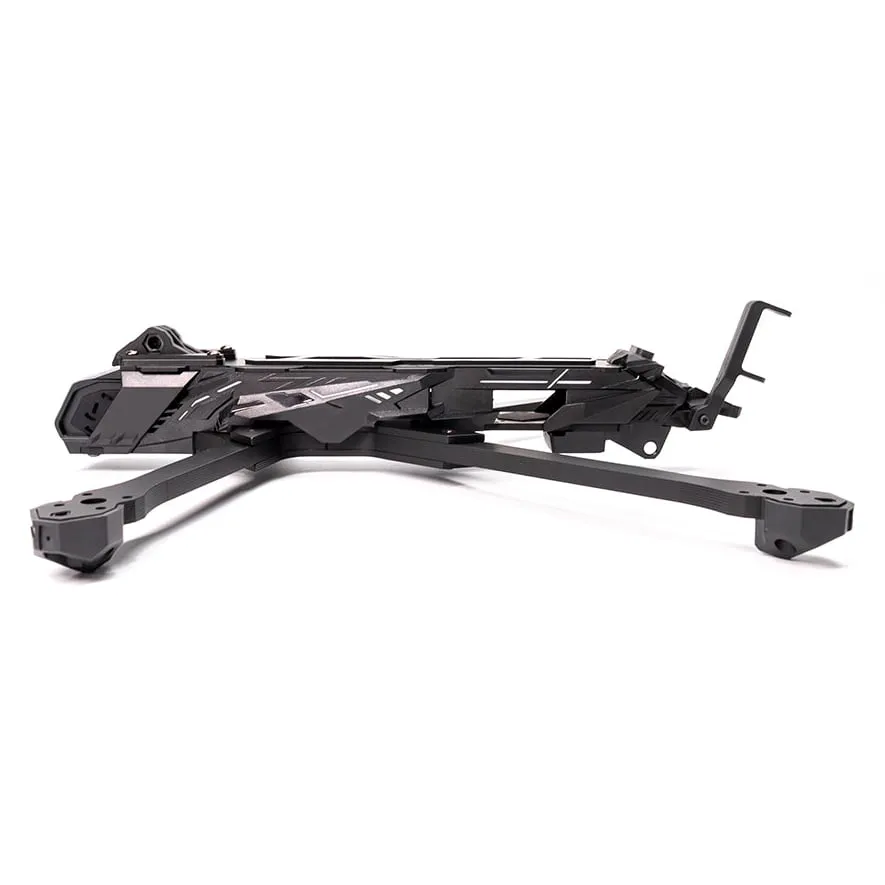

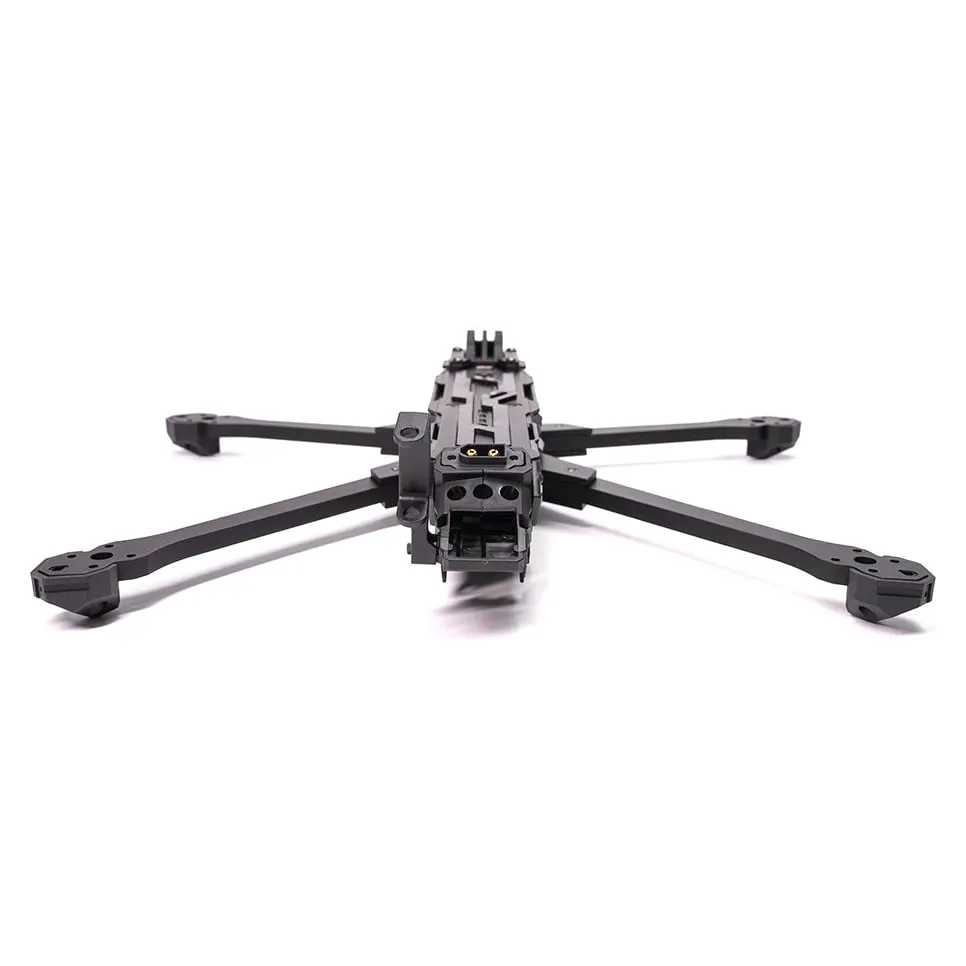

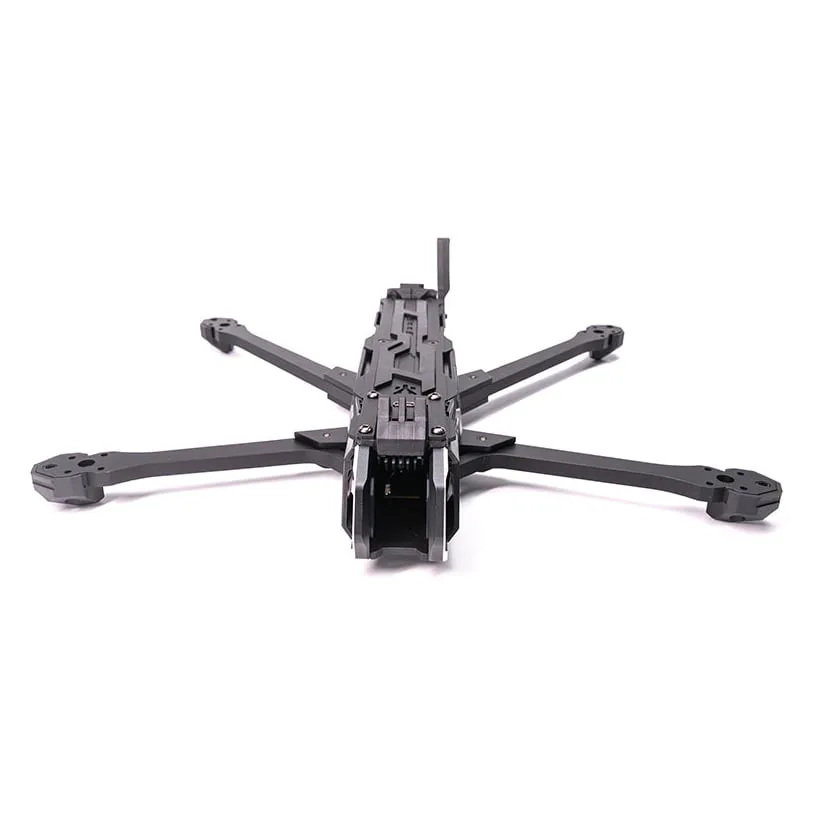

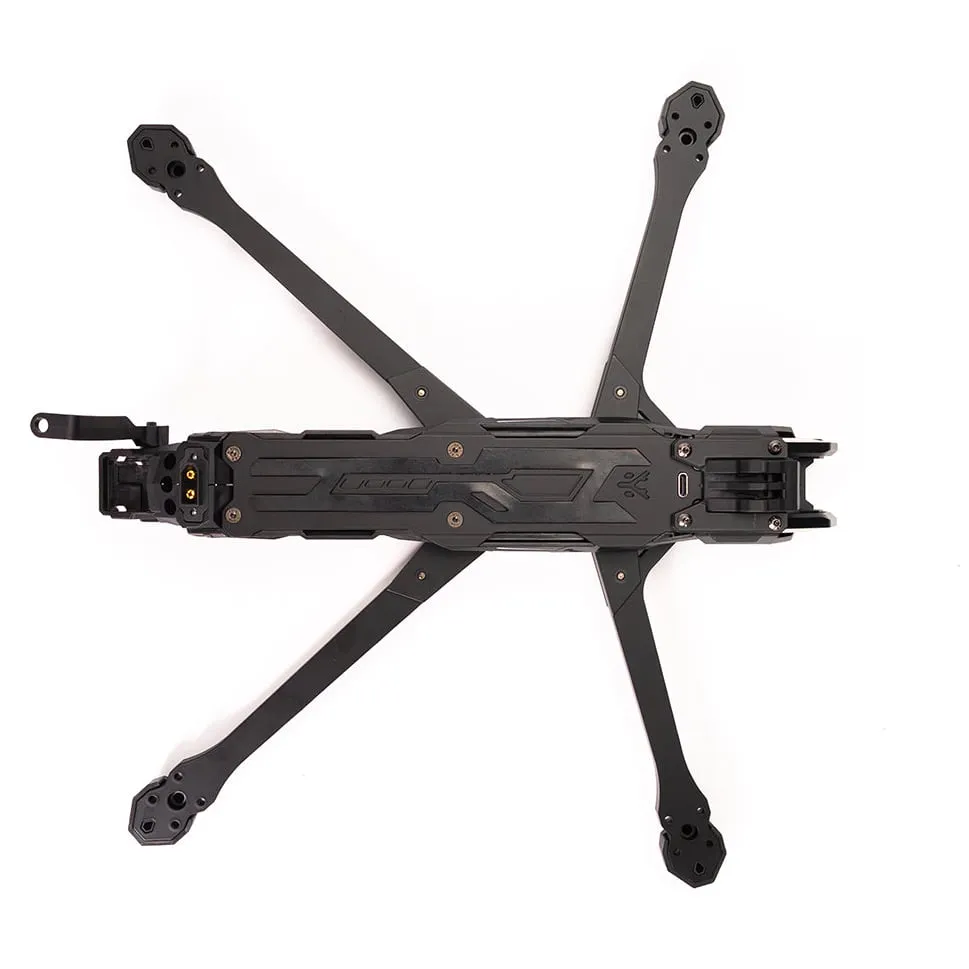

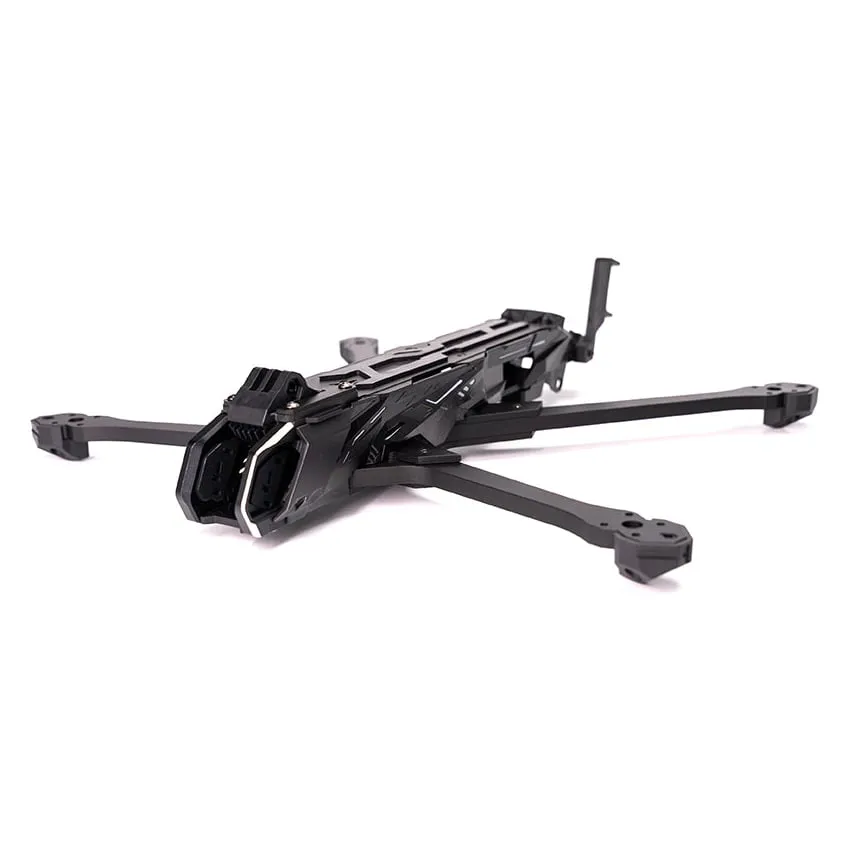

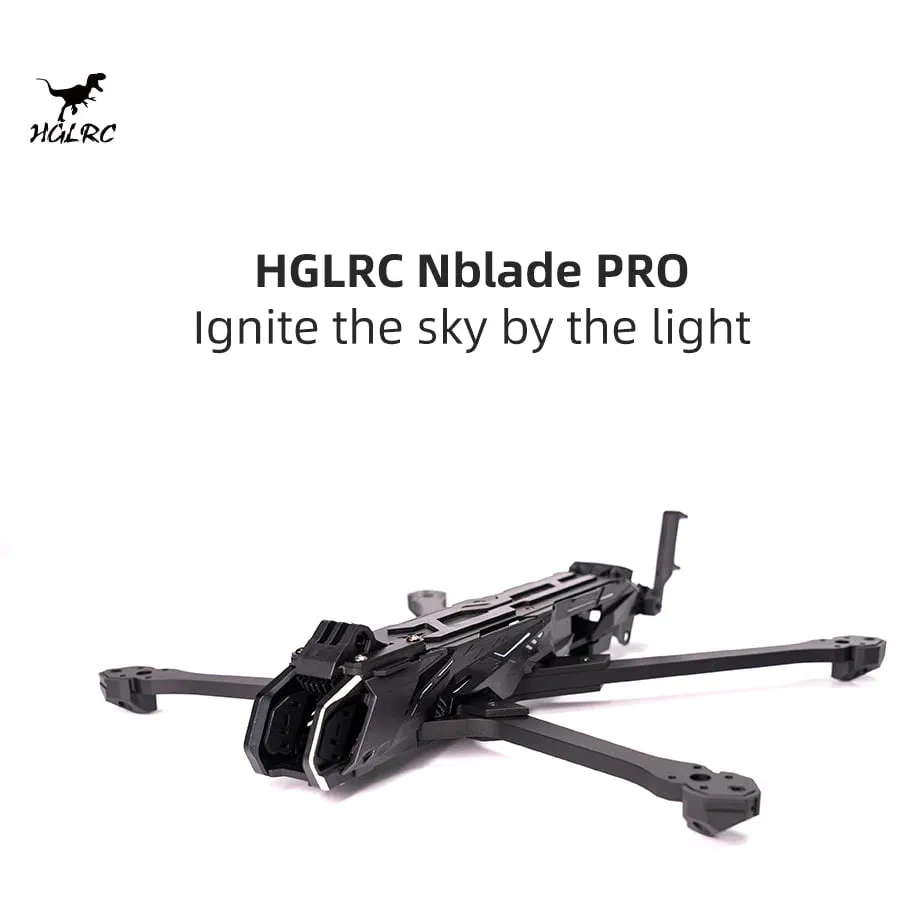

HGLRC Nblade Pro 7 Inch Freestyle Cinematic FPV Frame

The HGLRC Nblade Pro is a 7-inch FPV frame intended for freestyle and cinematic quadcopters. It gives builders a large-format platform for assembling a custom aircraft around 7-inch propellers, with a 331.8mm wheelbase built for smooth long-range cruising as well as hard freestyle flying.

Key features

• Toray T700 carbon fibre and aluminium construction, with wear-resistant injection-moulded ABS/PP parts that absorb shocks and vibration.

• Fully covered side plates keep dust, sand and debris away from the electronics.

• Independent quick-release receiver compartment for easy installation and maintenance.

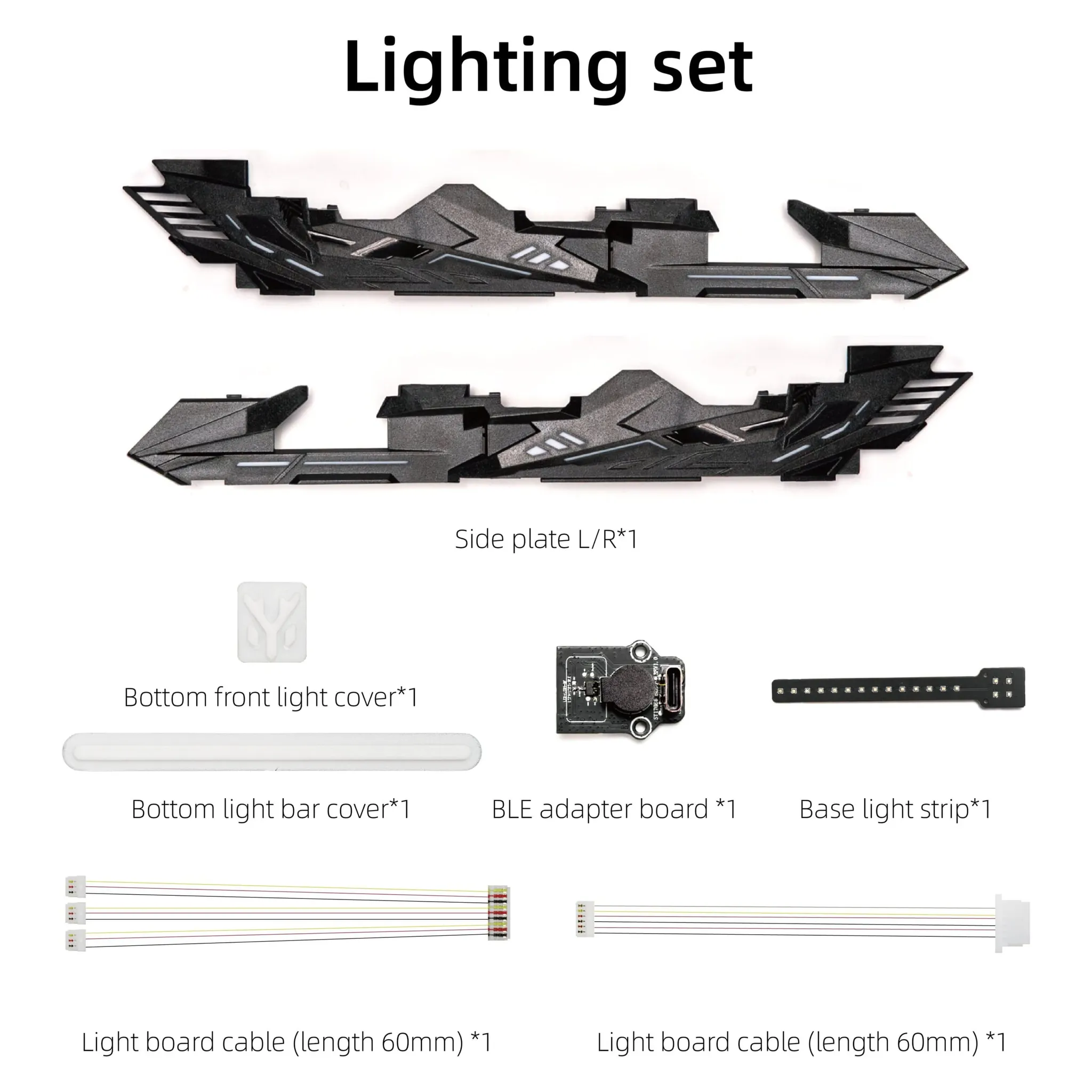

• Built-in RGB LED light strips with effects controlled from a smartphone app over Bluetooth.

• Reinforced front and rear arms, plus a GoPro mount, GPS mount, buzzer mount and VTX heat-dissipation aluminium part in the kit.

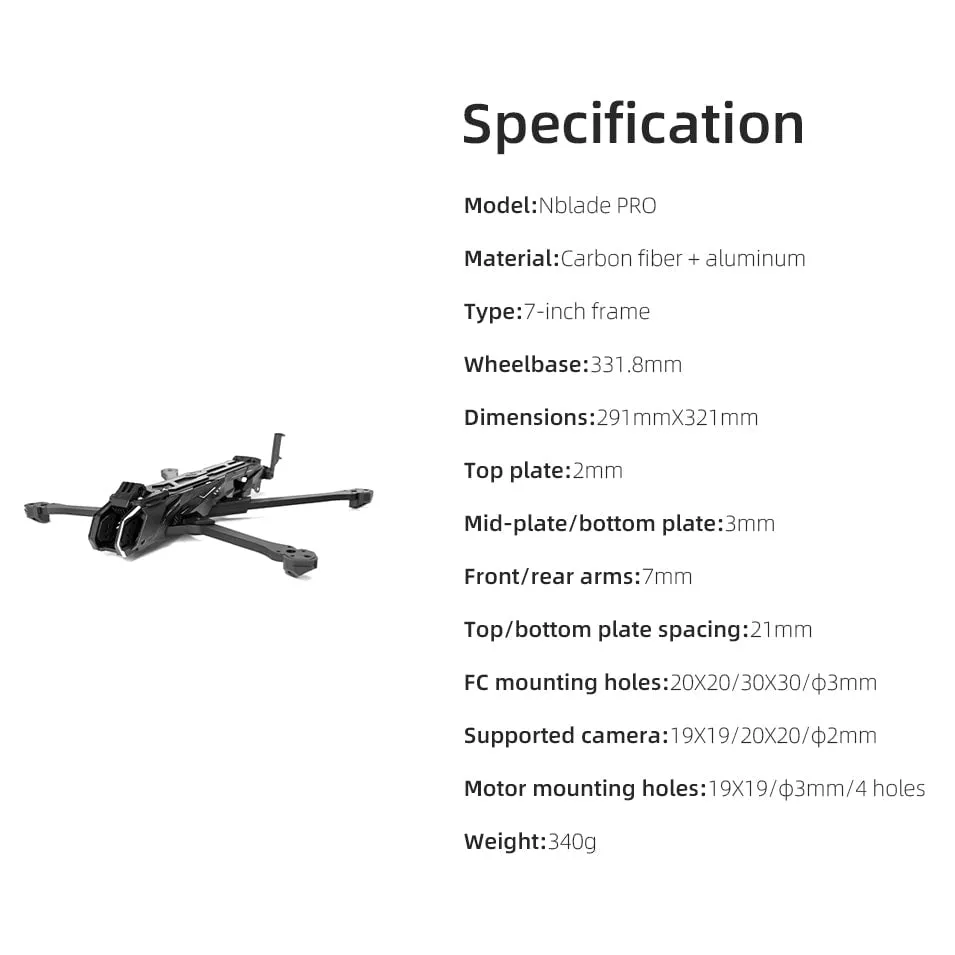

Specifications

• Propeller class: 7 inch

• Application: Freestyle and cinematic FPV

• Wheelbase: 331.8 mm

• Arm thickness: 7 mm (front and rear arms)

• Plate thickness: 2 mm top, 3 mm middle and bottom

• Top to bottom plate spacing: 21 mm

• FC mounting: 20x20 mm / 30x30 mm (M3)

• Camera support: 19 mm / 20 mm

• Battery connector: XT60 (included)

Check the required motor mounting pattern, camera format and electronics mounting dimensions before selecting the remaining components.
