5.8GHz RHCP Circular Polarised FPV Antenna (SMA / RP-SMA)

₹499Incl. GST

SKU GEN-RHCP-58G-ANT-RPSMA-LONG

Length: Long

Connector: RP-SMA

Polarization: RHCPAntenna Connector: SMA, RP-SMAFrequency: 5.8GHzMade in India: No
Dispatched within 3–4 business days — quality-checked in Gurugram

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

Product details

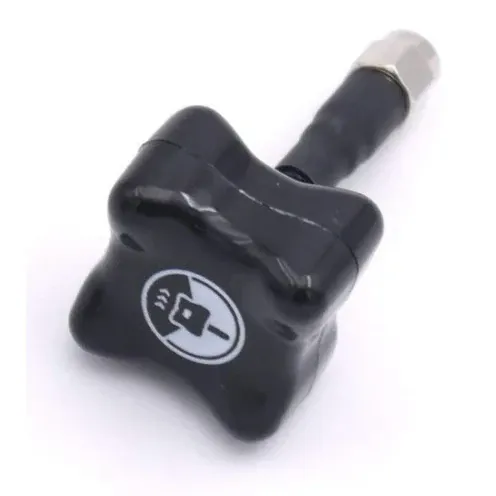

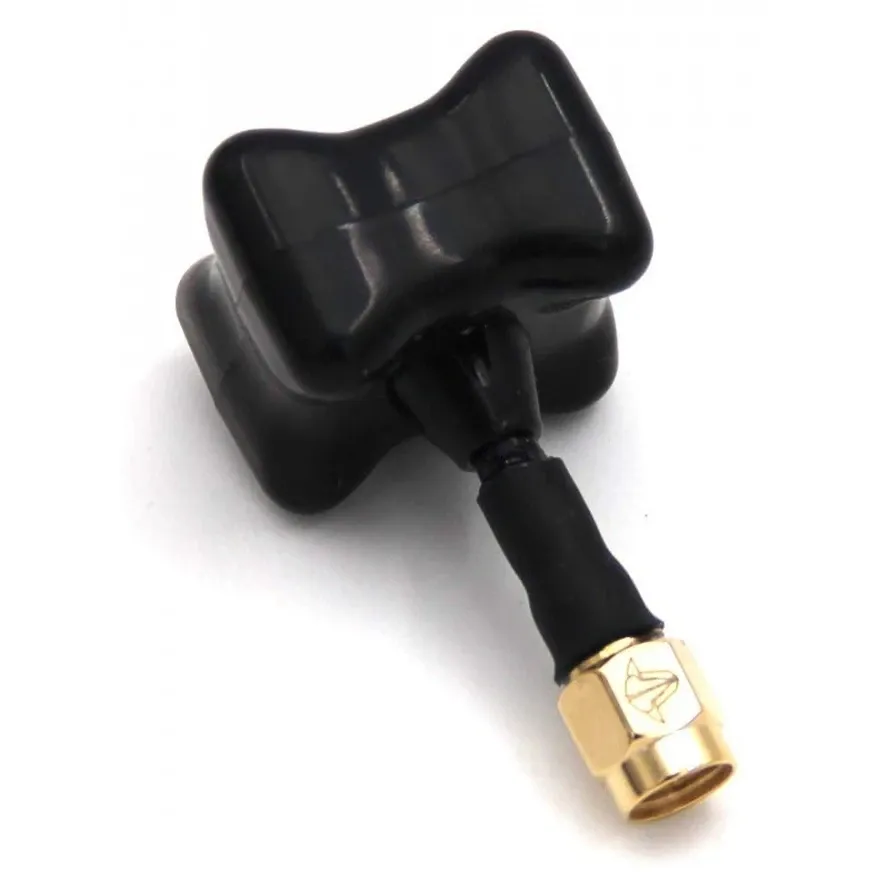

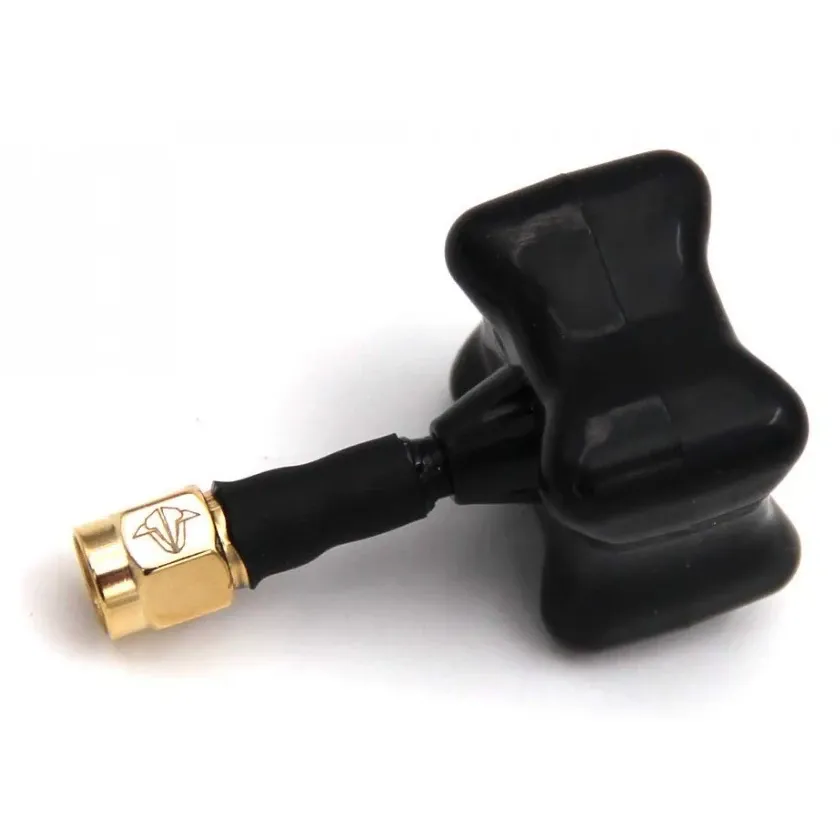

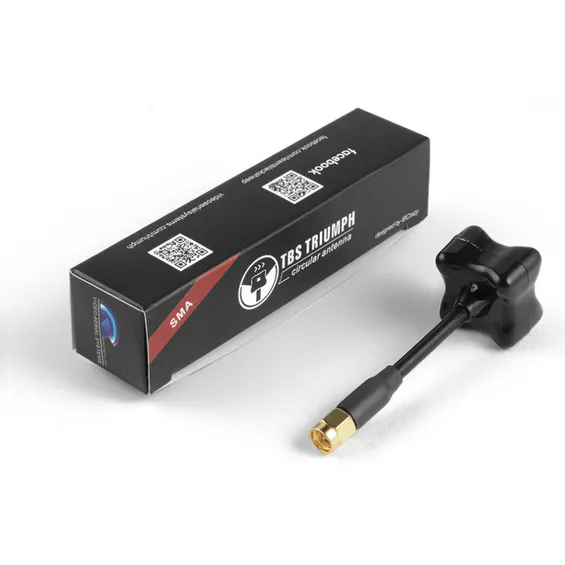

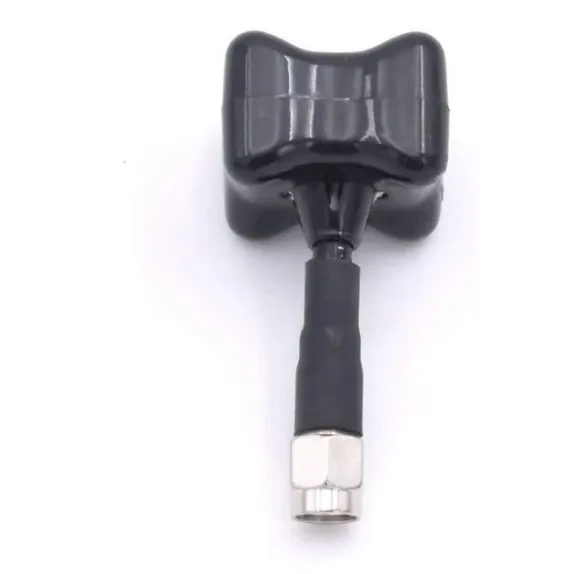

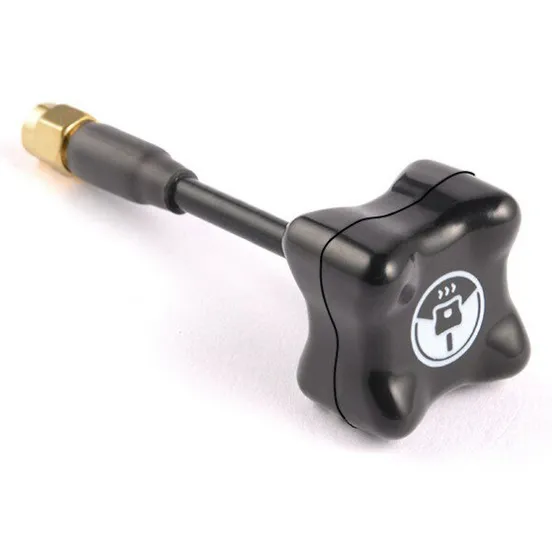

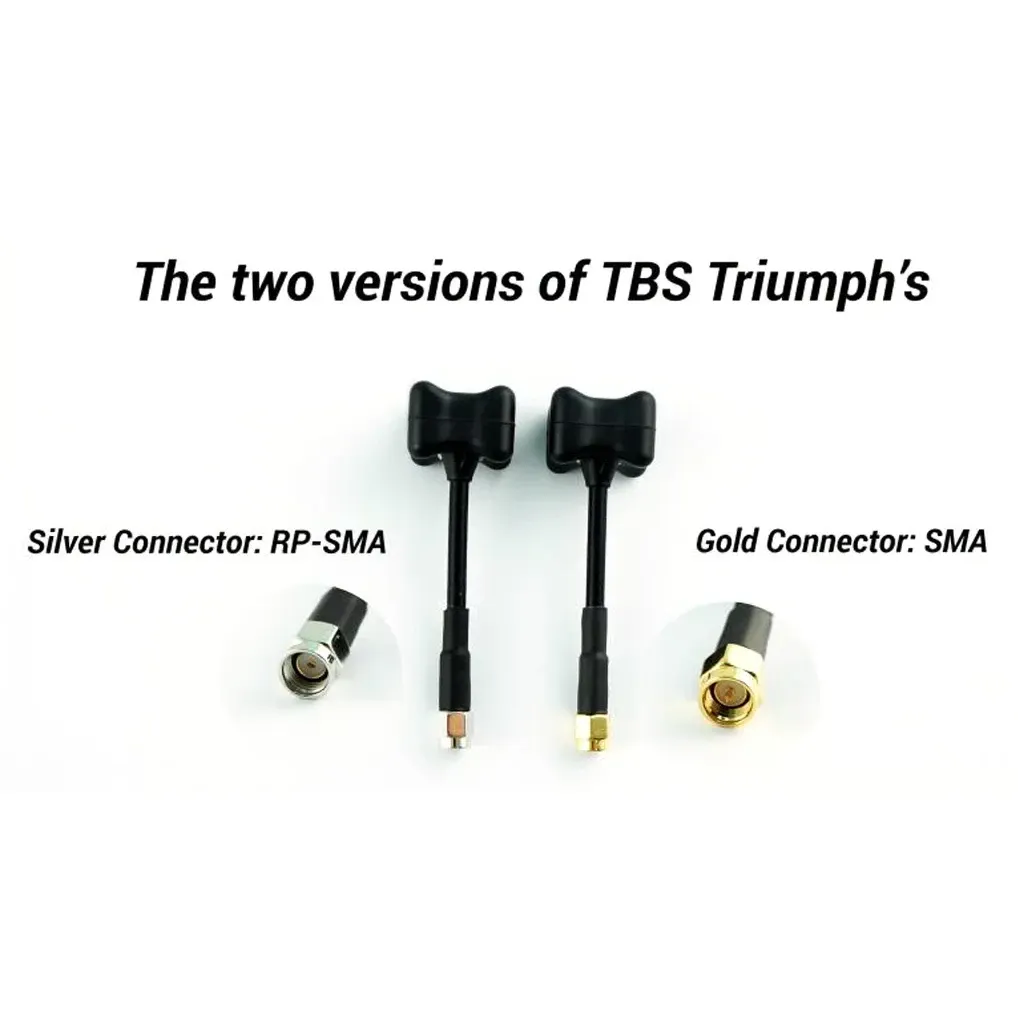

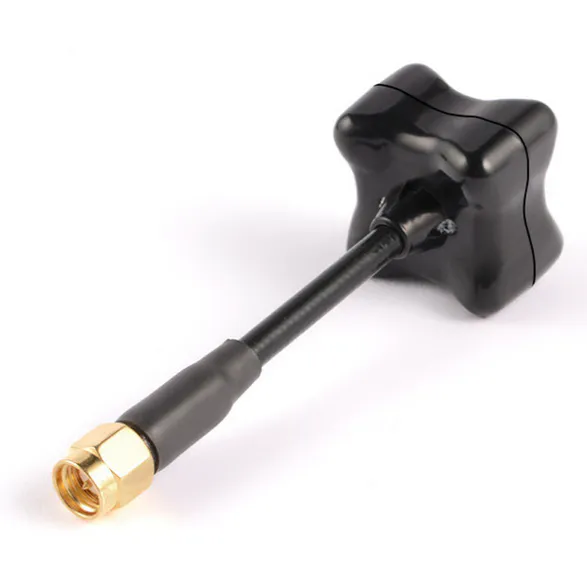

A compact 5.8GHz right-hand circular polarised (RHCP) antenna for FPV video transmitters, goggles and receivers. The short version keeps a low profile on racing and freestyle quads, while the long version lifts the element further clear of the frame. Each length comes with either an SMA or an RP-SMA male connector.

Key features

  • Covers 5.5–6.0 GHz with 1.26 dBic gain and a 0.74 axial ratio for clean circular polarisation.
  • Heavy-duty RG402 semi-rigid coax with a double jacket and tin-plated connector resists crash damage.
  • Foam-filled, ultrasonically welded housing protects the element from impacts.

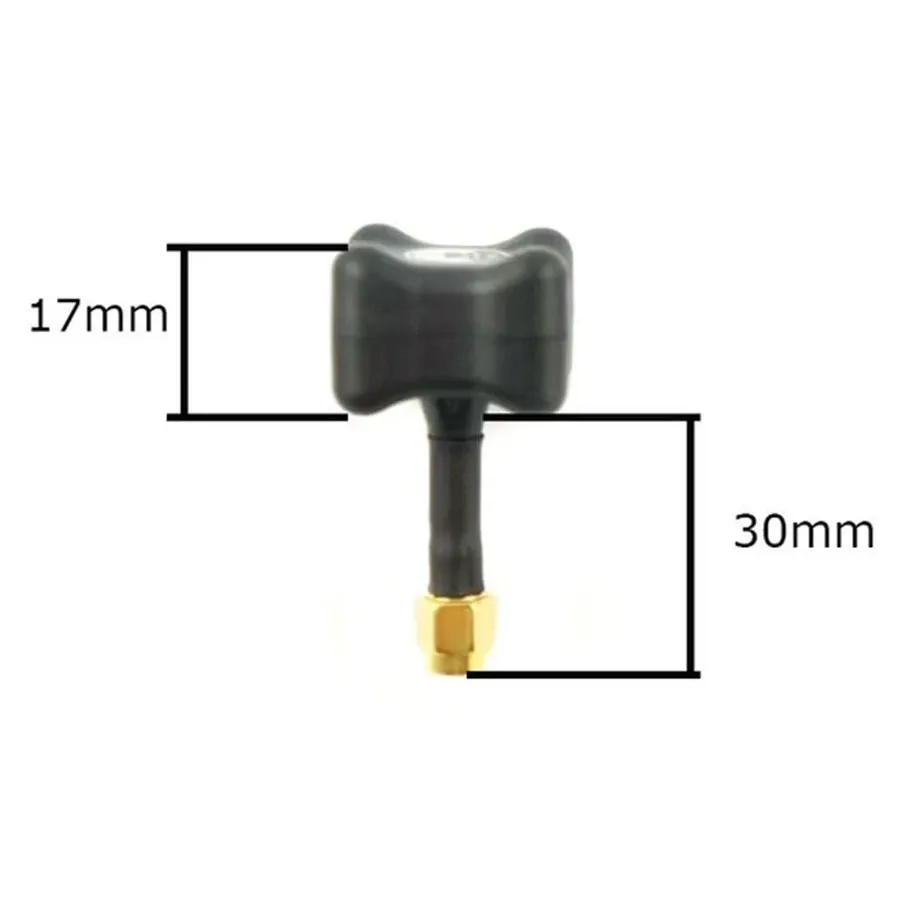

  • Short version stands about 50 mm tall and weighs 8.5 g; the long version is about 82 mm.

Specifications

  • Frequency: 5.5–6.0 GHz
  • Polarisation: RHCP
  • Gain: 1.26 dBic
  • Axial ratio: 0.74
  • Cable: RG402 semi-rigid
  • Connector: SMA male or RP-SMA male
  • Length: approx. 50 mm (short), 82 mm (long)
  • Weight: 8.5 g (short)

Match polarisation at both ends of the link: an RHCP antenna on the quad needs RHCP on the goggles or receiver, because mixing RHCP and LHCP throws away much of the signal. Check whether your VTX has an SMA or RP-SMA socket before choosing the connector.
