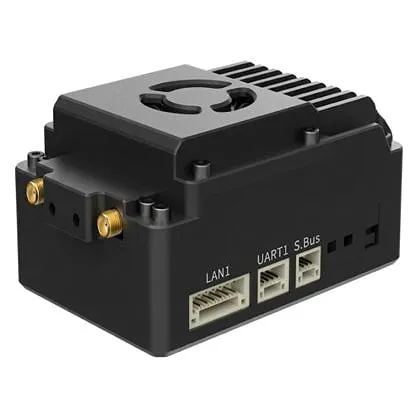

SIYI UniRC 7 Pro Air Unit Digital Receiver with 4 Antennas

The aircraft-side unit of the SIYI UniRC 7 Pro handheld ground station. One module carries the RC control link, the telemetry datalink and 1080p HD digital video between the drone and the UniRC 7 Pro, replacing a separate receiver, telemetry radio and video transmitter on industrial survey, inspection and agricultural spray drones.

Key features

• Dual-band link on 2.4GHz and 5.8GHz, with all four antennas supplied: two quick-release MMCX (5.8GHz) and two detachable IPEX (2.4GHz)
• 16-channel S.Bus plus 5 PWM outputs for the autopilot, servos and payload triggers
• Two UART datalink ports for telemetry to Pixhawk-class flight controllers
• Two LAN ports for IP cameras, gimbals and network data
• 12–76V input, so it runs straight off flight packs from 4S up to 18S LiPo

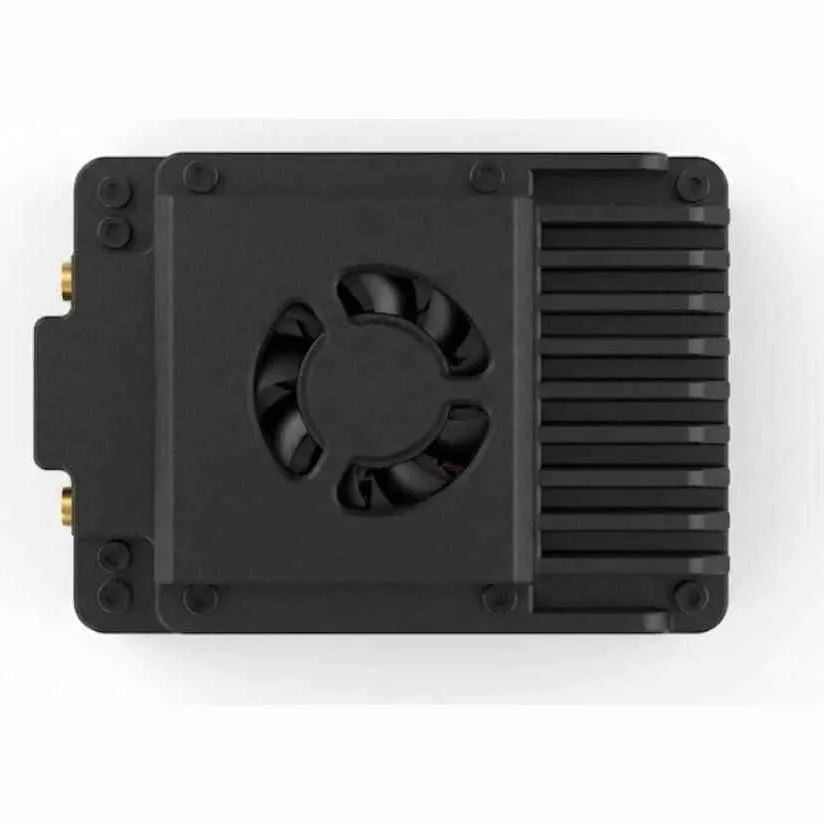

• Built-in cooling fan for long flights in hot conditions

Specifications

• Frequency: 2.4GHz and 5.8GHz dual-band
• Video: HD digital, up to 1080p
• RC outputs: 16-channel S.Bus, 5-channel PWM
• Datalink ports: 2 × UART (GH1.25 3-pin)
• Network ports: 2 × LAN (GH1.25 8-pin)
• Antennas: 2 × MMCX (5.8GHz), 2 × IPEX (2.4GHz)
• Input voltage: 12–76V
• Average power consumption: 8W
• Dimensions: 63 × 40 × 27 mm (without antennas)
• Weight: 115 g (without antennas)

This is the air unit for the UniRC 7 Pro ground station. The standard UniRC 7 ships with a smaller, 2.4GHz-only air unit with two antennas, so check which ground station you own before ordering.
