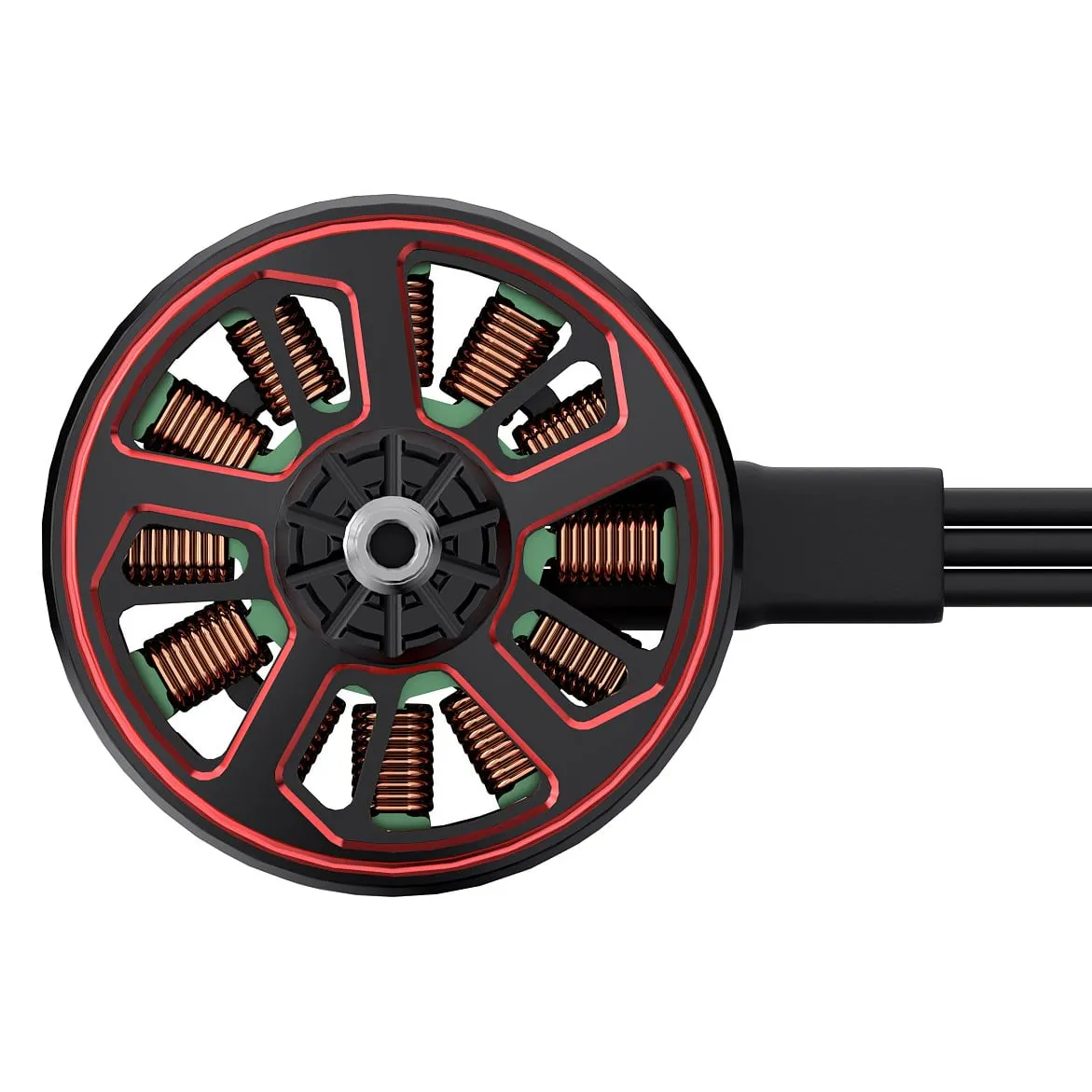

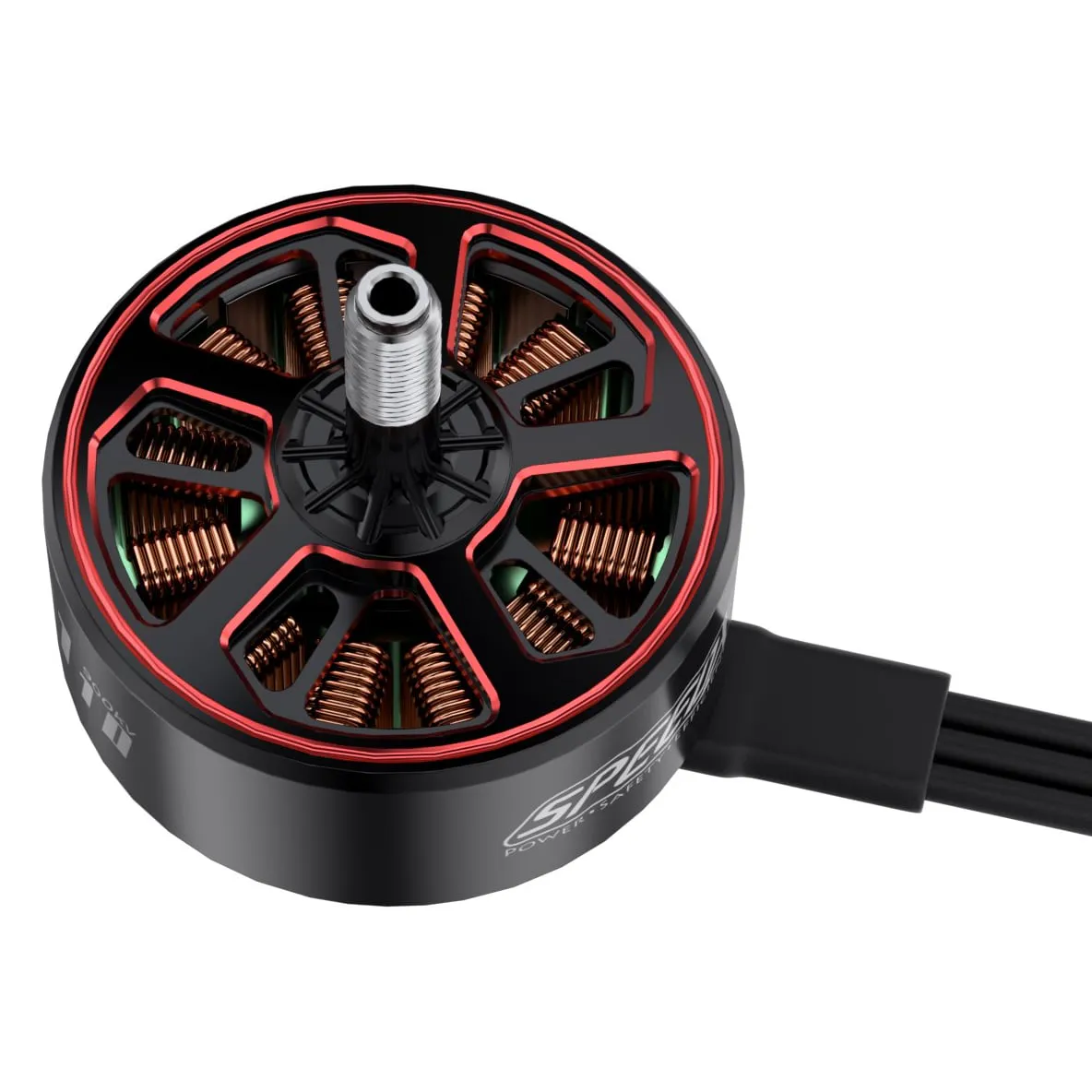

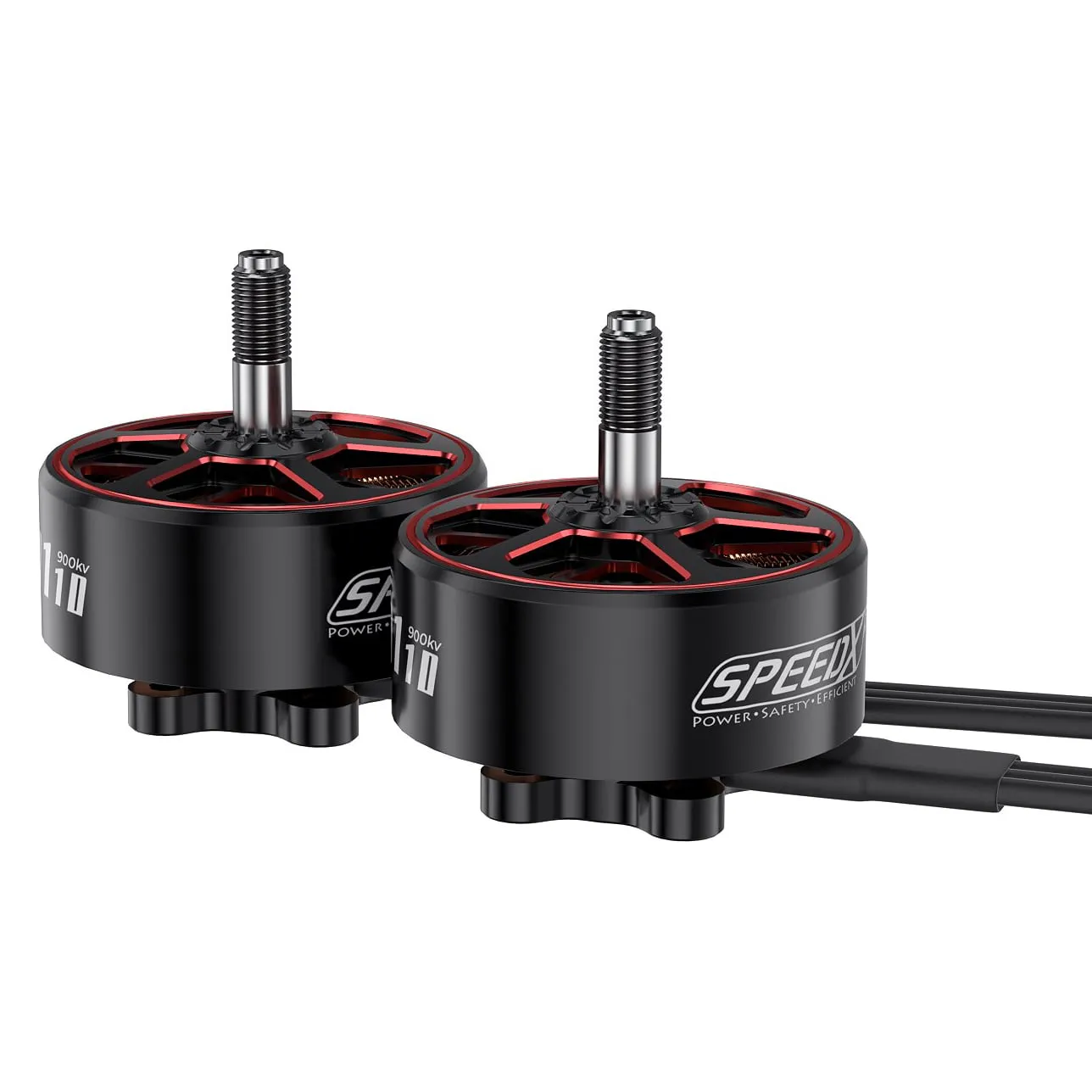

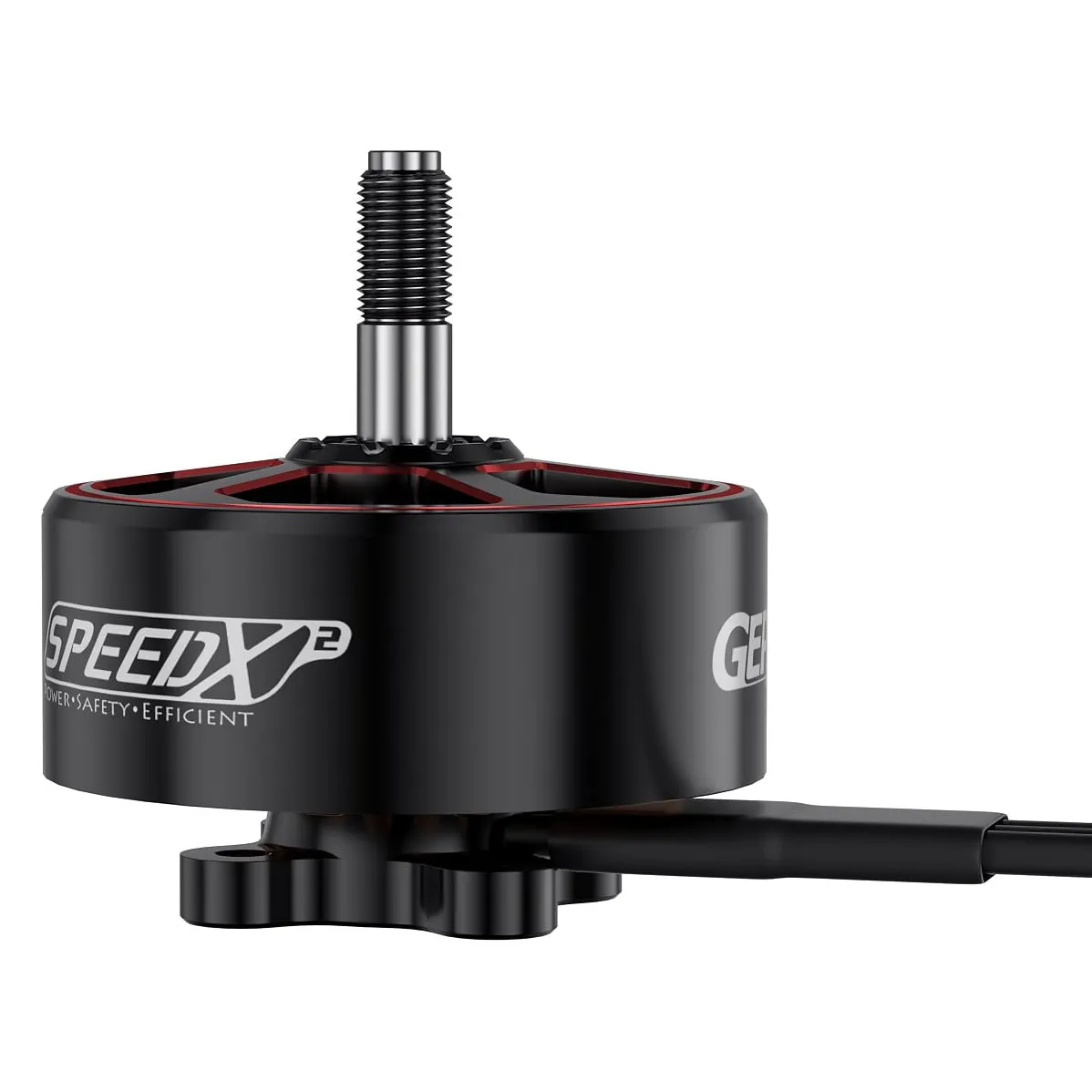

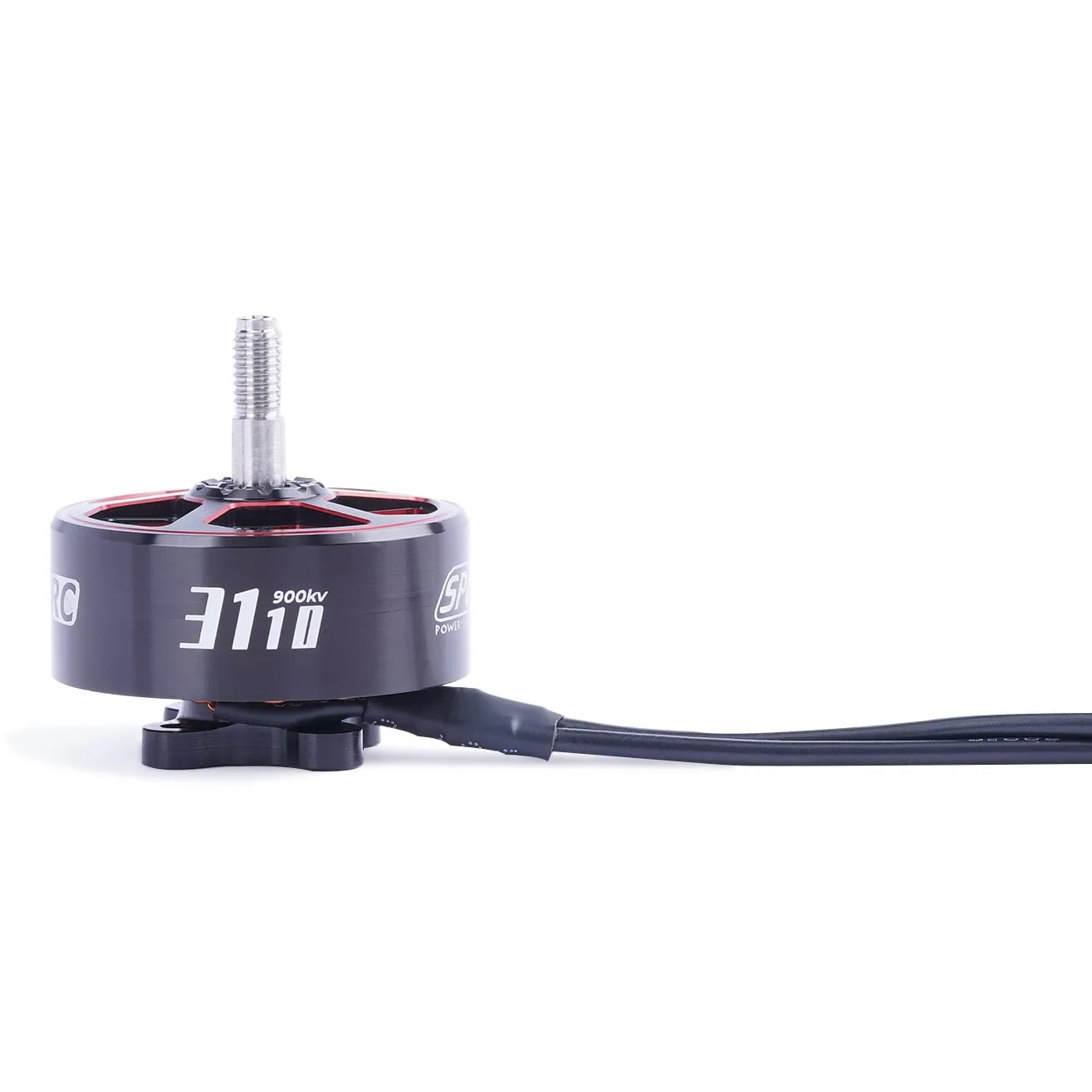

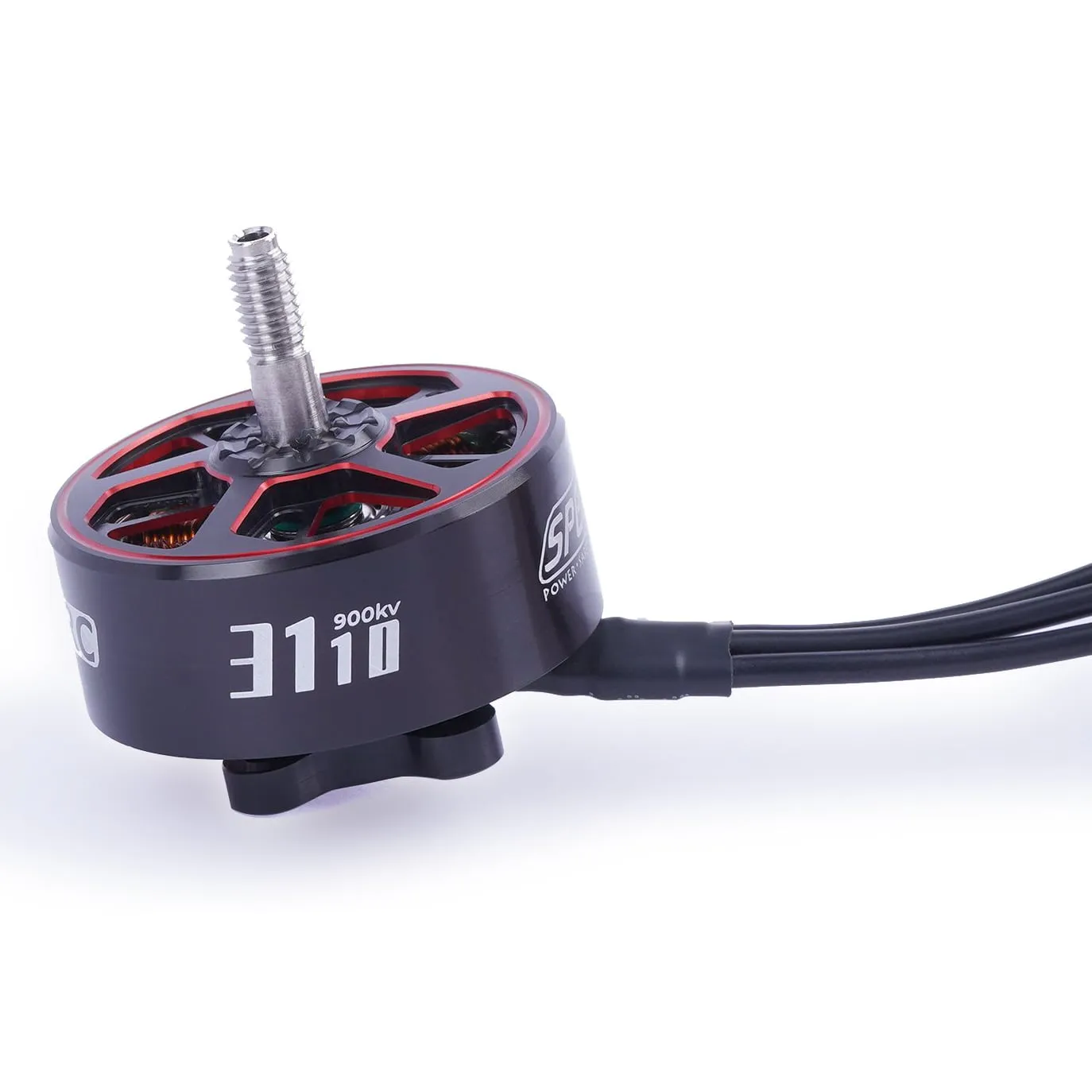

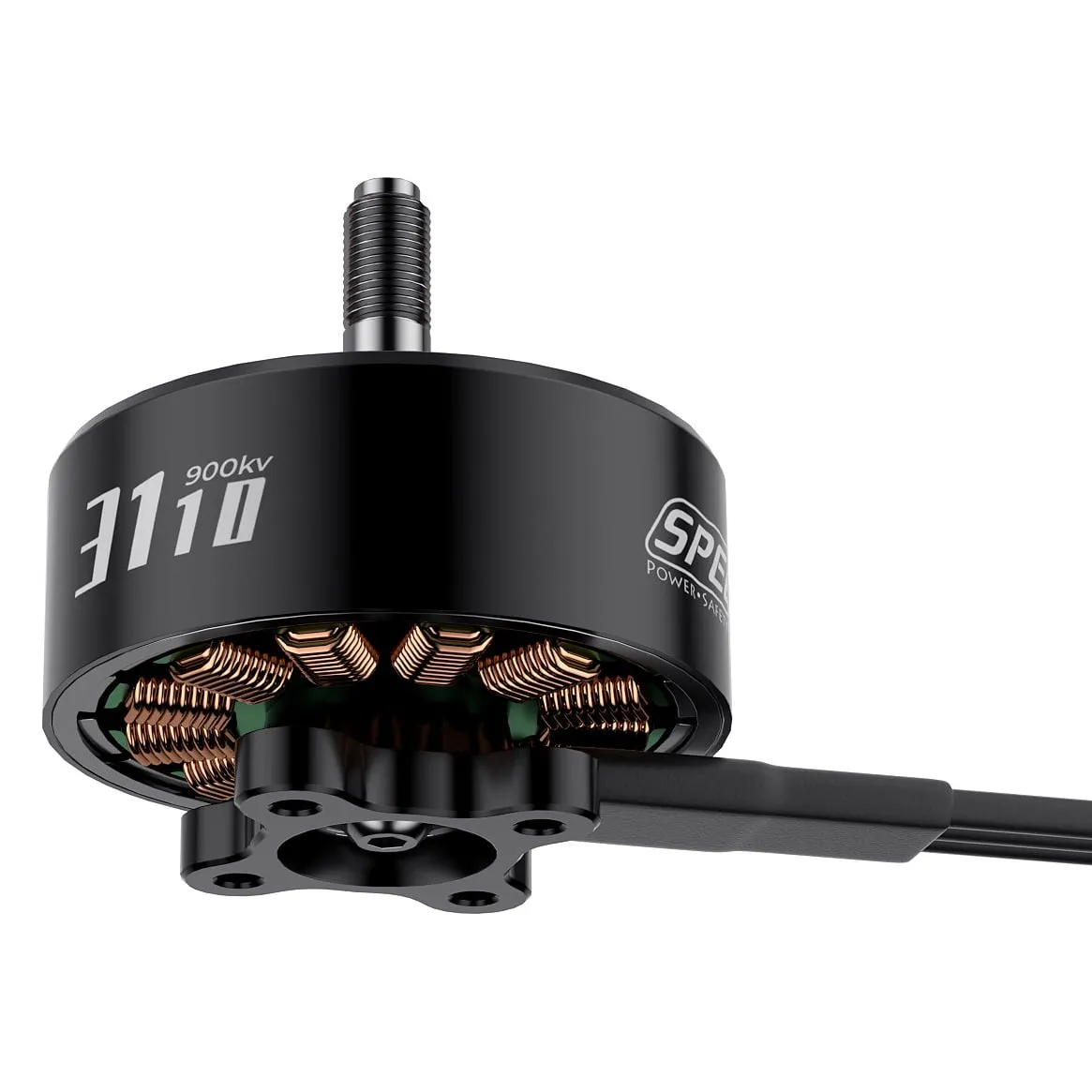

GEPRC SpeedX2 3110 900KV Motor

The GEPRC SpeedX2 3110 900KV is a high-torque brushless motor engineered for 7-inch to 9-inch long-range cruisers, heavy-lift cinematic rigs, and macro FPV platforms. Optimised for 6S power systems, this wide 3110 stator delivers the necessary low-end torque to confidently carry heavy payloads, such as full-size cinema cameras or large battery packs, without generating excessive heat.

Key features

• Aviation-grade 7075-T6 aluminium bell design provides high structural rigidity and aggressive heat dissipation.
• Fitted with temperature-resistant N52H arc magnets and a 12N14P configuration for a smooth, highly linear throttle response.
• High-strength titanium alloy shaft prevents bending during heavy impacts or hard landings.

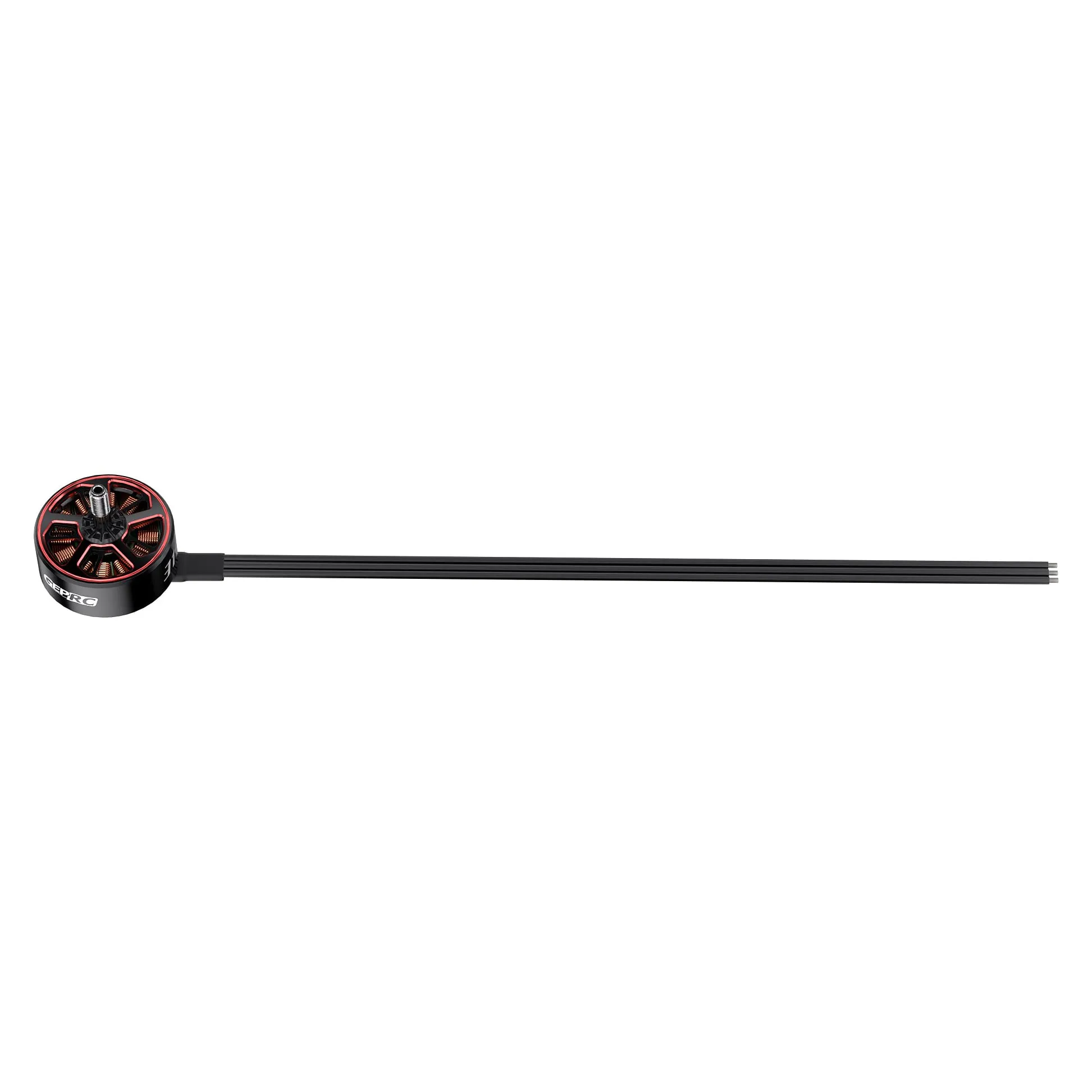

• Pre-soldered with 250mm of 18AWG silicone wire to easily reach 4-in-1 ESCs on large long-range and X-class frames.

Specifications

• KV: 900
• Configuration: 12N14P
• Stator Size: 3110
• Magnets: N52H Arc
• Mounting Pattern: 19x19mm (M3)
• Propeller Shaft: 5mm (M5)
• Input Voltage: 6S LiPo
• Motor Wires: 18AWG, 250mm length
• Weight: 76.5g (including wire)

Pair this 900KV variant with a robust 6S LiPo and 7 to 9-inch propellers to maximise flight times and load-bearing efficiency on your next heavy-lift build.
