GEPRC SpeedX2 2809 1280KV Motor

The GEPRC SpeedX2 2809 1280KV is a large-stator brushless motor built for 7-inch long-range FPV drones, 8-inch macroquads, and heavy-lift cinelifters. Paired with a 6S LiPo, the wide 28mm stator generates the torque required to spin aggressive 7-inch props while maintaining an efficient power curve for extended cruising flight times.

Key features

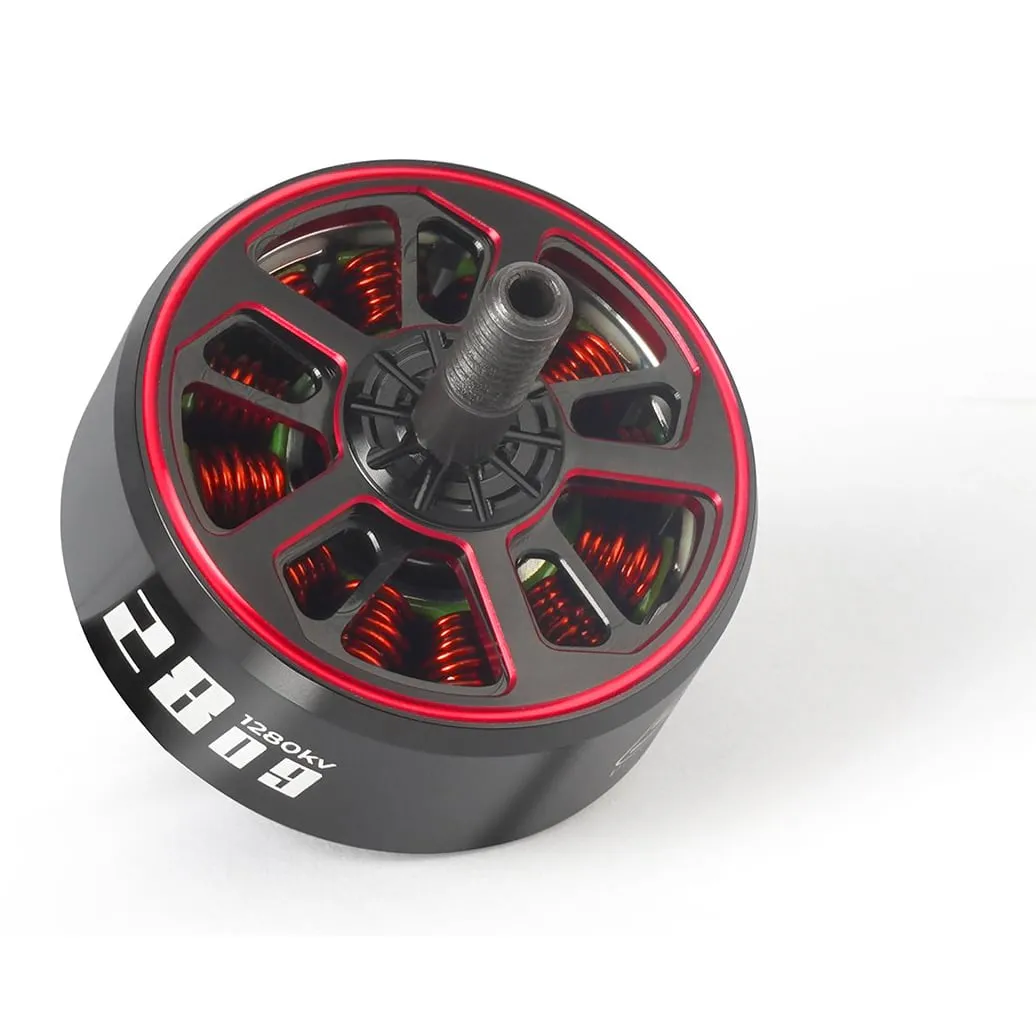

• Constructed with temperature-resistant N52H arc magnets in a 12N14P configuration

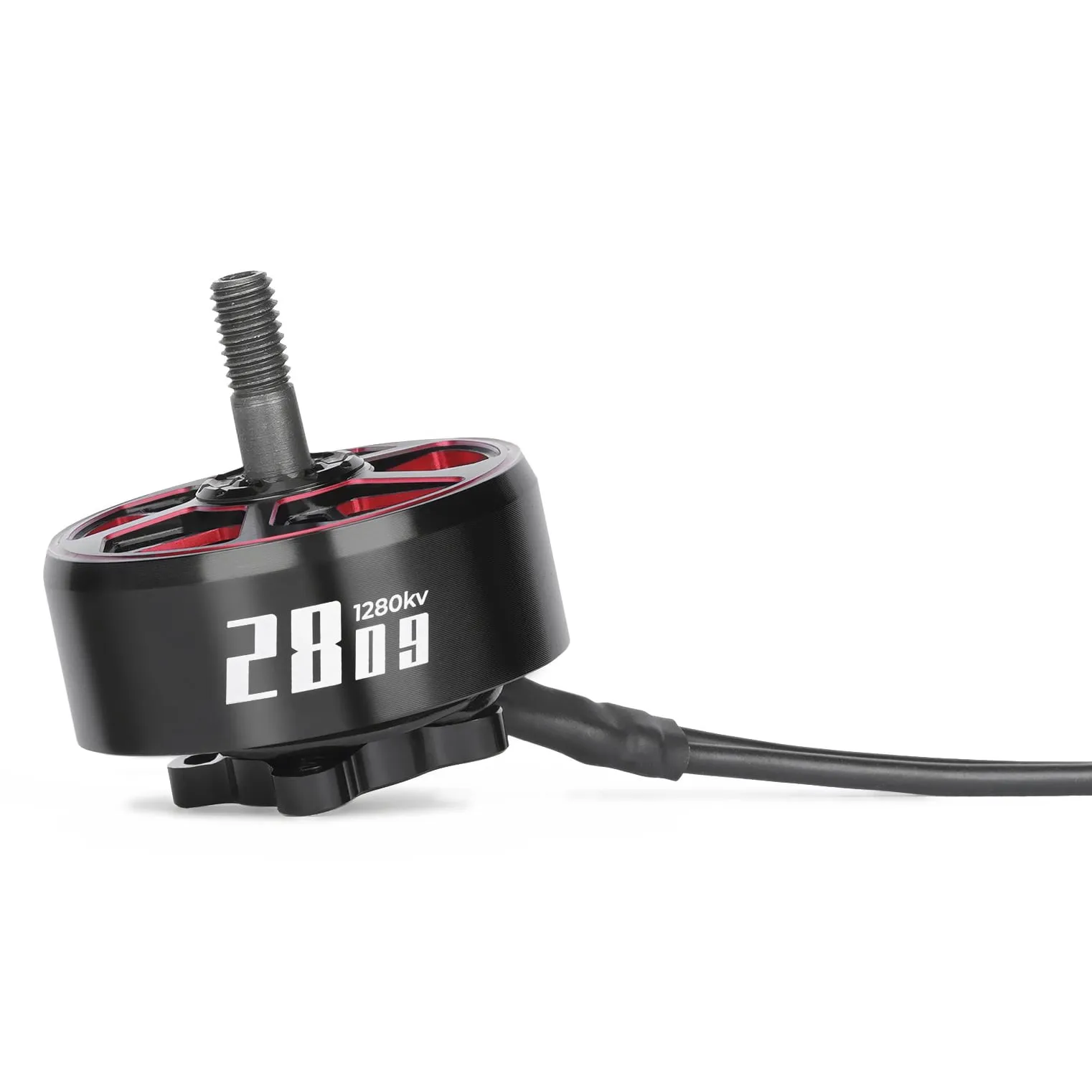

• Pre-soldered with 250mm of 18AWG silicone wire to reach centre-mounted ESCs on large frames

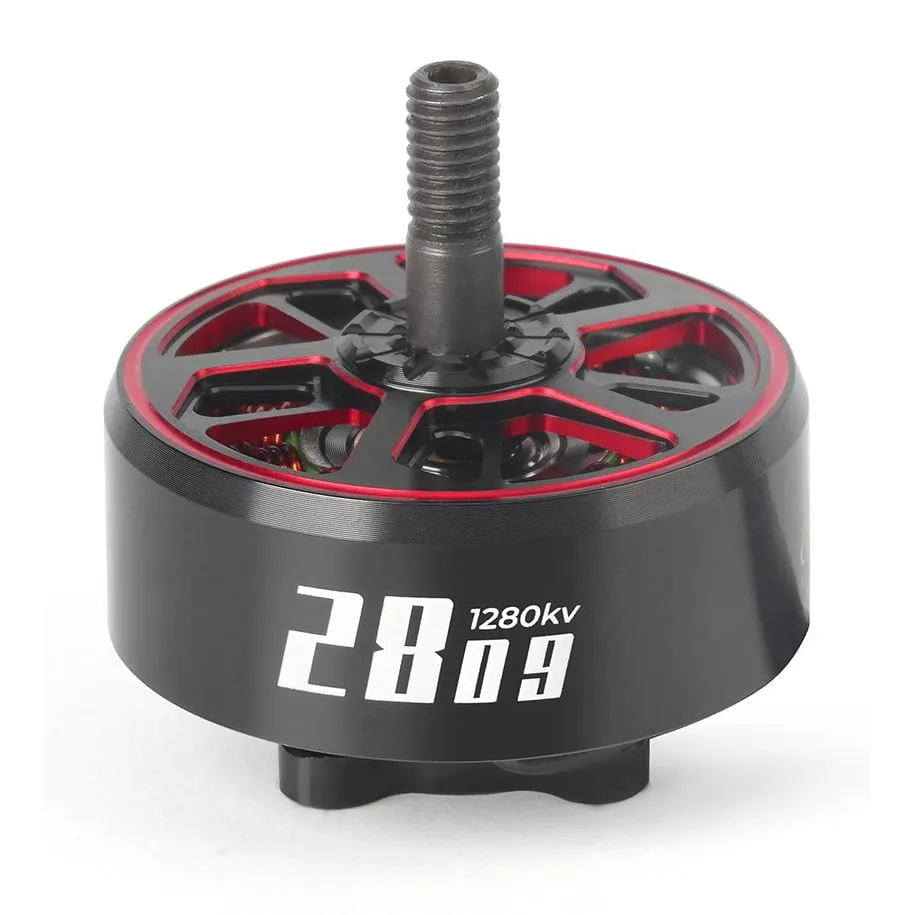

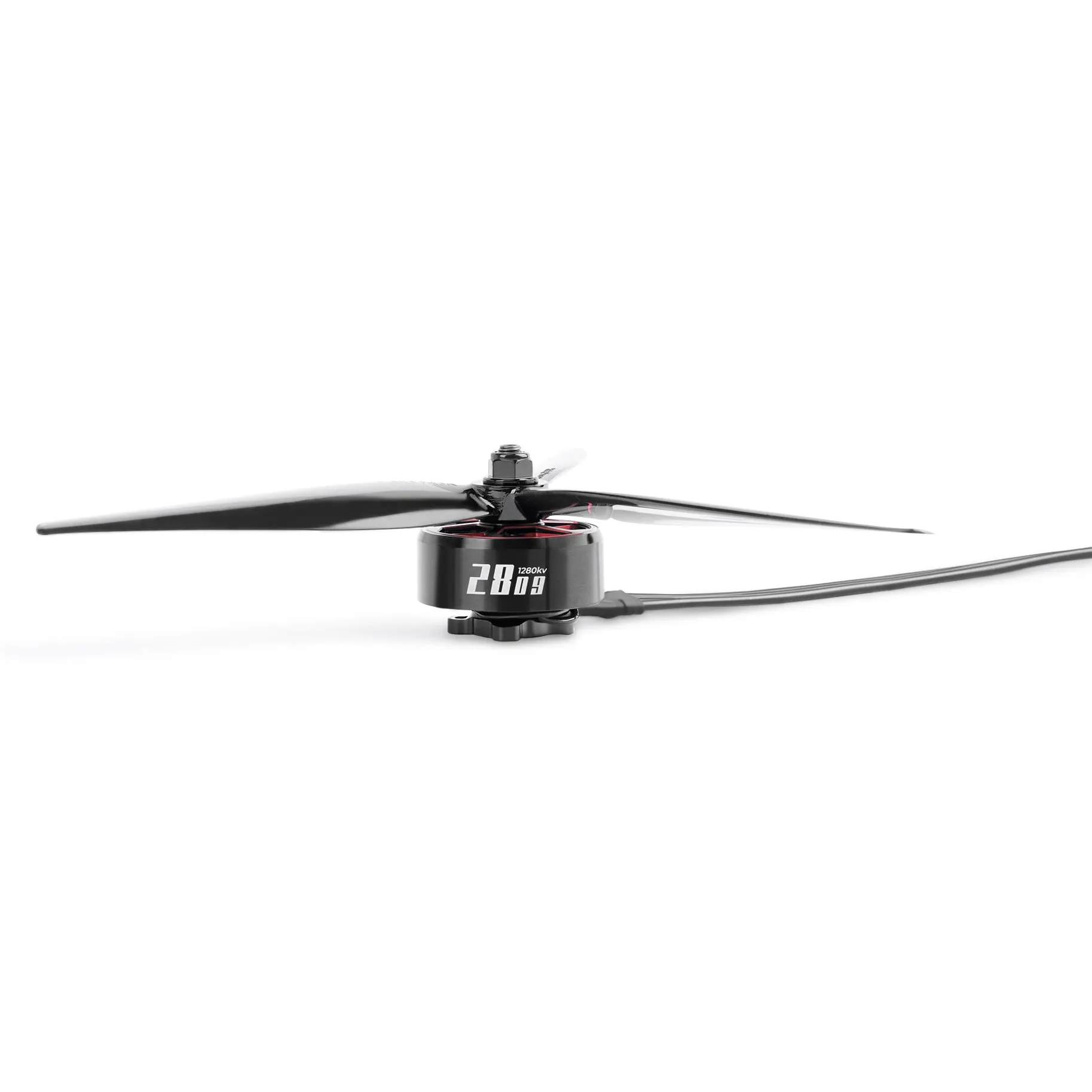

• Standard M5 threaded prop shaft securely seats deep-pitch 7-inch and 8-inch propellers

Specifications

• KV: 1280
• Configuration: 12N14P
• Input Voltage: 6S LiPo
• Stator Size: 2809
• Magnets: N52H Arc

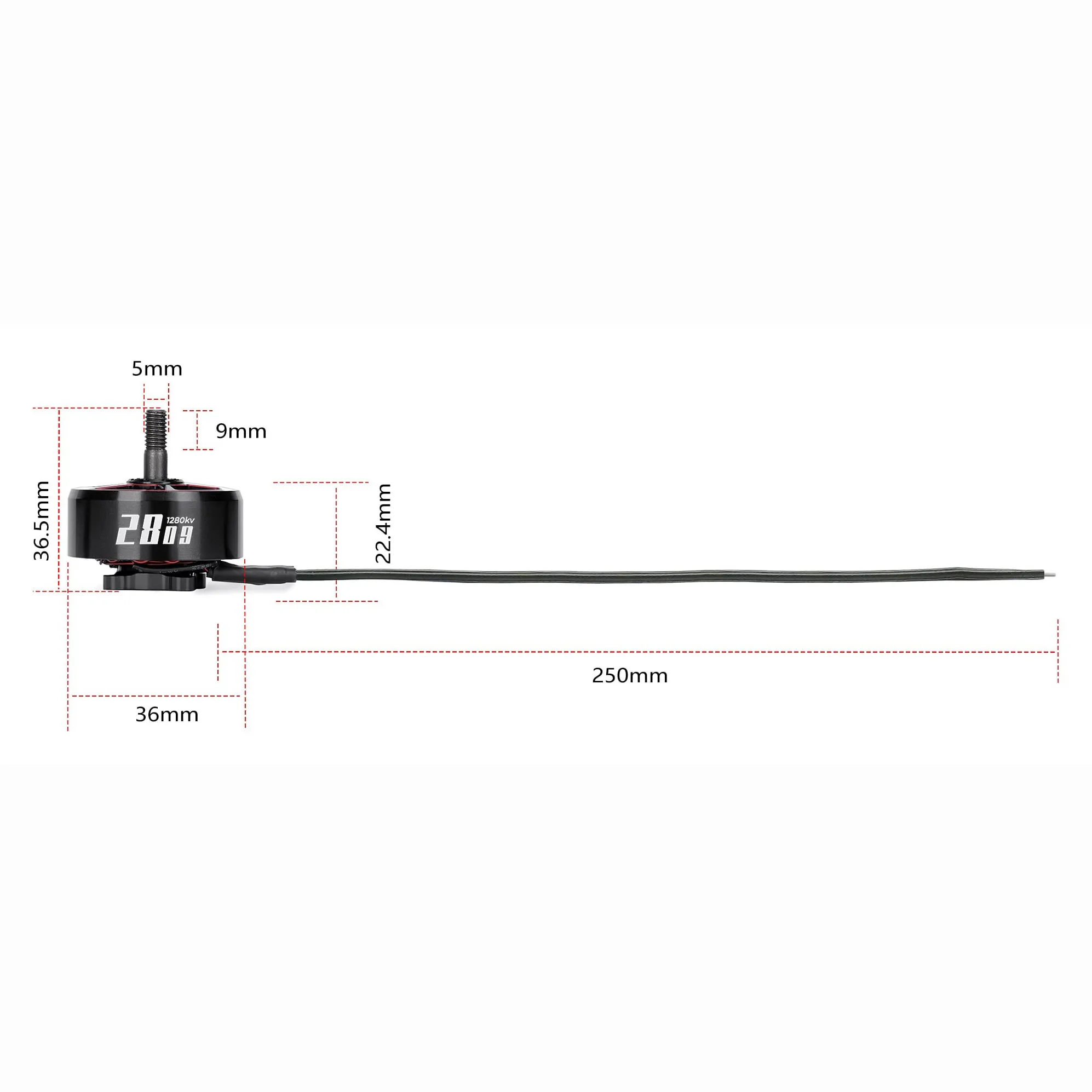

• Shaft Diameter: 4.0mm internal, 5mm external
• Mounting Pattern: 19x19mm, M3
• Wire: 18AWG (250mm length)
• Weight: 60.7g (including wire)

This motor uses a standard 19x19mm M3 frame mounting pattern. For reliable performance and voltage sag management when carrying heavy payloads or large batteries, pair these motors with an ESC rated for 50A or higher.
