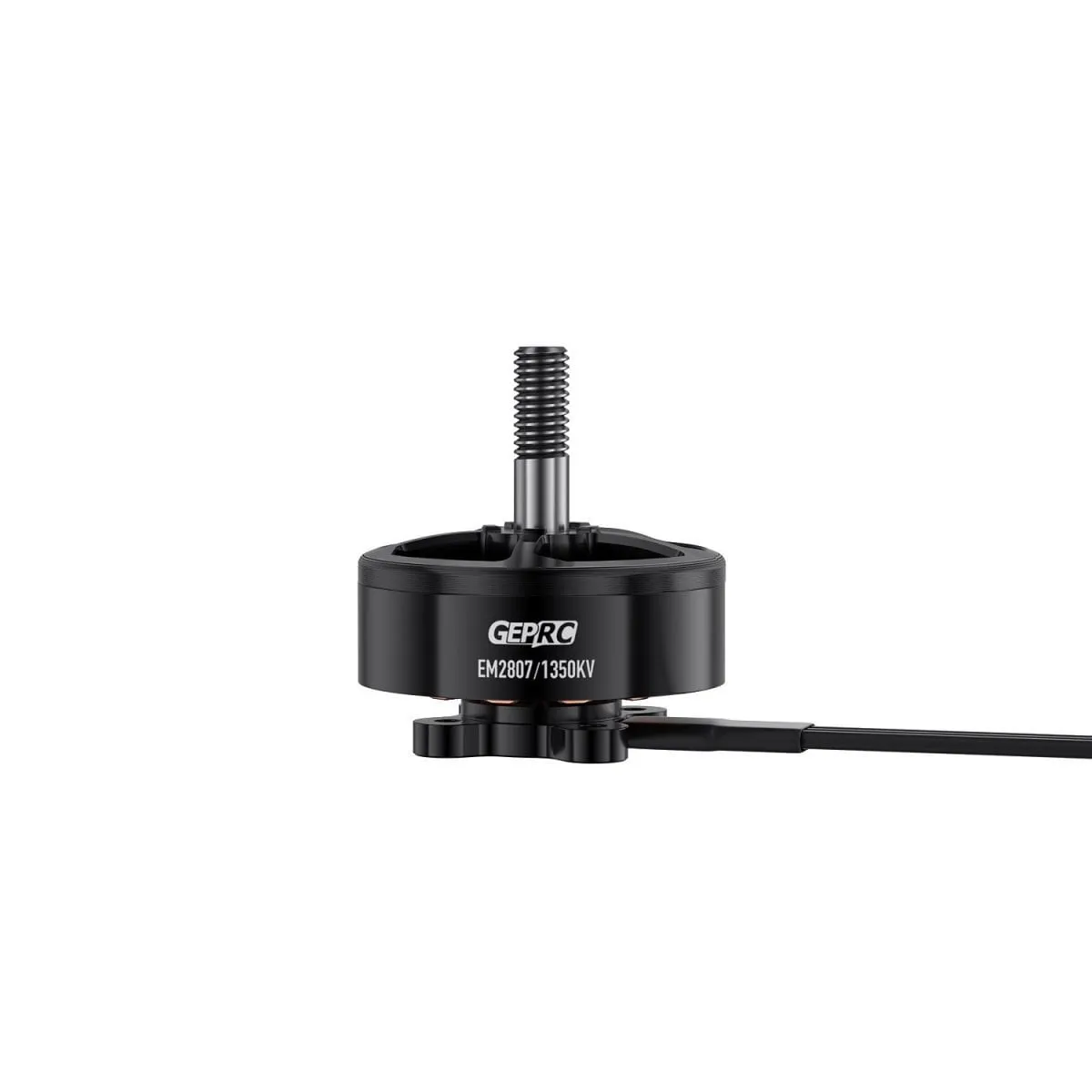

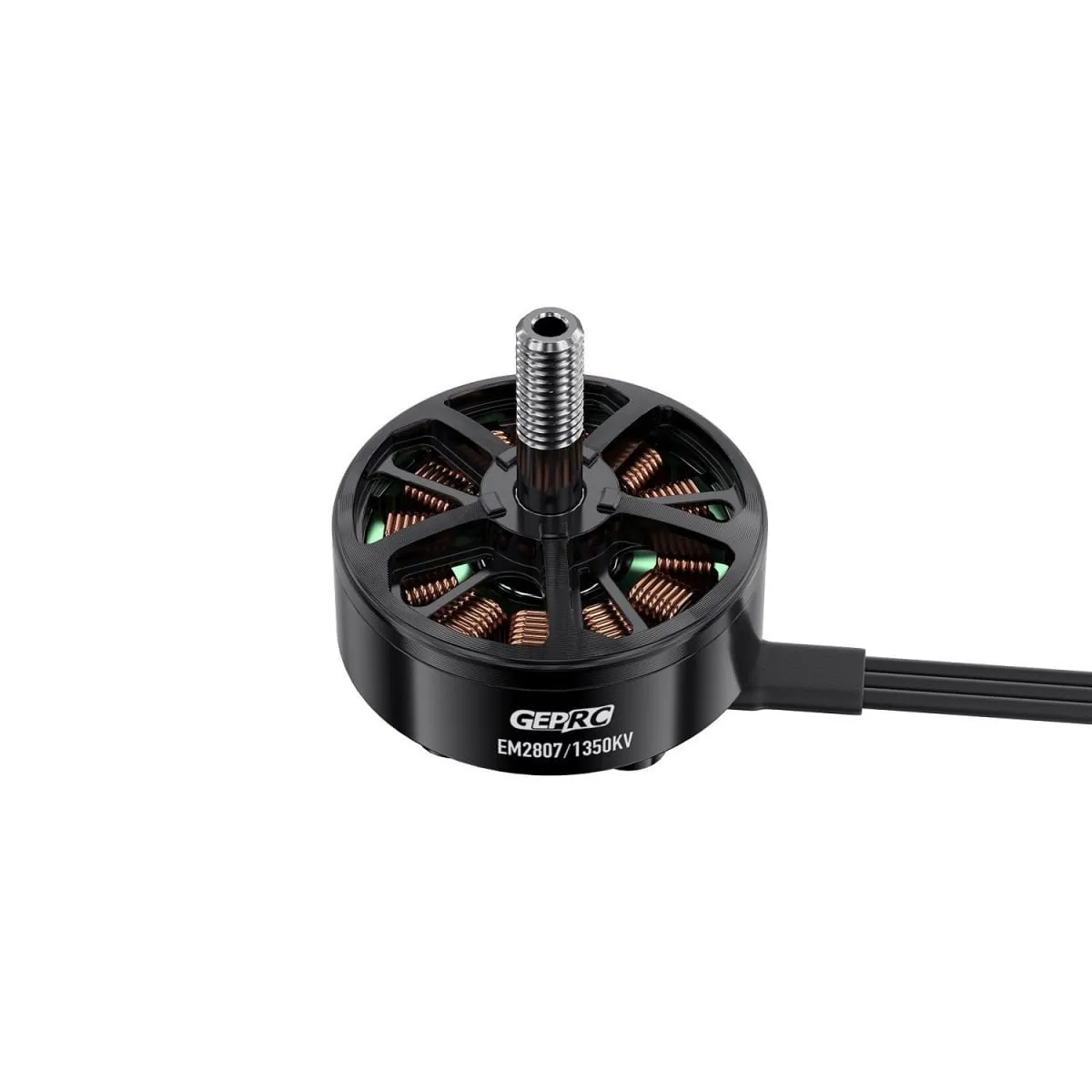

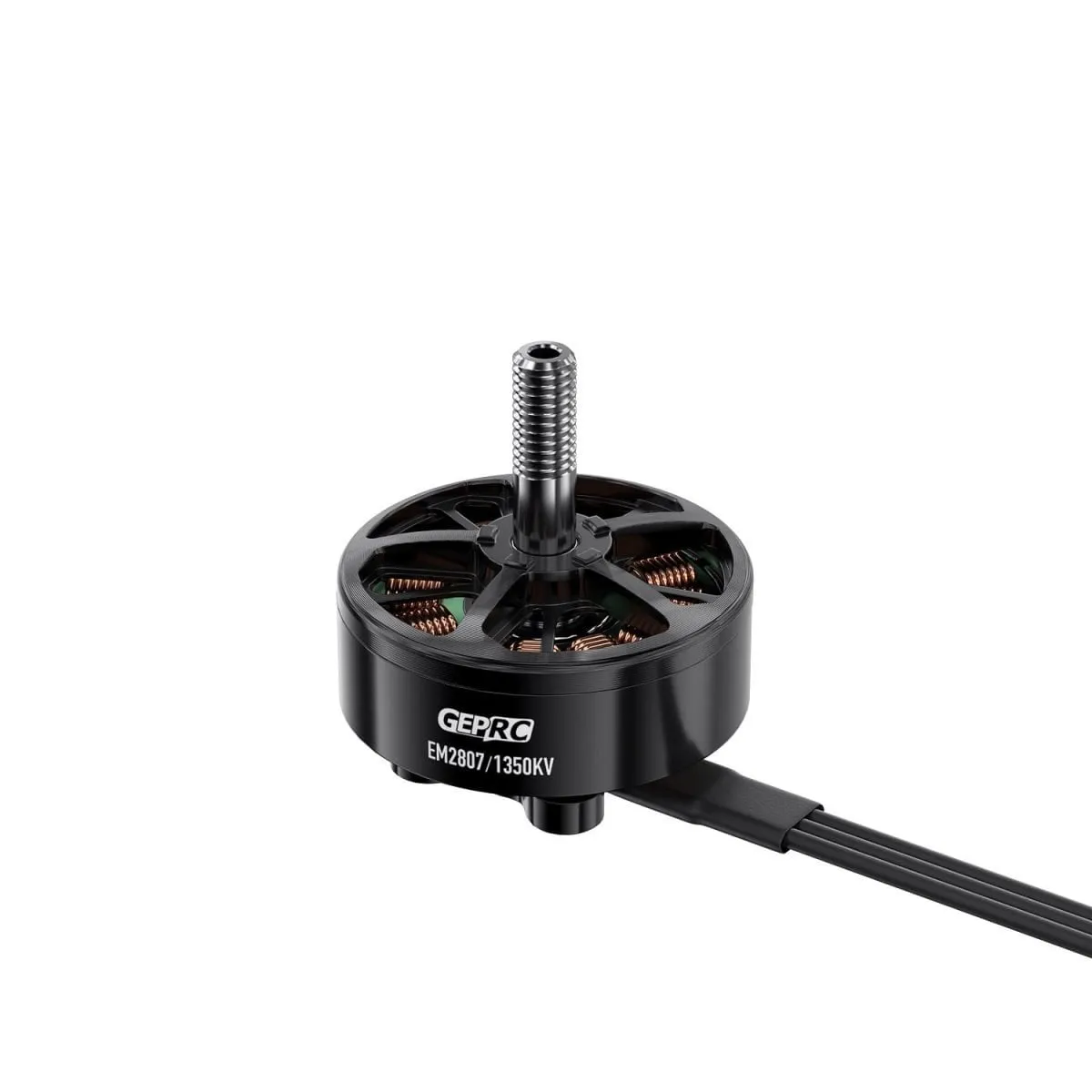

GEPRC EM2807 1350KV Motor
SKU GEPRC-EM2807-1350KV
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The GEPRC EM2807 1350KV is a long-range brushless motor built around a 28mm-class 12N14P stator, designed for 7–8 inch endurance and cinelifter builds running 6S power. It pairs GEPRC's EM series winding with a high-strength steel shaft for reliable high-torque cruising.
Key features
- N52H magnets and a 12N14P winding configuration deliver strong low-end torque for hauling long-range payloads
- High-strength M5 steel shaft (5mm diameter, 16mm protruding length) resists bending on hard landings
- NSK/NMB bearings support continuous duty at up to 1080W and 47A peak current
- 260mm 18AWG leads simplify routing to the ESC, with mounting screws and an anti-slip nut included

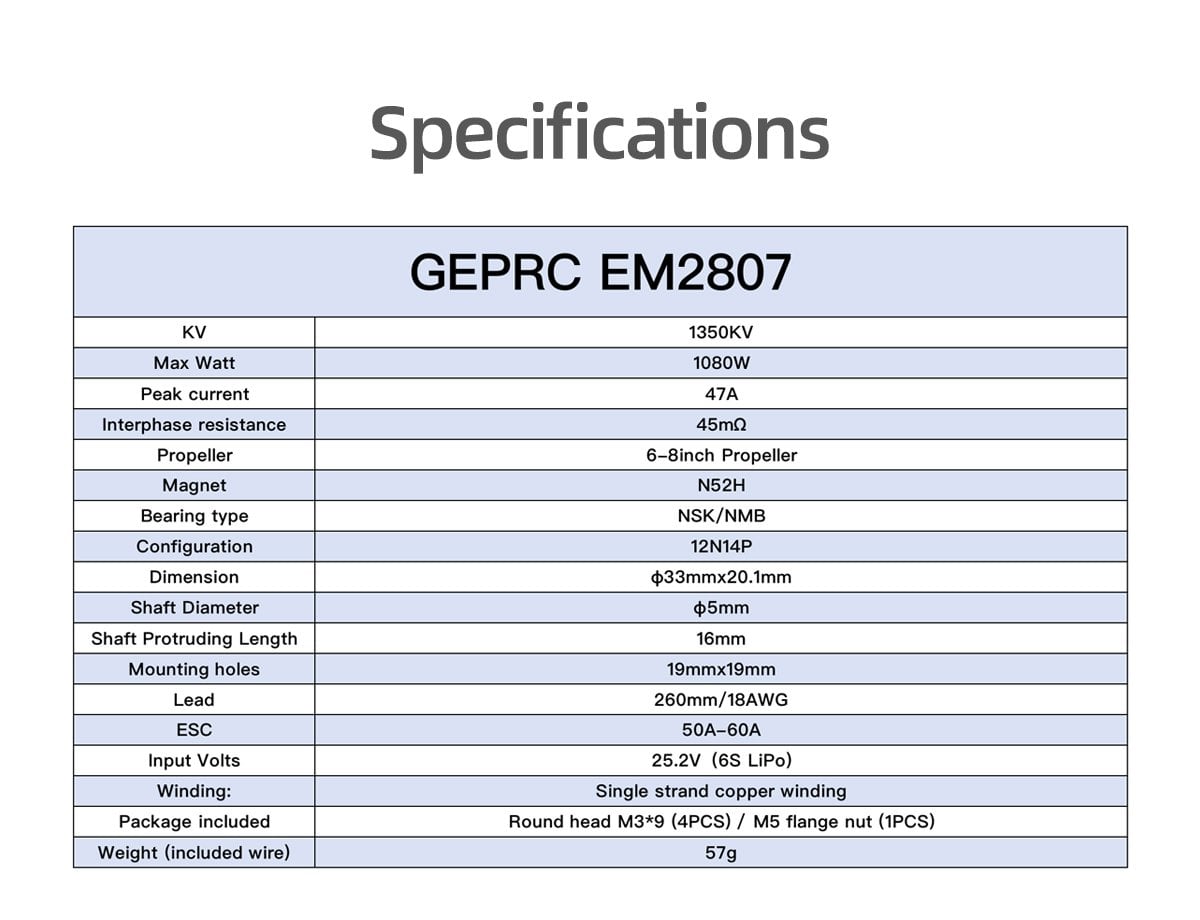

Specifications
- KV: 1350KV
- Configuration: 12N14P
- Max power: 1080W
- Peak current: 47A
- Input voltage: 6S LiPo (25.2V)

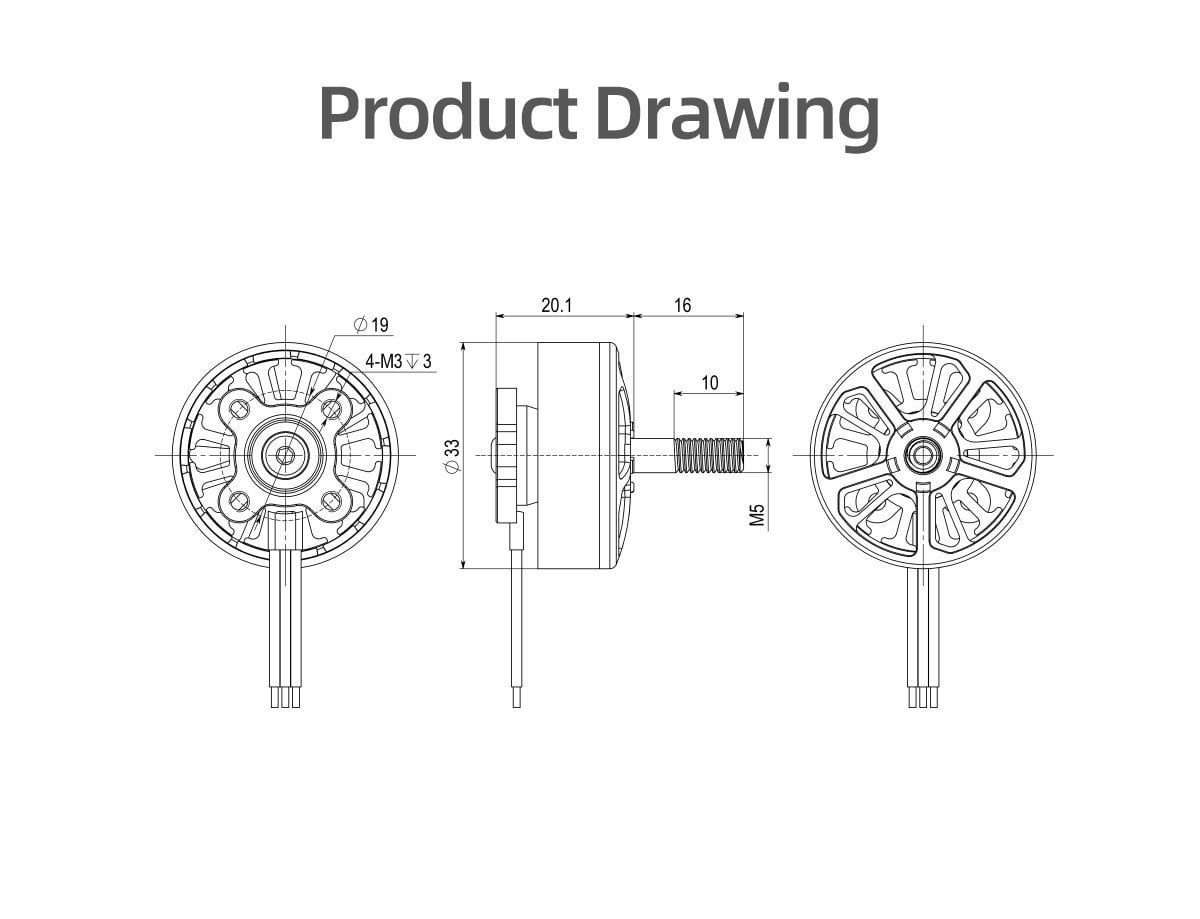

- Dimensions: 33mm x 20.1mm
- Shaft: 5mm steel
- Mounting holes: 19x19mm
- Weight: 57g (including wire)
Built on a 19x19mm mounting pattern, it runs on 50–60A ESCs with 6–8 inch propellers, suited to long-range mountain flying and heavier 7-inch cinelifter platforms.
| Stator Size | 2807 |
|---|---|
| Stator Diameter | 28mm |
| Stator Height | 7mm |
| Pack Size | 1 |
| KV | 1350 KV |
| Prop Mount | M5 |
| Shaft | 5mm |
| Motor Mount | 19x19mm |
| Input Voltage | 6S |
| Weight | 57 g |
| Brand | GEPRC |
| Made in India | No |
