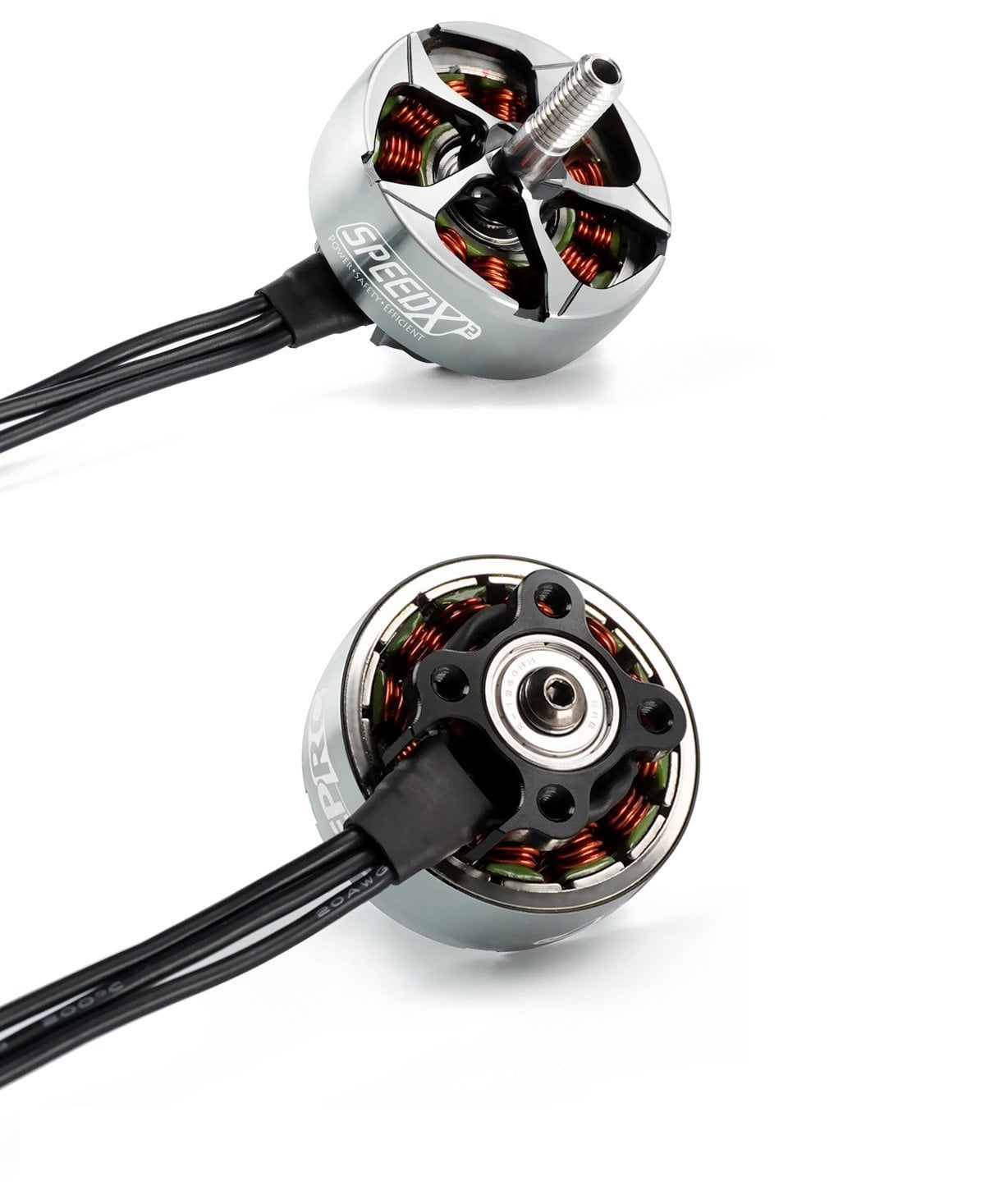

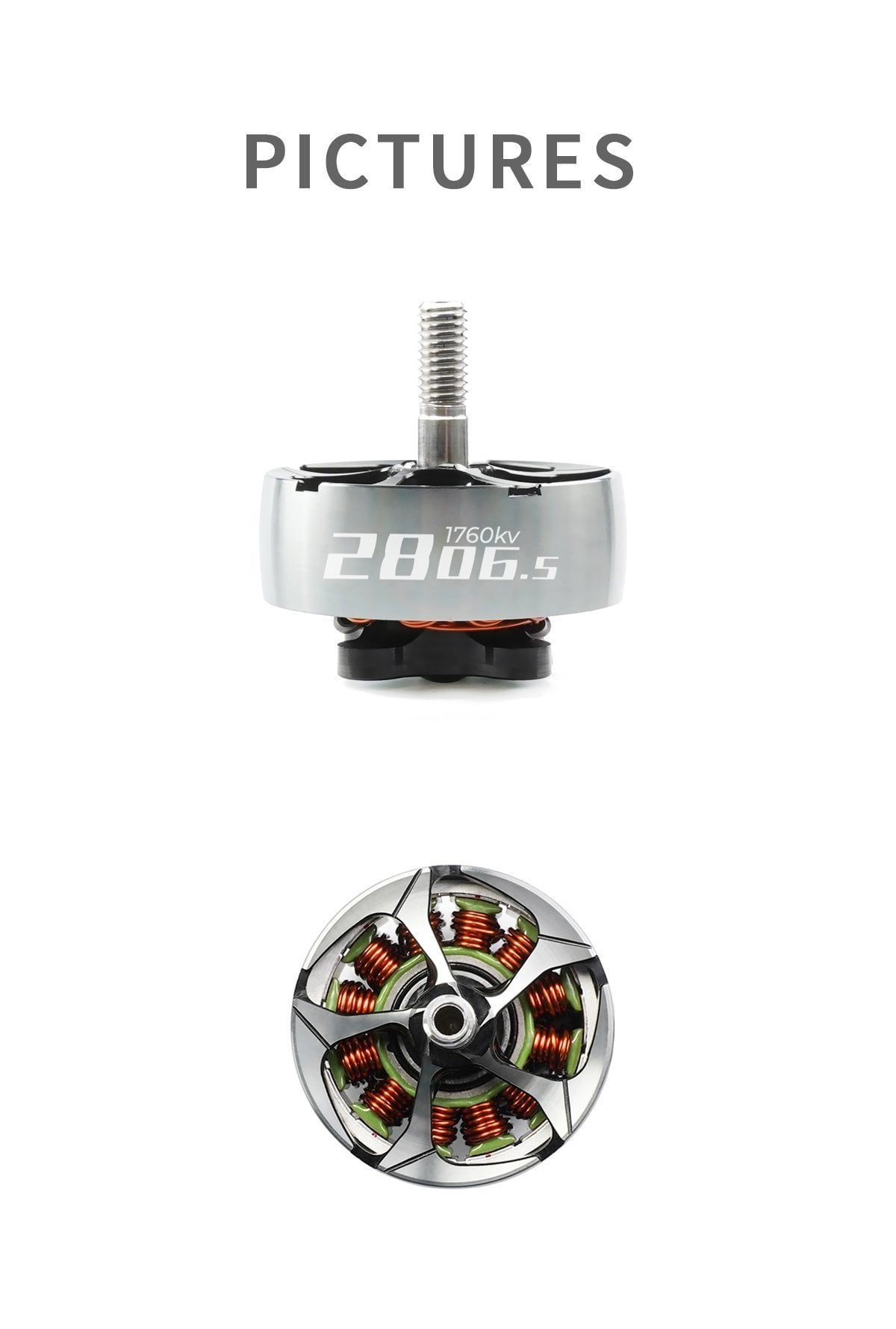

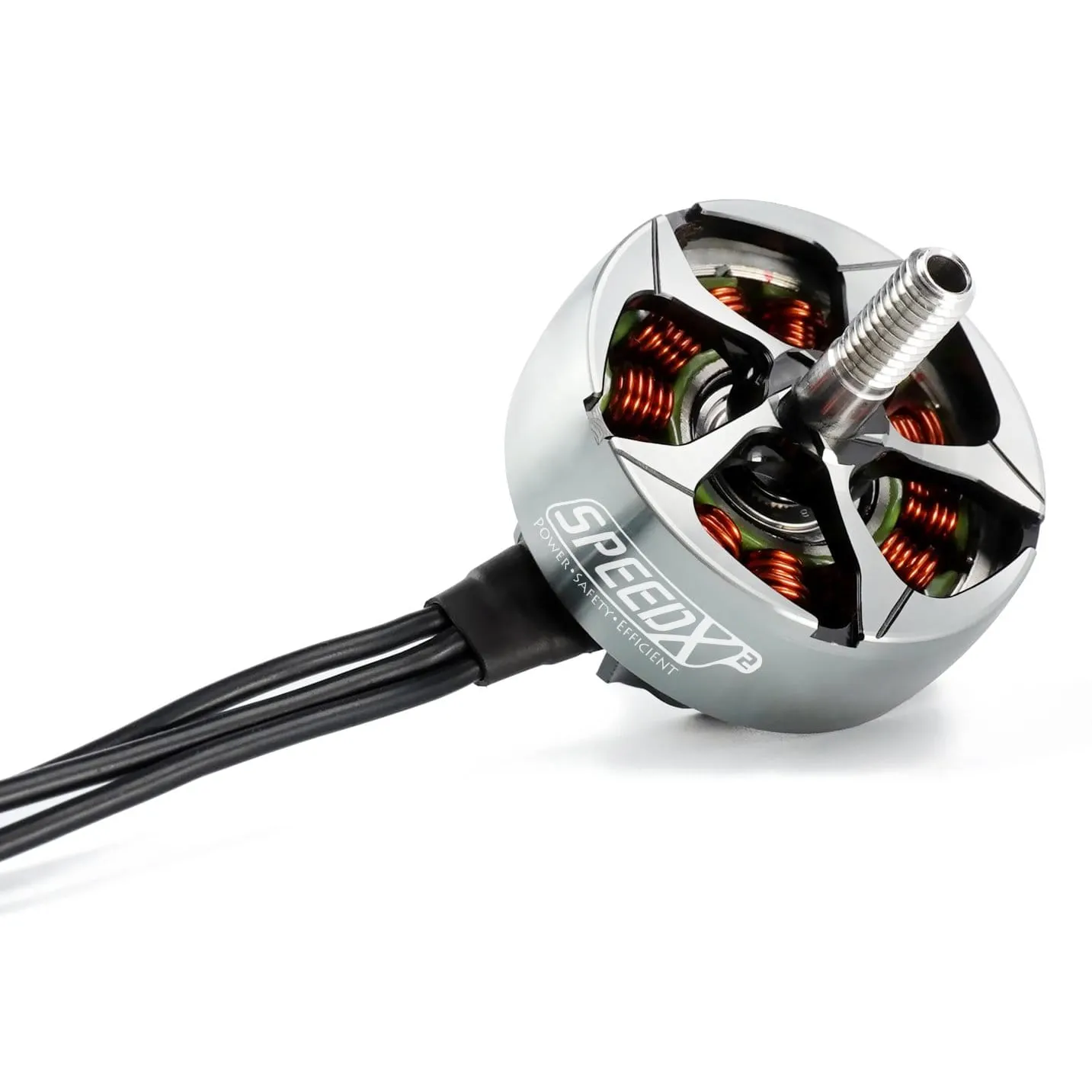

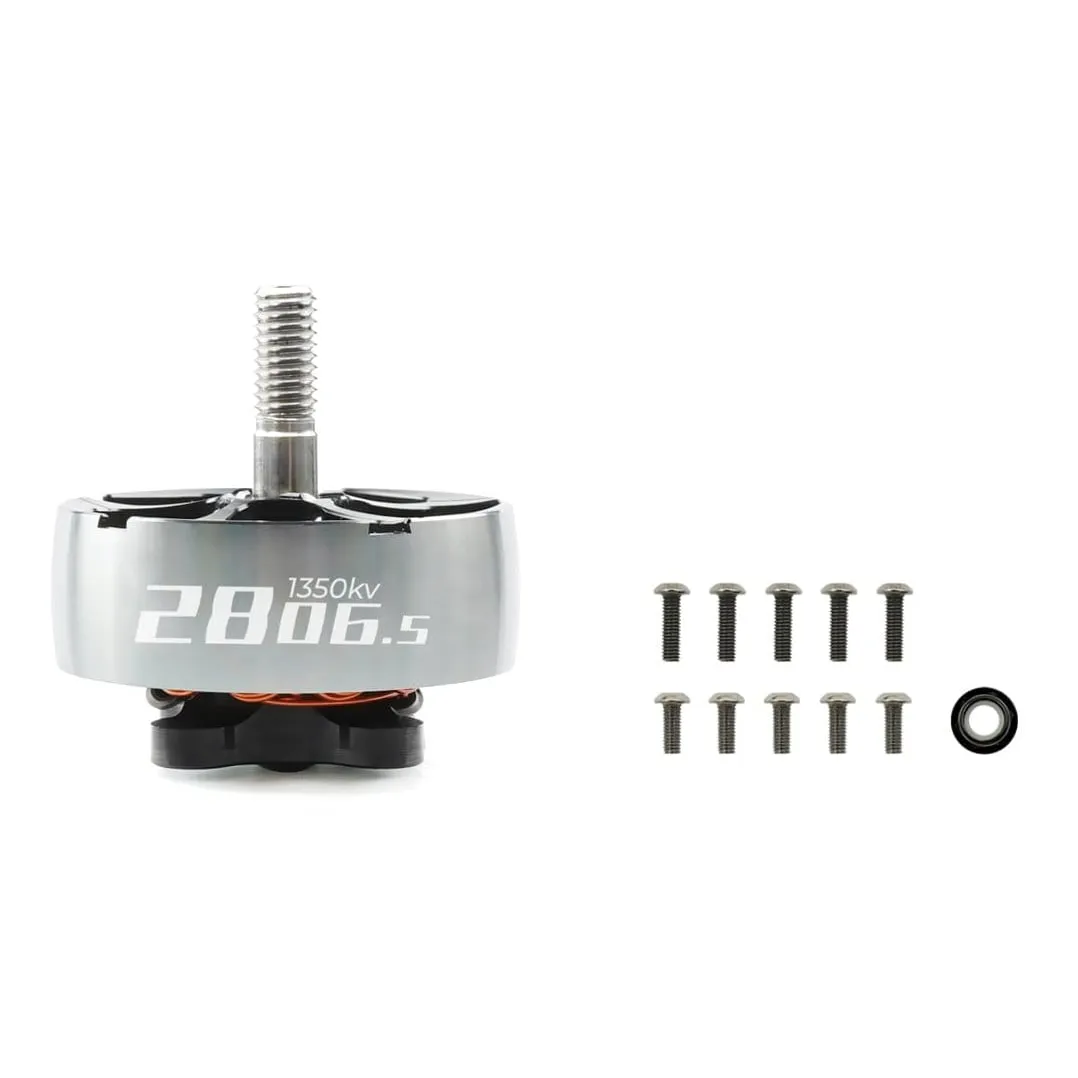

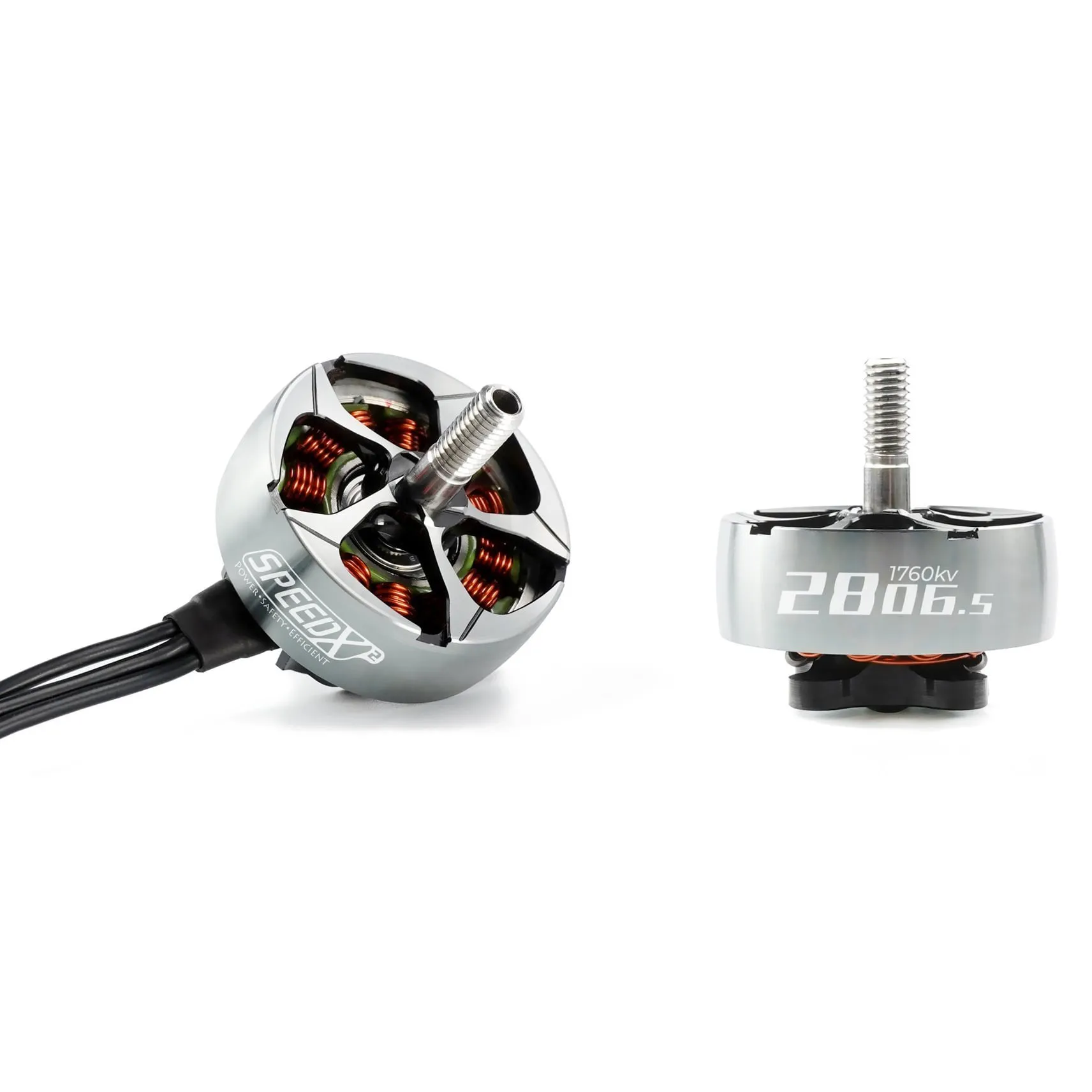

GEPRC SpeedX2 2806.5 Motor – 1350KV/1760KV

The GEPRC SpeedX2 2806.5 is engineered for 7-inch long-range cruisers, macro-quads, and mid-sized cinelifters requiring sustained efficiency and high torque. By balancing a wide stator volume with aggressive thermal dissipation, this motor comfortably handles heavy camera payloads and extended cross-country flights.

Key features

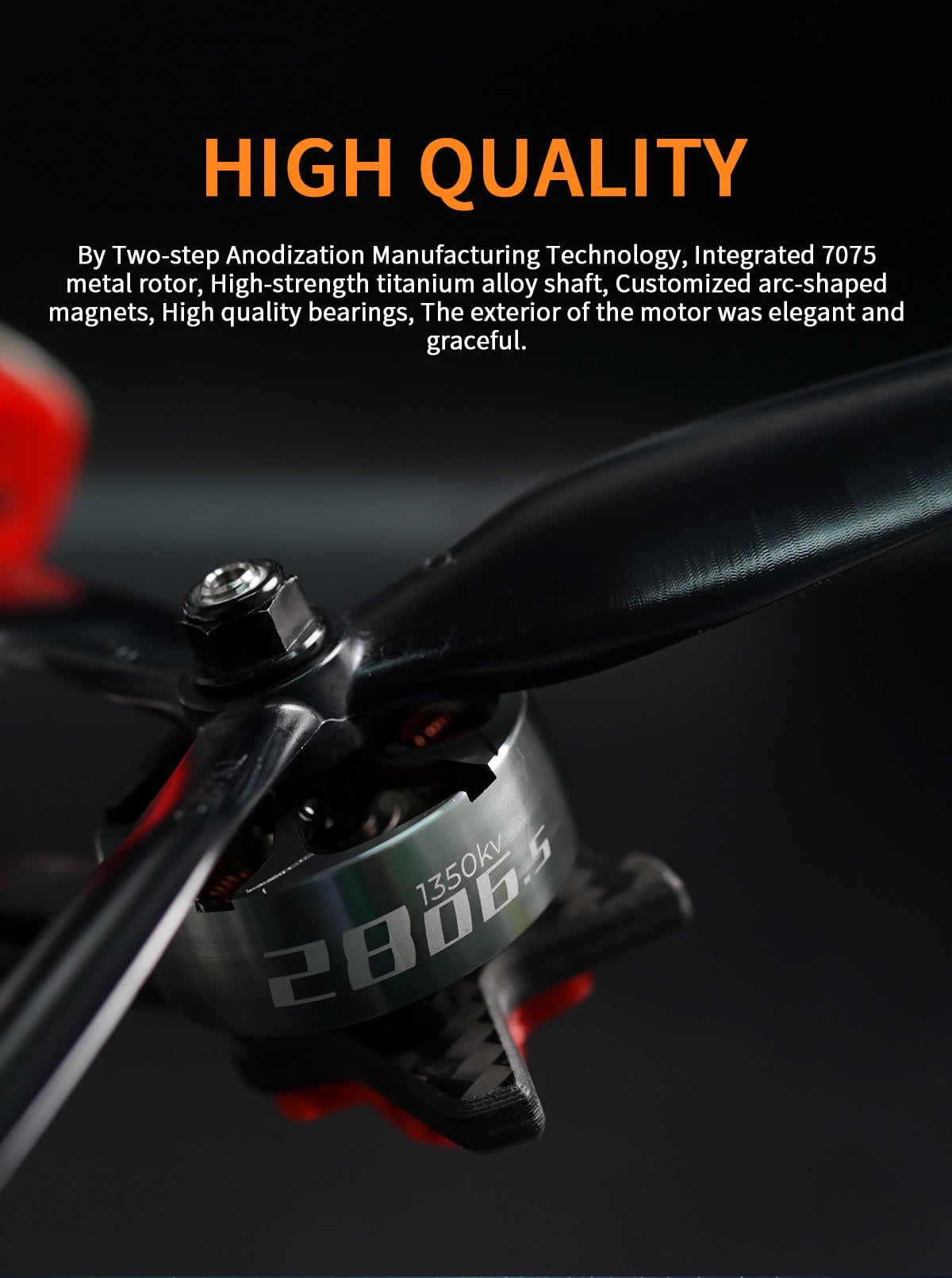

• Constructed from aviation-grade 7075-T6 aluminium alloy for high structural strength and impact resistance.

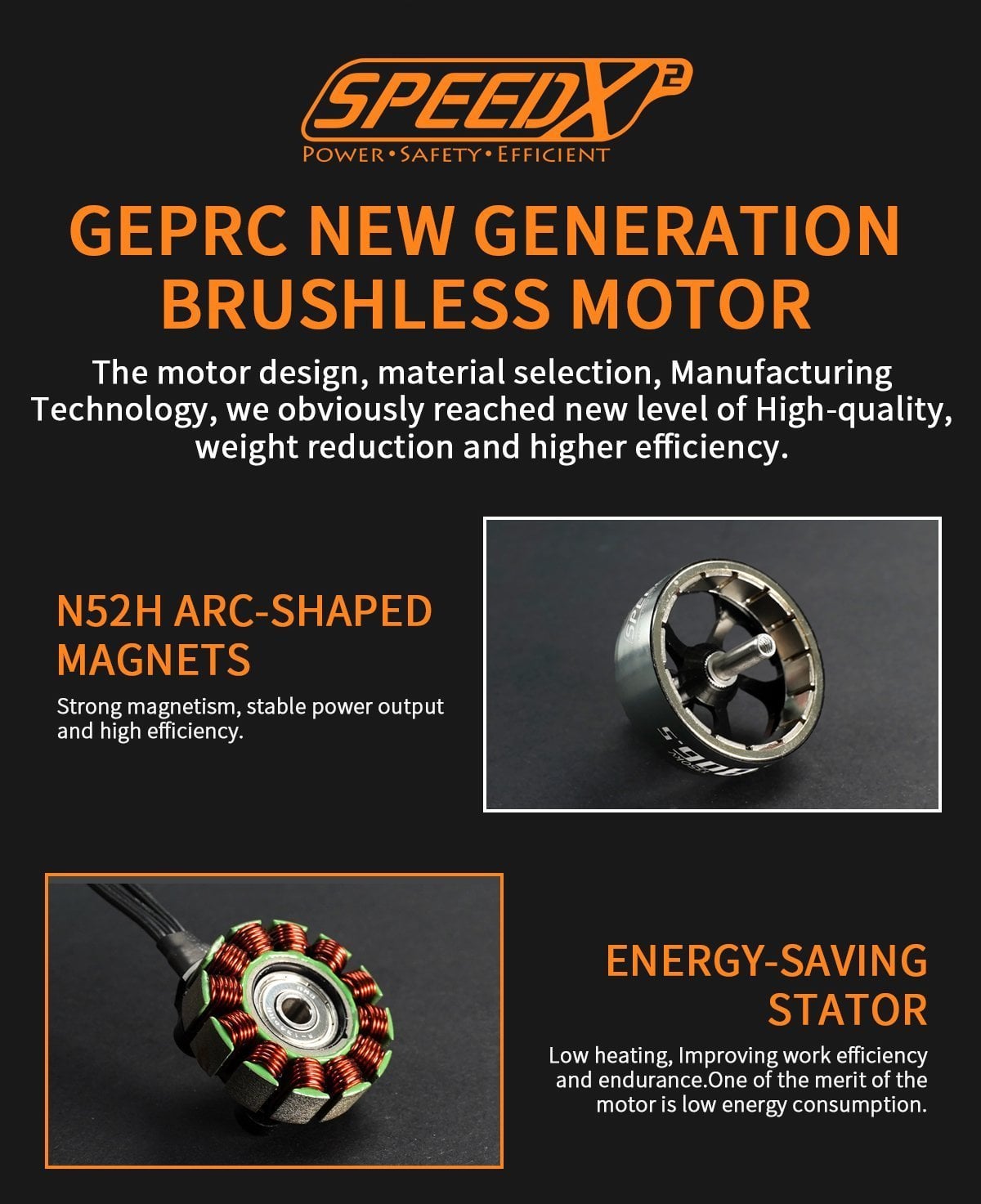

• Utilises N52H arc magnets and a refined air gap to minimise cogging, translating into vibration-free HD footage.

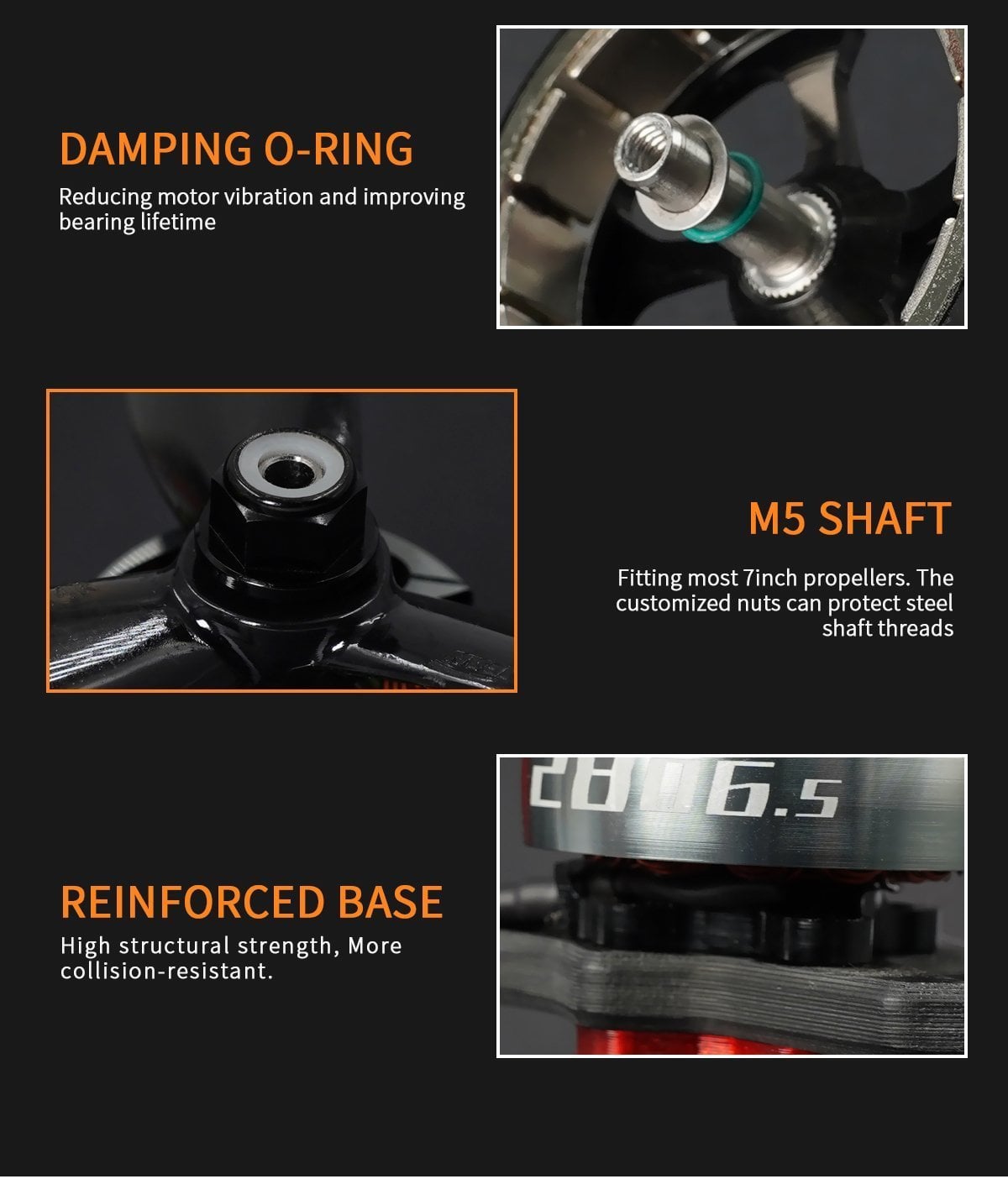

• Equipped with a robust outer titanium alloy shaft to withstand heavy 7-inch propeller strikes.

• Pre-tinned 18AWG phase wires ensure clean, low-resistance power delivery on larger frames.

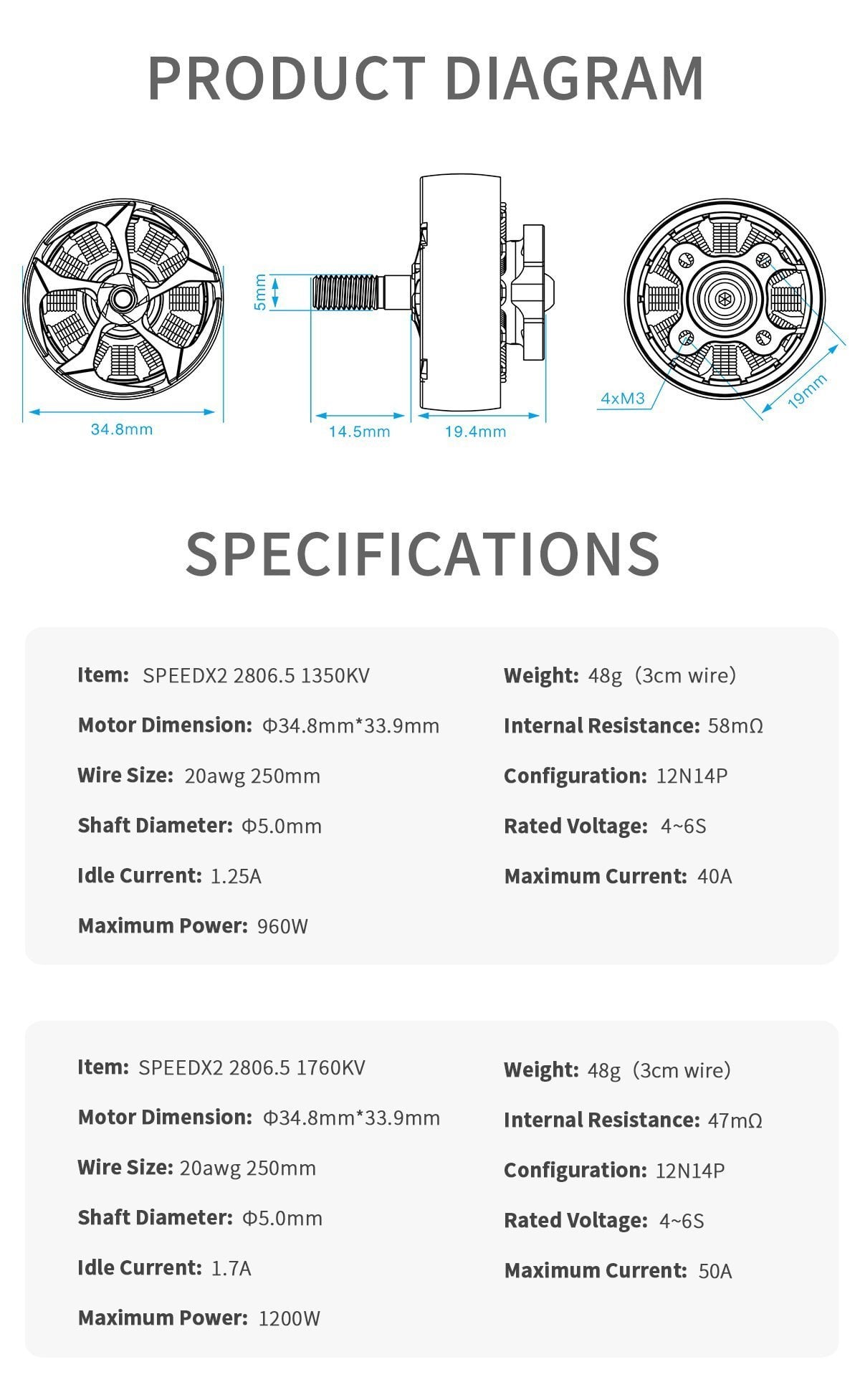

Specifications

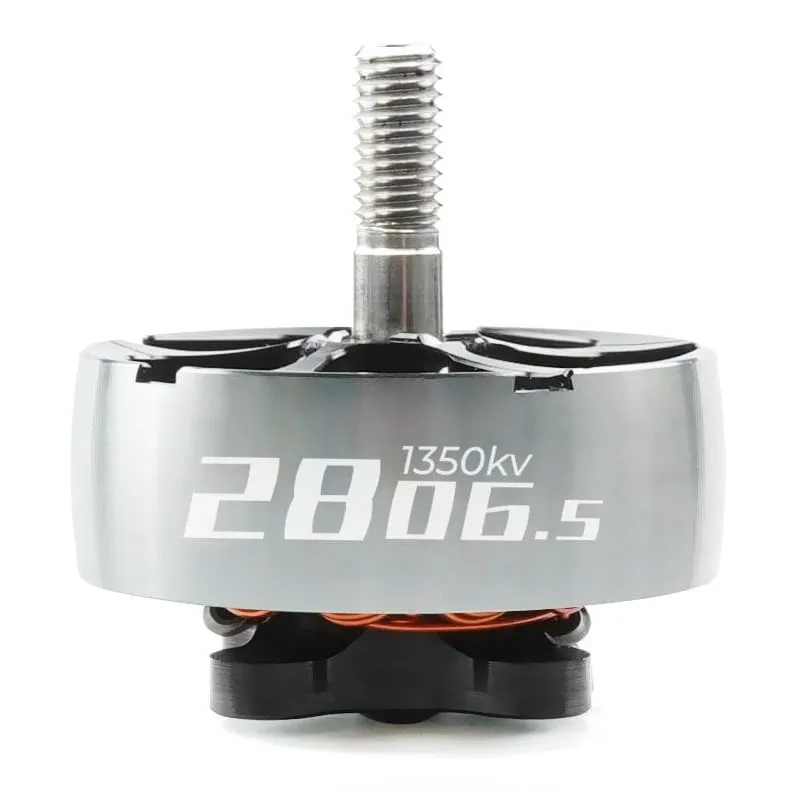

• KV: 1350

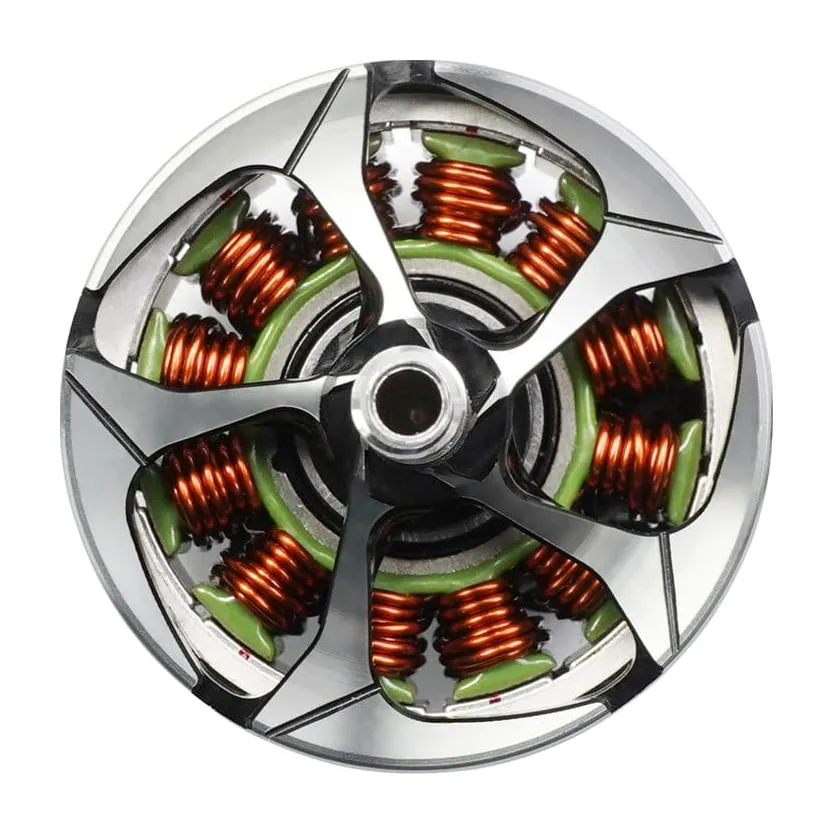

• Configuration: 12N14P

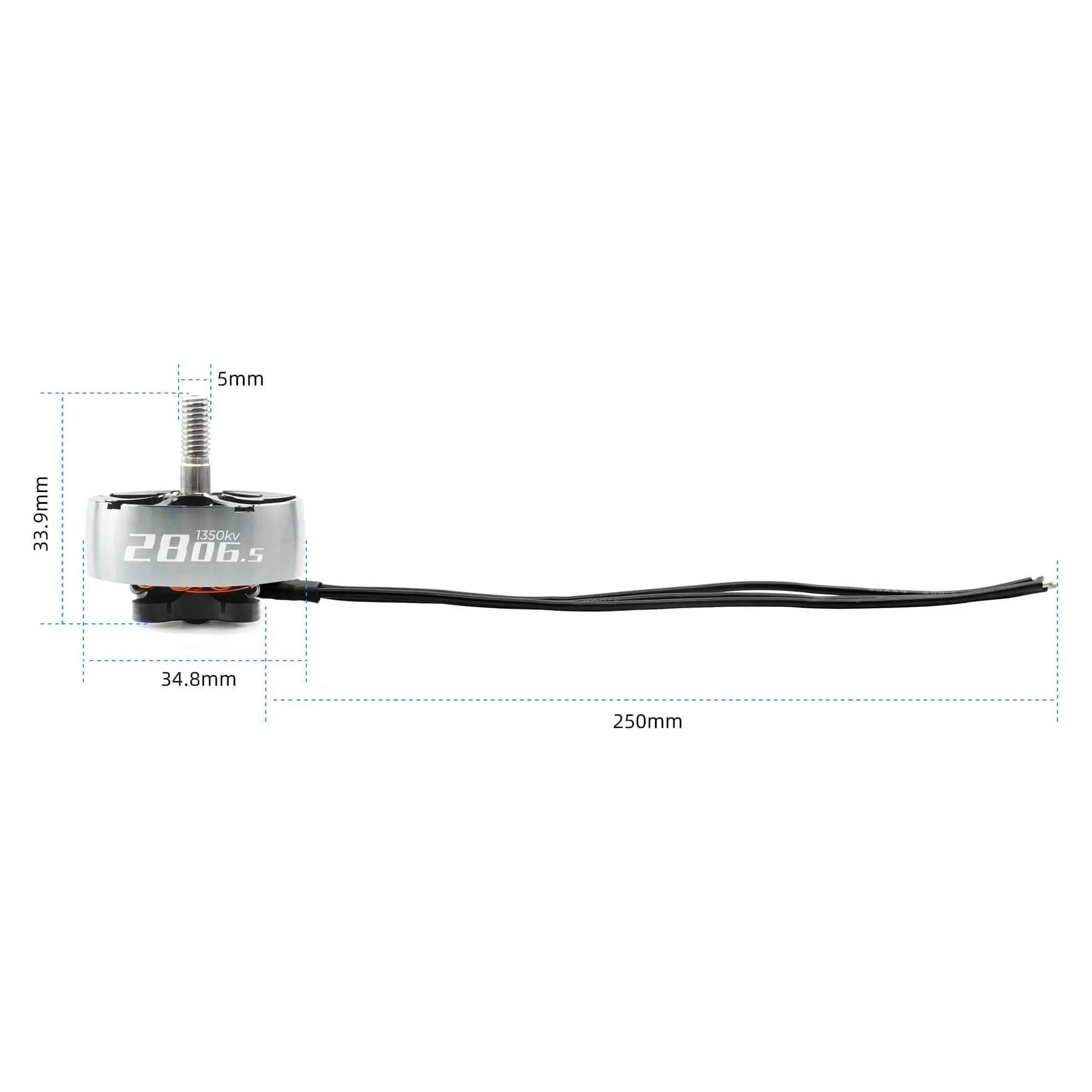

• Stator Dimensions: 28mm diameter x 6.5mm height

• Shaft Diameter: 4mm (internal) / 5mm (propeller shaft)

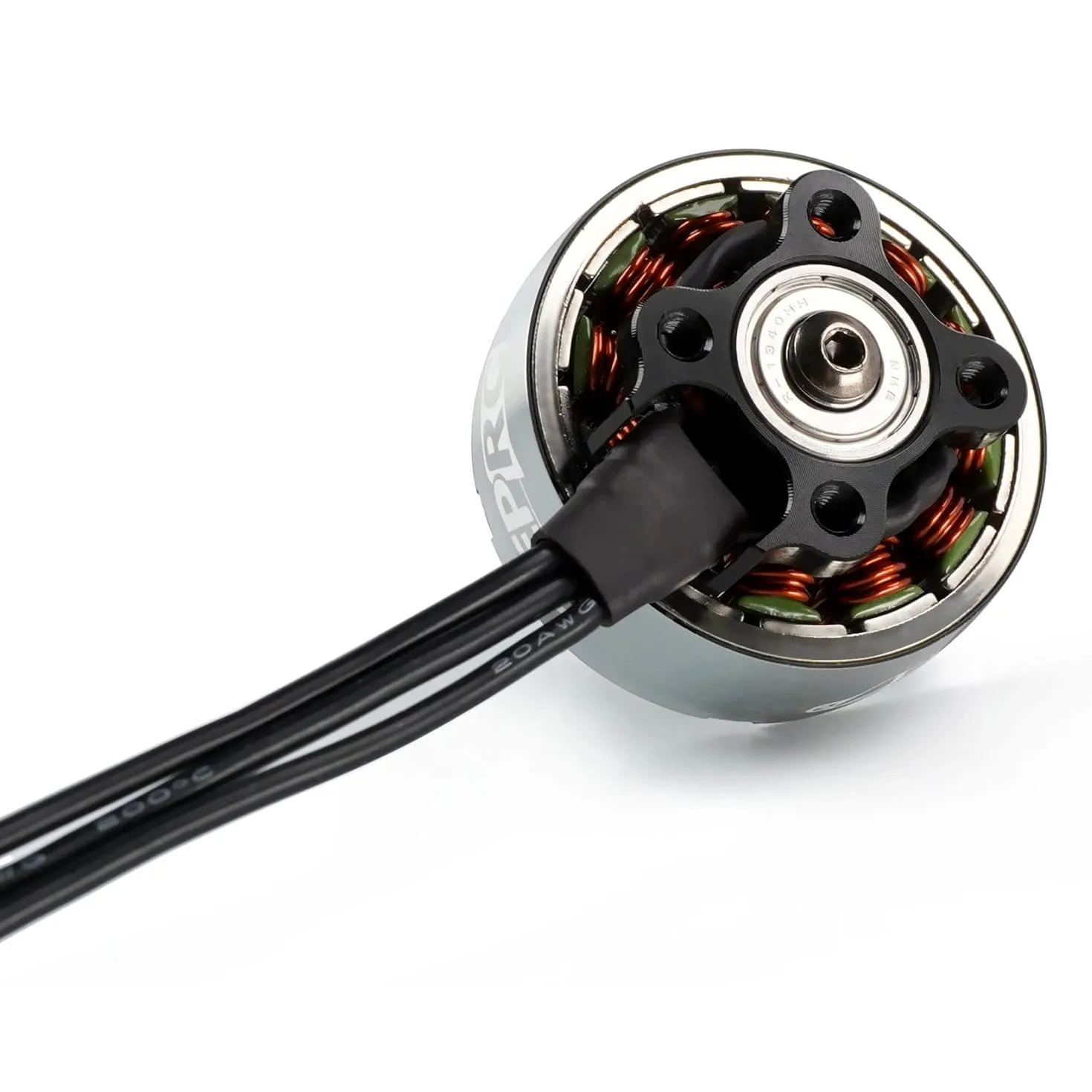

• Mounting Pattern: 19x19mm, M3

• Magnets: N52H Arc

• Wire Gauge: 18AWG

• Input Voltage: 4-6S LiPo

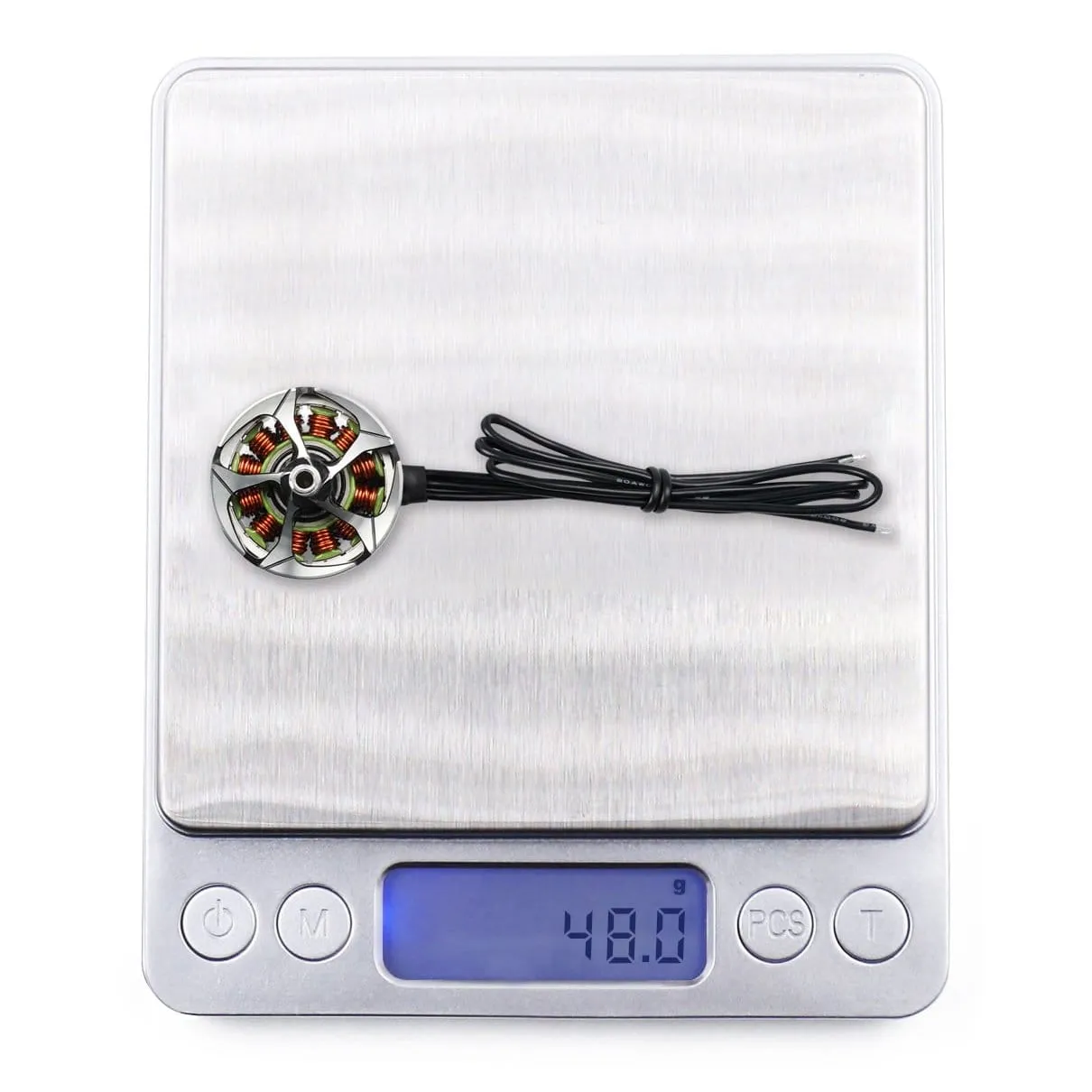

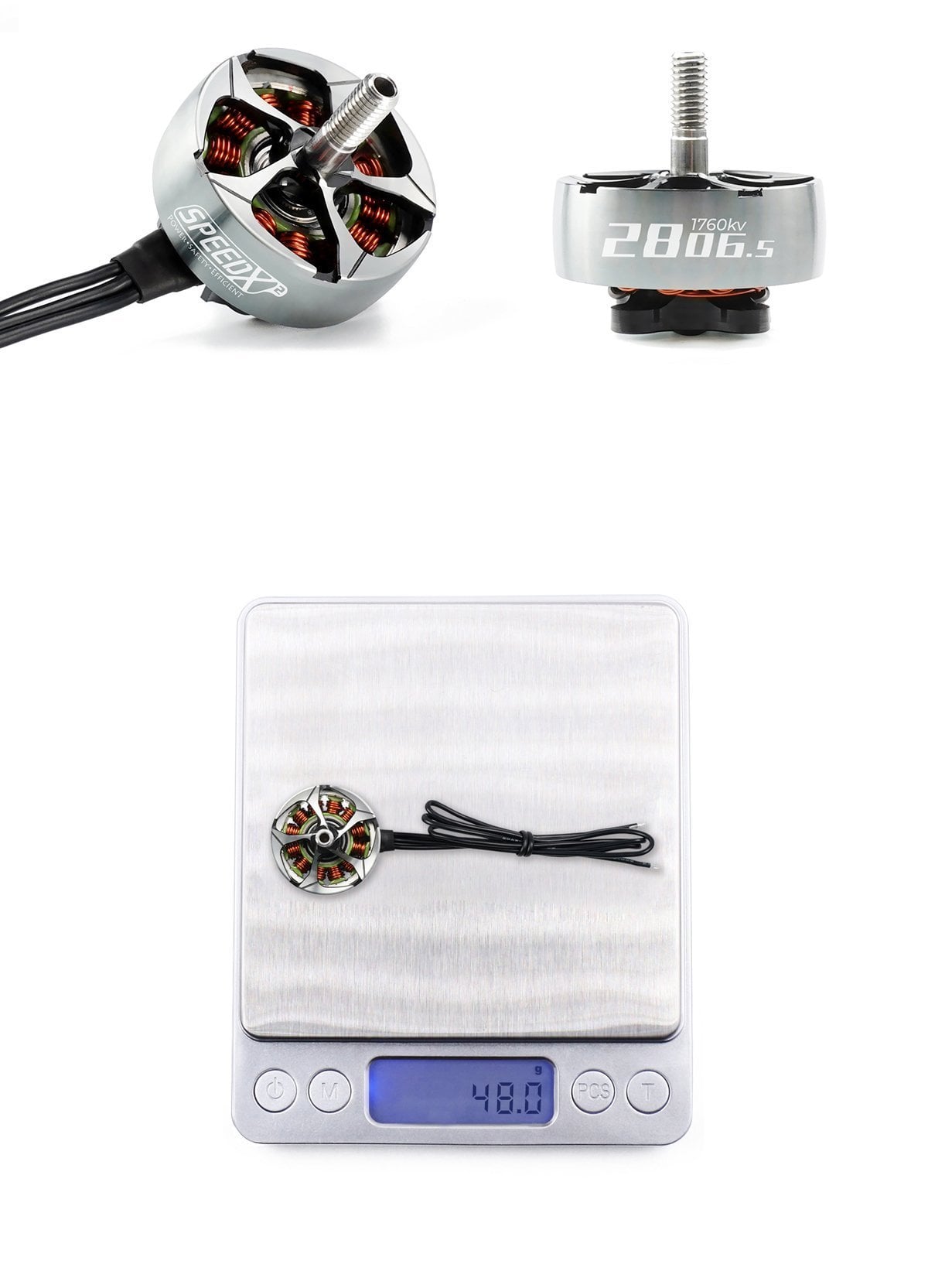

• Weight: 47g (including wire)

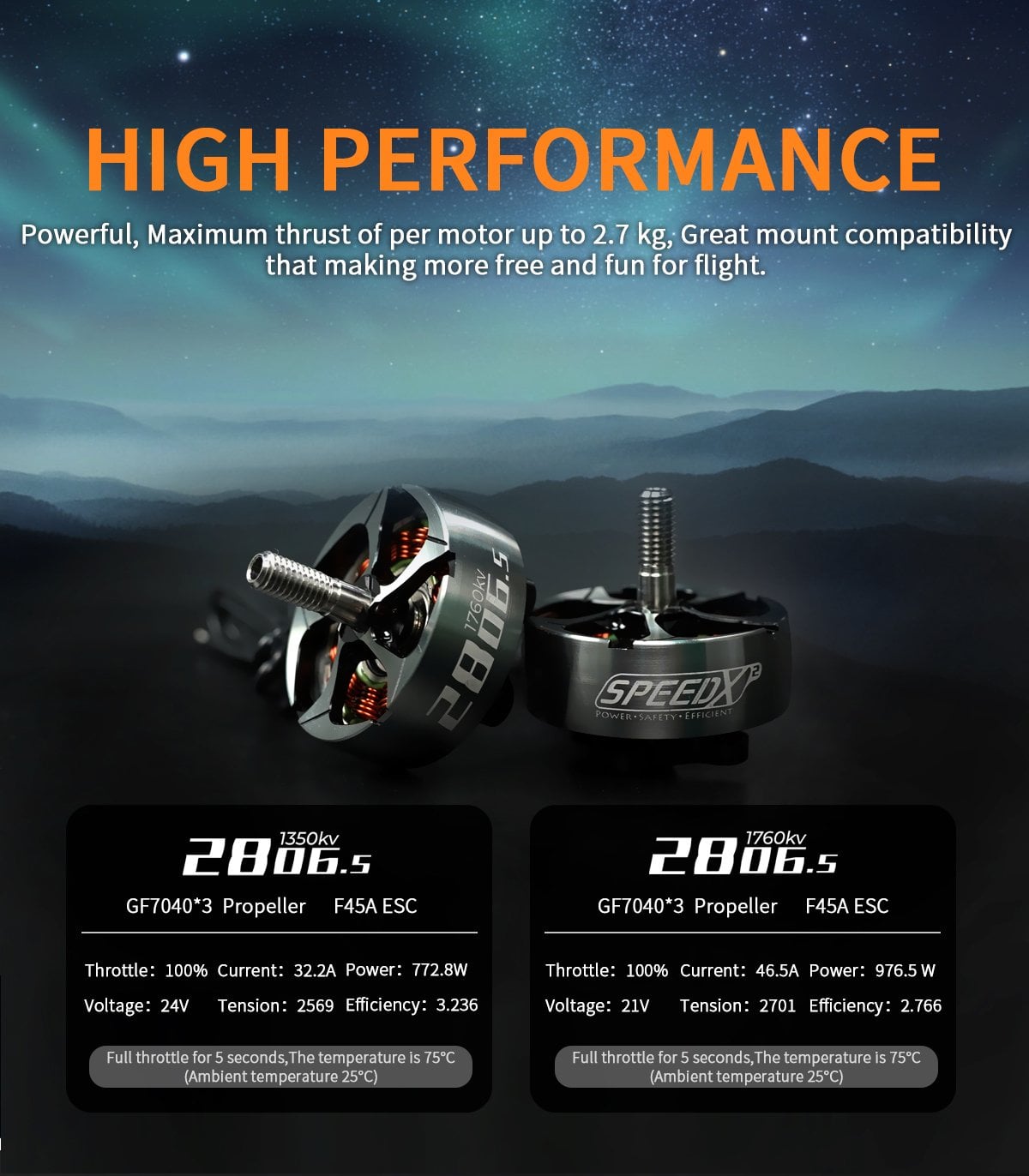

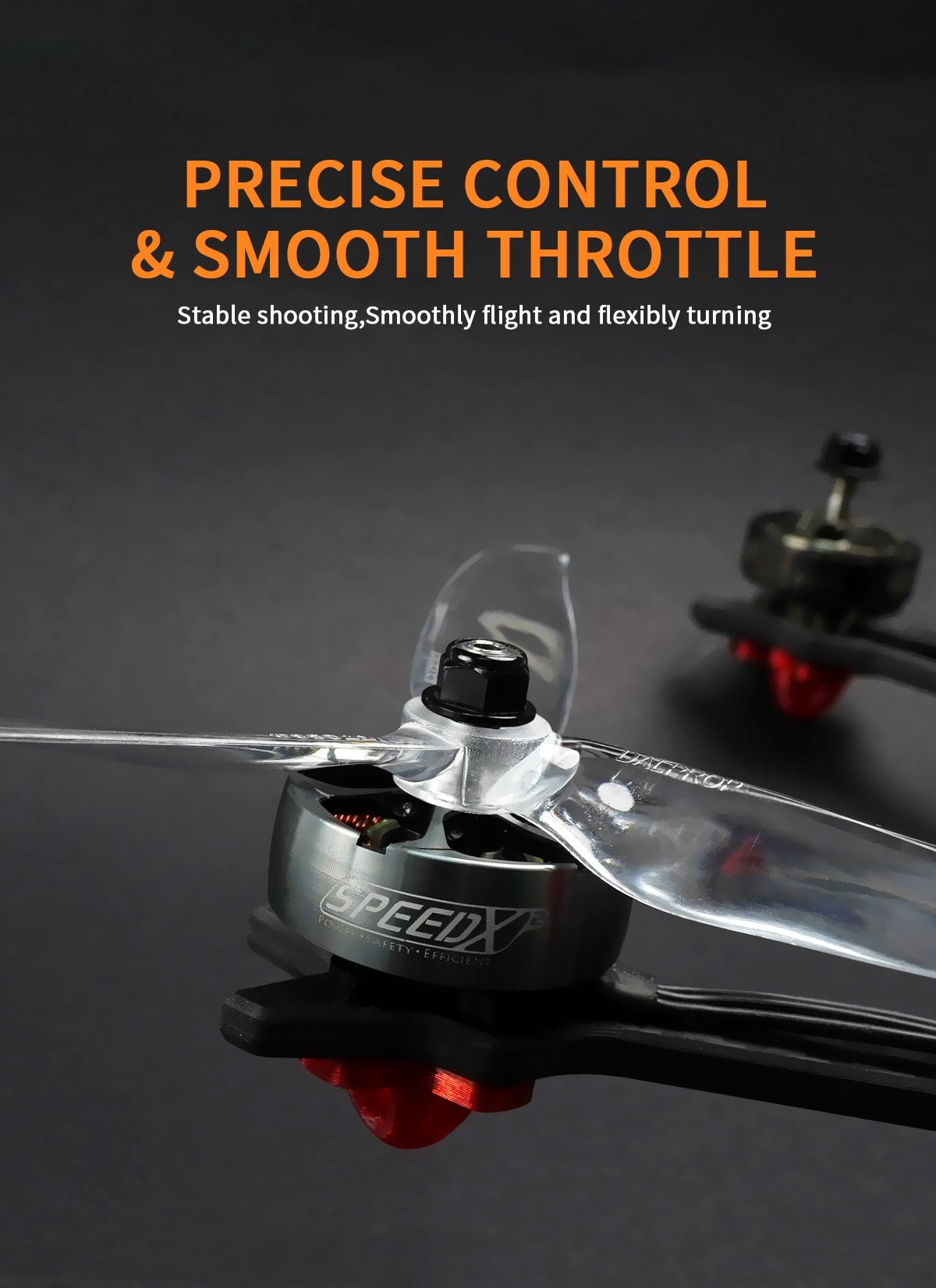

The 1350KV variant is specifically optimised for 6S power systems spinning 7-inch bi-blade or tri-blade propellers, delivering maximum cruising flight time without sacrificing throttle authority when carrying full GoPros or similar heavy payloads.
