GEPRC RAD 5.8GHz 1.6W VTX

The GEPRC RAD 1.6W is a high-output 5.8GHz analog video transmitter engineered for long-range FPV, heavy-lift cinelifters, and bando freestyle builds where signal penetration is critical. Encased in a CNC-machined aluminium alloy shell, it manages thermal dissipation efficiently to sustain its maximum 1600mW transmission without premature thermal throttling.

Key features

• Selectable power stages from Pit mode up to 1600mW to adapt to proximity flying or extreme long-range runs.
• CNC aluminium heatsink casing provides physical protection against crash impacts and aids rapid heat dissipation.
• Wide 7–36V input range accommodates direct battery power from 2S up to 8S LiPo configurations.
• Integrated 5V BEC (600mA) provides clean power directly to your analog FPV camera.
• Built-in microphone for real-time onboard FPV audio feedback.

Specifications

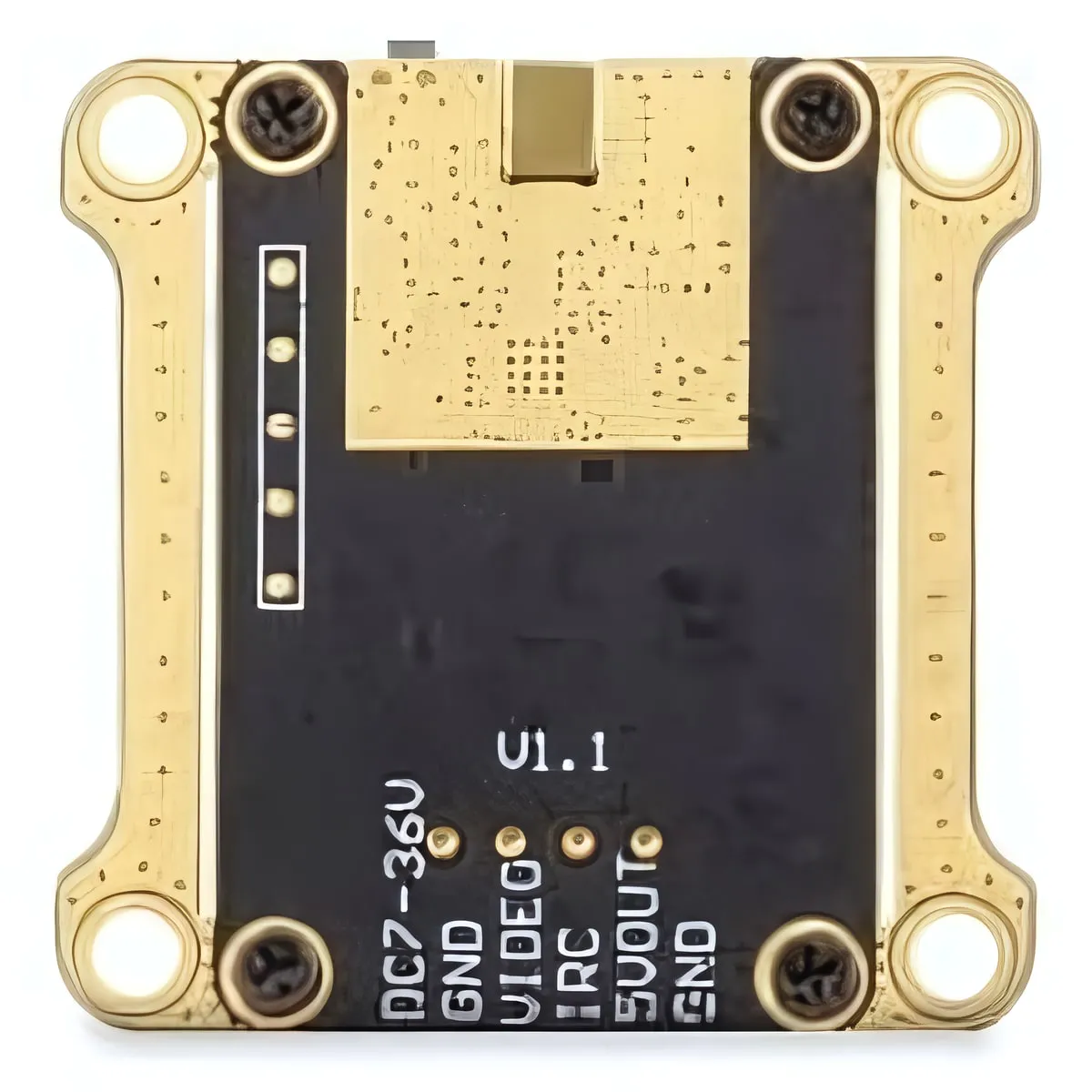

• Input Voltage: 7-36V (2-8S LiPo)
• Output Power: Pit / 25mW / 200mW / 600mW / 1600mW
• Control Protocol: IRC Tramp
• Antenna Connector: MMCX
• Cable Connector: SH1.0 6-pin
• Mounting Pattern: 30.5x30.5mm
• Dimensions: 36x36.5x5.5mm
• Weight: 18.9g

This VTX drops onto any standard 30.5x30.5mm flight controller stack. Given the high 1.6W output, always ensure your MMCX antenna is securely seated before powering the quad, and rely on airflow during flight to maintain safe operating temperatures.
