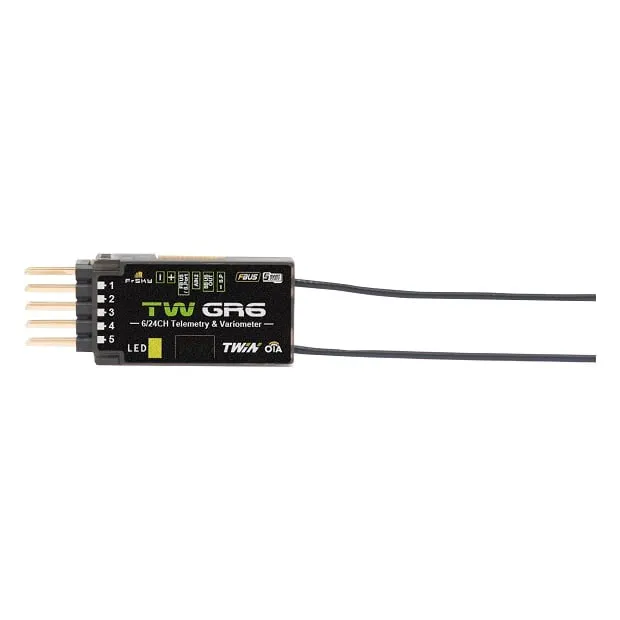

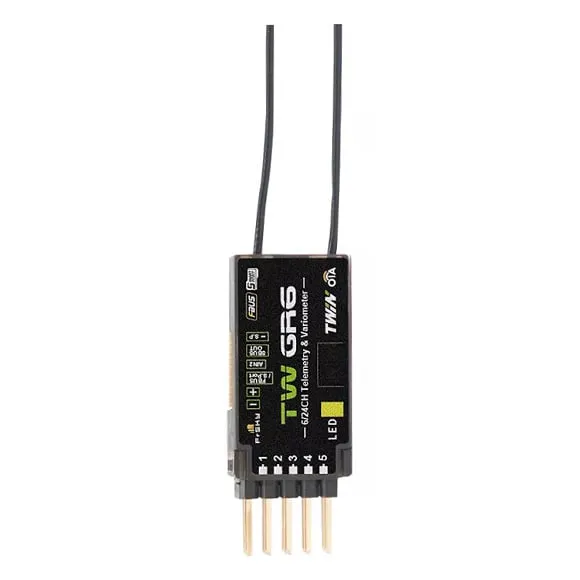

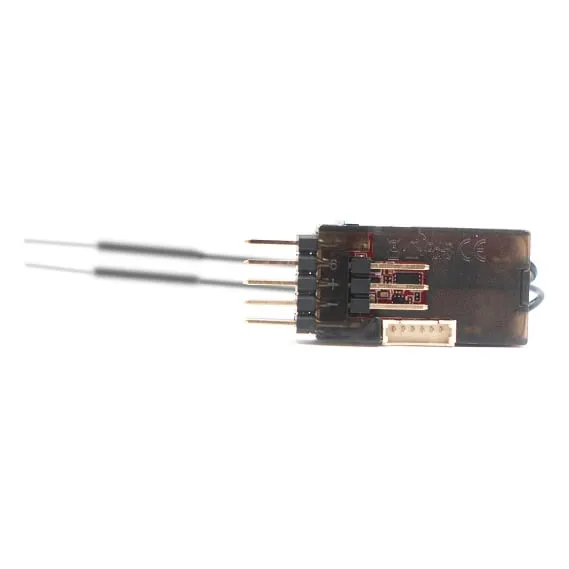

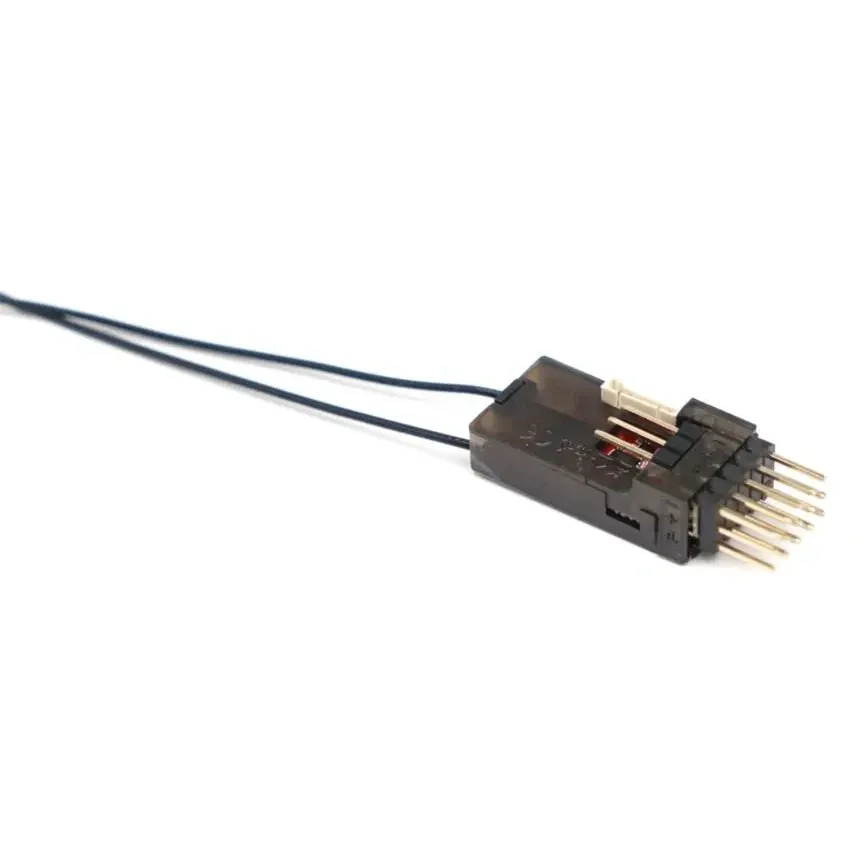

FrSky TW GR6 2.4GHz Receiver

The FrSky TW GR6 is a dual-band 2.4GHz receiver built around FrSky's TW protocol, which keeps two 2.4GHz links active at the same time rather than switching to a backup only after a failsafe. It suits glider and long-range pilots who want extra link resilience, and racers running FrSky TWIN-series radios or RF modules.

Key features

• Dual active-active 2.4GHz TW links run at the same time for redundancy, instead of active/standby failover.
• Built-in variometer reports altitude (-700m to 10,000m, 0.1m resolution) and vertical speed (up to 10m/s) for glider flying.
• Onboard black-box logging records flight data for later review.
• 4ms race mode with telemetry supports low-latency racing setups.
• SBUS output plus 6 PWM channel ports, with FBUS/S.Port telemetry over a single wire and an inverted S.Port for flight-controller wiring.
• Over-the-air firmware updates keep the receiver current without a wired connection.

Specifications

• Frequency: Dual 2.4GHz
• Protocol: FrSky TW (TWIN series)
• Weight: 5g
• Dimensions: 38.1 x 14.6 x 9.5mm
• Operating voltage: 3.5-10V
• Antenna connector: IPEX4

Bind it only to a FrSky TWIN-series transmitter or RF module running TW mode — it is not an ACCST or ACCESS receiver.
