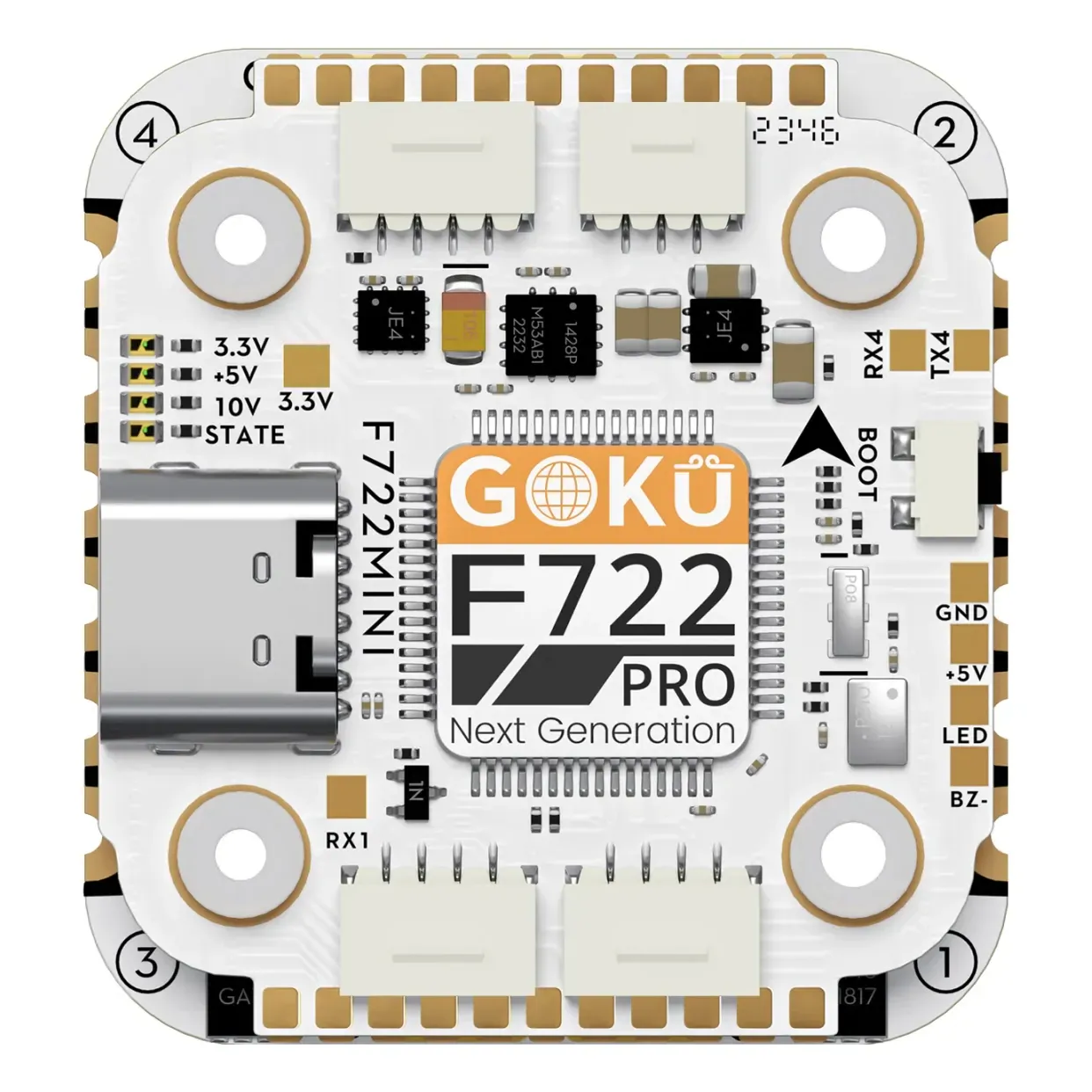

Flywoo GOKU F722 Pro Mini V2 45A 32Bit Stack

The Flywoo GOKU F722 Pro Mini V2 is a 20x20mm flight controller and 45A 32-bit ESC stack built for 3-inch cinewhoops and lightweight 5-inch freestyle quads, in a BLHeli_32 (2-6S) or AM32 (3-6S) ESC edition.

Key features

• STM32F722 processor paired with an ICM42688 gyro and DP310 barometer for responsive, stable flight tuning.

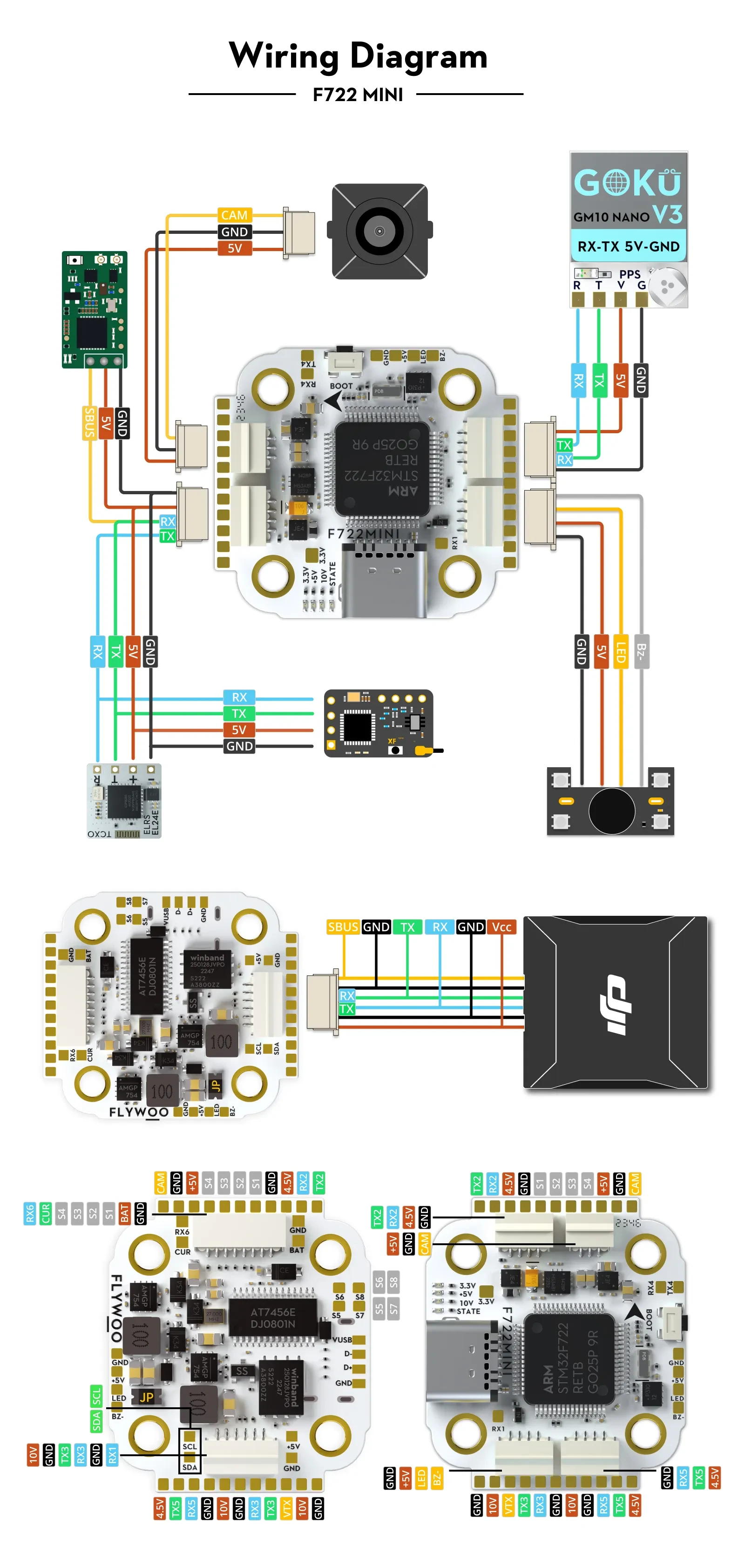

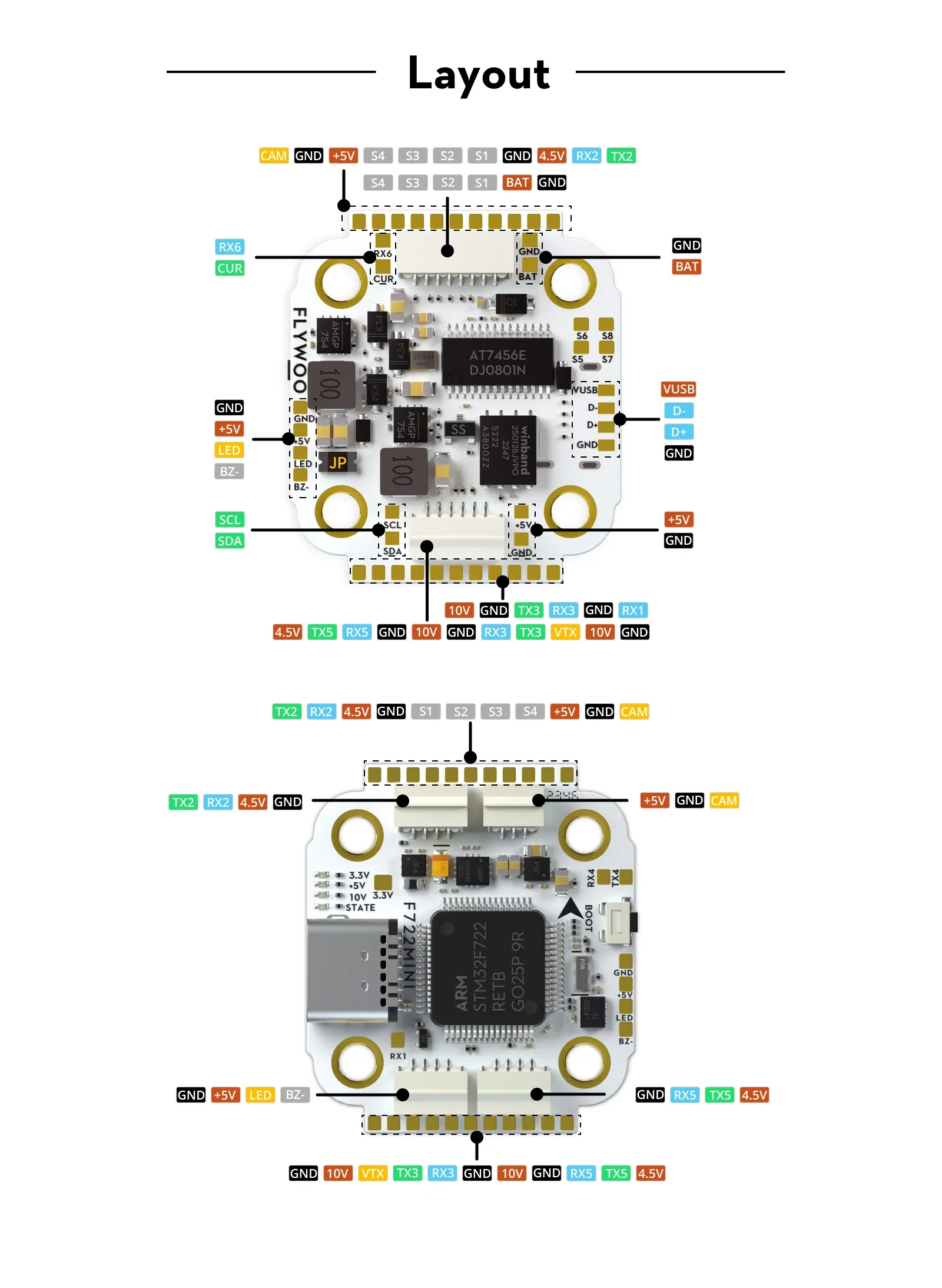

• Snap-lock sockets give plug-and-play wiring for the receiver, GPS and buzzer, with solder pads still available for custom builds.
• Dedicated plug-and-play connector and cable for the DJI O3 Air Unit simplifies digital FPV integration.
• Supports up to 8 motor outputs with dual 4-in-1 ESC sockets reserved, suiting hex/octo builds or a second ESC.
• 16MB blackbox logging and an immersion-gold PCB give high-current, high-temperature reliability.

Specifications

• MCU: STM32F722
• Gyro: ICM42688
• Barometer: DP310
• OSD: AT7456E
• Input Voltage: 2-6S LiPo (BLHeli_32 edition), 3-6S LiPo (AM32 edition)

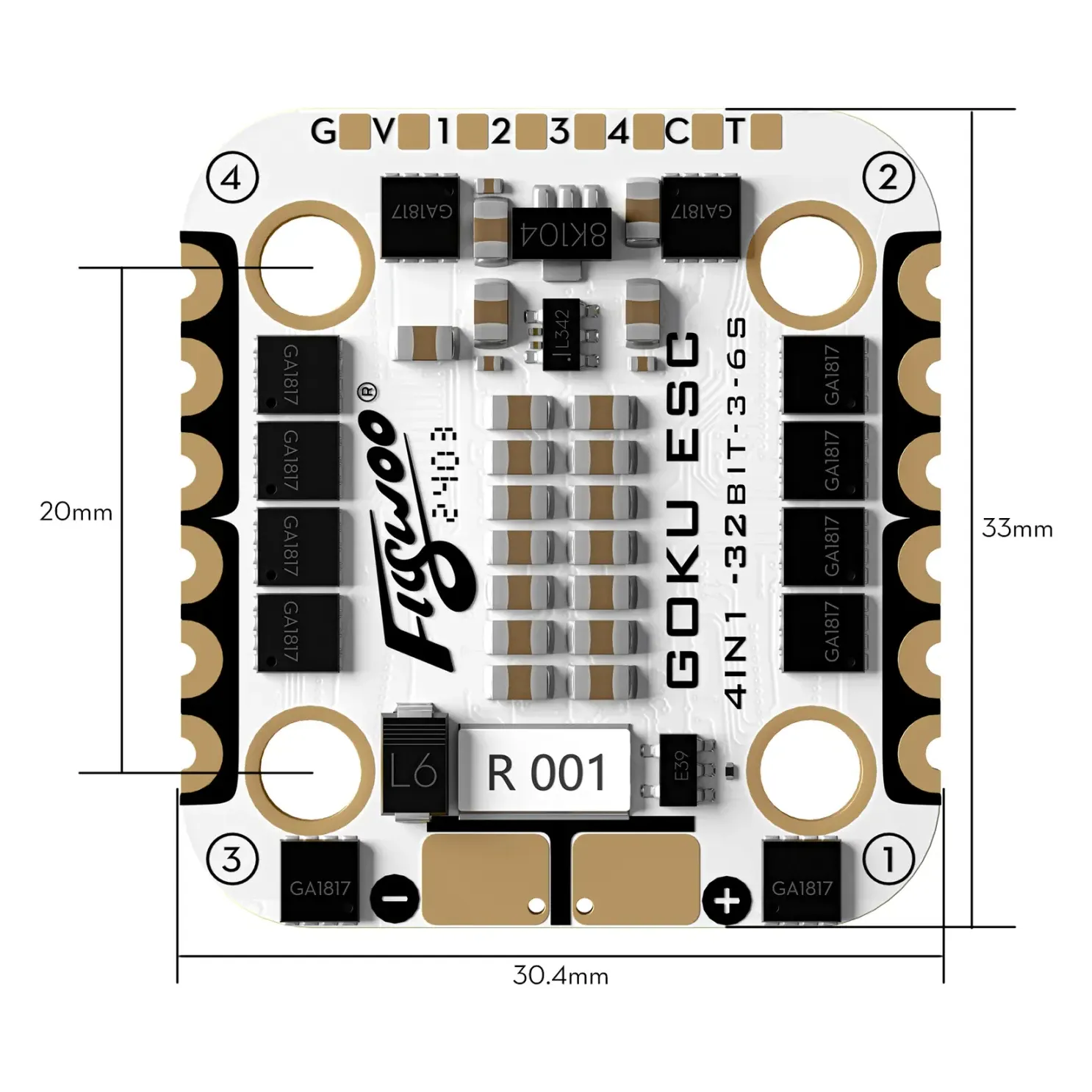

• ESC Continuous Current: 45A
• ESC Firmware: BLHeli_32 or AM32 (choose the edition), Dshot300/600/1200
• BEC: 10V/2A, 5V/2A
• UARTs: 6
• Blackbox: 16MB
• Mounting: 20x20mm (M2)
• Flight controller size: 32 x 29 x 20 mm
• Flight controller weight: 9.9g
• In the box: FC-ESC cable, DJI O3 cable, buzzer, GPS, receiver and camera cables, 5 M3 and 5 M2 damping grommets

The reserved dual 4-in-1 ESC sockets make this stack a straightforward upgrade path to hex or octo power without a full rewire.
