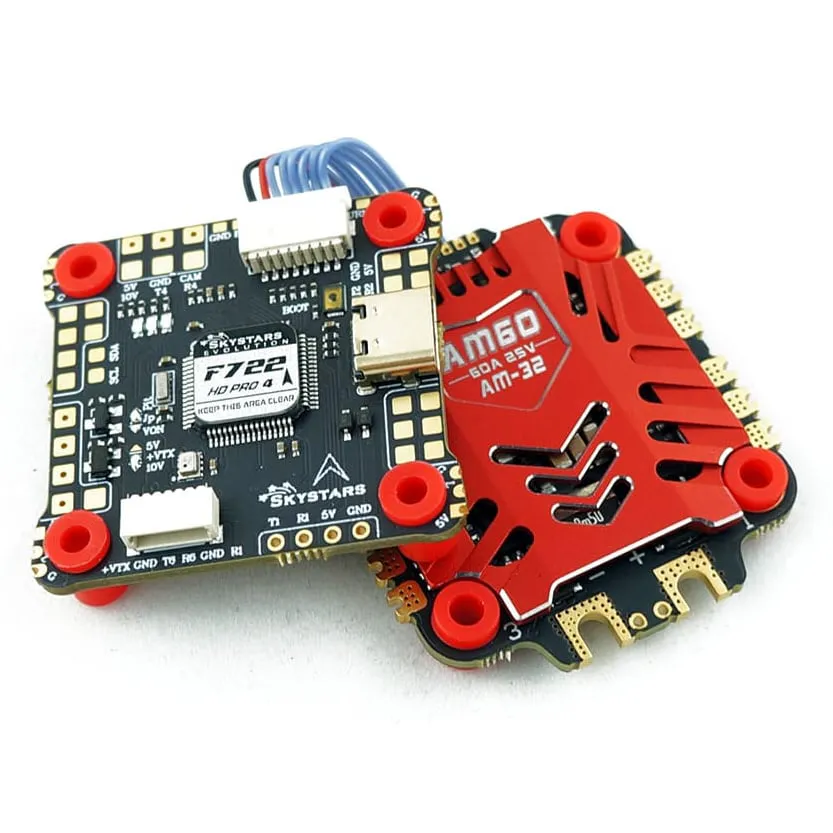

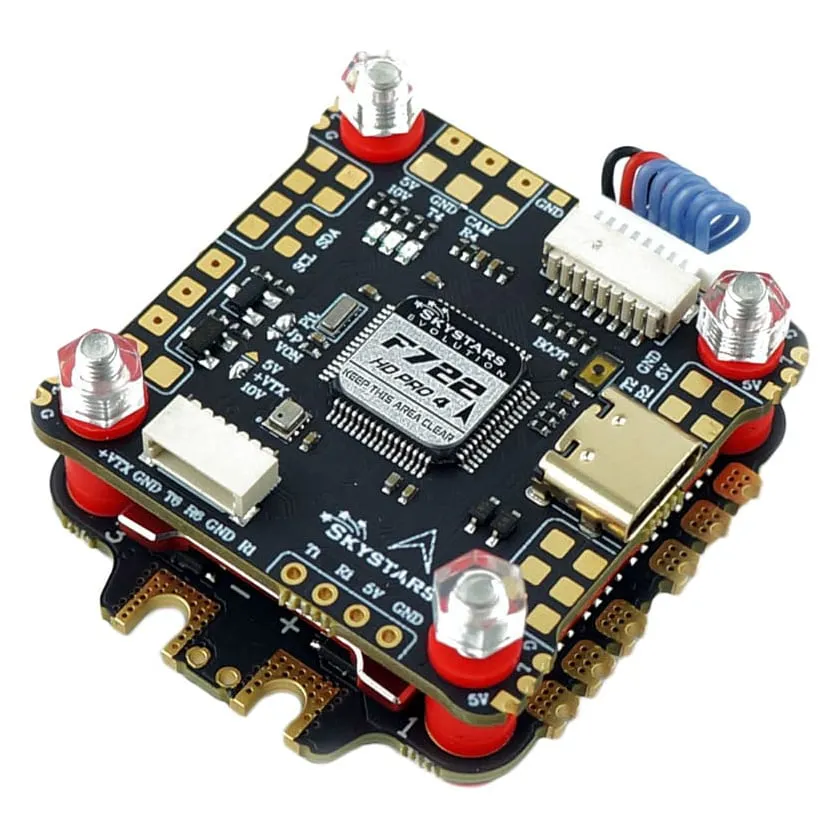

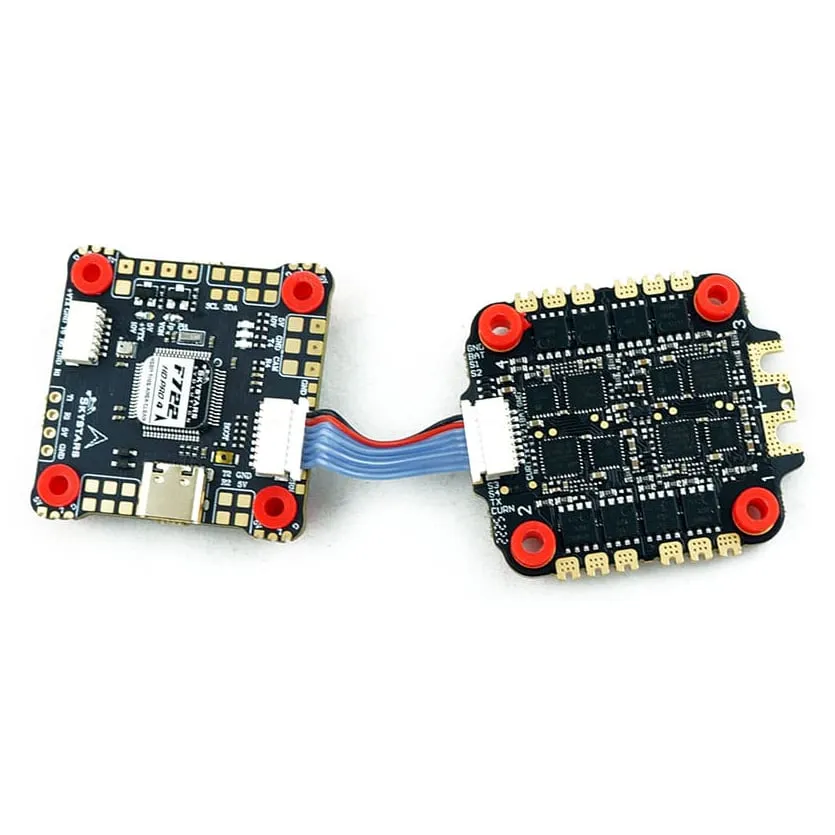

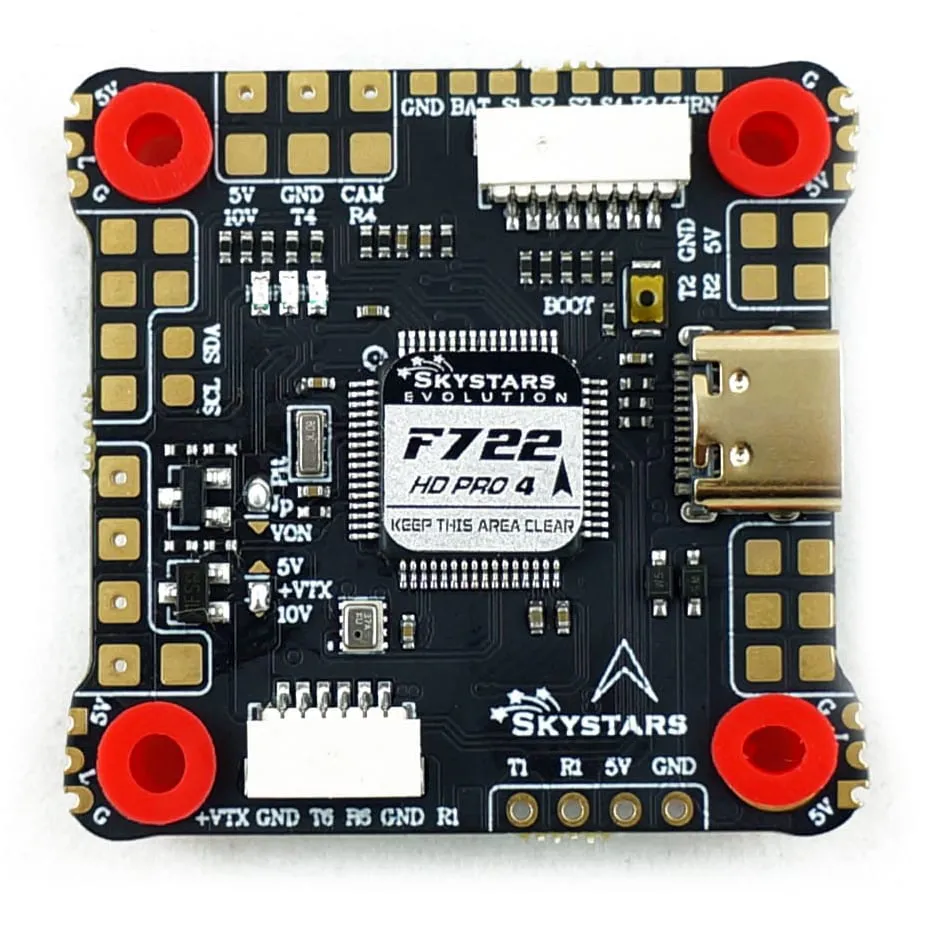

Skystars Fly Stack F722 HD Pro 4 FC + 60A ESC (AM60 AM32 / KM60 BLHeli_32) 30x30

The Skystars Fly Stack combines the F722 HD Pro 4 flight controller with the AM60 60A ESC to drive 5-inch freestyle quads, 7-inch long-range platforms, and heavy-lift cinelifters. It handles aggressive throttle punches and high-kV motors effortlessly on 6S power, while natively supporting modern digital FPV setups.

Key features

• Direct plug-and-play connector for digital HD VTX systems like the DJI O3, Walksnail Avatar, and Caddx Vista
• MPU6000 gyro and integrated barometer for stable, precise flight tuning
• Generously sized, widely spaced ESC solder pads simplify heavy-gauge motor wire installation
• Six independent UARTs for extensive peripheral expansion without resource conflicts
• Integrated 16MB Blackbox for precise tuning and flight diagnostics

Specifications

• MCU: STM32F722
• Gyro: MPU6000
• Barometer: BMP280
• Input voltage: 3-6S
• Continuous current: 60A
• Peak current: 80A

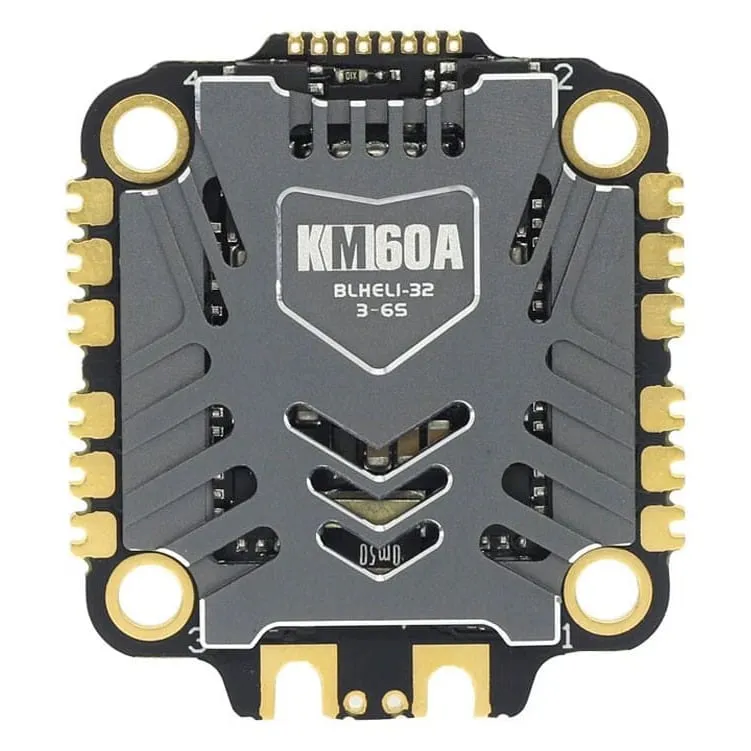

• ESC firmware: AM32 (AM60 version) or BLHeli_32 (KM60 version)
• BEC output: 5V/10V, 3A
• Blackbox: 16MB
• Mounting size: 30.5x30.5
• Firmware: Betaflight, INAV
• FC size and weight: 39 x 39 mm, 6.9 g
• ESC size and weight: 41 x 46 x 7.6 mm, 18 g
• In the box: stack, 8 M4-to-M3 silicone grommets, 2 x JST-SH1.0 8-pin cables (4 cm), JST-GH 6-pin DJI cable (10 cm)

This stack is engineered for builders who require high-current headroom for aggressive flying, providing a clean, stable backbone for heavily loaded FPV builds.
