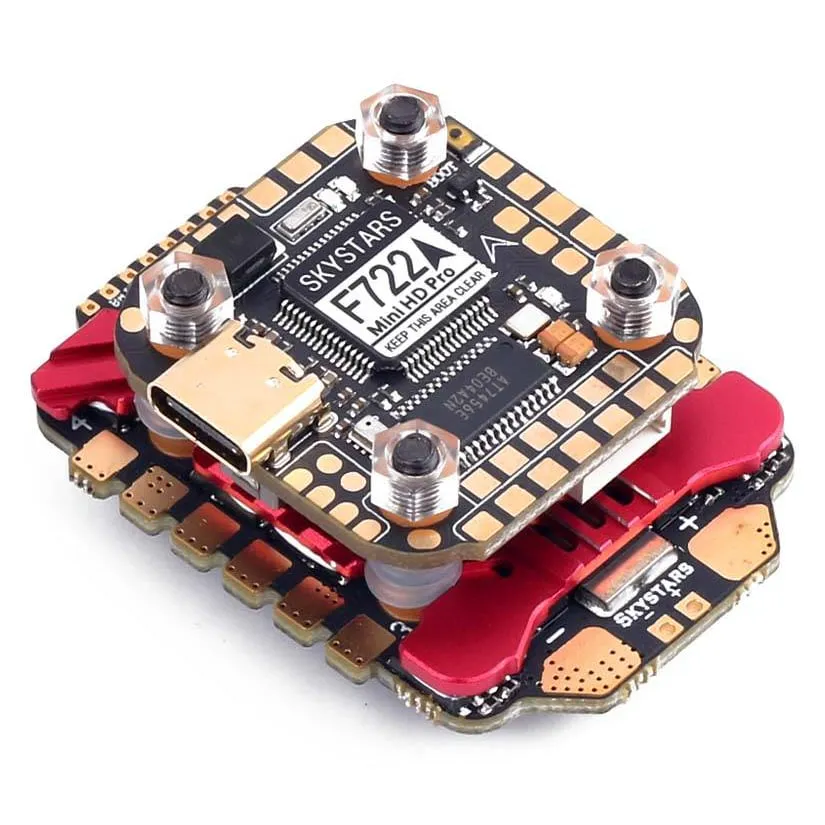

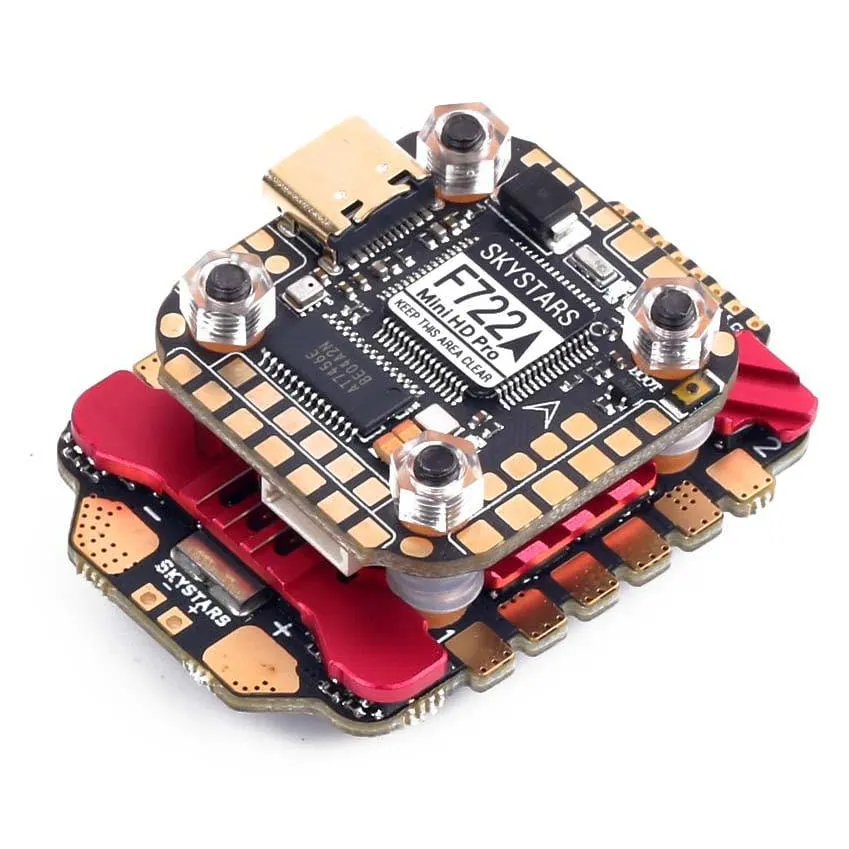

Skystars F722 Mini HD Pro FC + KM55 55A AM32 Stack

The SkyStars Mini HD Pro stack combines an F722 flight controller with a KM55 55A ESC for compact FPV drone builds and rebuilds.

Key features

• Matched FC and ESC package avoids sourcing the two core flight components separately.

• F722 processing is suited to feature-rich flight-control configurations.

• AM32 ESC firmware supports configuration through compatible AM32 tools.

• The 55A ESC rating should be matched to the expected motor and propeller current demand.

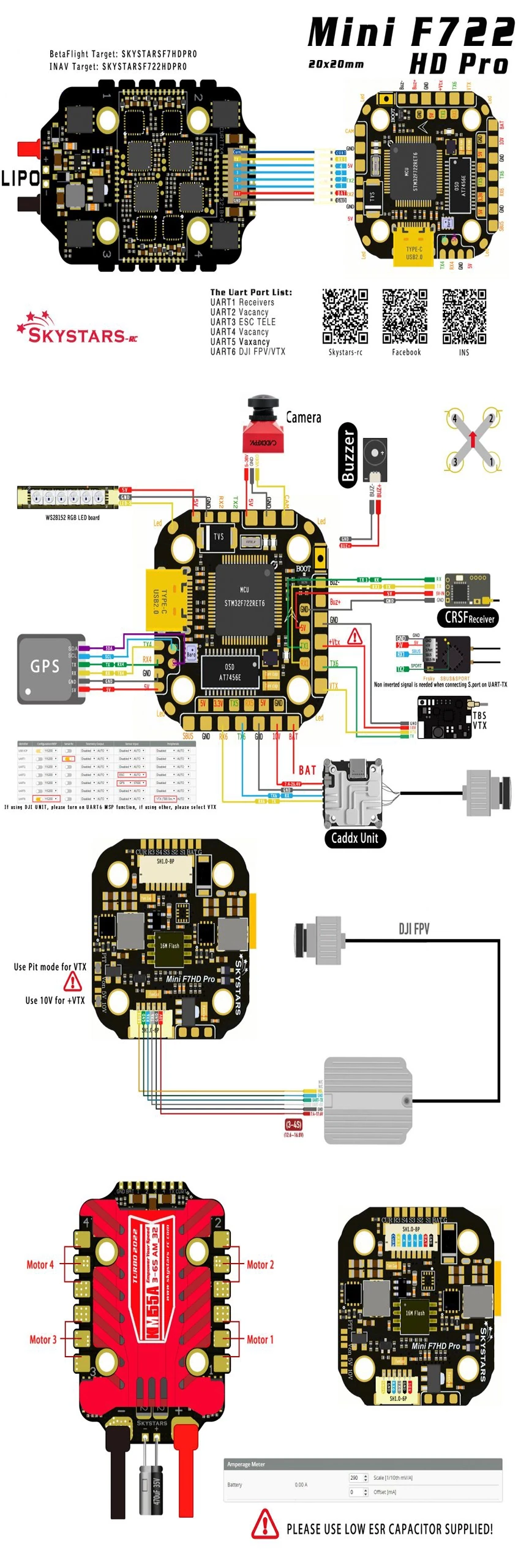

• Plugs into a DJI HD air unit, with WS2812 LED pads at each corner.

Specifications

• Flight controller: F722 Mini HD Pro

• FC MCU: STM32F722, 216MHz

• Gyro: BMI270

• Barometer: yes

• OSD: Betaflight OSD and DJI HD OSD

• Blackbox: 16MB

• UARTs: 6

• BEC: 5V 2A, 10V 2A

• Input voltage: 3-6S LiPo

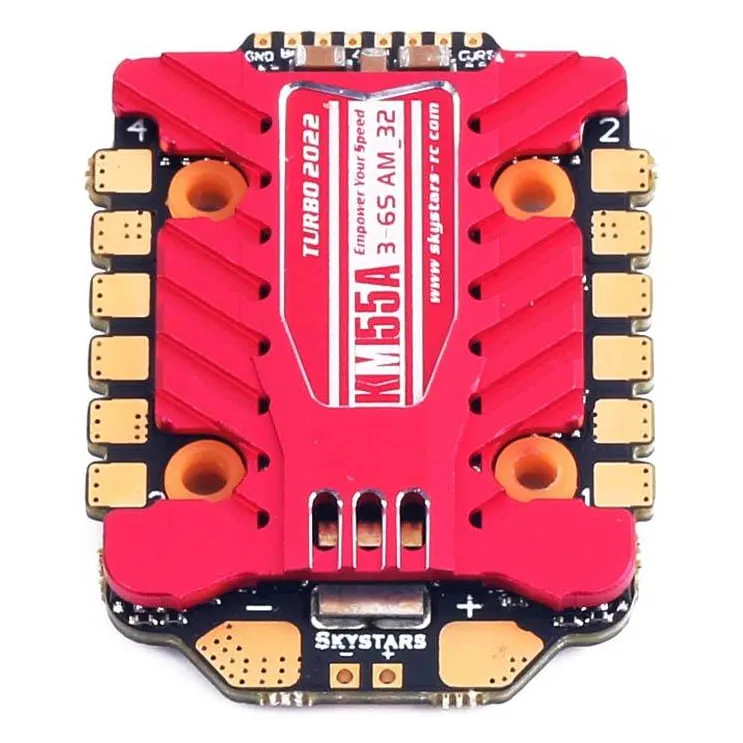

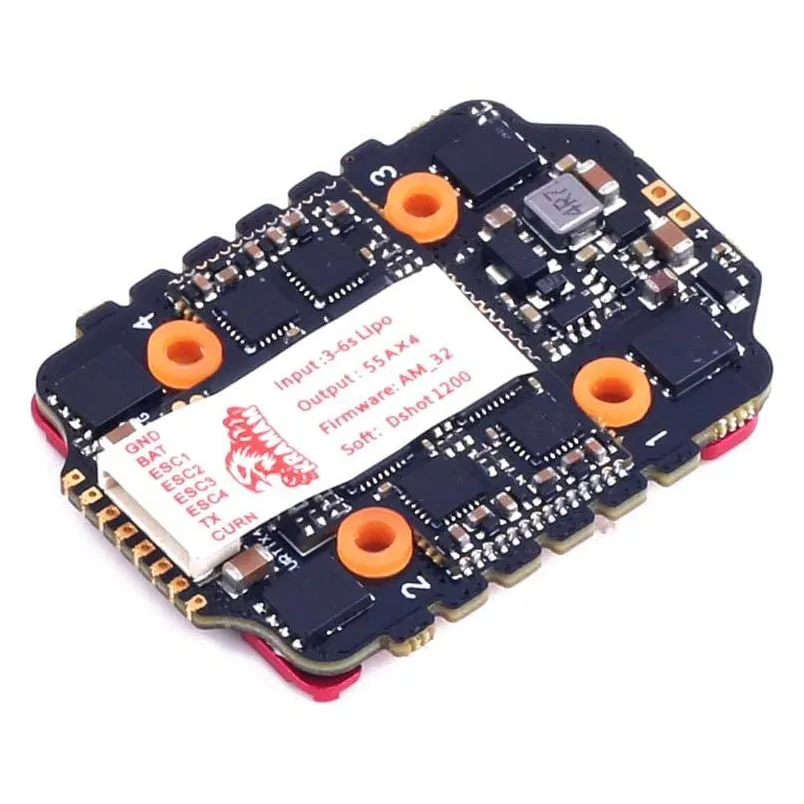

• ESC: KM55

• ESC current rating: 55 A

• ESC firmware: AM32

• ESC BEC: none

• Mounting size: 20 x 20 mm (M3)

• FC size and weight: 35 x 28 x 7 mm, 4.2 g

• ESC size and weight: 35 x 47 x 6.5 mm, 16.5 g

Confirm the stack mounting pattern, battery voltage range, motor current and connector layout against the intended frame before installation.
