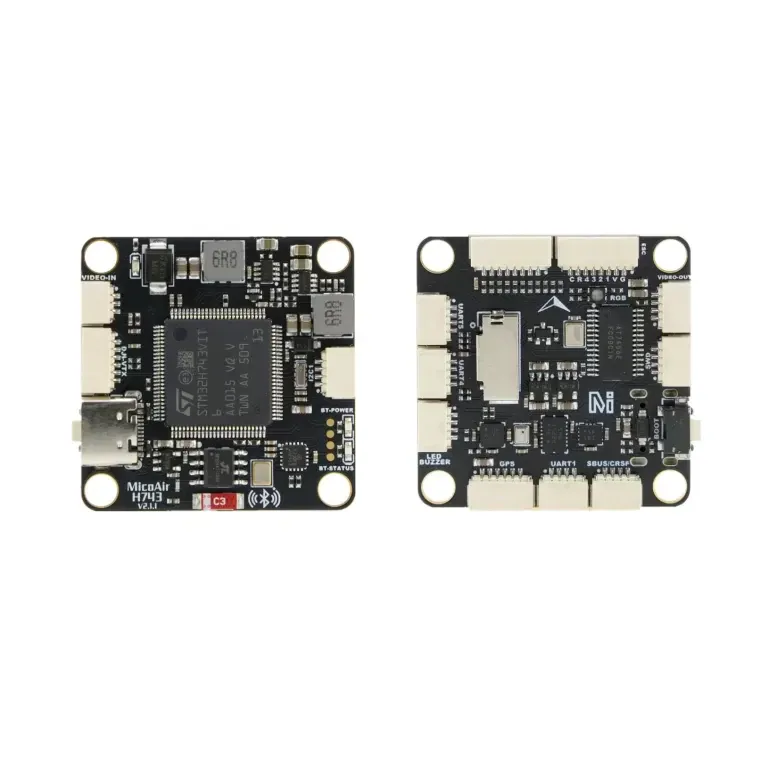

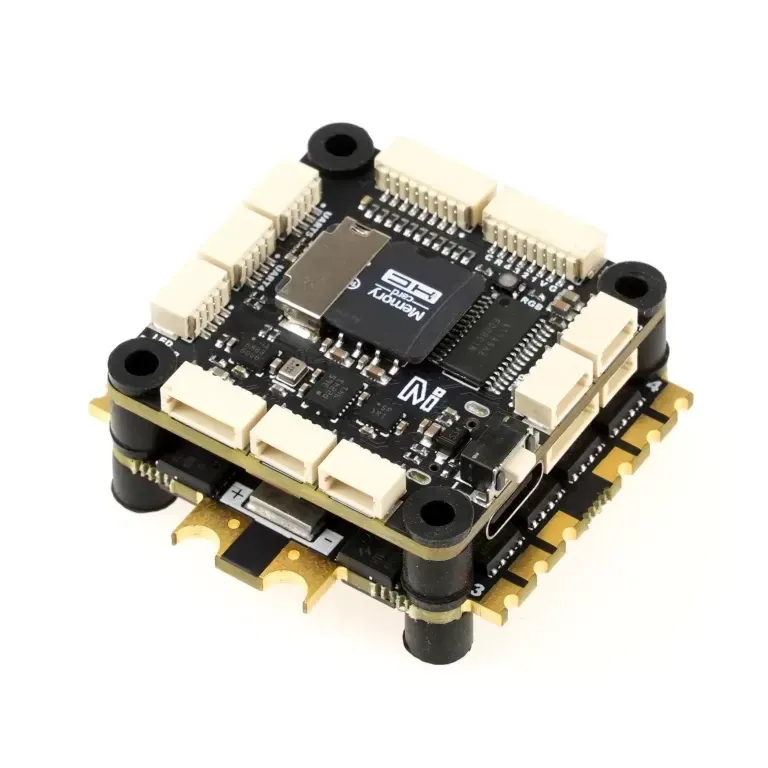

MicoAir743 V2 AM32 70A 30×30 FC & ESC Stack

MicoAir743 V2 AM32 70A 30x30 FC & ESC Stack combines an H743 flight controller with a 70A AM32 4-in-1 ESC on a 30x30 mount. It suits pilots building around ArduPilot or INAV who want an H743-class board and a higher-current ESC in one matched stack. Choose it when your frame supports 30x30 hardware and your build needs more ESC headroom than smaller, lower-amp stacks.

Key features

• H743 processor suits firmware-heavy builds such as ArduPilot and INAV.

• 70A AM32 4-in-1 ESC gives current headroom for harder throttle bursts.

• 30x30 mounting fits full-size stack frames and centre plates designed for this pattern.

• FC and ESC are paired as one stack, which simplifies parts matching for a new build.

Specifications

• Brand: MicoAir

• Mounting Size: 30x30

• FC Processor: H743

• ESC Current: 70 A

• MCU: STM32H743VIT6, 480 MHz, 2 MB flash

• Gyro: dual IMU, BMI088 + BMI270

• Barometer: SPL06

• Compass: QMC5883L onboard (an external compass is still recommended)

• OSD: AT7456E

• Input voltage: 2-6S LiPo (6-27 V)

• Ports: 8 UARTs, 11 PWM outputs, I2C, USB-C

• BEC: 5 V 3 A and 12 V 3 A

• Logging: microSD card slot

• HD VTX: DJI O3/O4 connector (pin 1 carries 12 V)

• Bluetooth: onboard telemetry module on UART8

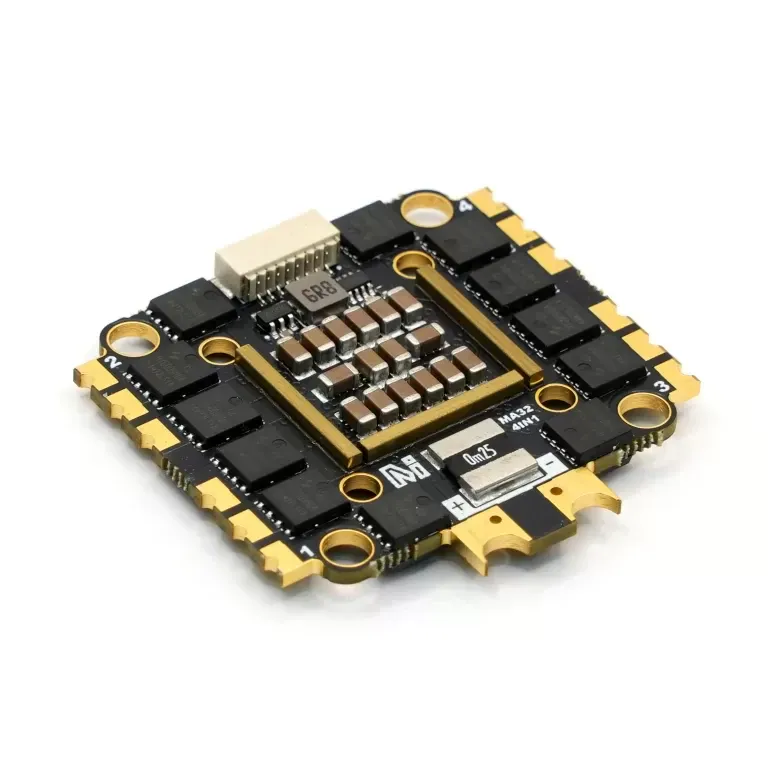

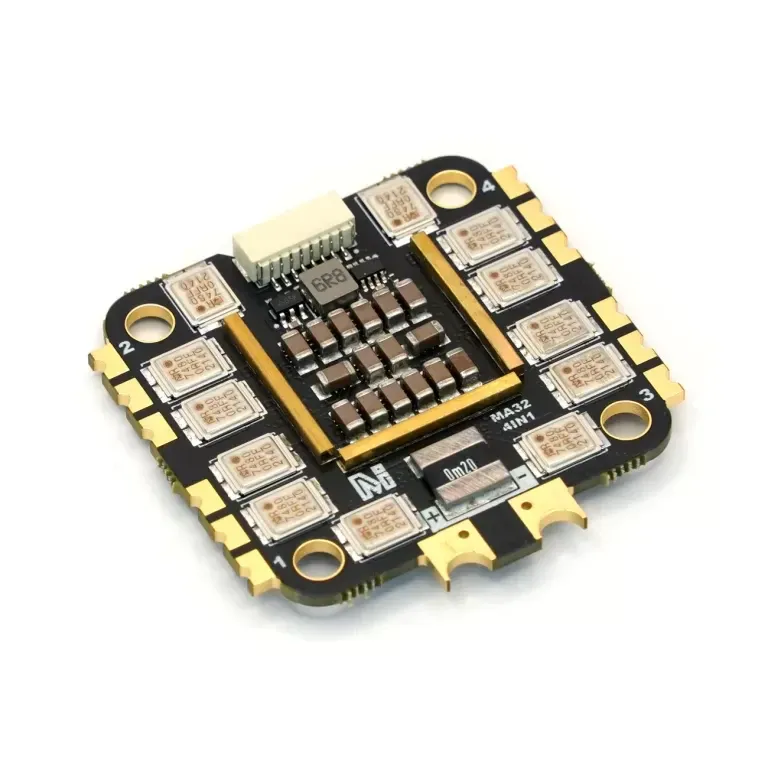

• ESC: AM32 firmware, current sensor, TVS protection diode

• Supported firmware: ArduPilot (default), PX4, Betaflight, INAV
