Flywoo GOKU GN405 Nano HD 20A Stack V3 with ELRS

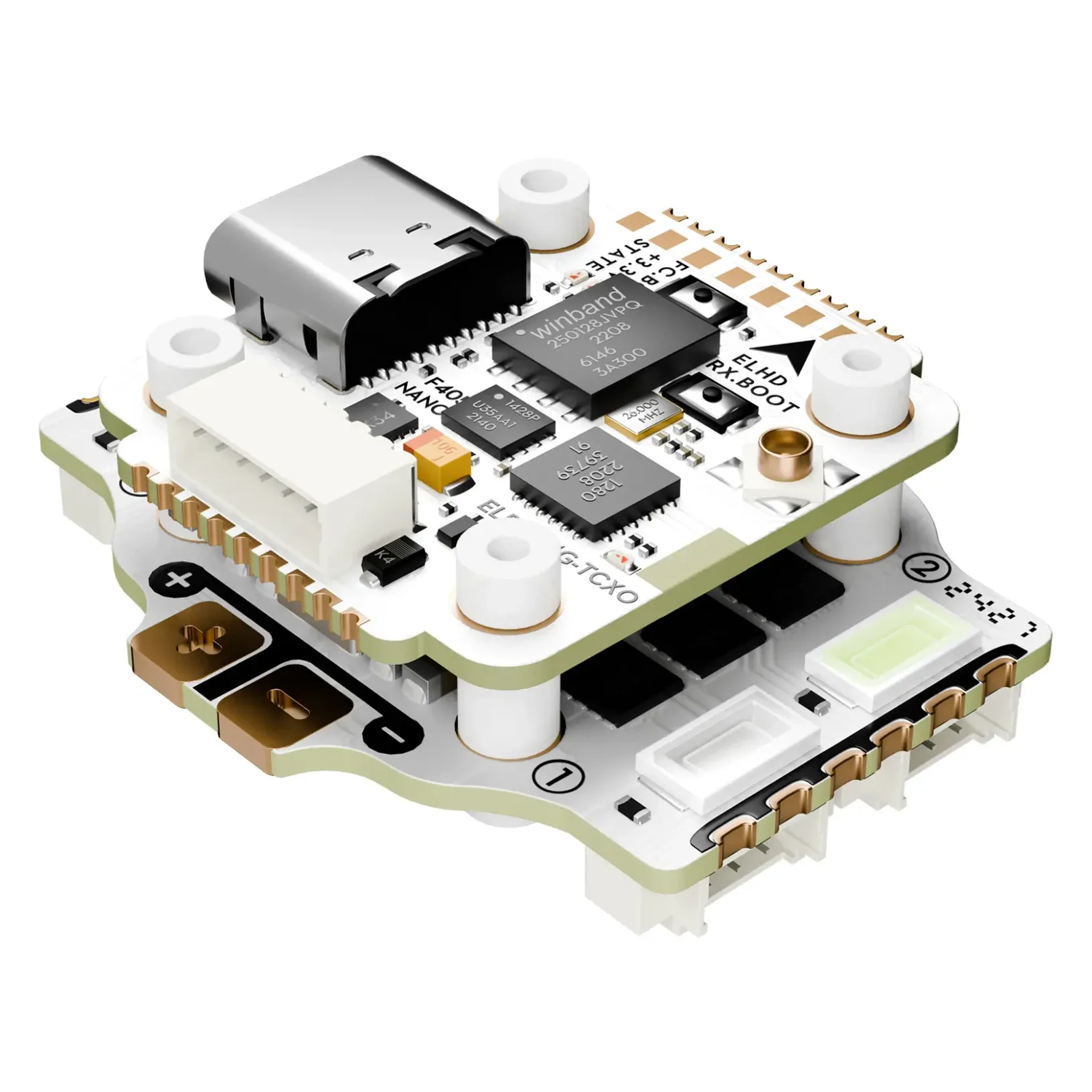

The Flywoo GOKU GN405 Nano HD 20A Stack V3 combines an F405 flight controller with a 20A 4-in-1 ESC on a compact 16x16mm footprint, built for 2-inch to 3-inch micro builds and cinewhoops. A built-in TCXO ELRS receiver and a plug-and-play port for DJI O3/O4 cut down on wiring and weight.

Key features

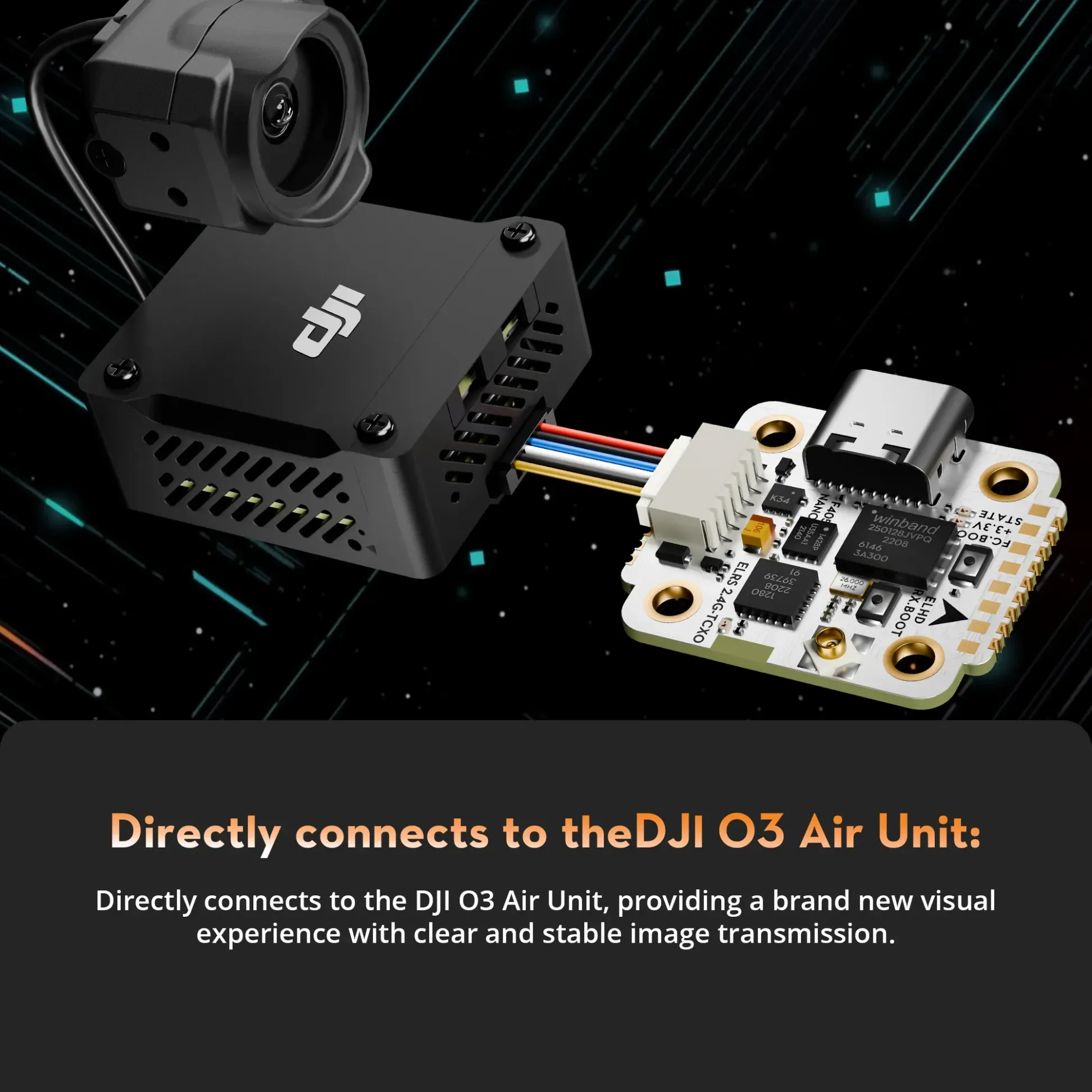

• Plug-and-play connector for DJI O3/O4 digital air units straight off the board, with no extra wiring
• Integrated high-precision TCXO ELRS receiver saves the weight and wiring of a separate module
• Built-in barometer and 16MB blackbox for altitude hold, GPS rescue altitude and PID tuning
• 20A continuous current suits lighter micro freestyle and whoop-class motors on 2S to 4S packs
• Combined FC and ESC weigh about 7.8g, keeping sub-250g builds light

Specifications

• Processor: STM32F405
• Gyro: ICM42688P

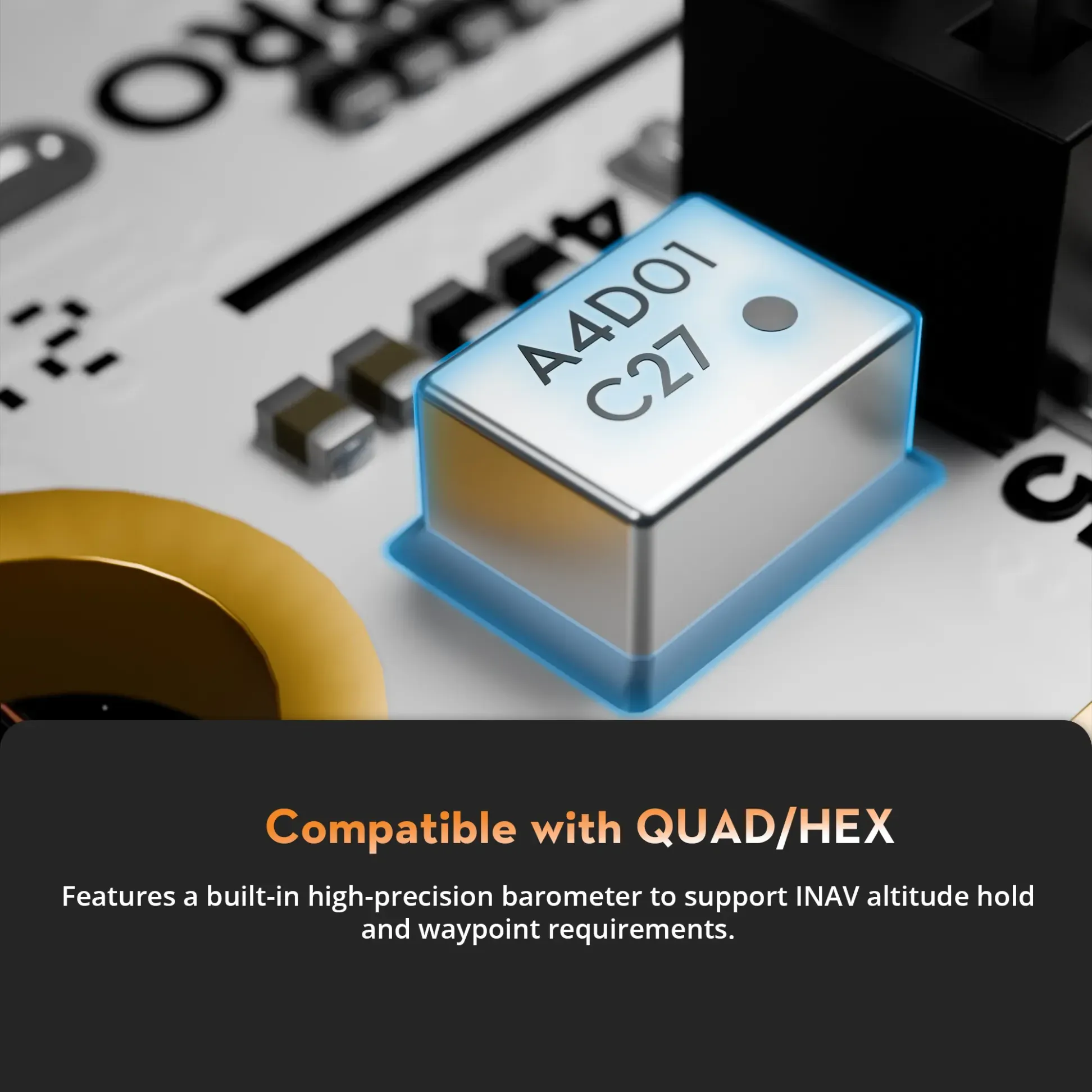

• Barometer: DPS310

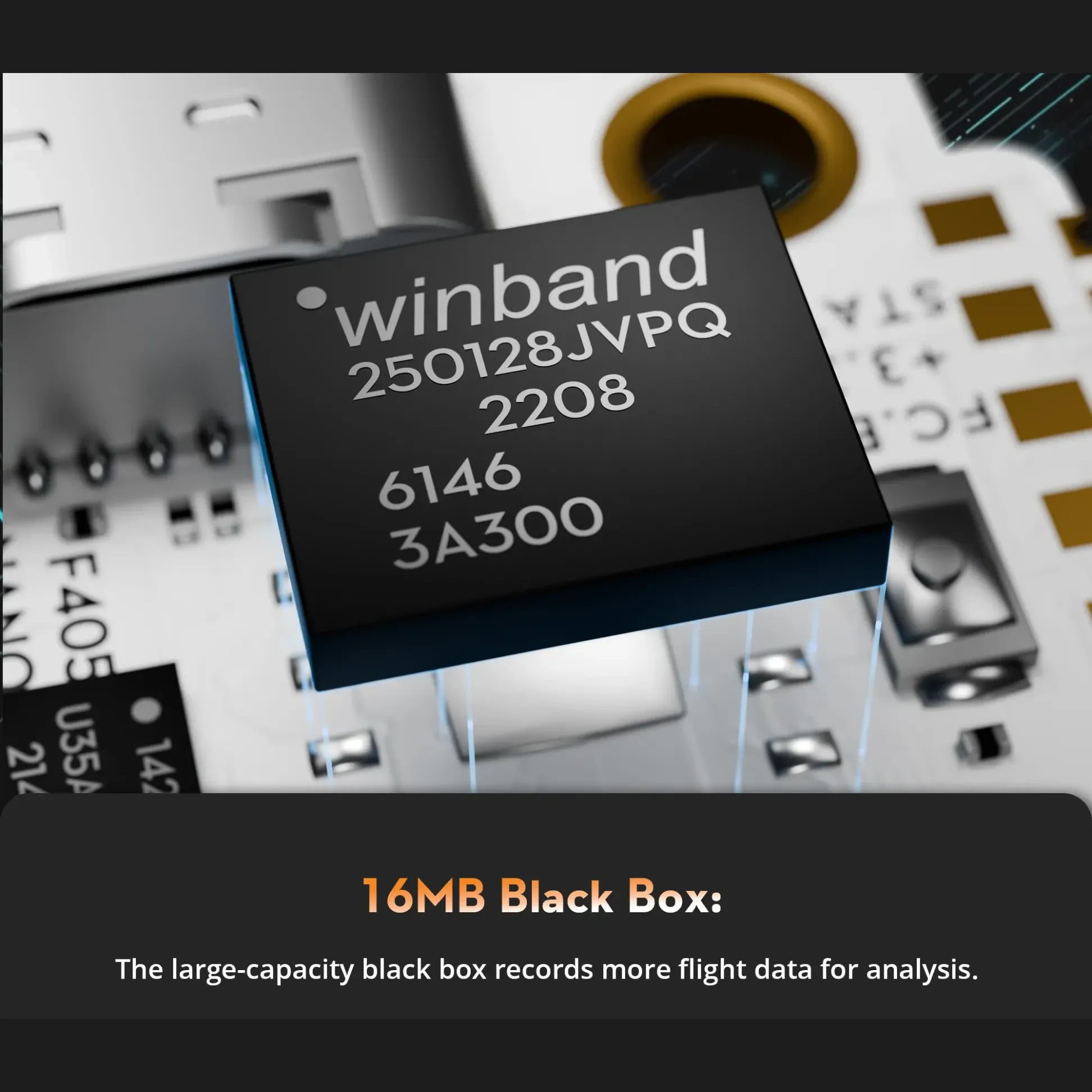

• Blackbox: 16MB
• Analog OSD chip: none
• USB: Type-C
• Input voltage: 2-4S LiPo (ESC); FC accepts 2-6S
• Continuous current: 20A

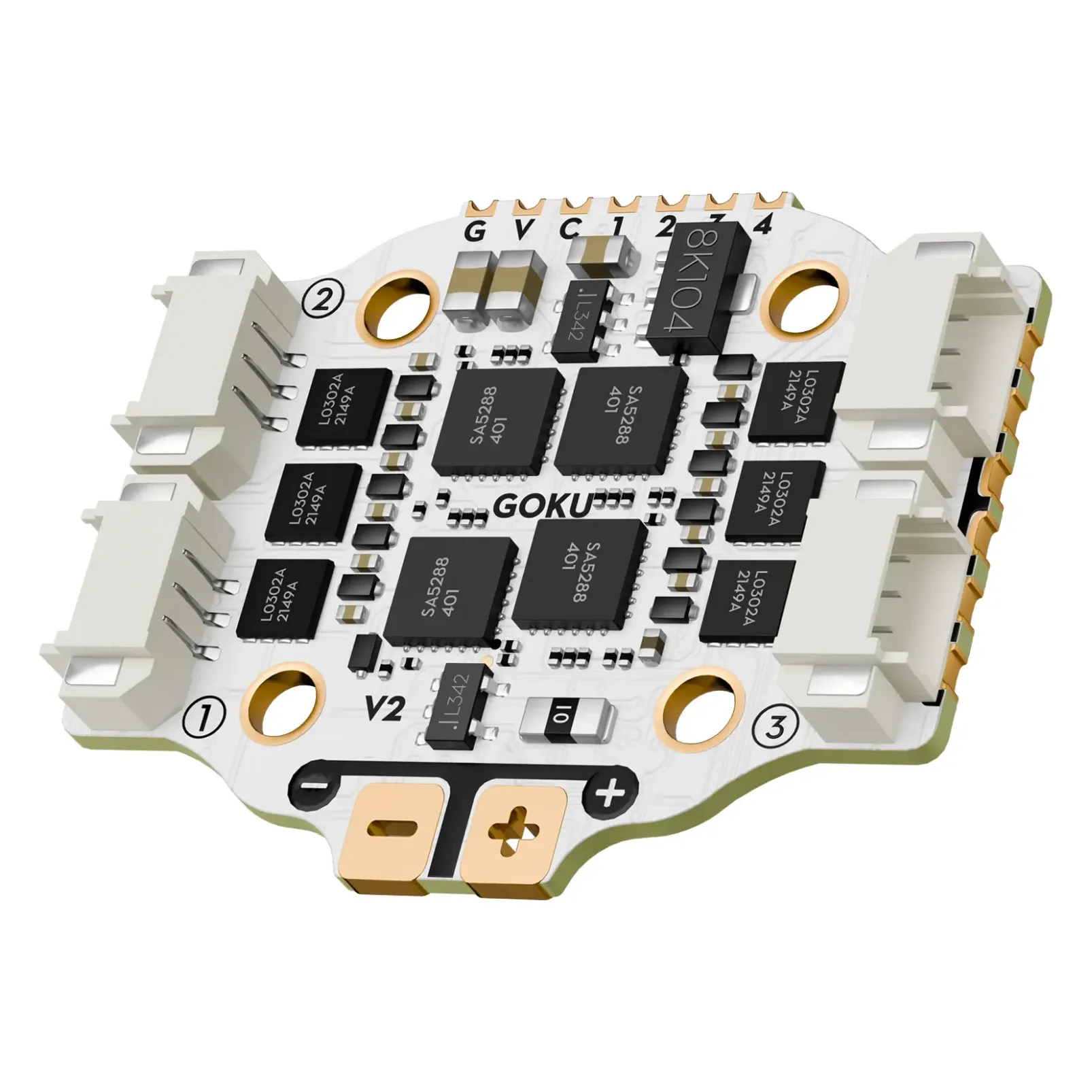

• ESC MCU: BB21F16G, DShot150/300/600, power LED
• BEC: 5V 2A, 3.3V 0.5A
• UARTs: 6 (two reserved for the onboard SBUS and ELRS link)
• Mounting pattern: 16x16mm (M2)

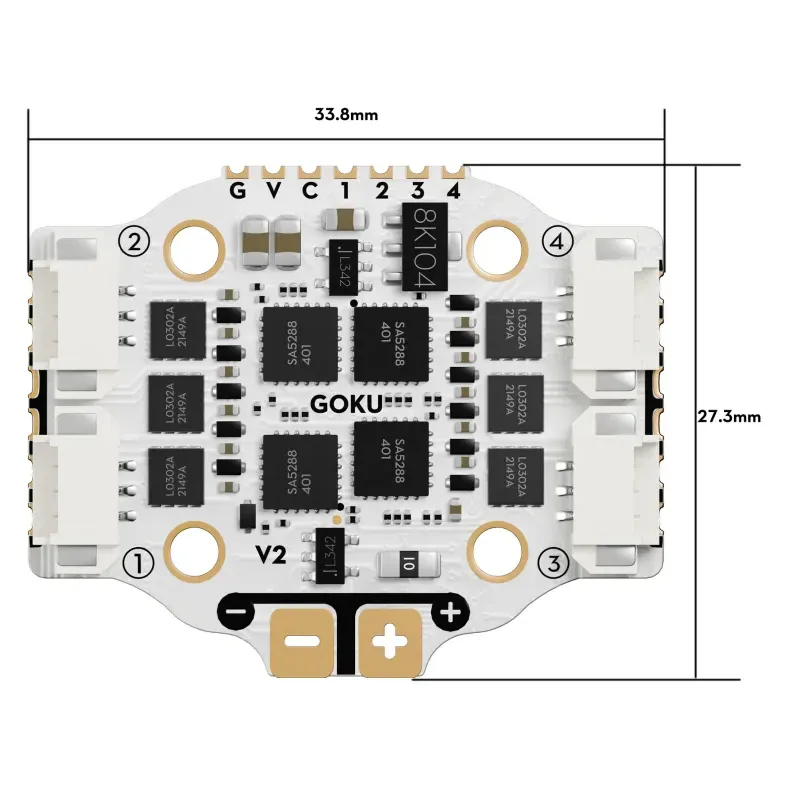

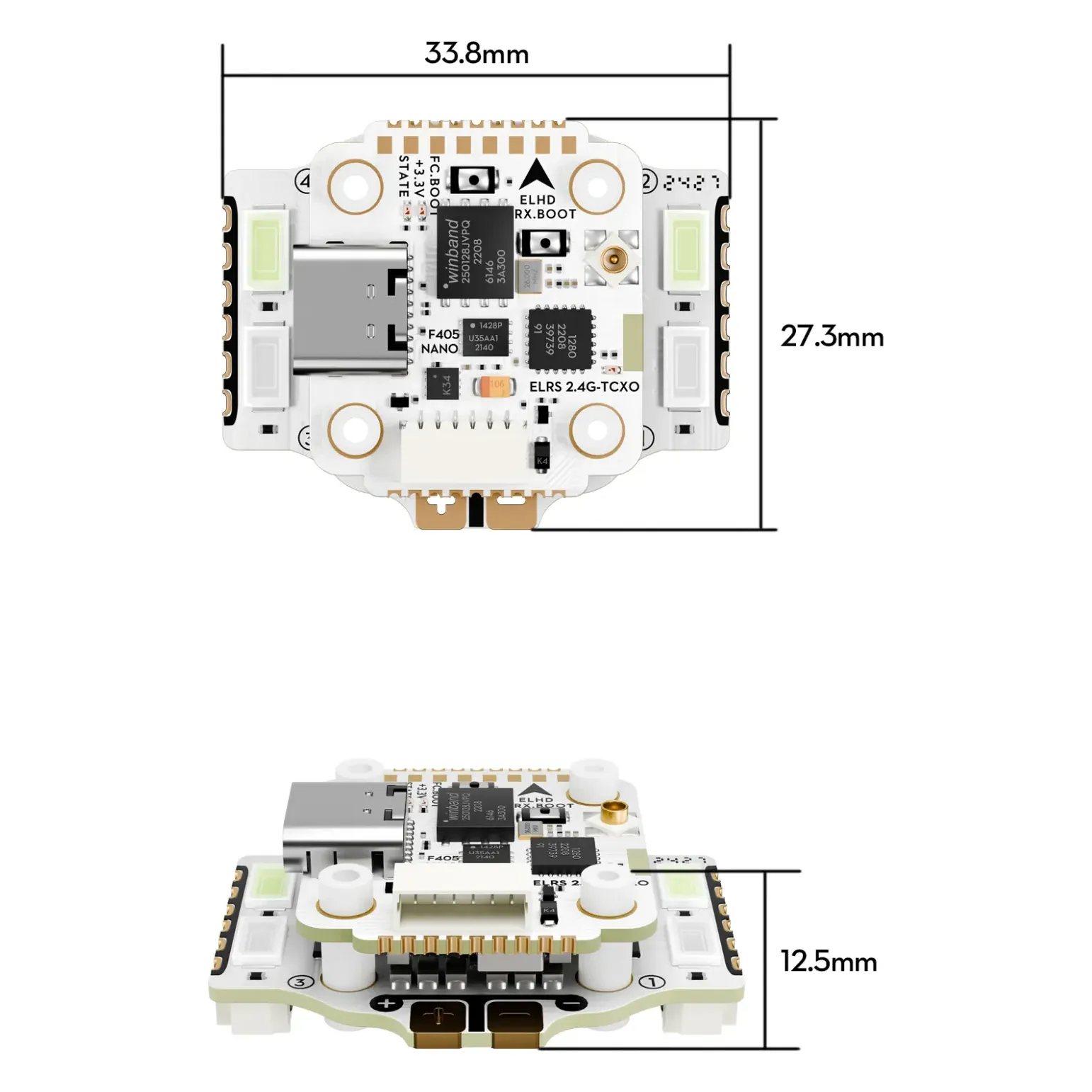

• Size: FC 25 x 23 x 8 mm; ESC board 27 x 33 mm
• Supported firmware: Betaflight, INAV
