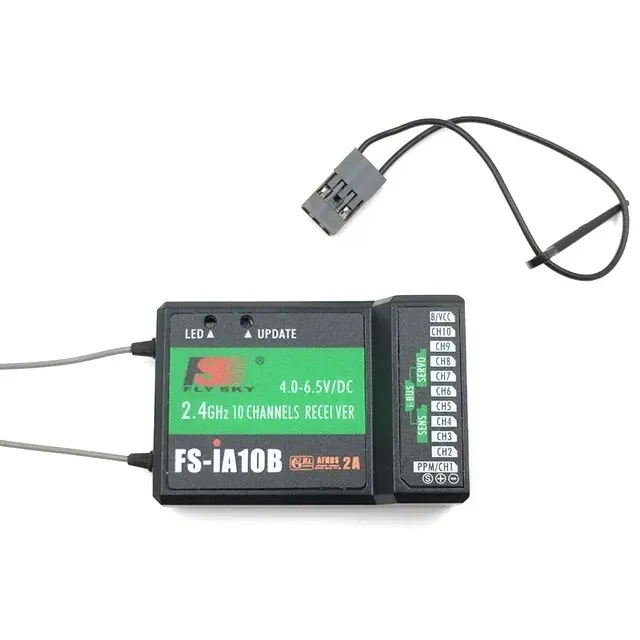

FlySky FS-iA10B 10CH 2.4GHz Receiver

The FlySky FS-iA10B is a 10-channel 2.4GHz receiver for multirotors, fixed-wing aircraft and other RC builds using the AFHDS 2A system. It provides both PWM and PPM output for installations using a flight controller or conventional servos.

Key features

• 10-channel output supports multi-function aircraft control setups.

• AFHDS 2A protocol pairs with compatible FlySky radio equipment.

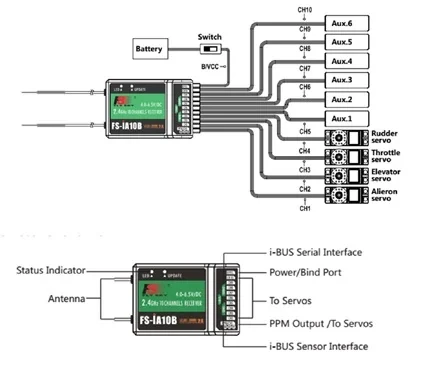

• PWM output supports individual channel connections to servos or a flight controller.

• PPM output provides a single-link connection where the flight controller supports PPM input.

• 2.4GHz operation suits compatible AFHDS 2A radio systems.

Specifications

• Channels: 10

• Protocol: AFHDS 2A

• Outputs: PWM, PPM, i-BUS and S.BUS

• Frequency: 2.4GHz

• Operating voltage: 4.0-6.5 V DC

• Weight: 17.6 g

• Telemetry: sensor port for optional FlySky telemetry sensors, dual antennas

• Compatible transmitters: FlySky FS-i4, FS-i6, FS-i6X, FS-i6S, FS-i10 and other AFHDS 2A radios

• In the box: receiver, bind plug

Before installation, confirm AFHDS 2A compatibility with the transmitter and select the PWM or PPM connection supported by the receiving flight controller.
