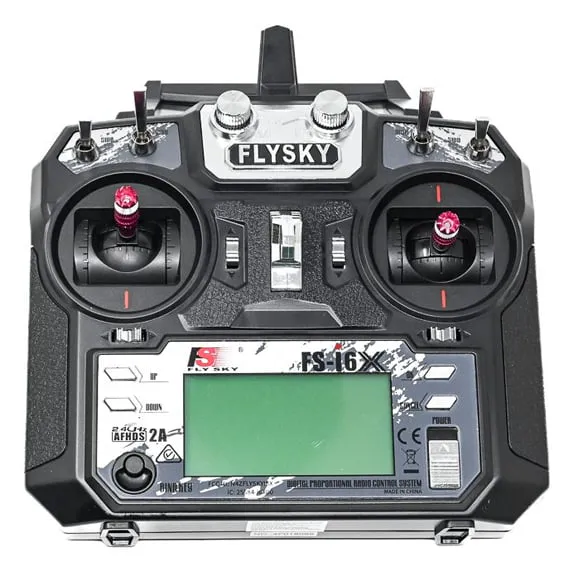

FlySky FS-i6X 2.4GHz 6CH Transmitter with FS-iA10B 10CH Receiver

The FlySky FS-i6X is a 2.4GHz AFHDS 2A radio that ships set to six channels and unlocks up to ten through a firmware update, and this set pairs it with the FS-iA10B ten-channel receiver so the extra channels can actually be used. It is a common first radio for quadcopter, plane and helicopter builds that do not need an OpenTX system.

Key features

• Six channels as supplied, expandable to ten with the firmware upgrade
• AFHDS 2A link with 4096-step resolution and dual antennas for consistent orientation tolerance
• Backlit 128 x 64 LCD with model memory, so several airframes live on one radio
• FS-iA10B receiver included, with ten PWM outputs plus PPM, i-BUS and S.BUS
• USB connection for flight simulators, and four AA cells for power

Specifications

• Channels: 6 as shipped, up to 10 after firmware upgrade
• Protocol: AFHDS 2A (also AFHDS), 2.4GHz
• RF range: 2.408-2.475 GHz
• Channel resolution: 4096 steps
• Display: 128 x 64 backlit LCD
• Model memory: 20
• Transmit power: under 20 dBm
• Power: 4 x AA cells
• Transmitter weight: 392 g
• Transmitter size: 174 x 89 x 190 mm

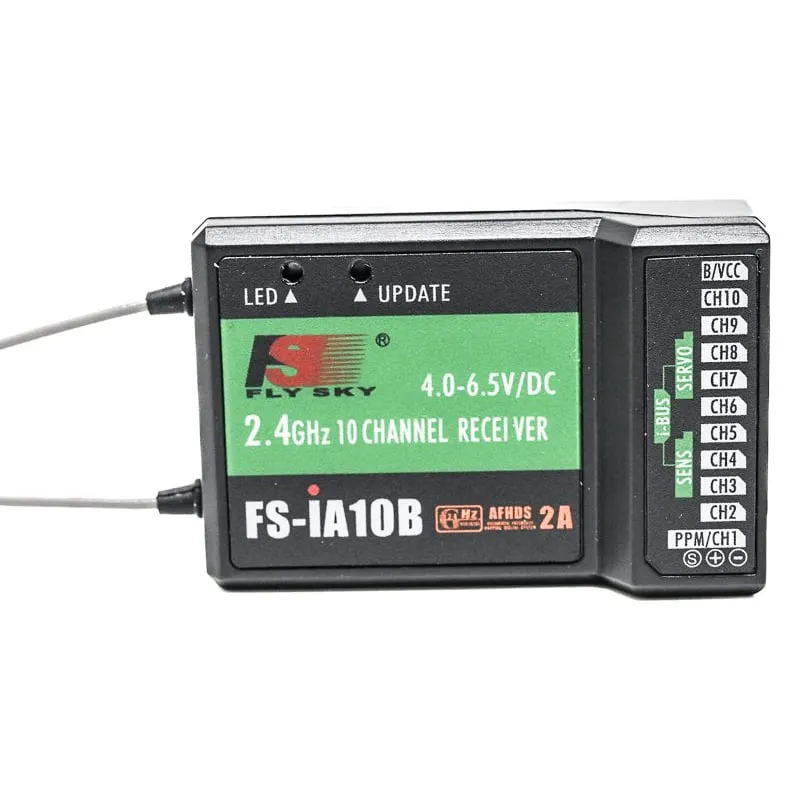

• Receiver: FS-iA10B, 10 channels, PWM / PPM / i-BUS / S.BUS, 19.3 g
• Receiver input voltage: 4.0-6.5 V DC
• Receiver size: 47 x 33.1 x 14.7 mm

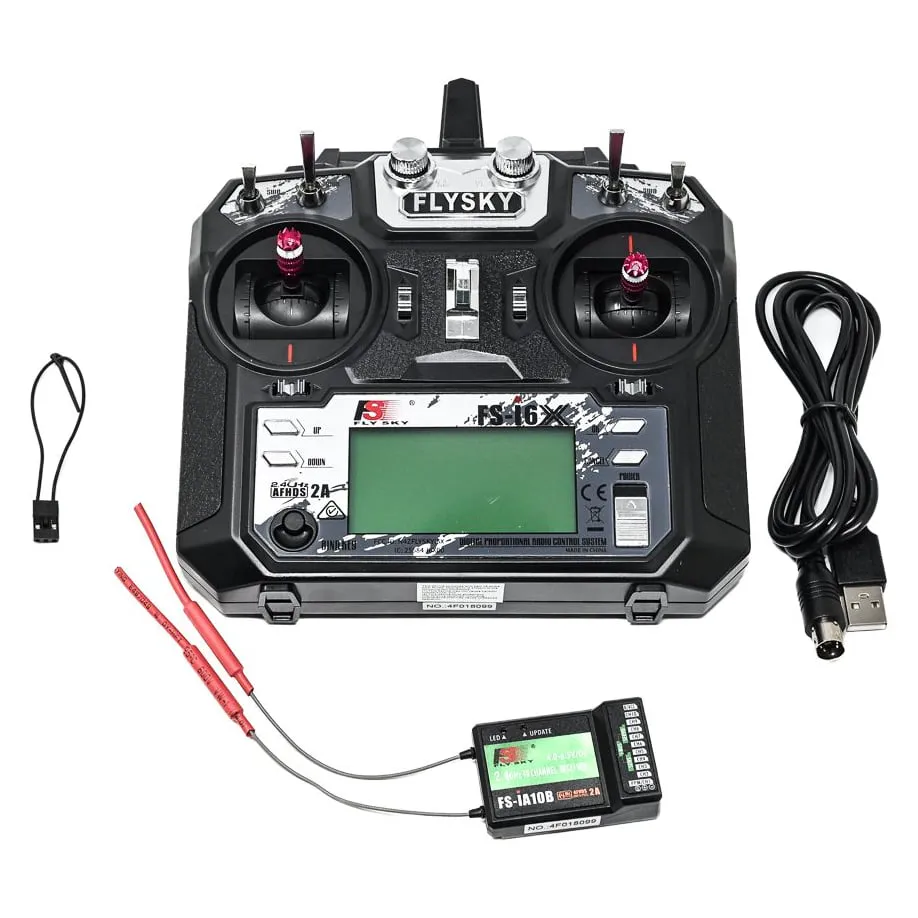

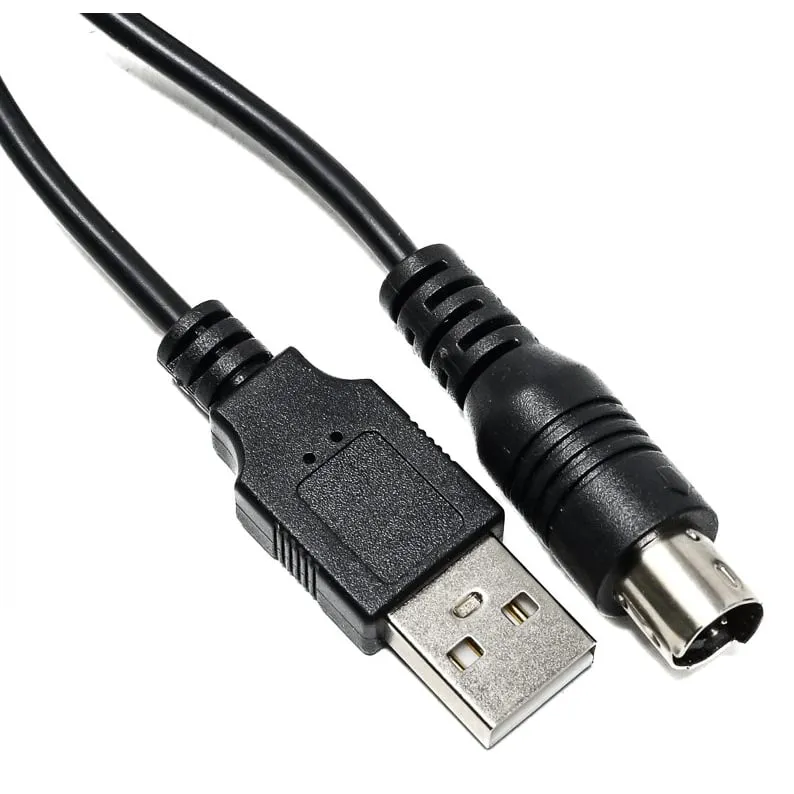

• In the box: FS-i6X transmitter, FS-iA10B receiver with binding cable, PS2-to-USB cable, manual

Wire the flight controller to the receiver over i-BUS or S.BUS to carry every channel on one lead, and keep the PWM pins for servos, a release mechanism or a gimbal.

The FS-i6X (also written FSi6X or FS i6X) is the 10-channel-capable step up from the standard FS-i6, on the same AFHDS 2A protocol and FS-iA receiver family, so receivers and model setups carry over.
