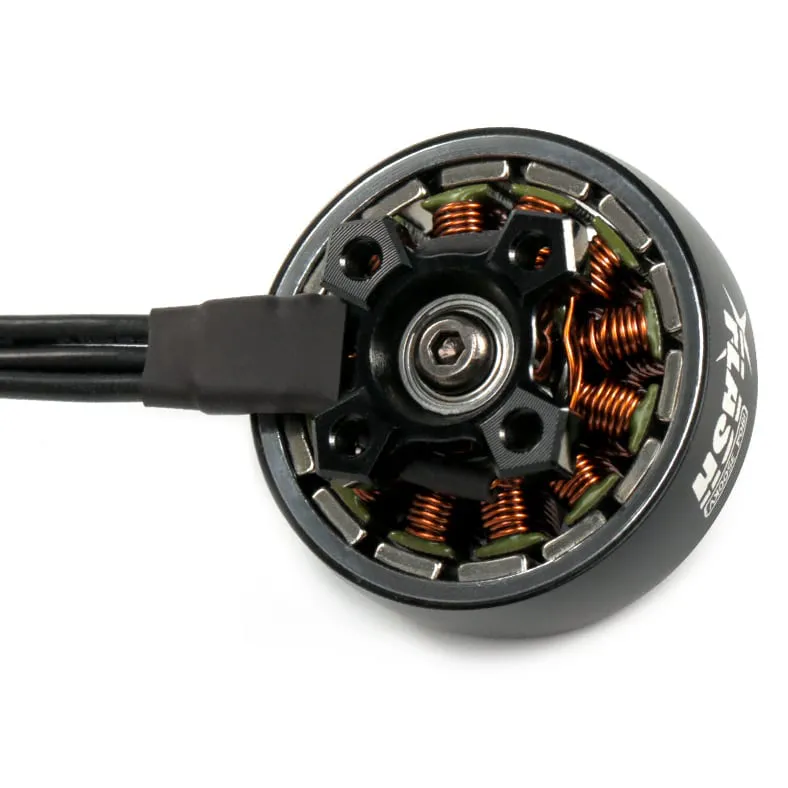

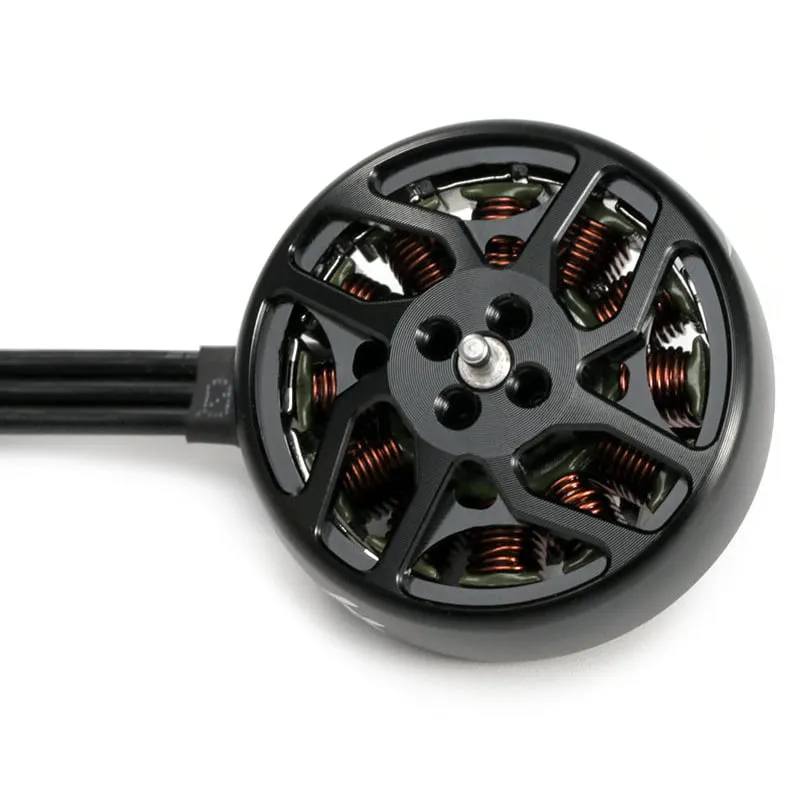

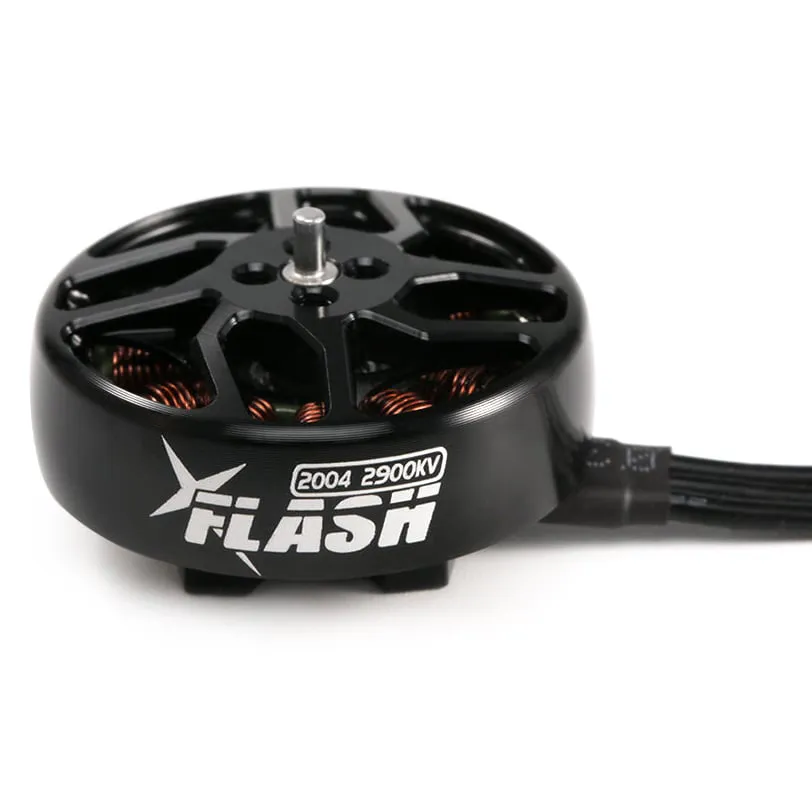

FlyFishRC Flash 2004 FPV Motor (1800KV / 2900KV)

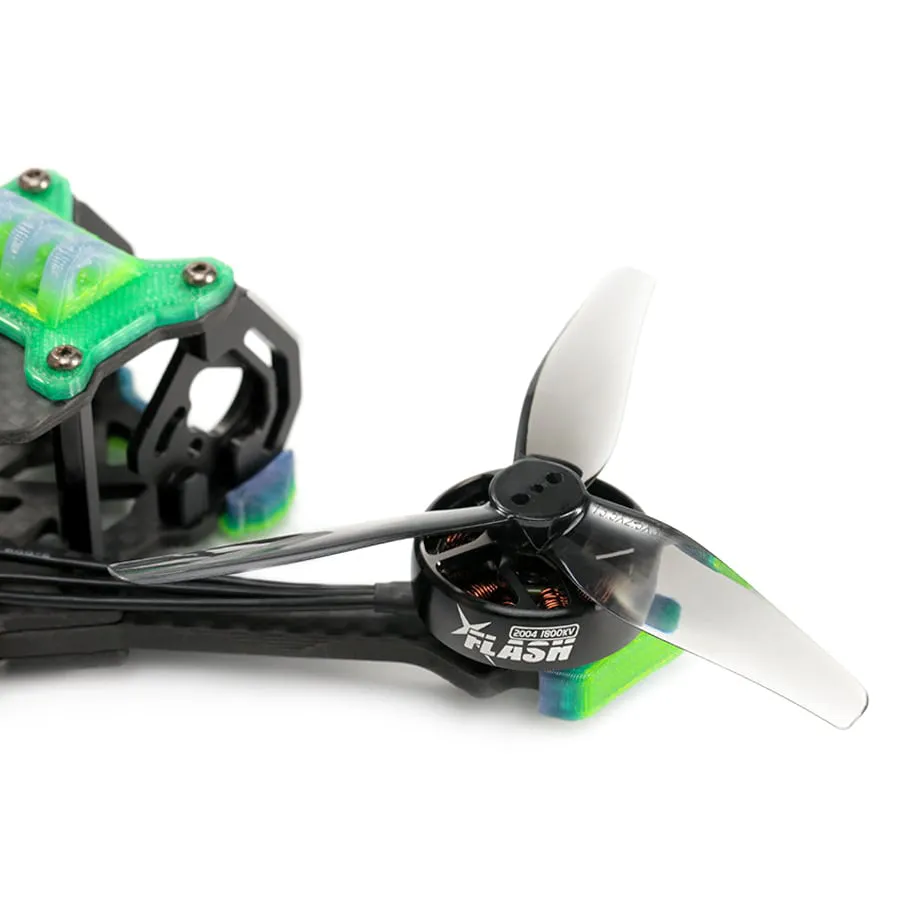

The FlyFishRC Flash 2004 is a 20 × 4 mm stator brushless motor for 3.5-inch quads carrying a GoPro, long-range 4-inch builds and ultralight 5-inch frames. Choose the 1800KV winding for 6S or the 2900KV winding for 4S.

Key features

• Uni-Bell design in 7075 aluminium for crash resistance without extra weight
• NMB bearings and N52SH heat-resistant magnets
• 220 °C-rated copper windings
• 16 g including 150 mm 22AWG leads
• 12 × 12 mm mounting pattern, hardware set included

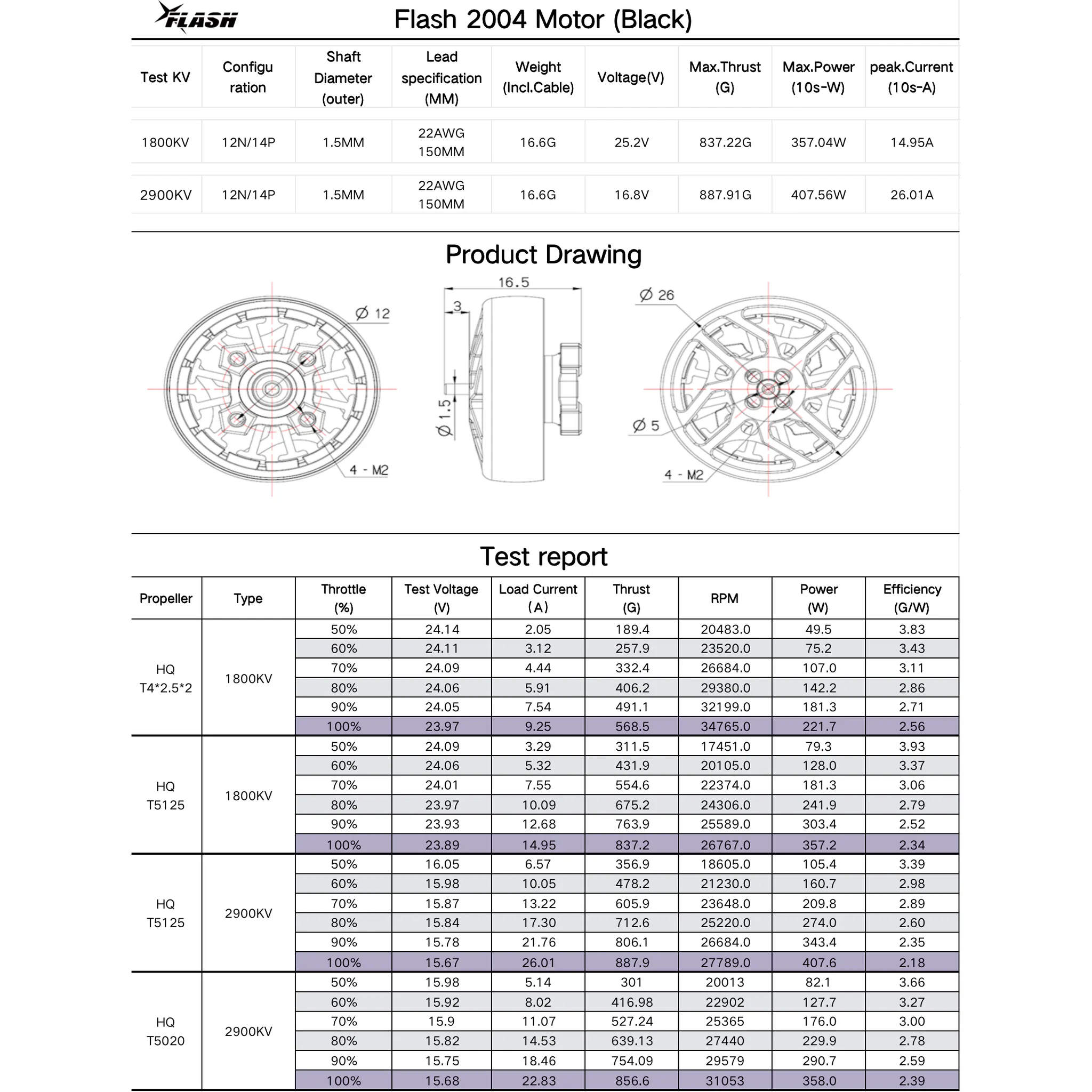

Specifications

• Stator: 20 mm × 4 mm
• KV options: 1800KV (6S), 2900KV (4S)
• Configuration: 12N14P
• Motor dimensions: 26 × 16.5 mm (diameter × length)

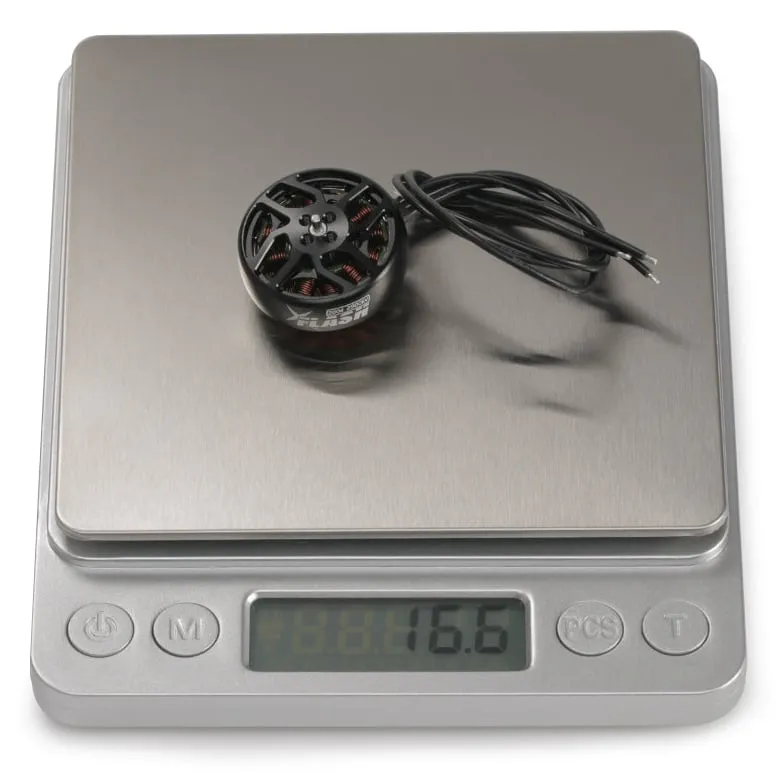

• Weight: 16 g including leads
• Mounting pattern: 12 × 12 mm
• Leads: 22AWG, 150 mm
• Shaft: High-strength steel
• Bearings: NMB
• Magnets: N52SH
• In the box: 1 × motor, 1 × hardware set

Order four for a quad and match the KV to your battery: 1800KV on 6S keeps current and heat down for long-range cruising, while 2900KV gives a 4S build a similar top-end RPM.
