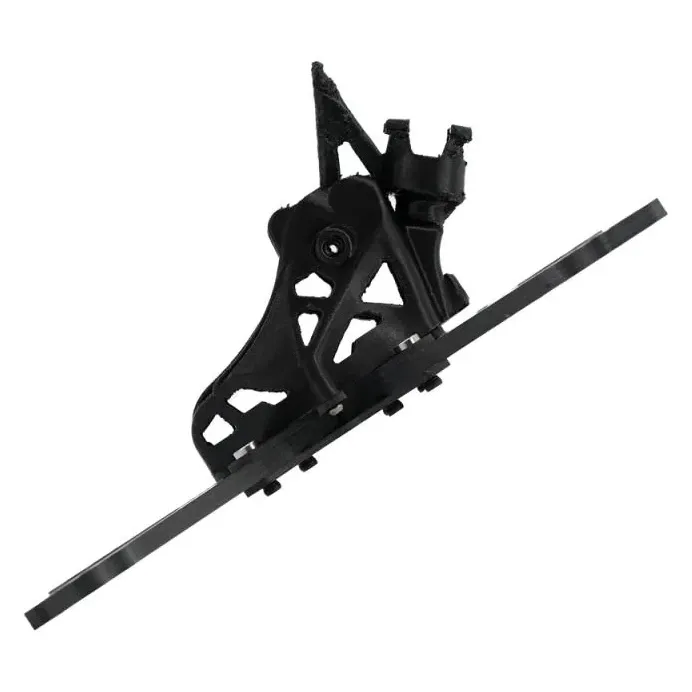

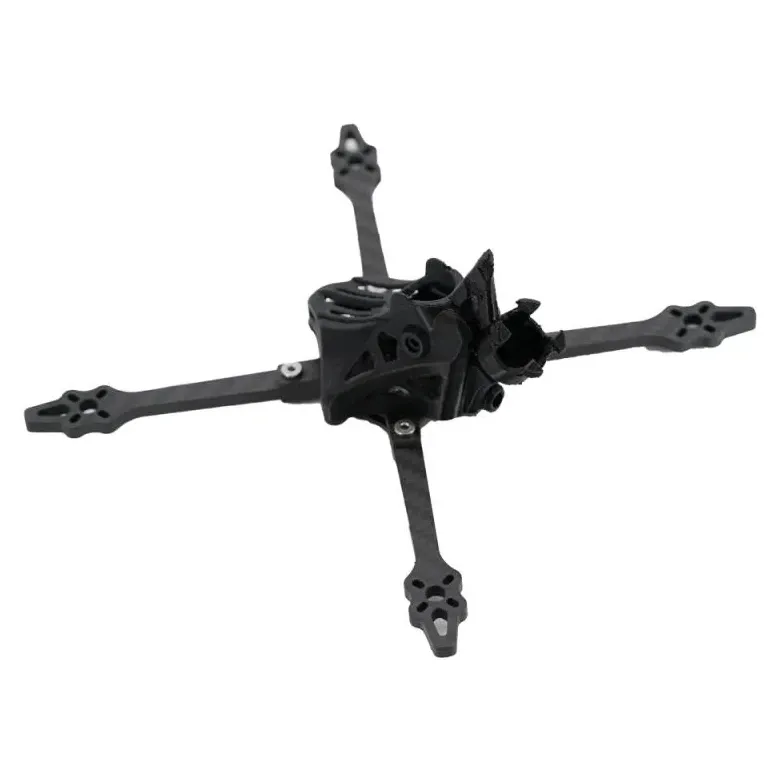

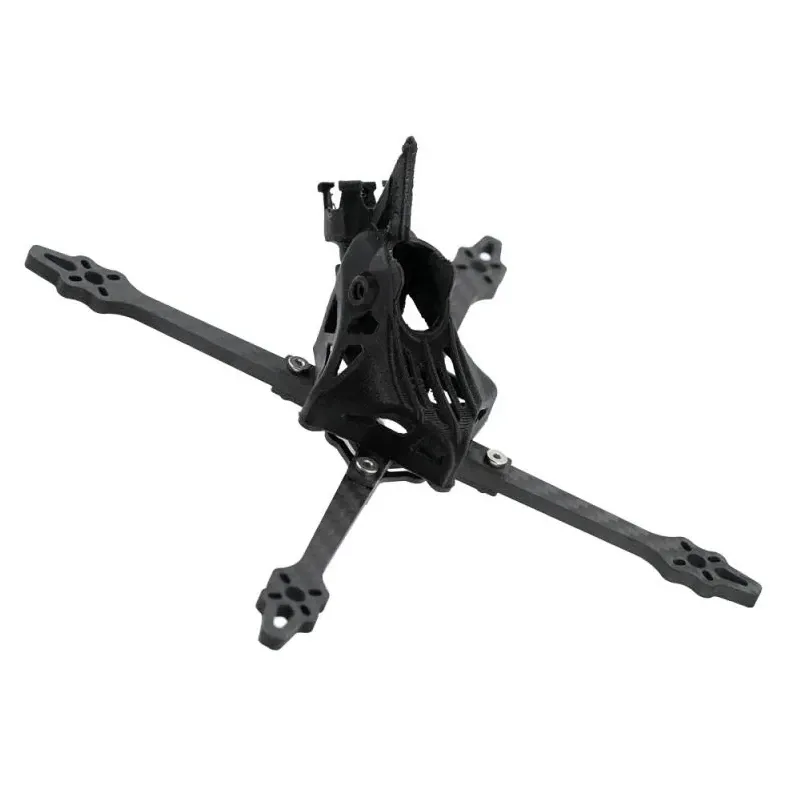

TBS Source Podracer 4" Frame Kit

The TBS Source Podracer is a 4-inch ultralight racing frame kit built to maximise speed and minimise drag. Its frame-only format lets pilots select the motors, electronics and camera system for their aircraft.

Key features

• Designed around a 4-inch propeller configuration

• Ultralight racing layout that fits and protects toothpick-style FPV components

• Supplied as a frame kit for custom assembly

• Allows component selection to match the intended build and flight style

Specifications

• Propeller size: 4 inches

• Frame type: Ultralight racing mini-quad frame

• Product format: Frame kit

• Brand: TBS

• Wheelbase: 160 mm

• Plate thickness: 1.5 mm top and bottom plates

• Arms: four 4 mm carbon fibre arms

• Stack mounting: 19x19, 20x20 and 26x26 mm

• Motor mounting: 9x9 / 12x12 mm

• Frame weight: 35 g

• In the box: carbon frame set, TPU printed pod, screw set

• Recommended parts: 1505 motors (around 3600KV), nano FPV camera, 4 inch props, 450-600mAh 3-4S battery, U.FL antenna (the pod is designed for it)

Use 4-inch-compatible motors, propellers and electronics, and verify component clearances during the build.
