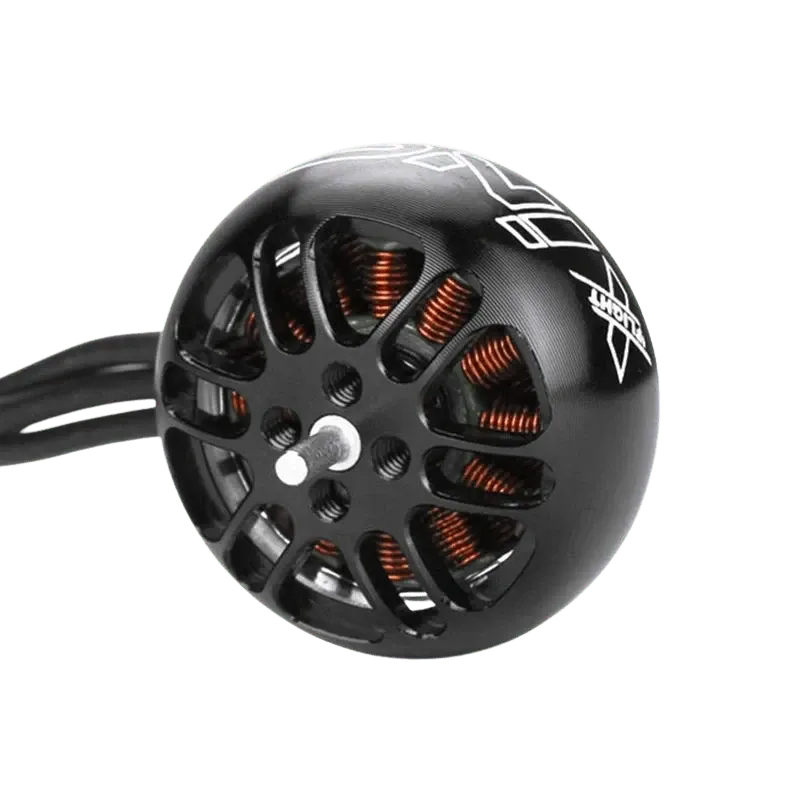

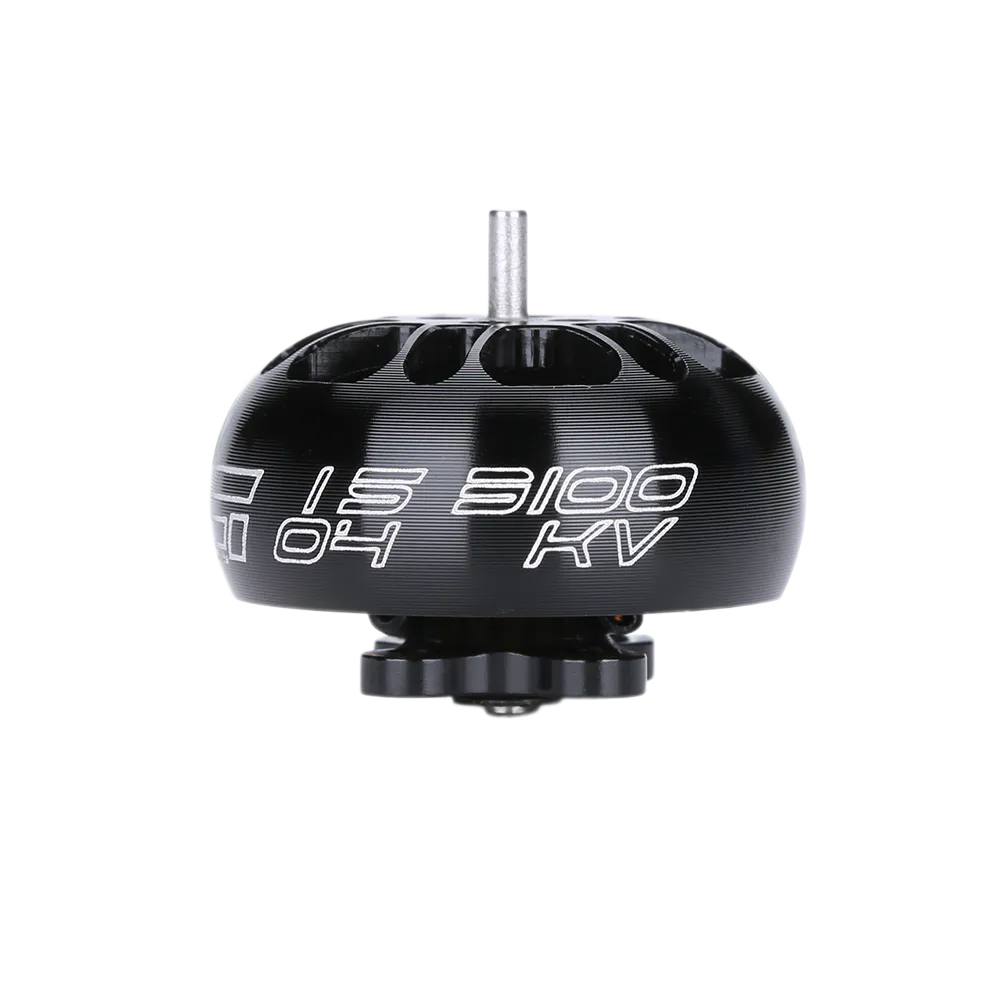

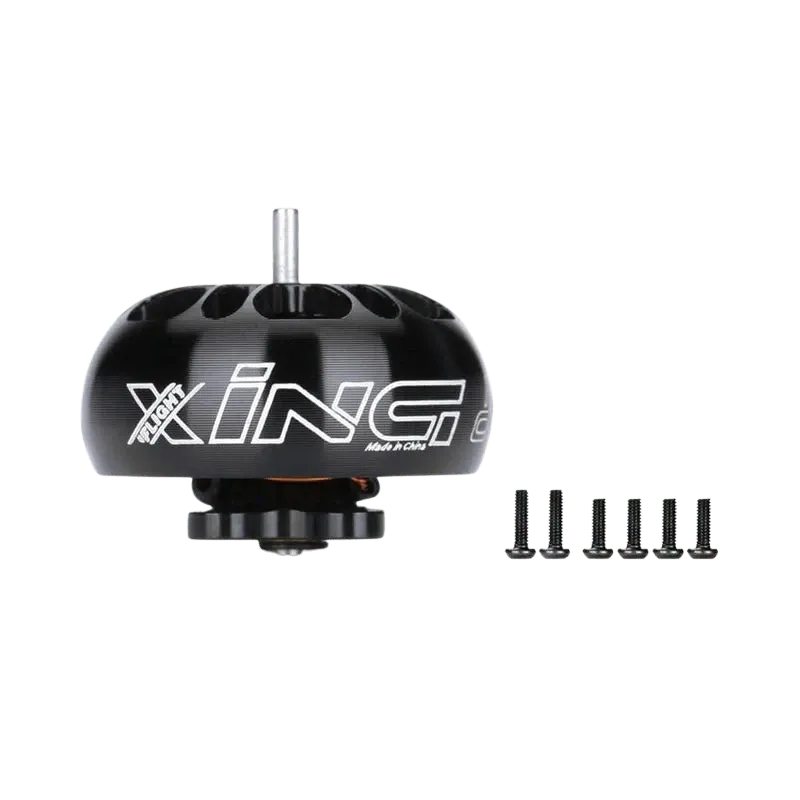

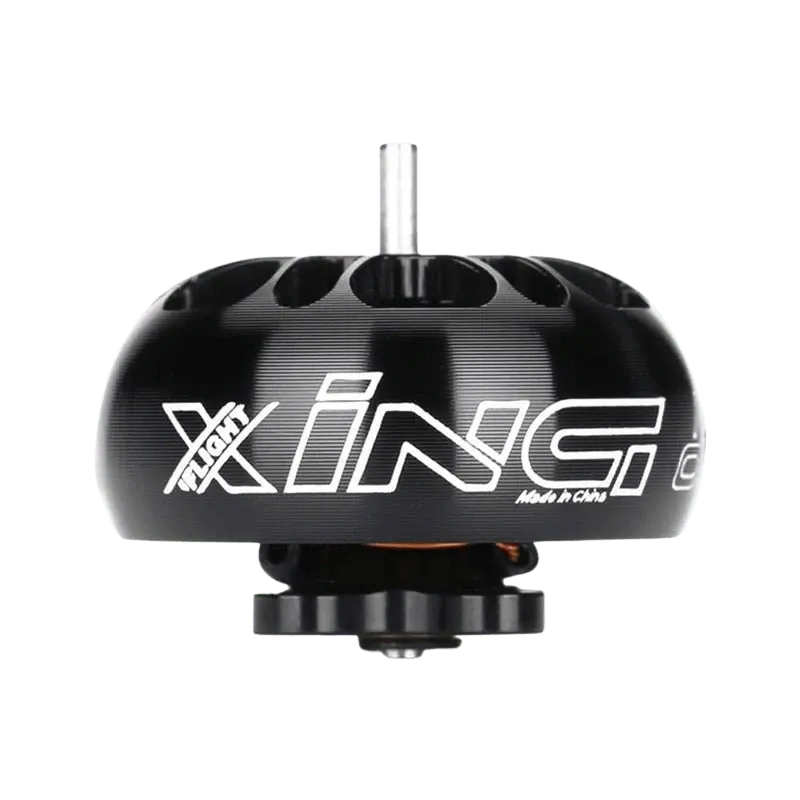

iFlight XING 1504 3100KV FPV Motor

The iFlight XING 1504 3100KV is a high-torque micro motor designed for 3-inch cinewhoops, lightweight 4-inch freestyle frames, and sub-250g HD builds. Running efficiently on 3S or 4S LiPo power, the wider 1504 stator delivers a noticeable increase in low-end authority and recovery speed compared to standard 1404 motors, making it highly capable of carrying naked action cameras or digital FPV systems without bogging down.

Key features

• Wider 15mm stator provides increased torque and prop control for heavier 3-inch builds.
• Optimised 3100KV winding ensures efficient cruising and strong punch-outs on 4S packs.
• Standard 1.5mm shaft accepts most modern 3-inch and 4-inch T-mount or press-fit propellers.
• Precision-machined XING bell design resists deformation during tight indoor proximity flying.

Specifications

• Stator Size: 1504
• KV Rating: 3100 KV
• Configuration: 12N14P
• Shaft Diameter: 1.5mm (4.0 mm protrusion)
• Mounting Pattern: 9x9 mm (M2)
• Peak Current: 12.44 A
• Max Power: 207 W
• Bearings: NSK, 5 x 2 x 2.5 mm
• Weight: 12.3 g (including wire)
• Input Voltage: 3-4S LiPo

Ideal for pilots upgrading their 3-inch quads to carry heavier payloads, this motor pairs perfectly with 20A or higher AIO flight controllers and low-pitch 3-inch to 4-inch propellers.
