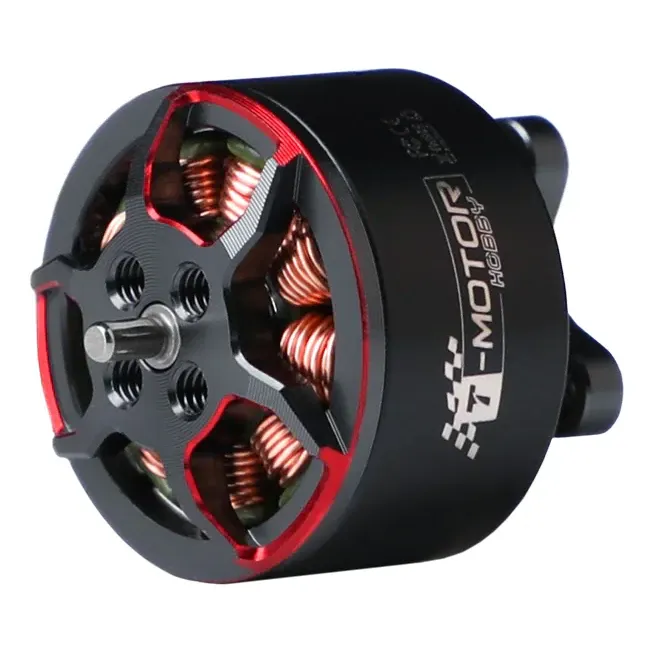

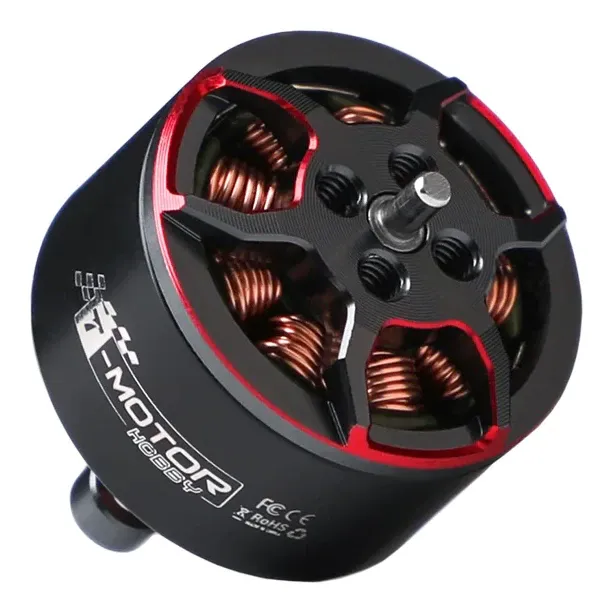

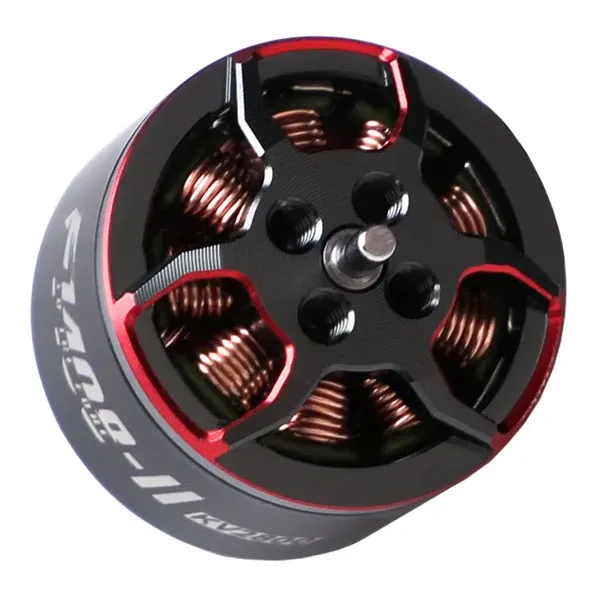

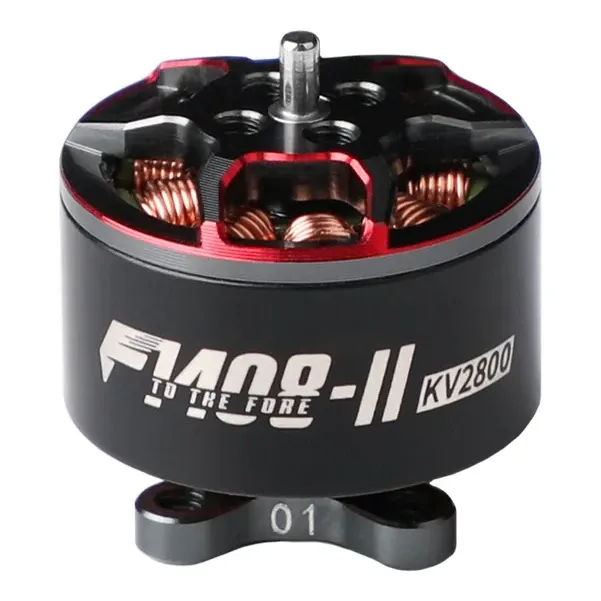

T-Motor F1408-II Micro FPV Motor

The T-Motor F1408-II 2800KV is a high-torque micro brushless motor engineered for 3-inch cinewhoops, heavy toothpicks, and lightweight 4-inch freestyle builds. Running efficiently on 4S to 6S LiPo power, it provides the aggressive thrust necessary to pull GoPro-carrying micro drones out of dives while maintaining smooth throttle resolution.

Key features

• Standard M5 threaded shaft supports conventional 3-inch and 4-inch props without requiring T-mount adapters.
• 9N12P stator configuration delivers precise RPM control and smooth low-end torque.
• High-temperature copper windings ensure thermal stability during heavy-lift cinematic flights.
• Optimised for 4S to 6S input voltages to scale with your required all-up weight (AUW).

Specifications

• Stator Size: 1408
• KV: 2800
• Configuration: 9N12P
• Input Voltage: 4-6S LiPo
• Prop Shaft: 5mm (M5 thread)
• Mounting Pattern: 12x12mm (M2)
• Weight: 16.4g (including wire)

This motor pairs exceptionally well with 3-inch ducted frames, giving heavy micro builds the punch needed for outdoor tracking and cinematic freestyle.
