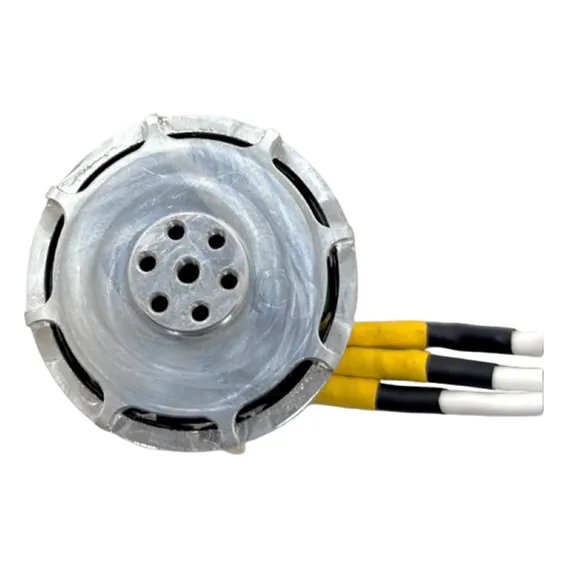

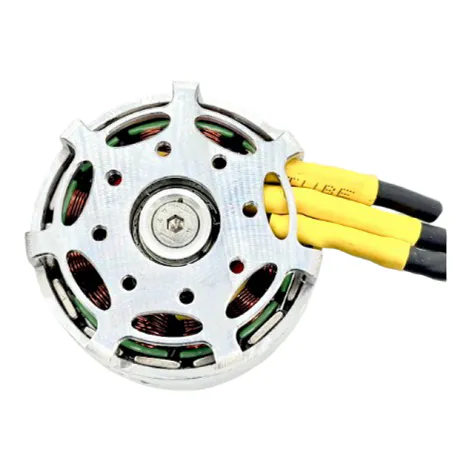

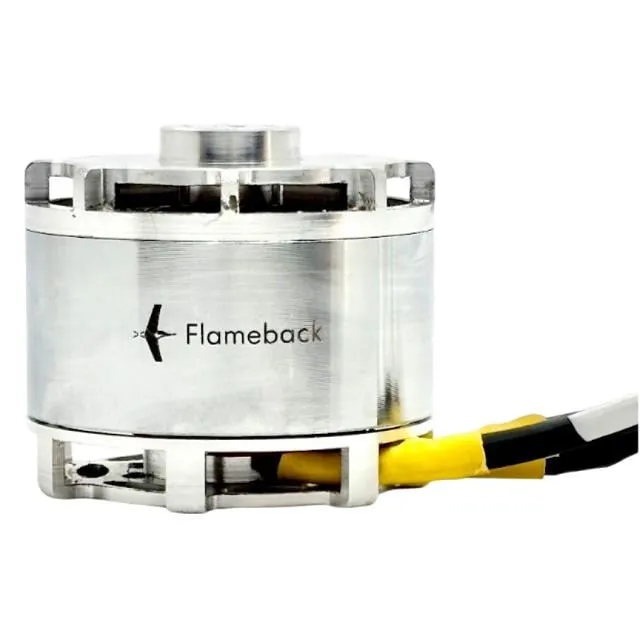

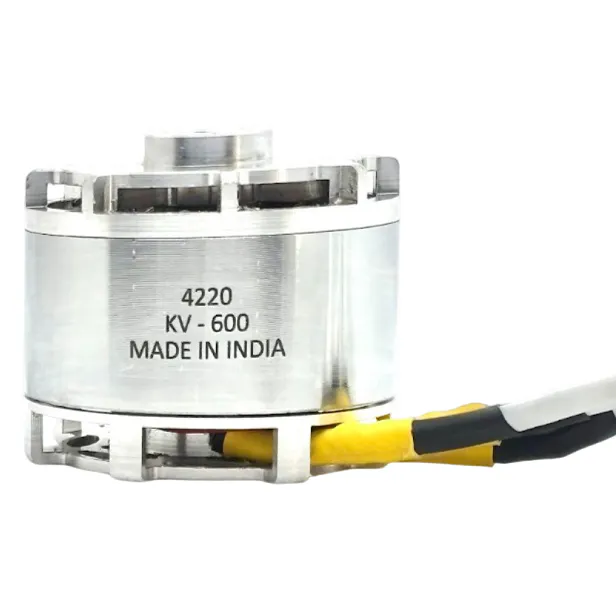

Flameback 4220 KV600 BLDC Motor
₹13,199Incl. GST
SKU FLAMEBACK-4220-600KV
Stator Size: 4220KV: 600 KVInput Voltage: 4–6SWeight: 285 g
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Flameback 4220 KV600 BLDC motor is intended for heavy-lift multirotors, large multirotor frames and payload-carrying drone builds.
Key features
- Heavy-lift design: Suits multirotors that need high thrust for payload work.
- Low-KV output: The 600KV rating is suited to larger propellers and torque-focused setups.
- Battery pairing: Designed for use with high-capacity battery systems in large drone builds.
- Application: Suitable for heavy-lift and payload-focused multirotor platforms.
Specifications
- Stator size: 4220
- KV: 600
- Configuration: 12N14P
- Battery: 4-6S LiPo
- Continuous power: 1500 W at 69 A
- Max thrust: over 6 kg
- Dimensions: 51.5 mm diameter x 43 mm
- Weight: 285 g
- Bearings: triple ball bearings
- Magnets: N45UH
- Recommended ESC: 60 A
- Recommended propeller: 16 x 5.4 inch
Match the motor with the propeller size, battery voltage and ESC rating recommended for your specific aircraft build.
| Stator Size | 4220 |
|---|---|
| Stator Diameter | 42mm |
| Stator Height | 20mm |
| KV | 600 KV |
| Input Voltage | 4–6S |
| Weight | 285 g |
| Brand | Flameback |
| Made in India | Yes |
