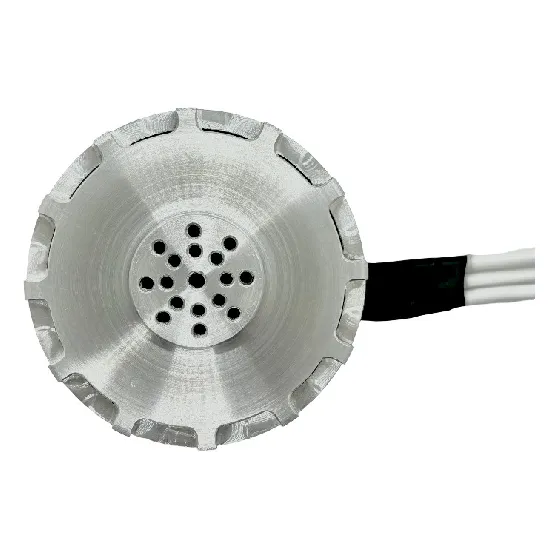

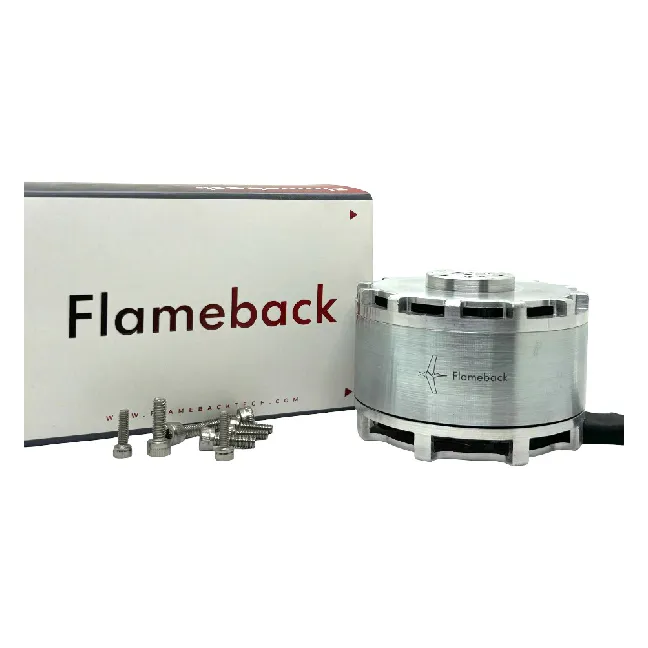

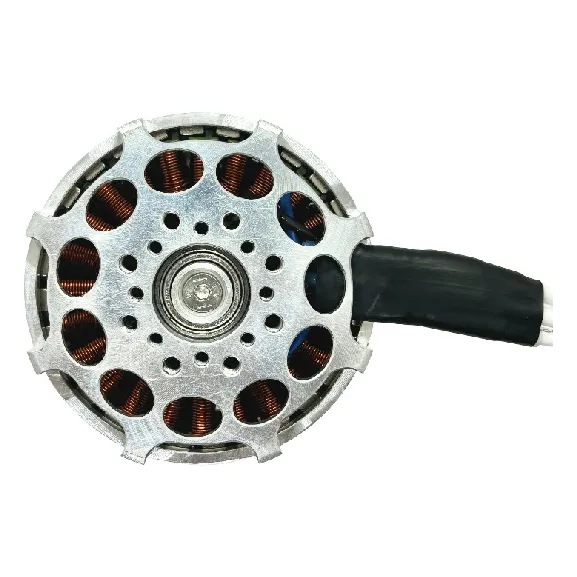

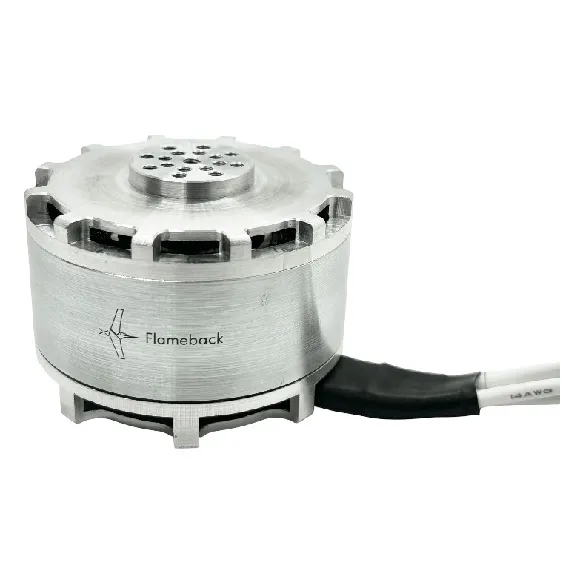

Flameback 6220 150KV BLDC Heavy-Lift Motor
₹15,899Incl. GST
SKU FLAMEBACK-6220-150KV
Stator Size: 6220KV: 150 KVInput Voltage: 6–12SBrand: Flameback
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Flameback 6220 150KV BLDC motor is built for heavy-lift and agricultural drone propulsion, rated for sustained, high-payload flight in logistics, spraying and other industrial UAV roles where reliable, repeatable thrust matters.
Key features
- 150KV winding in a 24N28P configuration, delivering over 12kg of thrust.
- Rated for 3000W continuous power at up to 50A, with support for 6-12S LiPo packs.
- N45UH magnets, German ball bearings and multi-strand high-temperature winding wire for sustained heavy-lift use.
- Airflow cooling helps control temperature during long-duration flights.
- Impact-resistant housing built for repeated, demanding industrial and agricultural fieldwork.
- Recommended with a 60A ESC and 24x8 or 23x8.8 propellers.
Specifications
- Stator size: 6220
- KV: 150KV
- Configuration: 24N28P
- Continuous power: 3000W
- Max current: 50A
- Input voltage: 6-12S
Match the motor with a 60A-class ESC and a 24x8 or 23x8.8 propeller, and confirm the battery voltage against the 6-12S rating before installation.
| Stator Size | 6220 |
|---|---|
| Stator Diameter | 62mm |
| Stator Height | 20mm |
| KV | 150 KV |
| Input Voltage | 6–12S |
| Brand | Flameback |
| Made in India | Yes |
