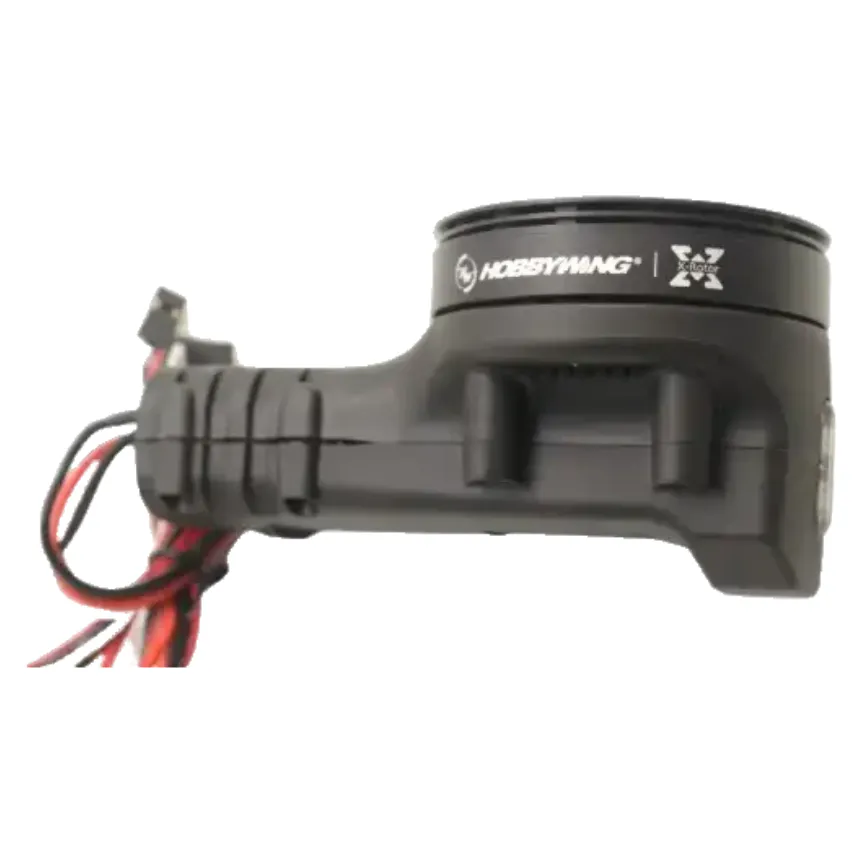

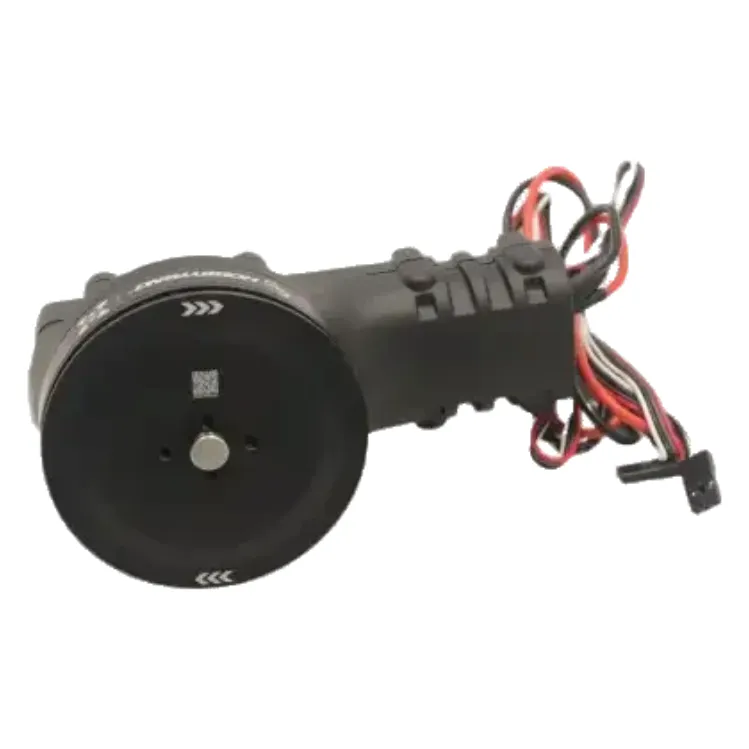

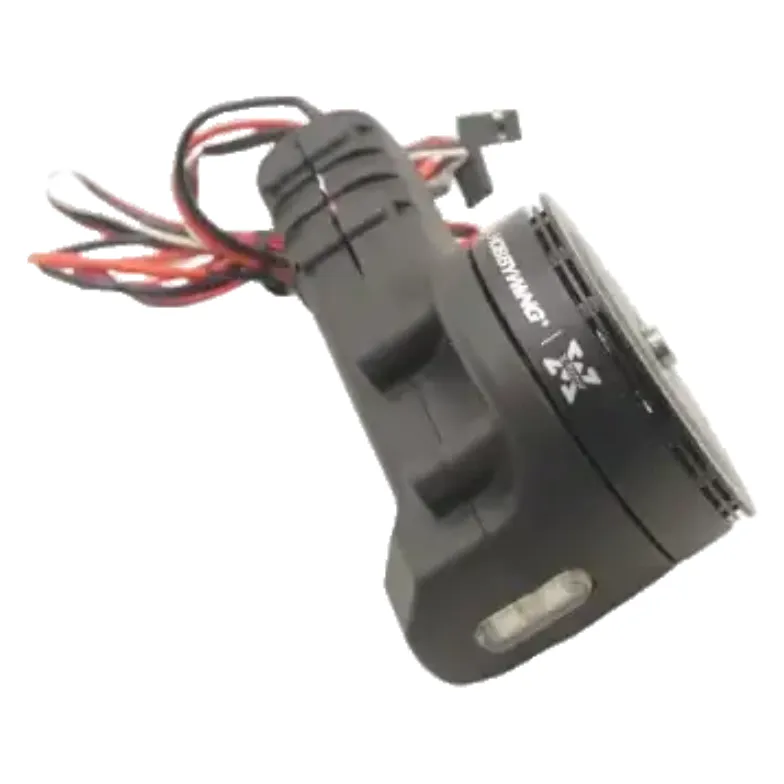

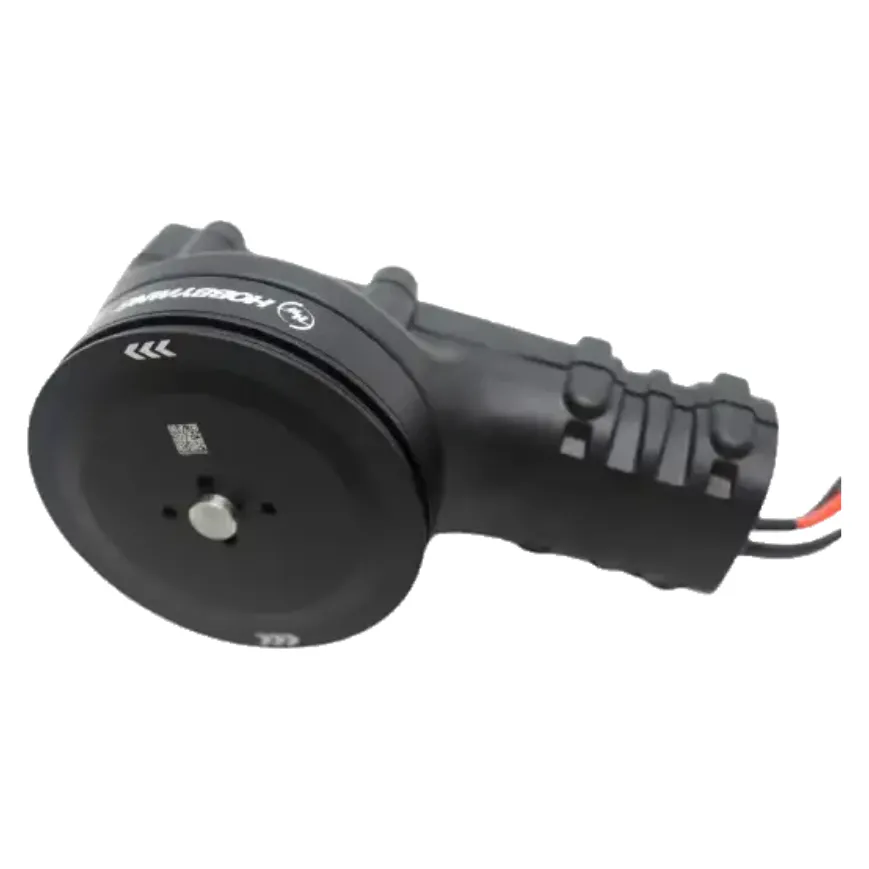

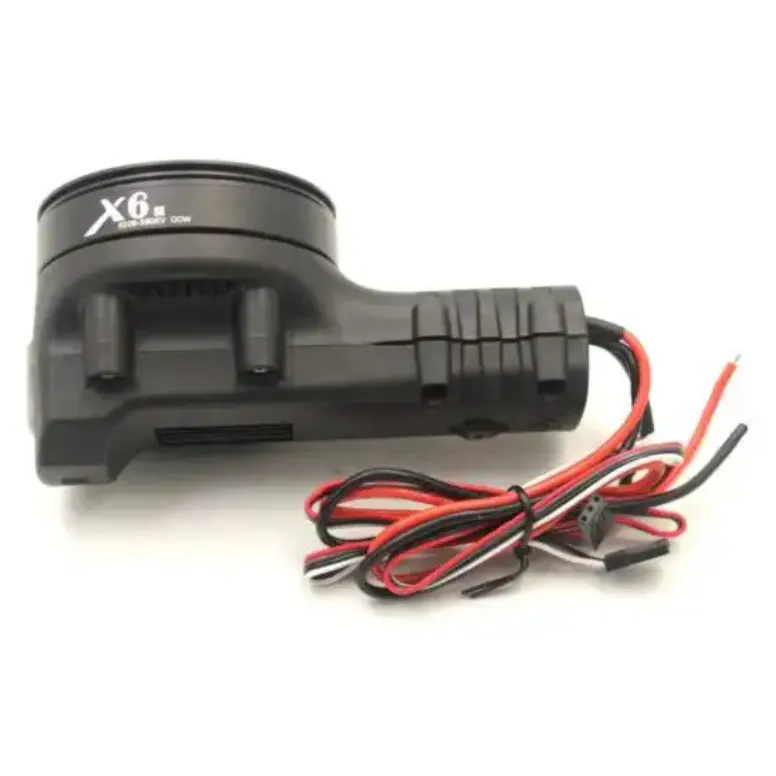

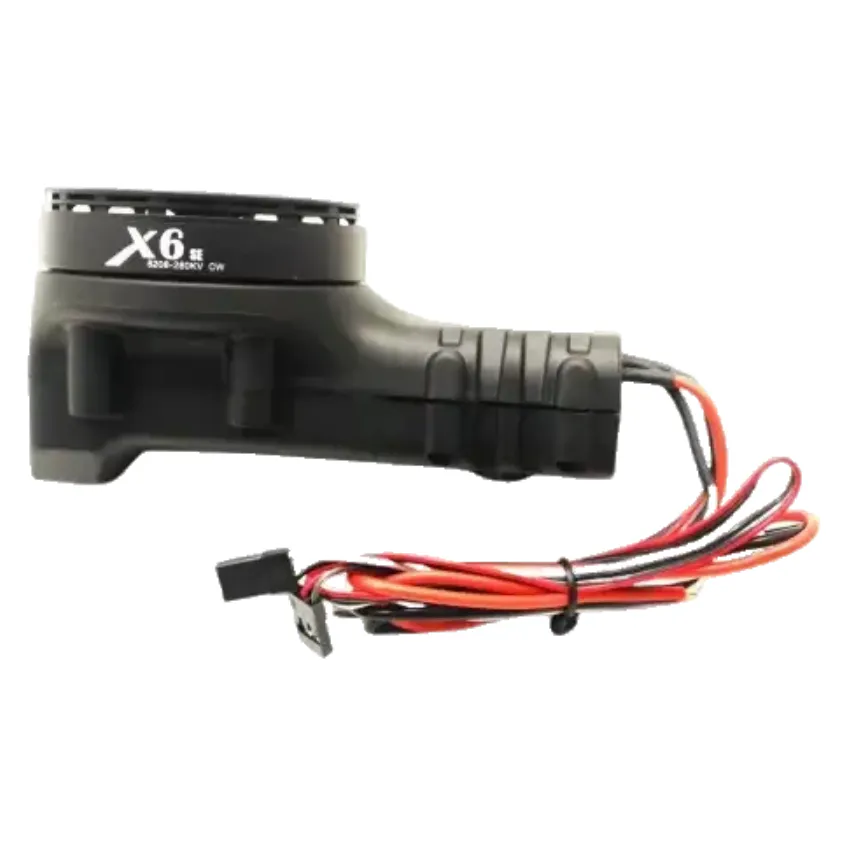

Hobbywing XRotor X6-SE 6208 280KV Integrated Power System
SKU HOBBYWING-X6SE-280KV-CCW
Rotation: CCW
Propeller: Without Propeller
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

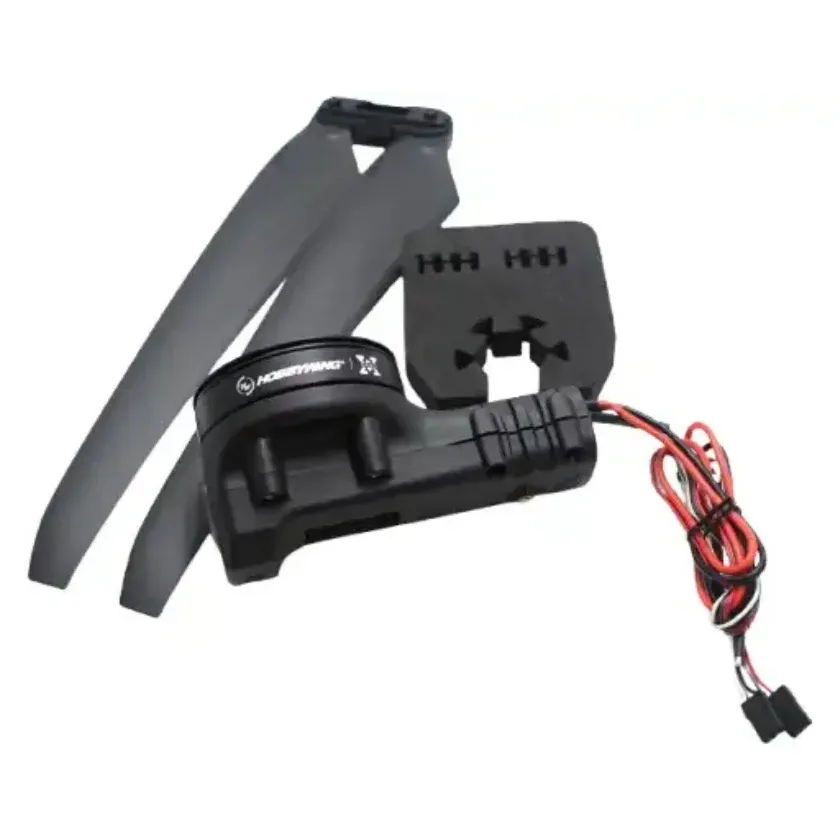

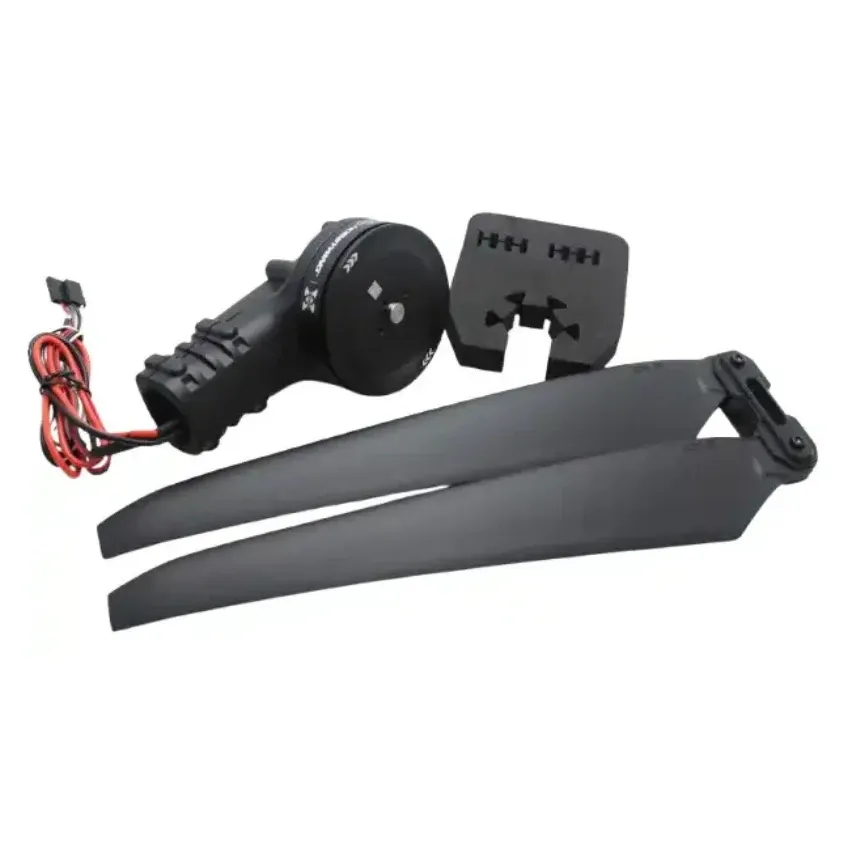

The Hobbywing XRotor X6-SE is an integrated motor-and-ESC arm unit for 6S multirotors of around 8 kg, aimed at training, aerial photography, inspection and mapping drones. It is available bare or with the matching 2270 folding propeller, in CW and CCW rotation.
Key features
- 6208 stator at 280KV with a built-in 60A ESC, so no separate ESC wiring per arm
- Up to 6.2 kg of thrust per rotor, with 2-2.5 kg per rotor recommended for normal flight
- CAN (UAVCAN) communication plus PWM throttle for dual-redundant control
- Weighs 373 ±15 g with the propeller fitted

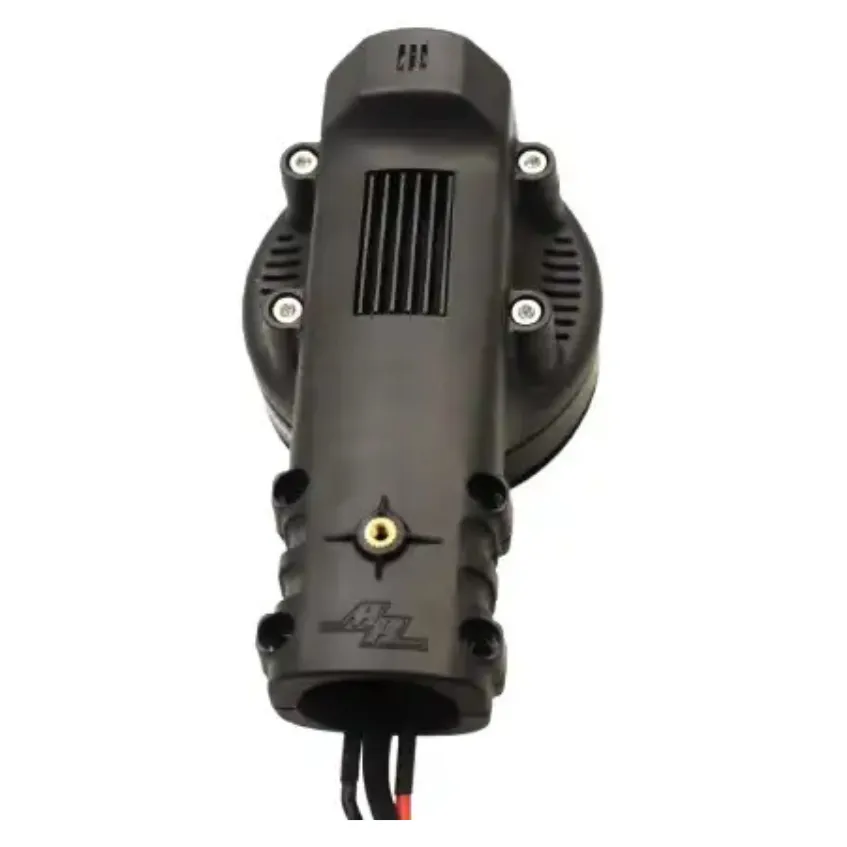

- Mounts directly on a 25 mm arm tube
Specifications
- Motor: 6208, 280KV
- ESC: 60A, integrated
- Battery: 6S LiPo
- Max thrust: 6.2 kg/rotor
- Recommended thrust: 2-2.5 kg/rotor
- Propeller: MFP 2270 (22 x 7.0 in)
- Weight with propeller: 373 ±15 g
- Arm tube: 25 mm diameter
- Bench test (23 V, MFP 22x7.0): 2013 g at 8.4 A / 193.5 W; 3132 g at 15.9 A / 366.6 W
For a quadcopter, order two CW and two CCW units. At 2-2.5 kg recommended thrust per rotor, four units comfortably carry an 8 kg all-up weight on a 6S pack, which makes this a sensible step up from hobby-grade motors for survey and training airframes.
| Stator Size | 6208 |
|---|---|
| Stator Diameter | 62mm |
| Stator Height | 8mm |
| KV | 280 KV |
| Motor Mount | 25mm tube |
| Input Voltage | 6S |
| Brand | Hobbywing |
| Made in India | No |
| Integrated ESC | Yes |
