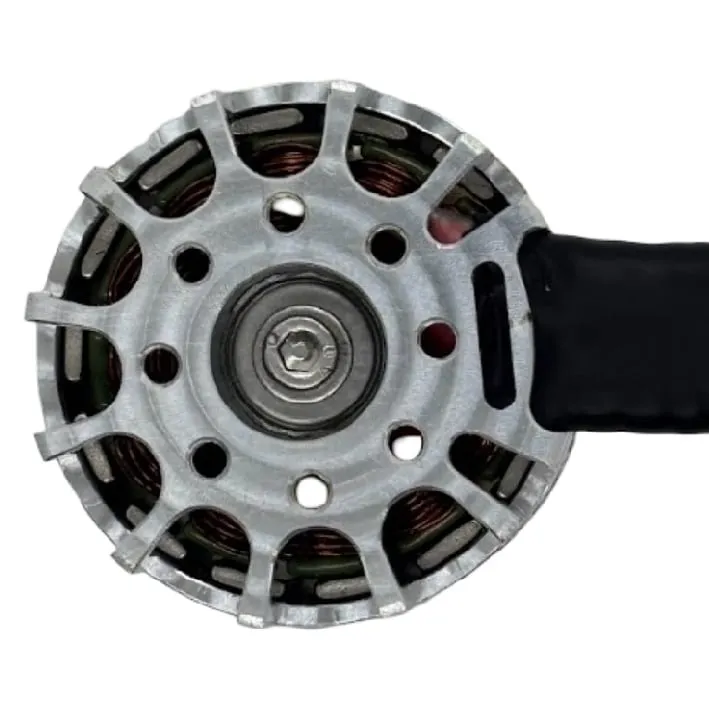

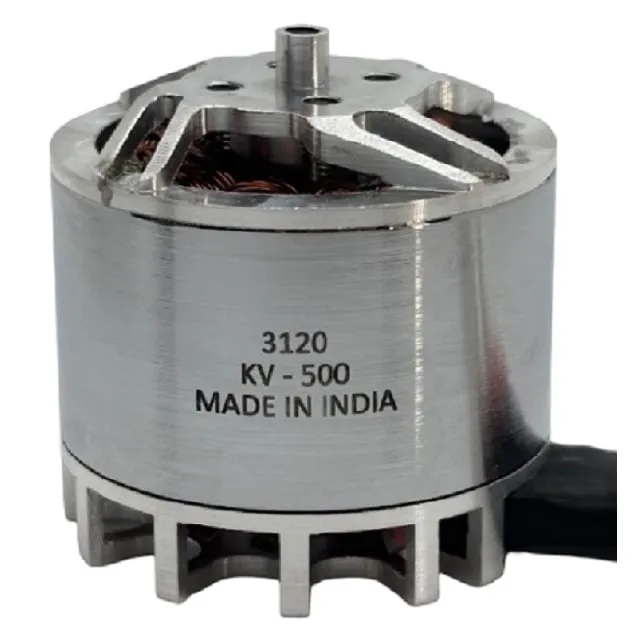

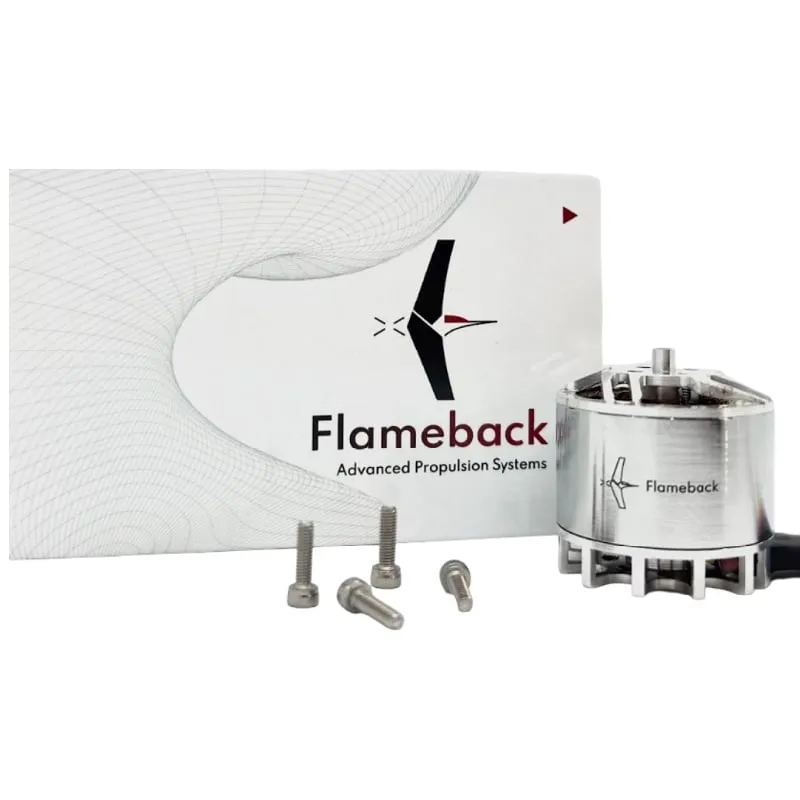

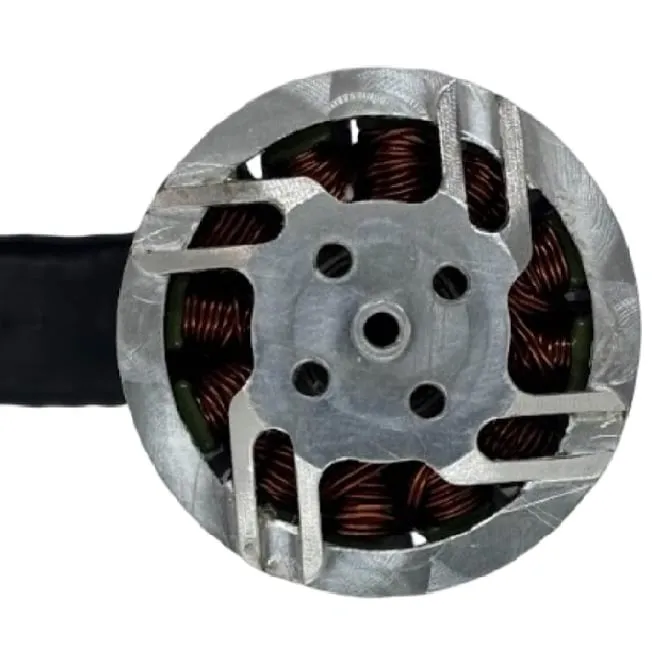

Flameback 3120 500KV Brushless Motor

₹9,499Incl. GST

SKU FLAMEBACK-3120-500KV

Stator Size: 3120KV: 500 KVInput Voltage: 6SBrand: Flameback
Dispatched within 2–3 business days — quality-checked in Gurugram

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

Product details

The Flameback 3120 is a 500KV brushless motor for heavy-lift multirotors, VTOLs and industrial UAVs, built for 6S power systems that need sustained thrust with low heat build-up.

Key features

  • Delivers up to 2.4kg of thrust at 11,000rpm on a 6S LiPo.
  • Rated for 500W continuous output with a 12N14P winding configuration.
  • 31 x 20mm stator size keeps the motor compact for its thrust class, with optimised winding to reduce heat build-up on long, sustained flights.
  • Suited to fixed installation on multi-motor heavy-lift frames where consistent thrust across every arm matters.
  • Pairs well with a Flameback 60A ESC and 11 x 4.5in propellers for a matched power system.

Match the ESC, propeller and payload to the 500W/2.4kg envelope, and confirm the motor mount pattern and shaft size against the airframe before fitting.
