DYS D3536 Brushless Motor
SKU DYS-D3536-750KV
KV: 750KV
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

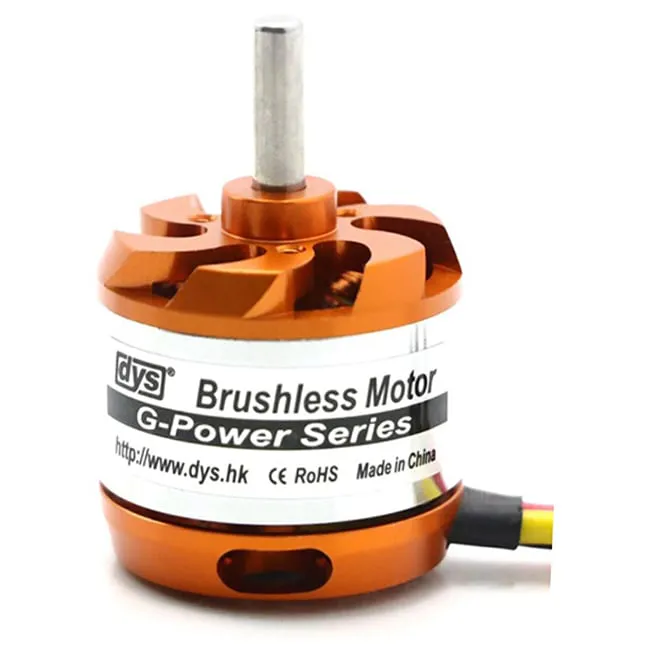

The DYS D3536 is a brushless outrunner motor built for quadcopter and multirotor propulsion, sold in 1450KV (D3536-5), 1250KV (D3536-6), 1000KV (D3536-8) and 910KV (D3536-9) windings. The figures below are for the D3536-5 1450KV, sized for propellers in the 8-9 inch range.
Key features
- 35 x 36mm motor body with a 5mm shaft, weighing 102g — a build-friendly size for mid-size multirotor frames.
- Rated for 2-4S LiPo power with up to 655W of maximum output, giving headroom across common battery voltages.
- Matches 9x6 or 8x4 inch propellers for a balanced thrust-to-efficiency setup.
- Pairs with a 50A ESC to complete the power system.
Specifications
- KV options: 1450KV, 1250KV, 1000KV, 910KV
- Connector: 3 mm male banana, pre-soldered

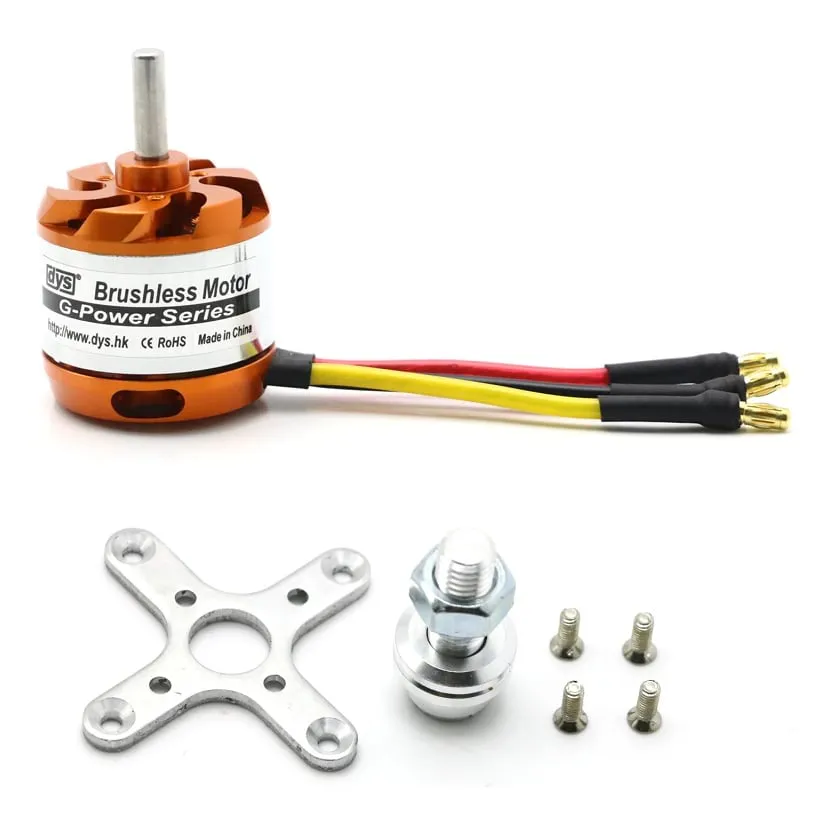

- In the box: motor, prop adapter, X-type motor mount and screws, user manual
Use four matched D3536-5 motors on a build, and confirm the frame's motor-mount hole spacing and propeller clearance before fitting. This listing is for a single motor, so order four for a complete quadcopter power system. Balanced power across all four motors keeps yaw and pitch response even in flight.
| Input Voltage | 2–4S |
|---|---|
| KV | 1000 KV, 1450 KV, 910 KV, 1250 KV |
| Stator Size | 3536 |
| Shaft | 5mm |
| Brand | DYS |
| Made in India | No |
