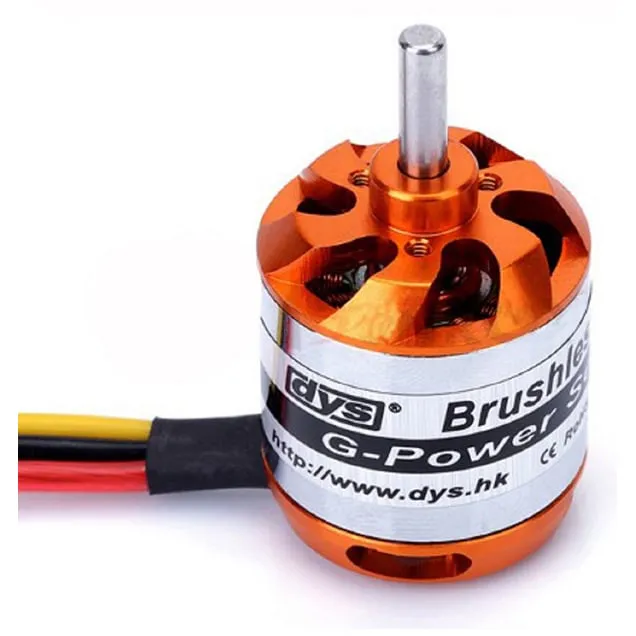

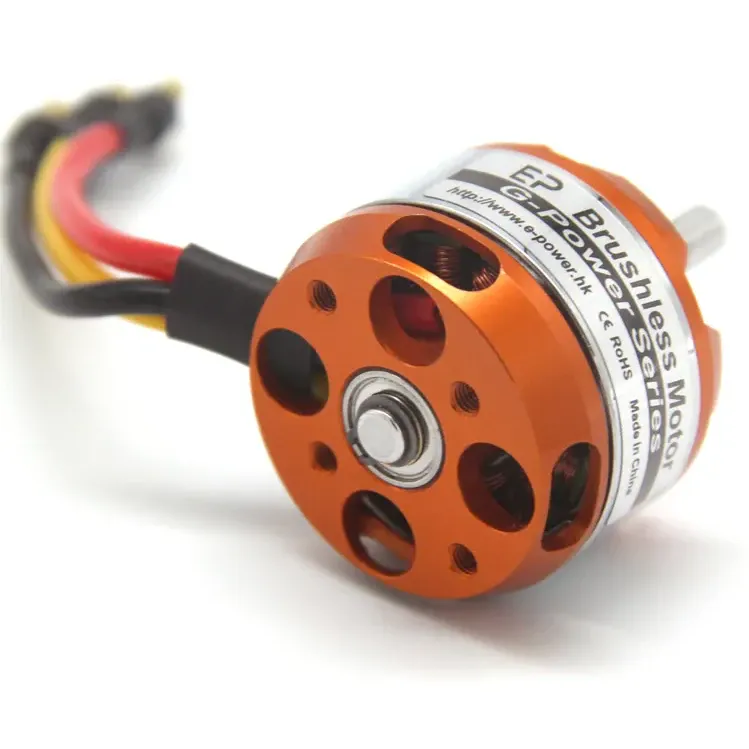

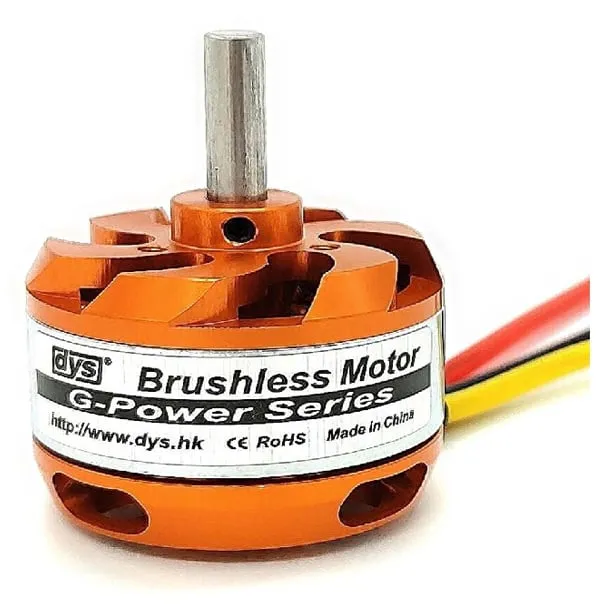

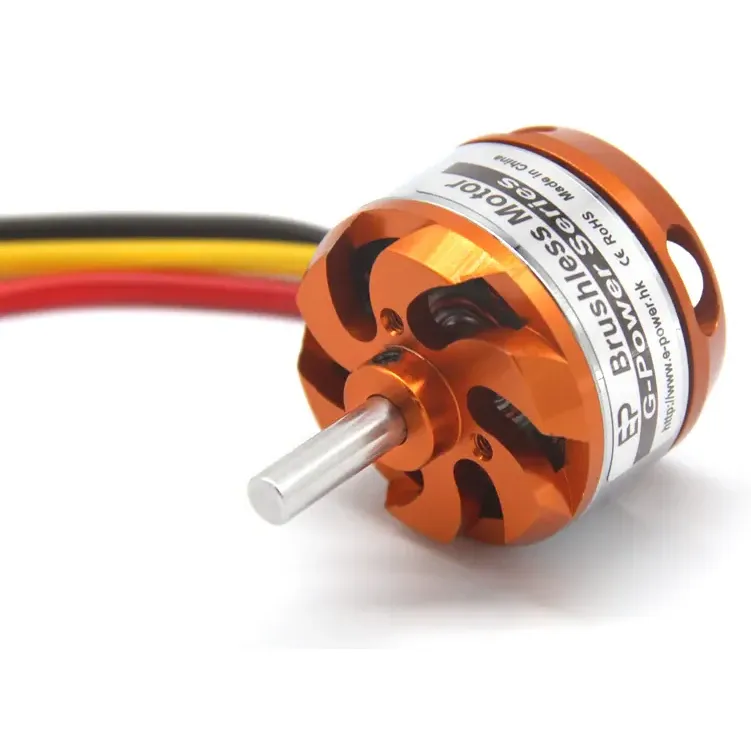

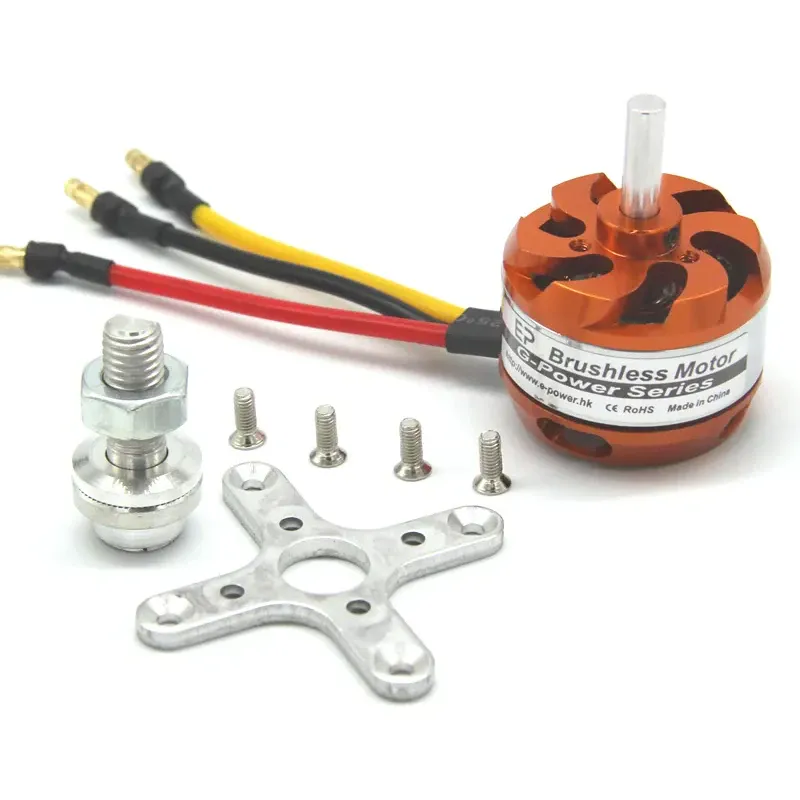

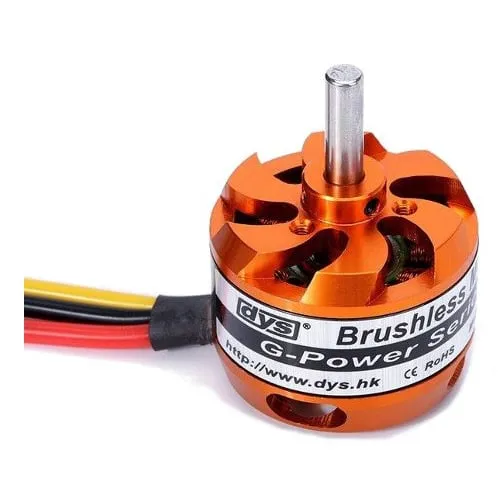

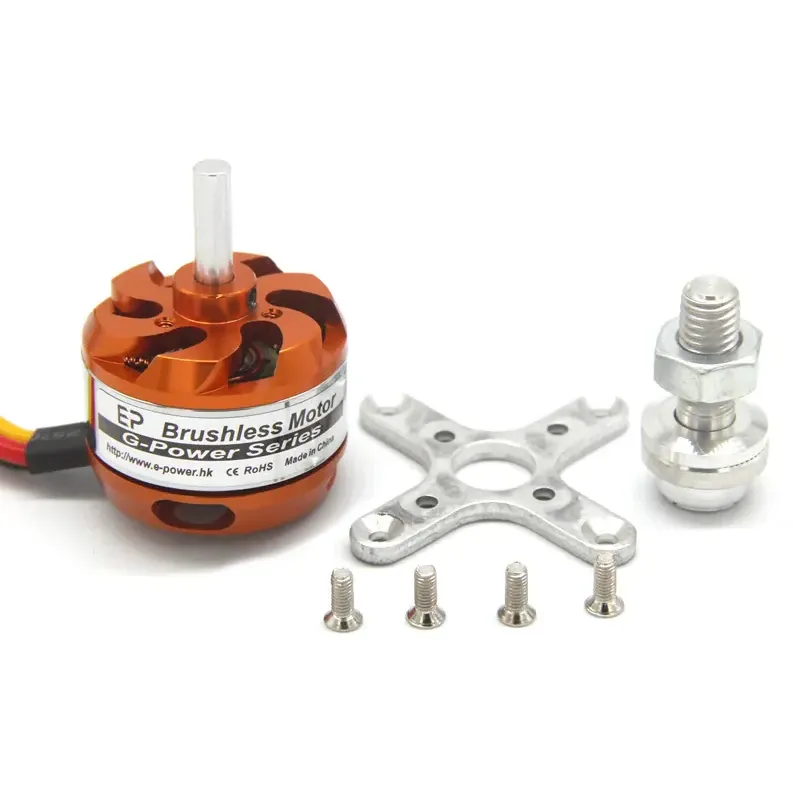

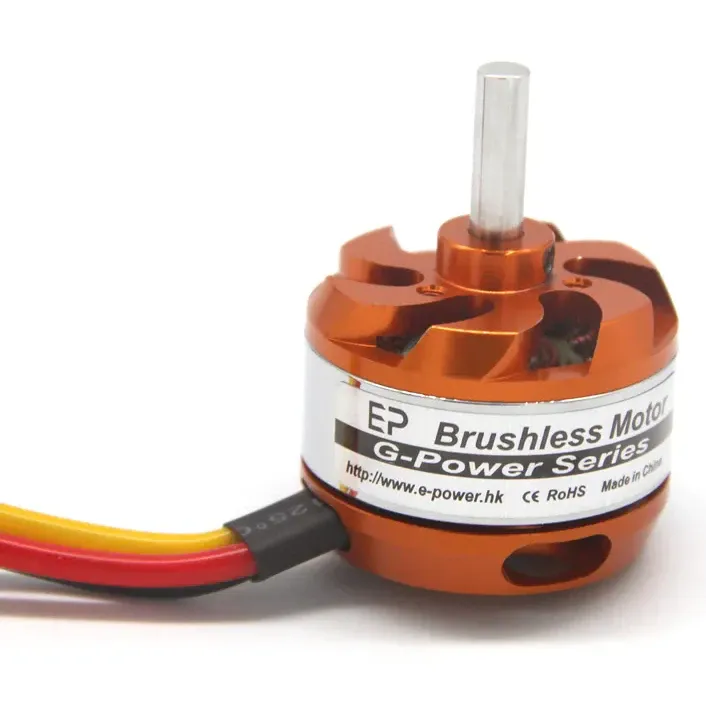

DYS / G-Power D3530 Brushless Outrunner Motor 1100/1400/1700KV

The D3530 is a 35 x 30 mm brushless outrunner for 2–4S fixed-wing aircraft and mid-size multirotors, offered in 1100KV, 1400KV and 1700KV windings, each from DYS or G-Power. Choose brand and KV from the options; every order is a single motor.

Key features

• Three windings: lower KV suits larger propellers, higher KV smaller ones, with the 1700KV matched to a 7x4 or 6x6 prop
• Runs on 2–4S LiPo with a 50 A ESC
• 5 mm shaft
• Up to 460 W at 1700KV and 315 W at 1100KV
• 3 mm male bullet connectors pre-soldered on the 1400KV and 1700KV versions

Specifications

• Motor size: 35 x 30 mm (D3530)
• KV options: 1100KV, 1400KV, 1700KV
• Battery: 2–4S LiPo
• Shaft: 5 mm
• Recommended ESC: 50 A
• Max power: 460 W (1700KV), 315 W (1100KV)
• Max thrust: about 1100 g (1100KV)
• Recommended prop (1700KV): 7x4 or 6x6
• Weight: 74 g (DYS 1700KV)
• Connectors: 3 mm male bullet

Fit matched motors of the same brand and KV across an airframe so thrust stays even, and confirm the motor-mount pattern on your firewall or arm and the prop clearance before fitting.
