DYS H2836 Brushless Outrunner Motor
SKU DYS-H2836-3500KV
KV: 3500KV
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

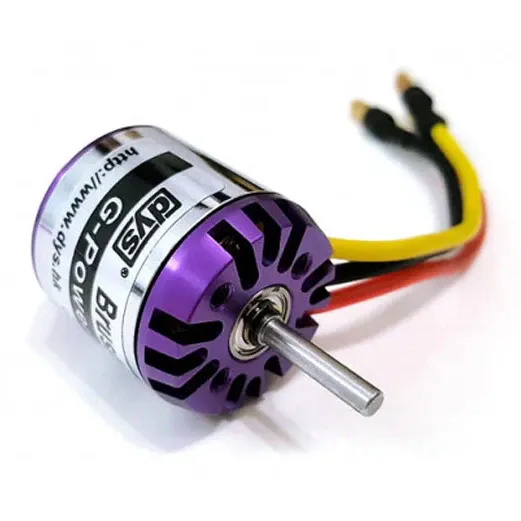

The DYS H2836 is a 28 x 36 mm brushless outrunner sized for 450-class electric helicopters and also suited to fixed-wing models. It runs on 2-3S LiPo (7.4-11.1 V) and is offered in 3500KV and 4000KV windings.
Key features
Two windings: 3500KV delivers up to 880 g of pull at 32.3 A; 4000KV reaches 990 g at 44.5 A for a punchier setup.
Compact can: 28 x 36 mm and 66 g.
Maker pairing: 40 A ESC and a 450-size heli setup suggested.
Either direction: as with any brushless motor, swap two of the three motor wires to reverse rotation.
Specifications
KV: 3500KV or 4000KV (choose version)
Battery: 2-3S LiPo (7.4-11.1 V)

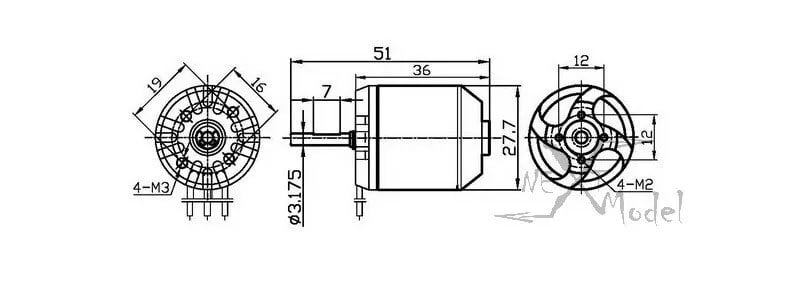

Dimensions: 28 x 36 mm
Weight: 66 g
Max current: 32.3 A (3500KV) / 44.5 A (4000KV)
Max pull: 880 g (3500KV) / 990 g (4000KV)
Suggested ESC: 40 A
The 3500KV sits comfortably within the suggested 40 A ESC. The 4000KV peaks at 44.5 A, so give it an ESC rated above that figure for margin on hard climbs and long full-throttle runs.
| Weight | 66 g |
|---|---|
| Input Voltage | 2–3S |
| KV | 3500 KV, 4000 KV |
| Brand | DYS |
