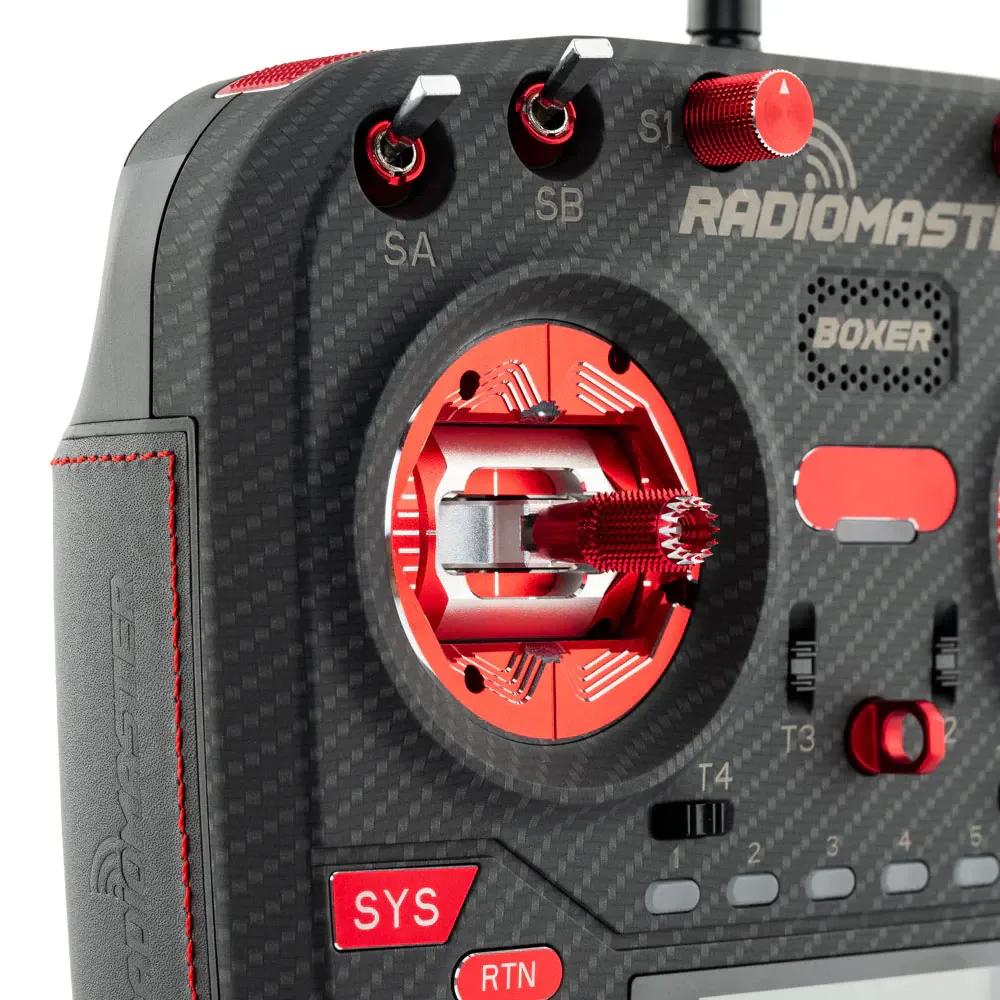

RadioMaster Boxer Max Radio Controller (M2) ELRS

The RadioMaster Boxer Max ELRS is a premium EdgeTX radio transmitter tailored for FPV pilots seeking uncompromising control feel in a compact gamepad-style footprint. Upgraded out of the box, the Max edition integrates full CNC aluminium components and a carbon-fibre-style shell, making it an excellent primary radio for freestyle, racing, and long-range cinelifter builds.

Key features

• Pre-installed AG01 CNC Hall effect gimbals for absolute precision, temperature stability, and physical durability

• Internal ELRS module capable of up to 1W output power for reliable long-range links

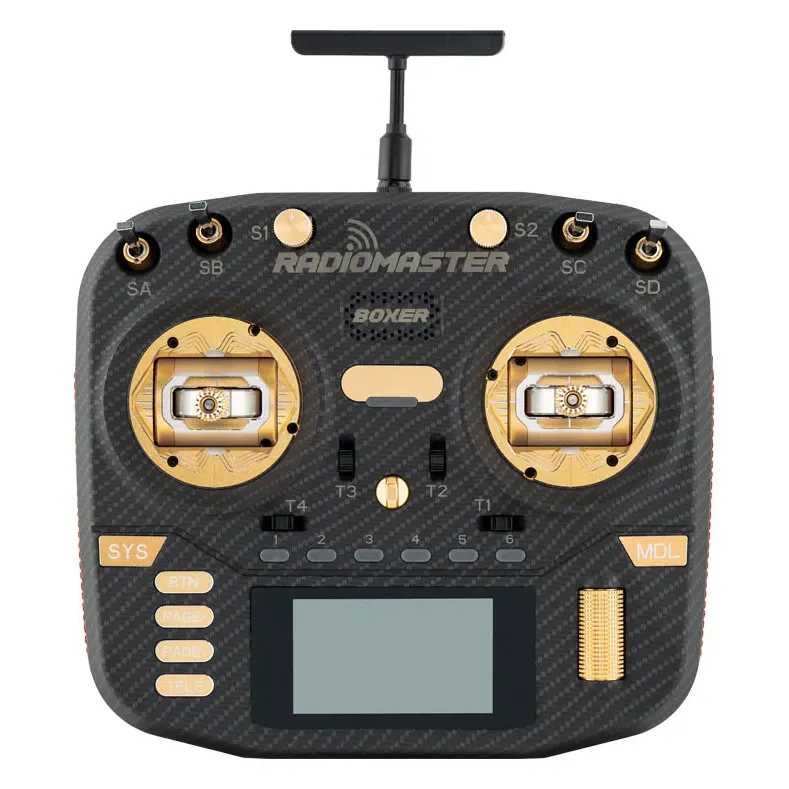

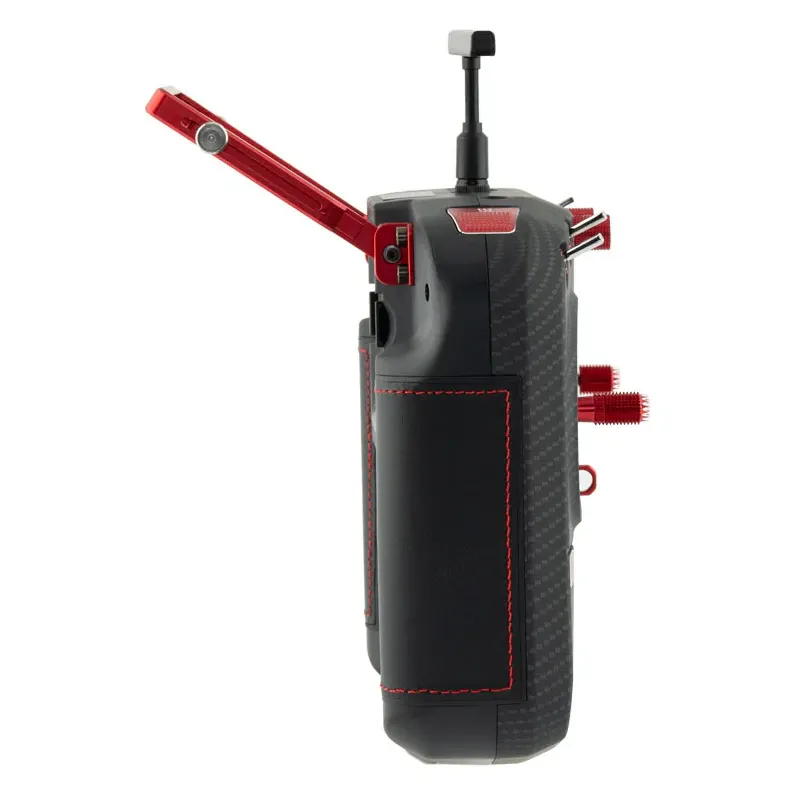

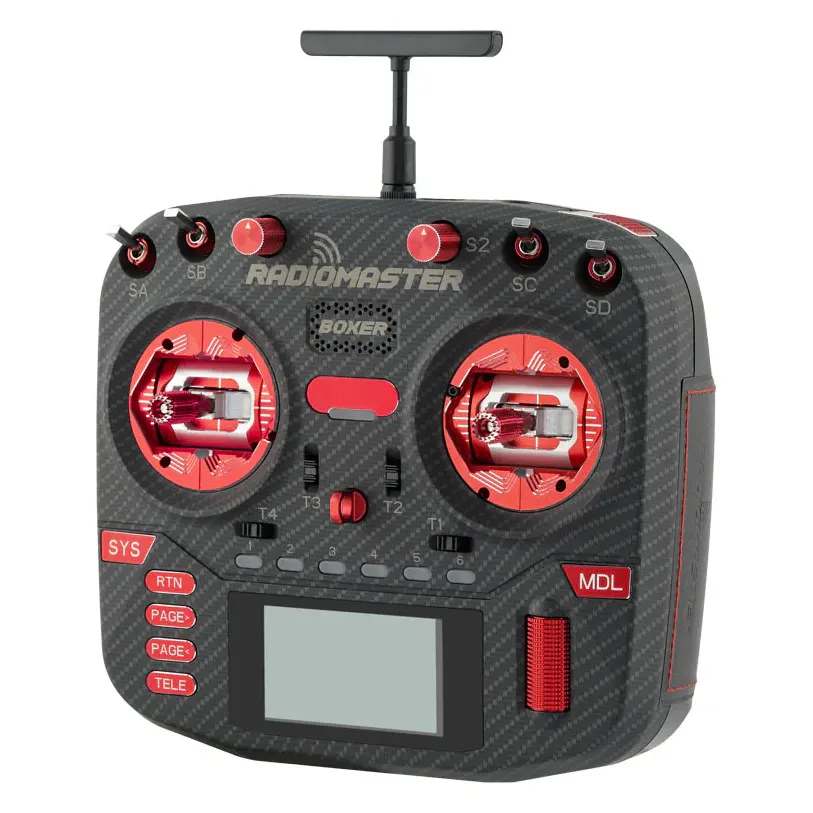

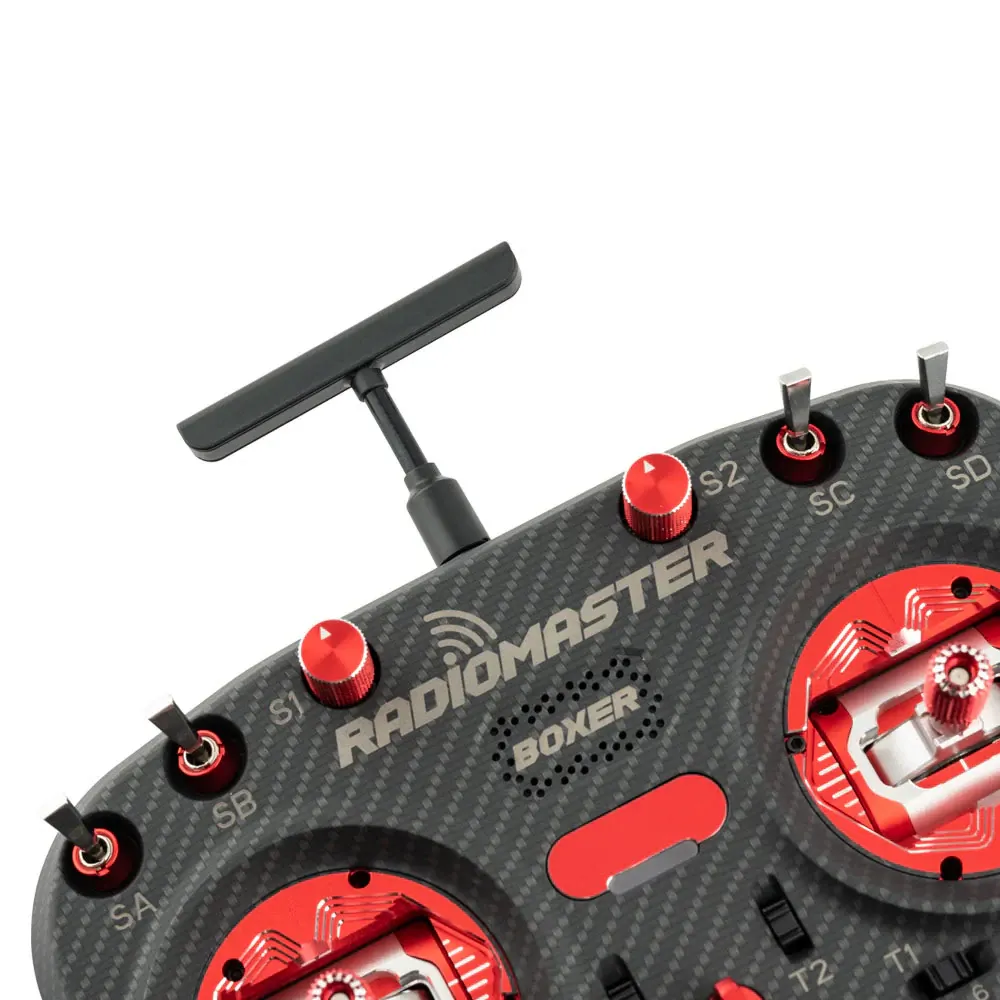

• Upgraded CNC aluminium buttons, roller, and adjustable-length folding stand; offered in Red and Gold

• Standard JR module bay on the rear panel supporting external modules like TBS Crossfire

• Oversized battery compartment accommodates up to a 6200mAh 2S LiPo for extended field sessions

Specifications

• Firmware: EdgeTX

• Internal RF: ELRS (2.4GHz, up to 1000mW)

• Gimbals: AG01 CNC Hall effect

• Display: 128x64 monochrome LCD

• Channels: up to 16 (receiver dependent)

• Operating voltage: 6.6V to 8.4V (2S)

• Battery: 2S LiPo or two 18650 cells (not included)

• External module: JR bay, compatible with FrSky and Crossfire modules

• SD card: 512 MB pre-loaded card included

• Dimensions: 235 x 178 x 77 mm

• Weight: 532g (without battery)

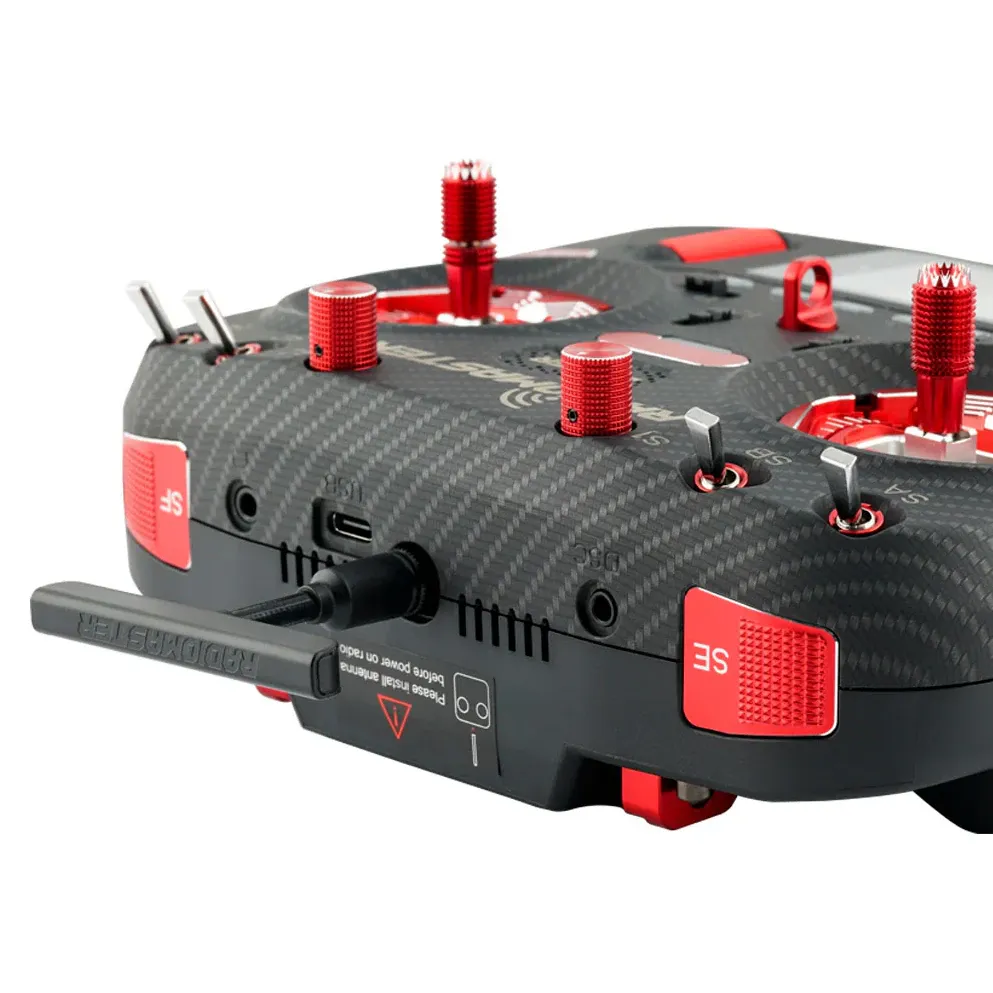

Shipped in Mode 2 (left-hand throttle), this radio is ready to bind to your existing 2.4GHz ELRS receivers. The internal USB-C port supports QC3.0 fast charging up to 2.0A, ensuring rapid power-ups between flights.
