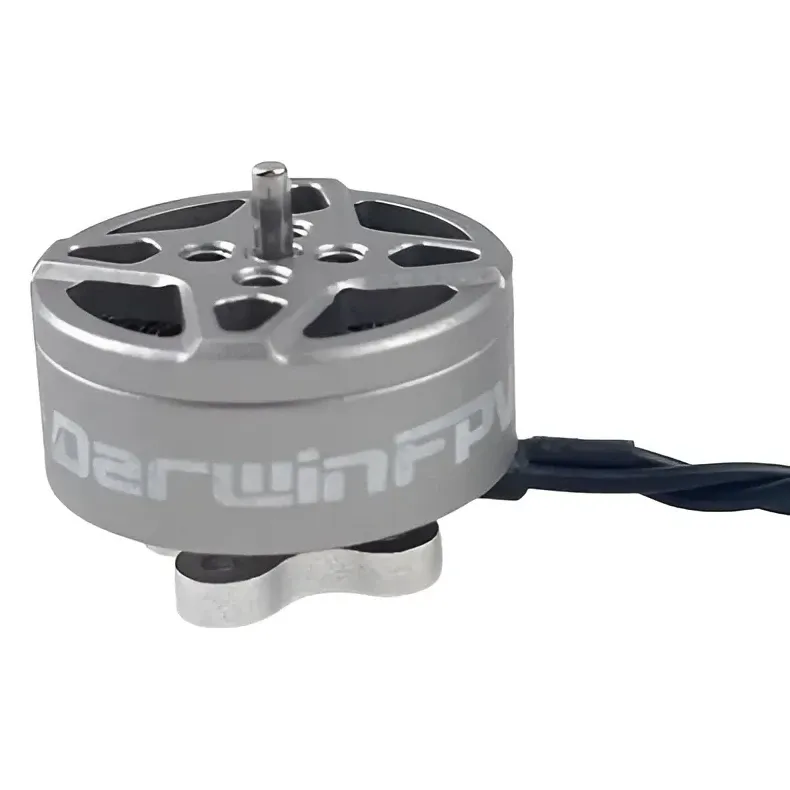

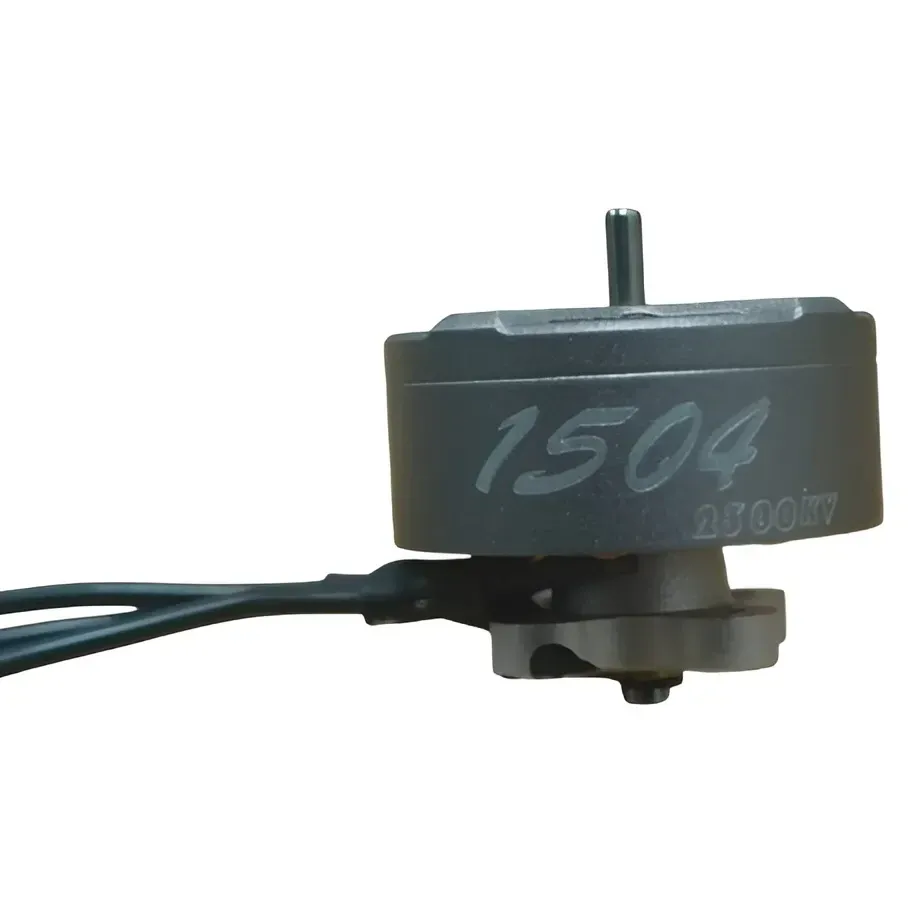

DarwinFPV 1504 2300KV Brushless Motor

DarwinFPV's 1504 2300KV is a 6S-rated brushless motor for 3–3.5 inch freestyle quads and 4-inch long-range builds, and it is also listed for 2.5-inch whoops. Compared with a 1404 it delivers more power, thrust and efficiency at the same weight.

Key features

• 15 x 4 mm stator in a 12N14P layout with N45H magnets and single-strand copper windings
• Rated for 24 V (6S LiPo), peaking at 9.3 A and 223.2 W
• 1.5 x 3.5 mm prop shaft for props with a 1.5 mm hub
• 9 x 9 mm M2 mounting pattern, standard on micro and 3–4 inch arms
• Split rotor on 2 x 5 x 2.5 mm bearings, dynamically balanced for smooth, quiet running
• 12 g including 150 mm, 28 AWG leads

Specifications

• KV: 2300KV
• Stator: 15 x 4 mm (1504)
• Configuration: 12N14P
• Rated voltage: 24 V (6S LiPo)
• Idle current: 0.53 A
• Max current: 9.3 A
• Max power: 223.2 W
• Phase resistance: 1230 mOhm
• Shaft: 1.5 x 3.5 mm
• Bearings: 2 x 5 x 2.5 mm
• Magnets: N45H
• Leads: 28 AWG, 150 mm

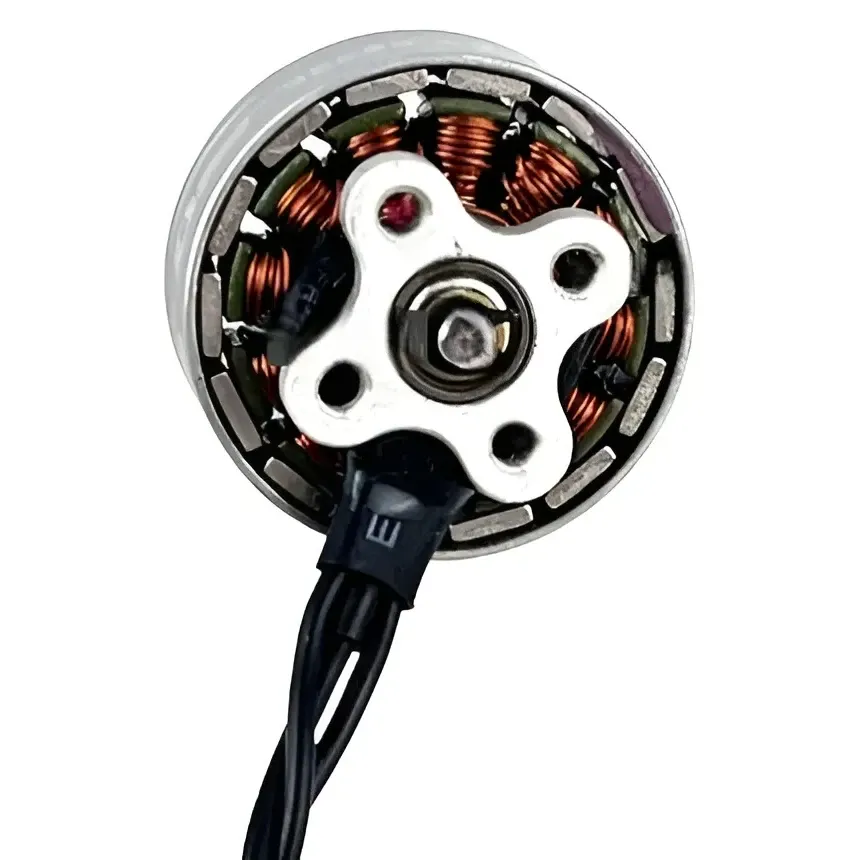

• Mounting: 9 x 9 mm, M2
• Weight: 12 g including leads
• In the box: 1 motor, 5 M2 x 7 mm hex socket screws, sticker

Sold singly, so order four for a quad. At 9.3 A peak per motor, any 4-in-1 ESC rated 15 A or more per motor on 6S covers it with margin.
