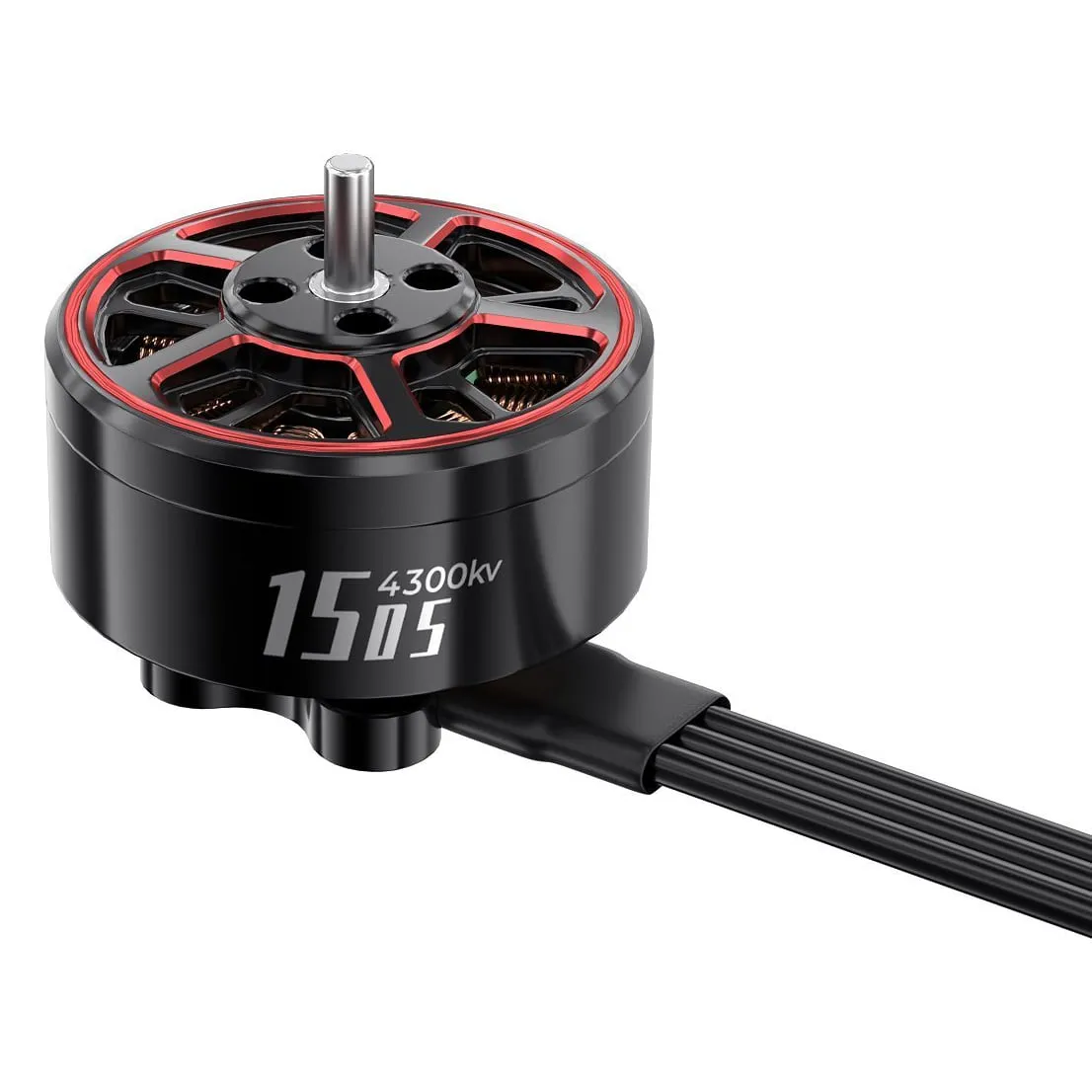

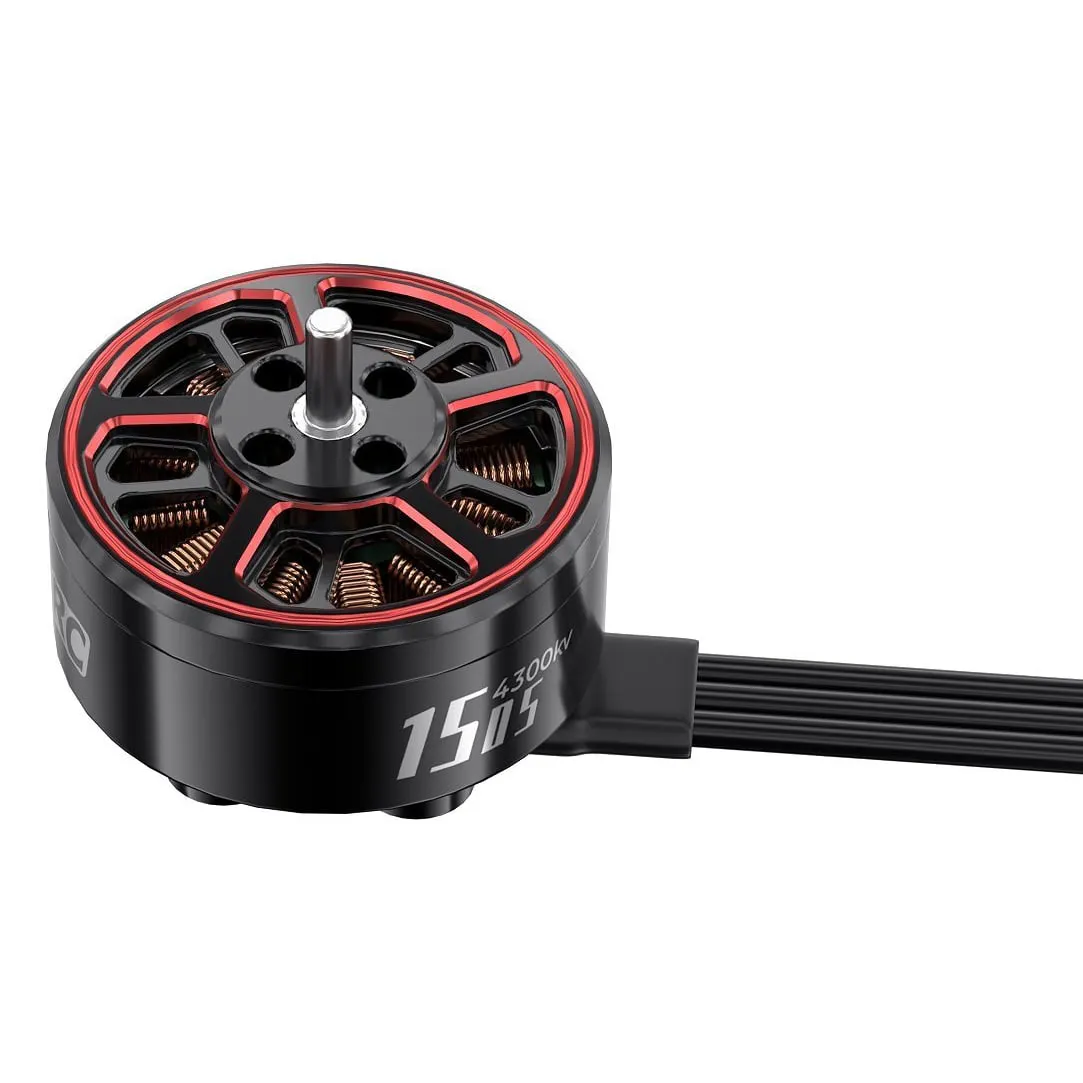

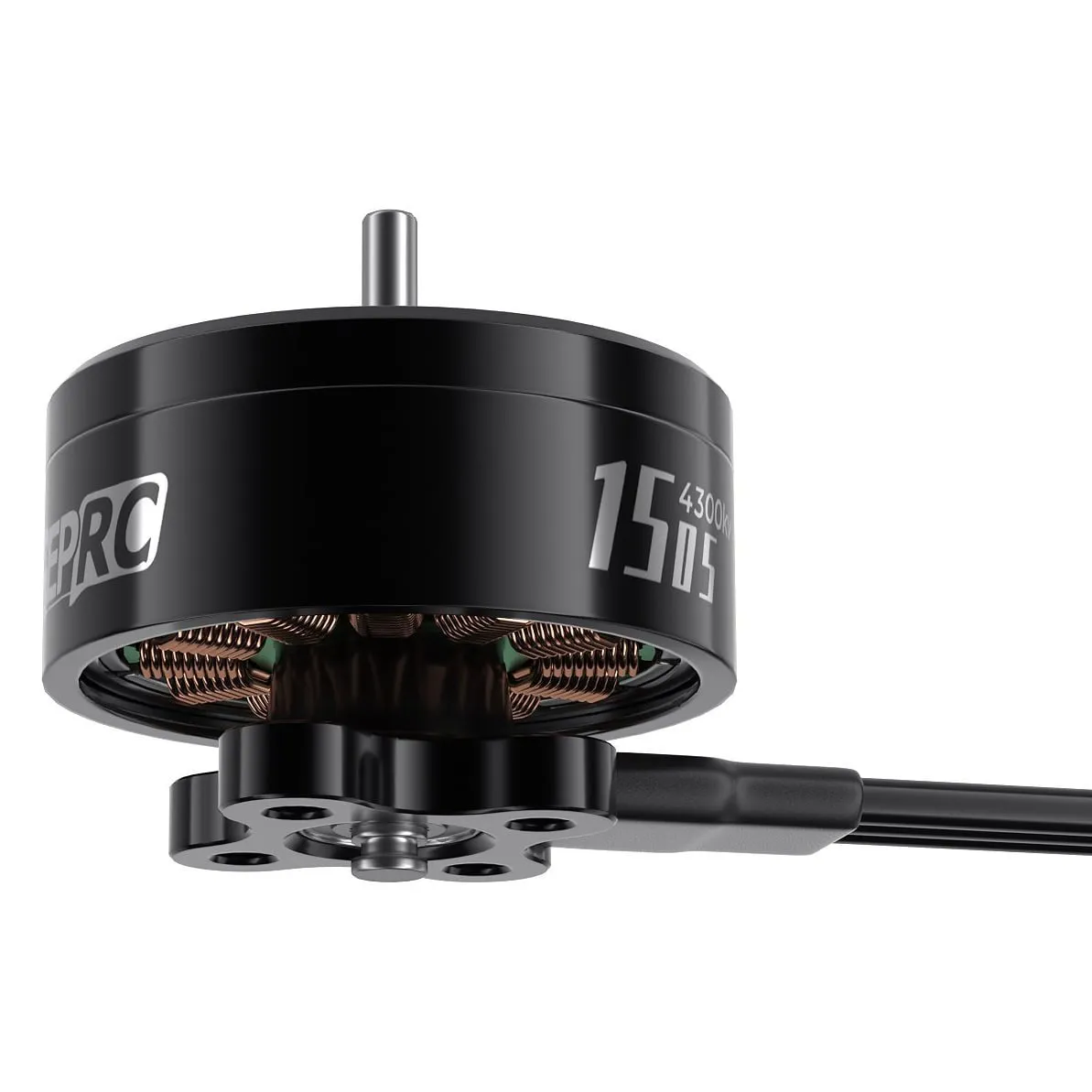

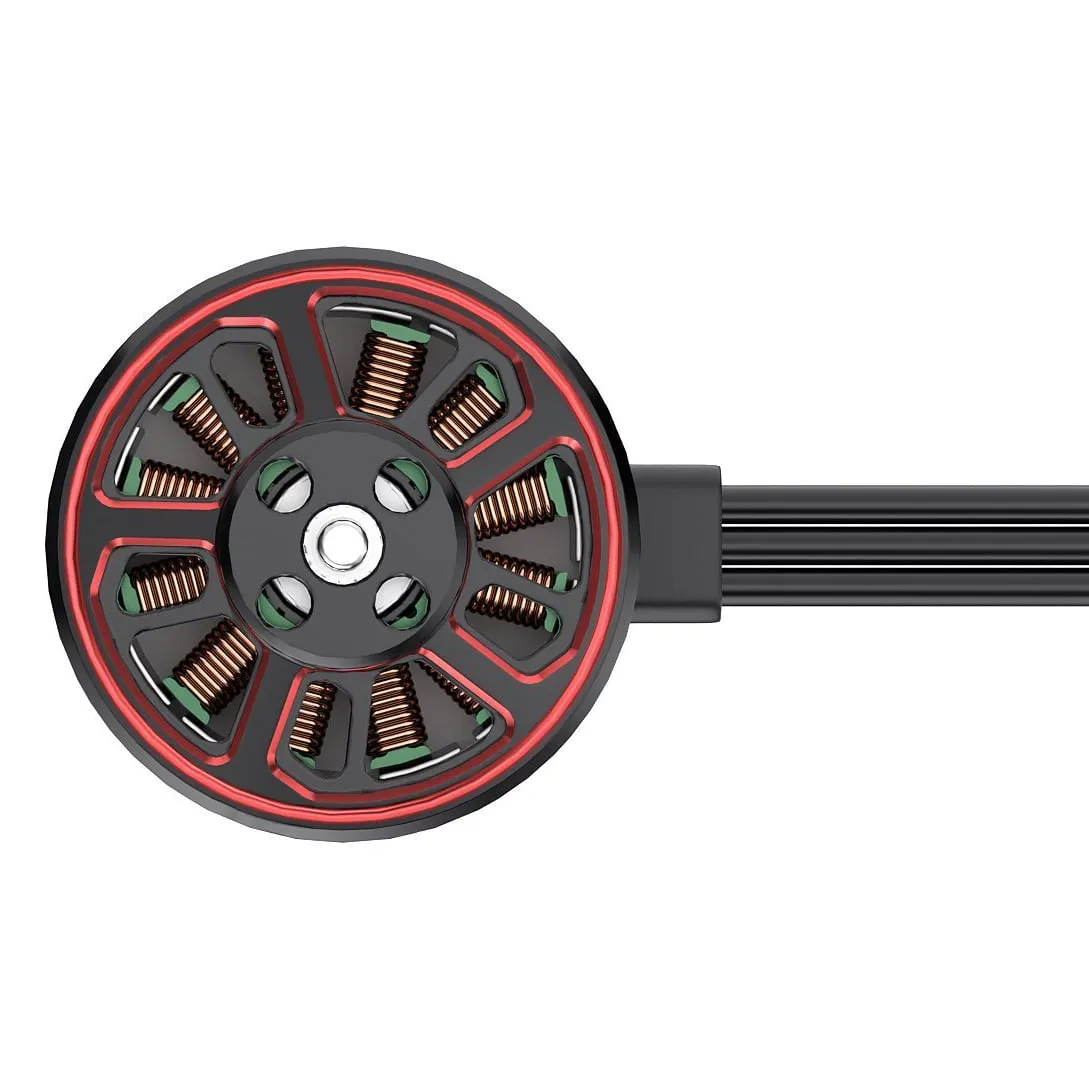

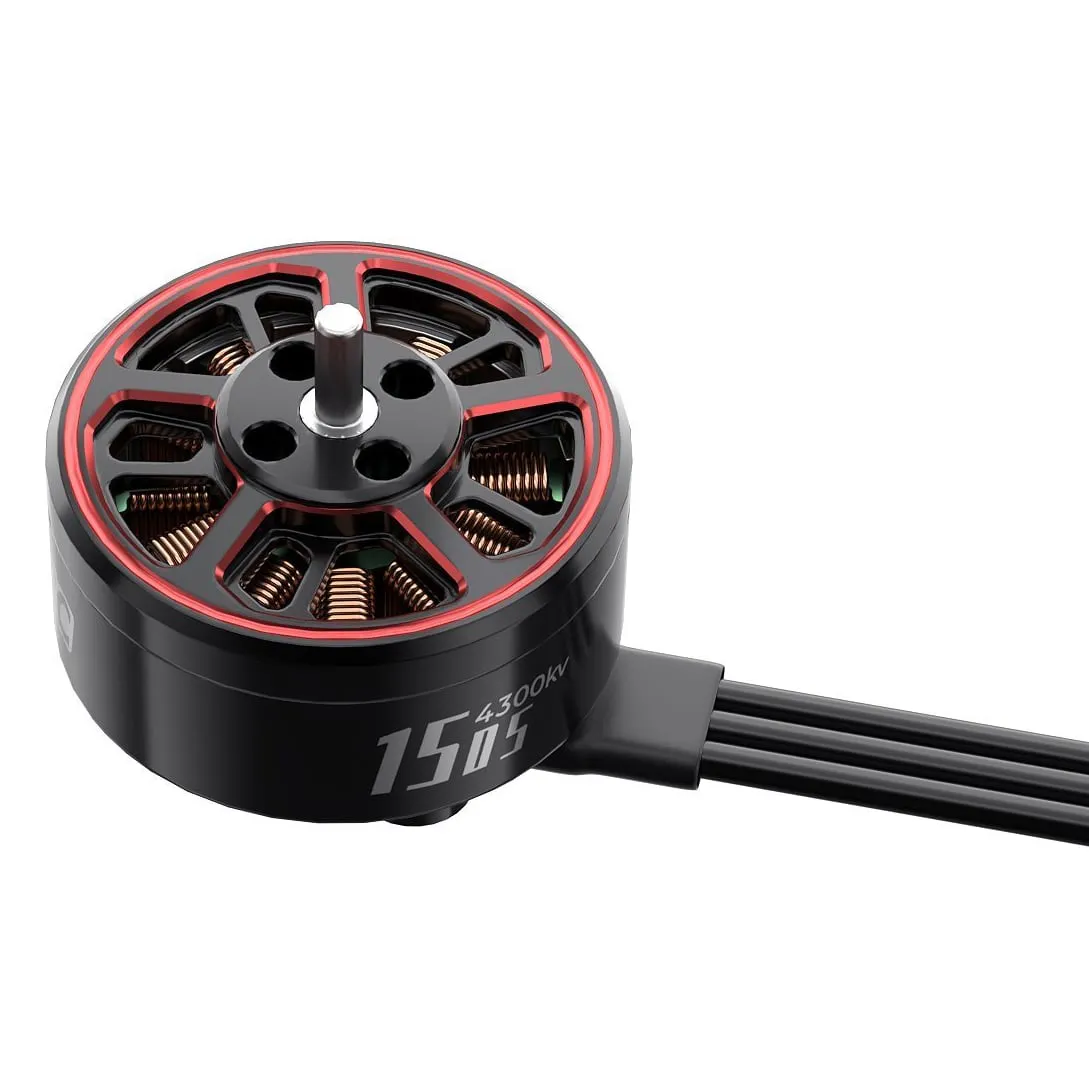

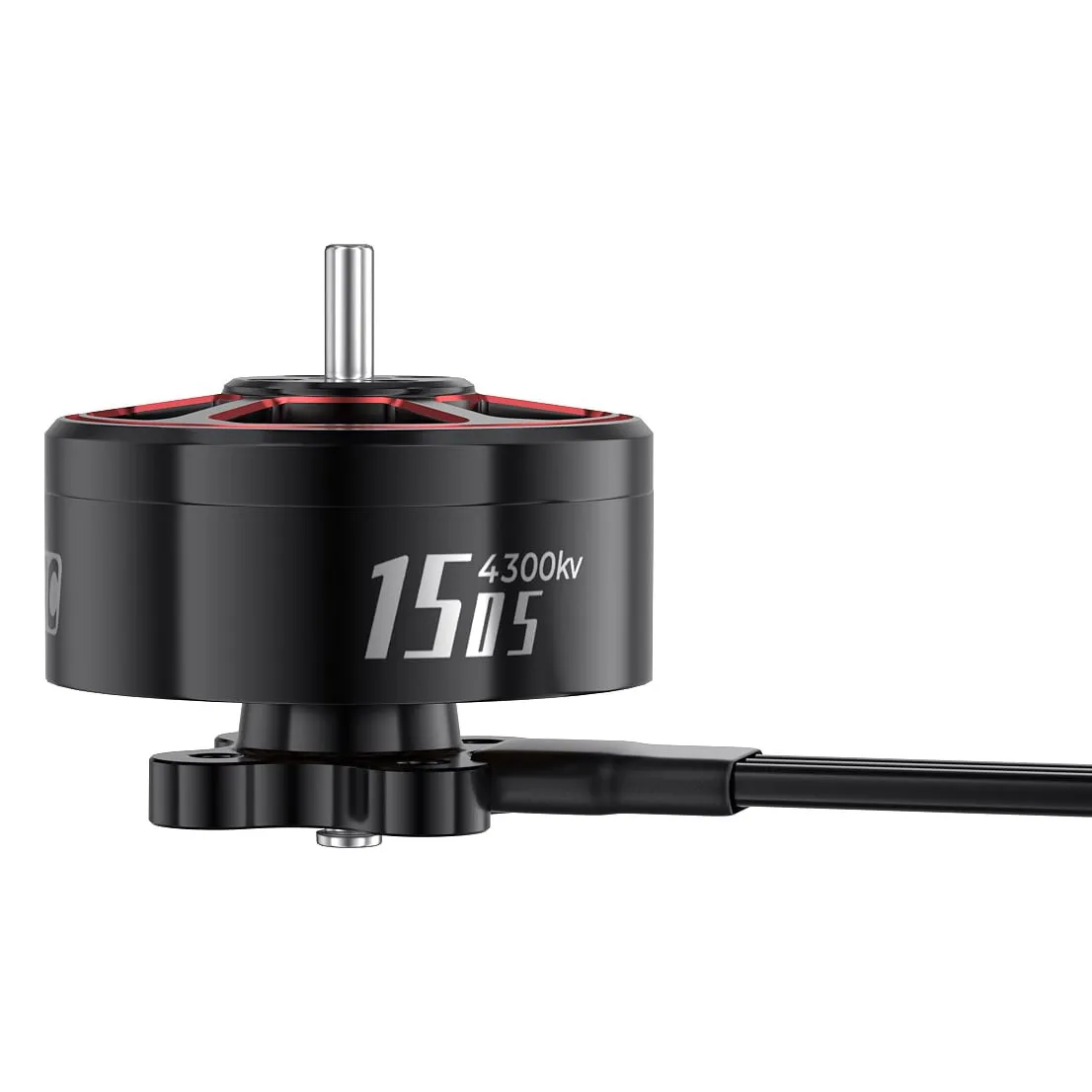

GEPRC SpeedX2 1505 4300KV Brushless Motor
SKU GEPRC-SPDX2-1505-4300KV
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The GEPRC SpeedX2 1505 4300KV brushless motor is built for 2.5 to 3.5-inch lightweight and toothpick builds, sitting between smaller 1404s and heavier 2004s for a responsive, punchy throttle feel on a 4S pack.
Key features
- 1505 stator sized for 2.5-3.5-inch ultralight and toothpick frames.
- 4300KV rating tuned for 4S LiPo (16.8V) power systems.
- High-precision NSK/NMB bearings for a longer service life.
- N52H high-temperature magnets for consistent thrust under load.
- 1.5mm shaft for broad compatibility with micro T-mount propellers.
- Matte black and red finish on the bell.
Specifications
- Motor model: SpeedX2 1505 4300KV
- Configuration: 12N14P
- Input voltage: 4S LiPo (16.8V)
- Max power: 340.9W
- Peak current: 21.56 A
- Propeller shaft: 1.5mm, 4mm protrusion
- Mounting pattern: 9x9 mm (M2)
- Dimensions: 19.5 x 13.9 mm
- Leads: 160 mm, 26AWG
- Magnets: N52H
- Weight: 12.7g (with wire)
Pair with a 20-30A AIO flight controller and 2.5 to 3.5-inch T-mount props for an agile micro freestyle build or a payload-capable sub-250g cinewhoop. At 12.7g with wire, four motors add comfortably little to your all-up weight budget.
| Stator Size | 1505 |
|---|---|
| Stator Diameter | 15mm |
| Stator Height | 5mm |
| KV | 4300 KV |
| Pack Size | 1 |
| Prop Mount | T-Mount, 1.5mm |
| Shaft | 1.5mm |
| Motor Mount | 9x9mm |
| Input Voltage | 4S |
| Weight | 12.7 g |
| Brand | GEPRC |
| Made in India | No |
