Axisflying C206 2006 6S Cinewhoop Motor
SKU AXIS-C206-2006-2750KV
KV: 2750KV
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

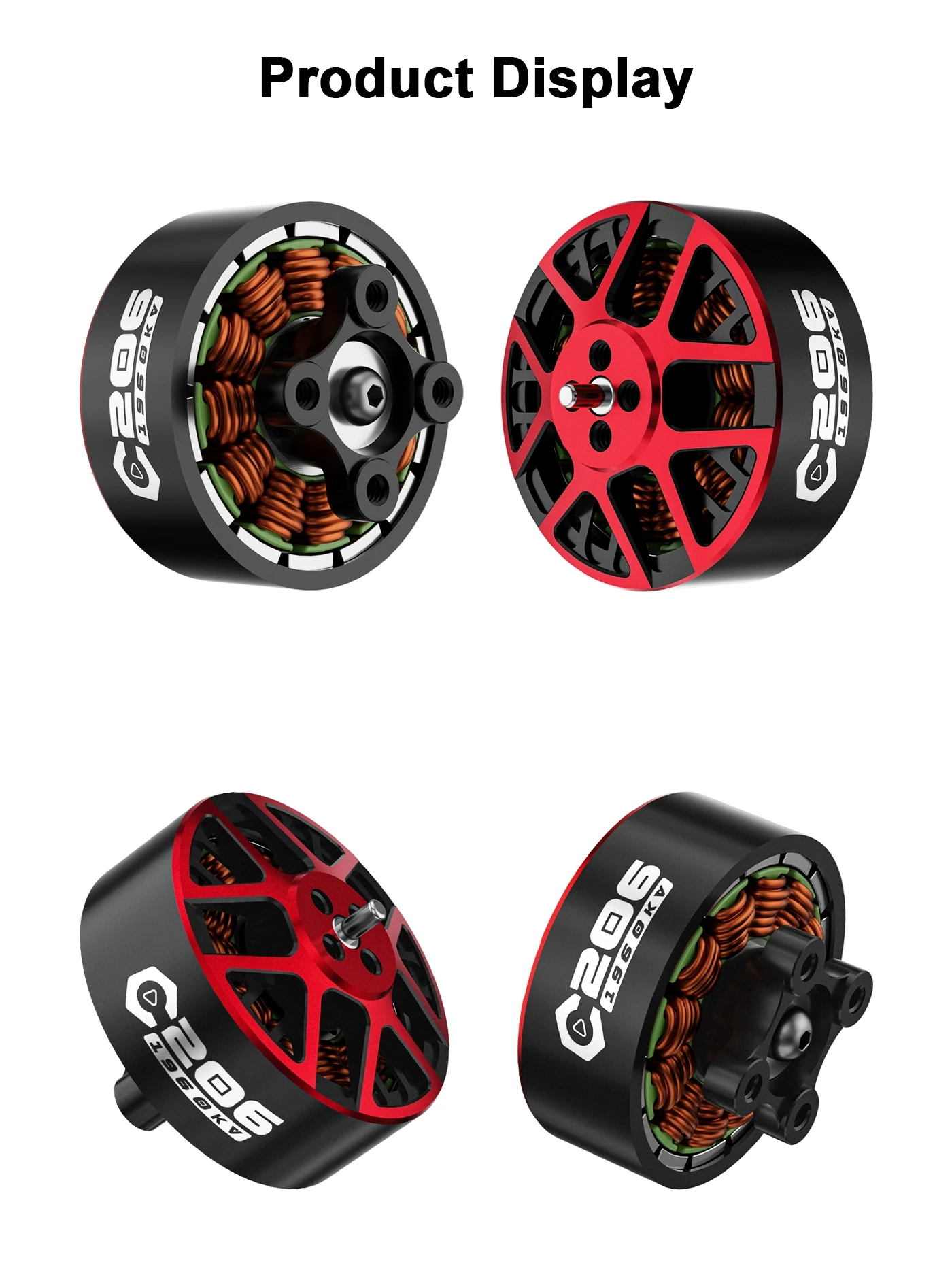

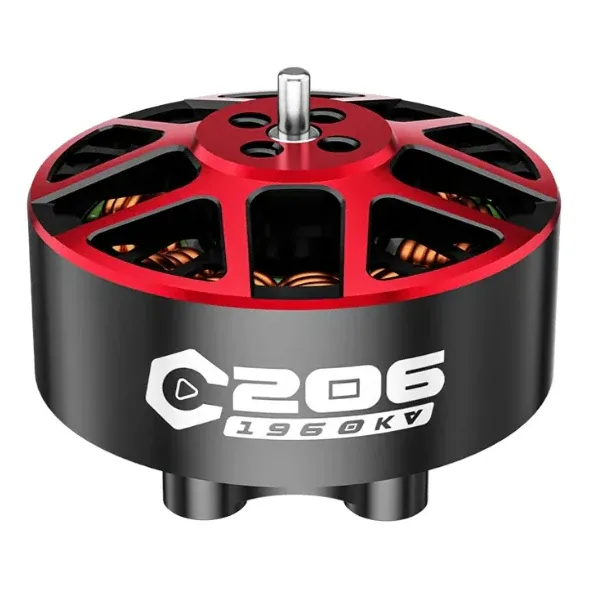

The Axisflying C206 is a 2006-stator brushless motor built for 3.5-inch 6S cinewhoops and cinematic FPV drones, offered in 1960KV, 2500KV and 2750KV windings tuned for controlled, precise thrust from a 6S LiPo pack rather than outright speed.
Key features
Bearing Shield Technology gives an IP53-rated dustproof and waterproof bearing seal for a longer service life.

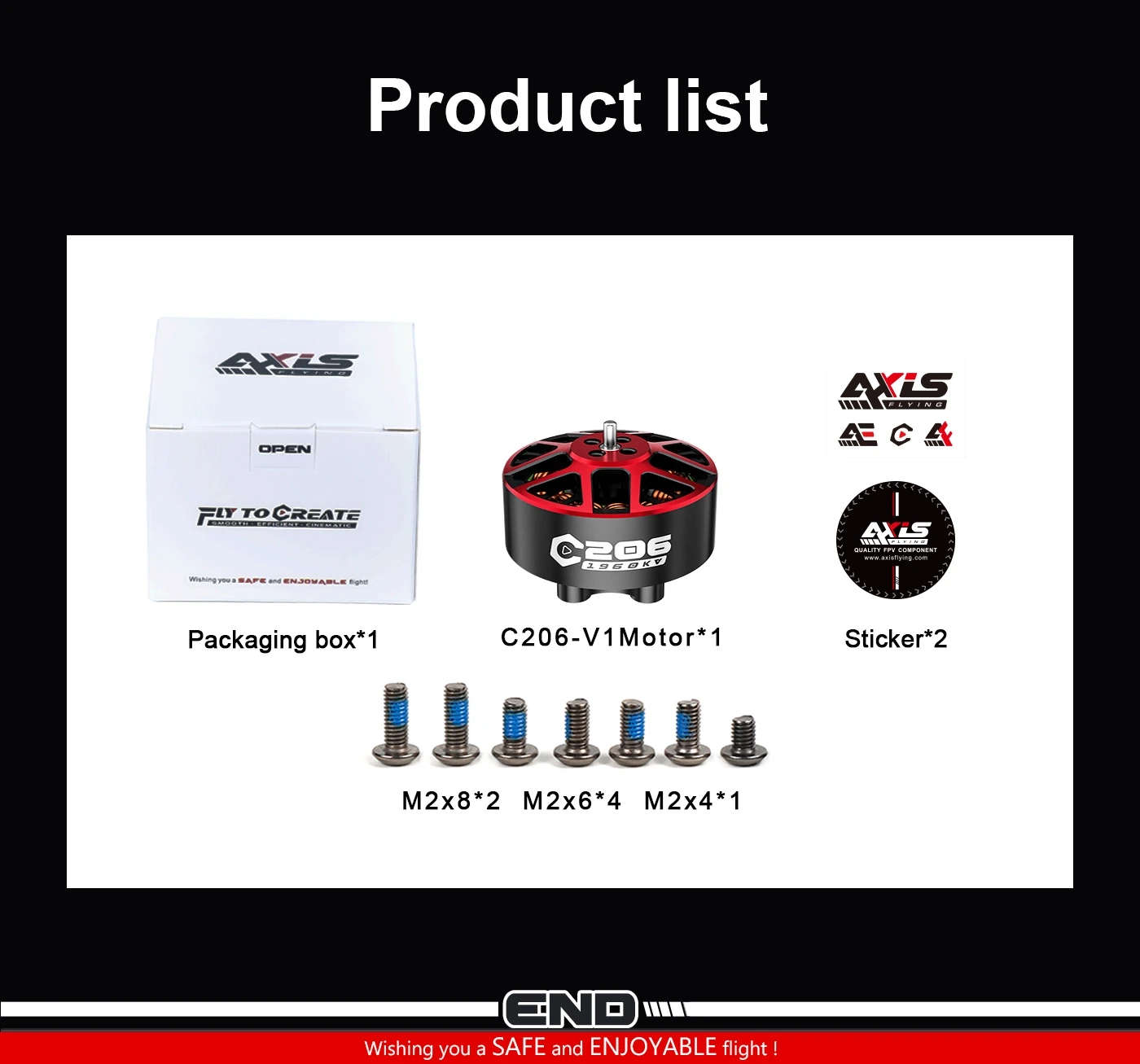

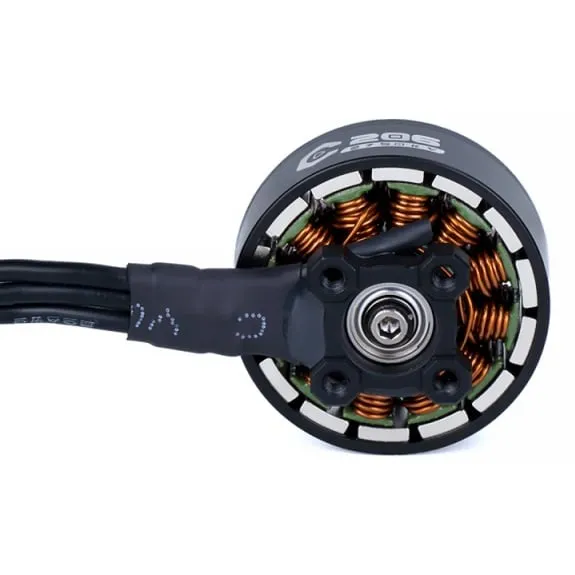

4 x M2 screws on a 12mm mounting circle (12N14P winding, N52H arc magnets).

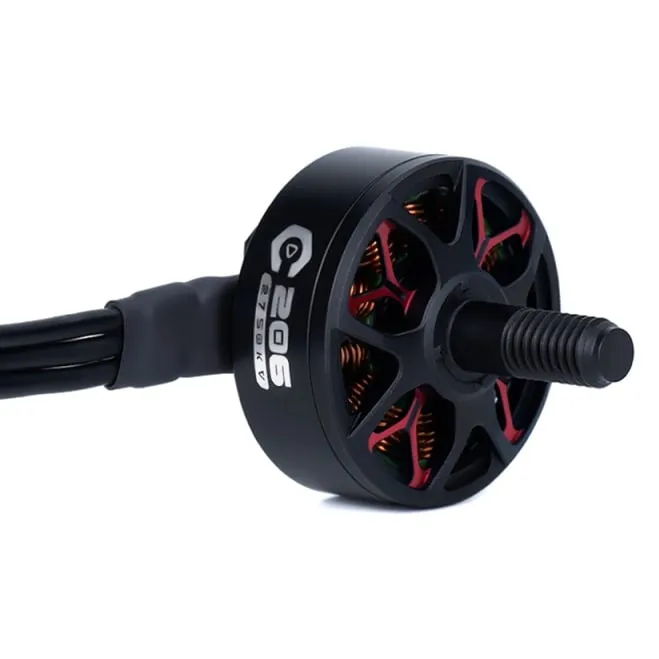

Weighs 22g including its 150mm 20AWG cable.
Rated for over 0.9kg of thrust at around 21.5A peak current (2500KV).
Suits ducted cinematic drones and direct cinewhoop motor replacements where smooth throttle response matters.

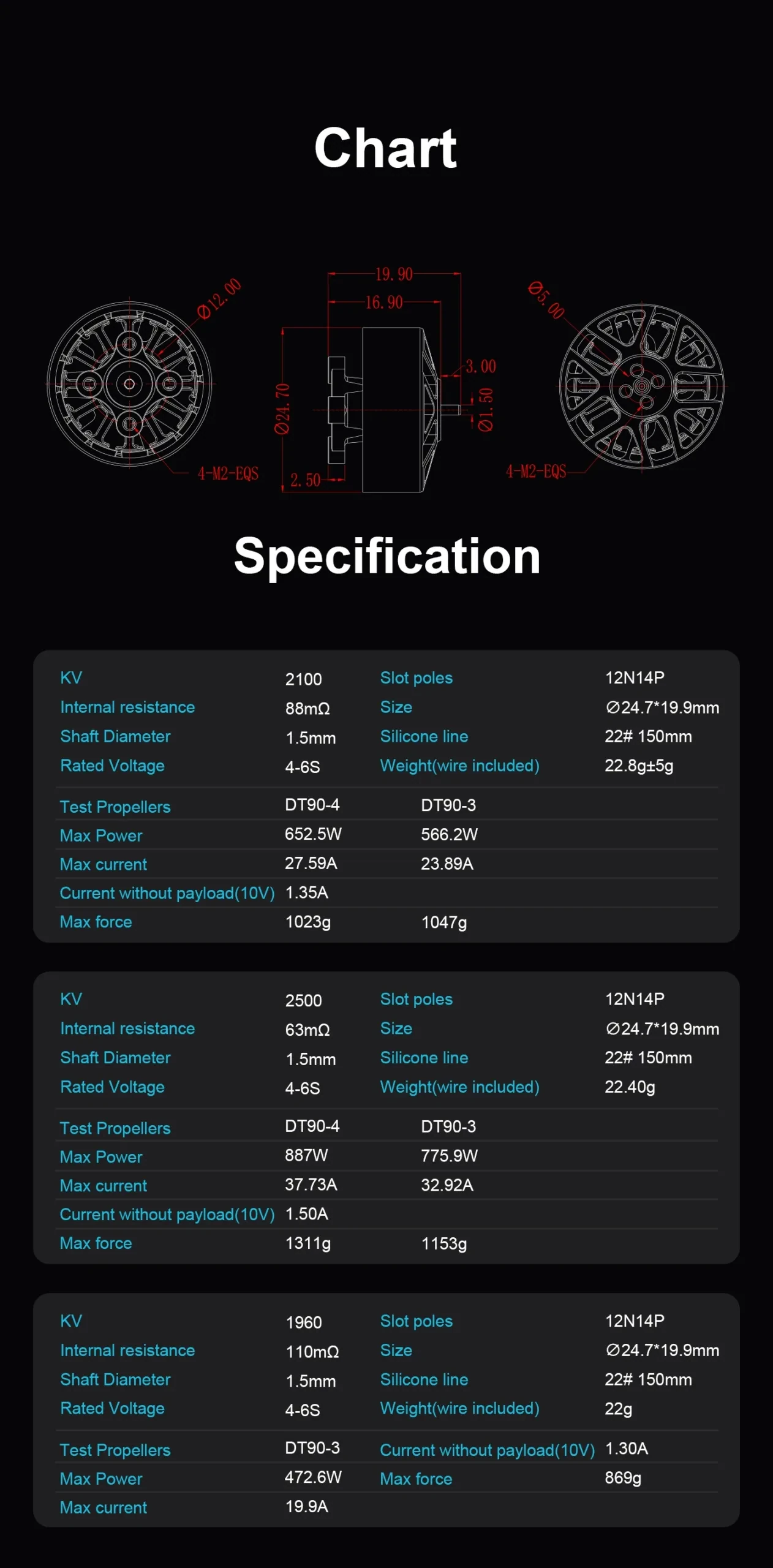

Specifications
Stator: 2006

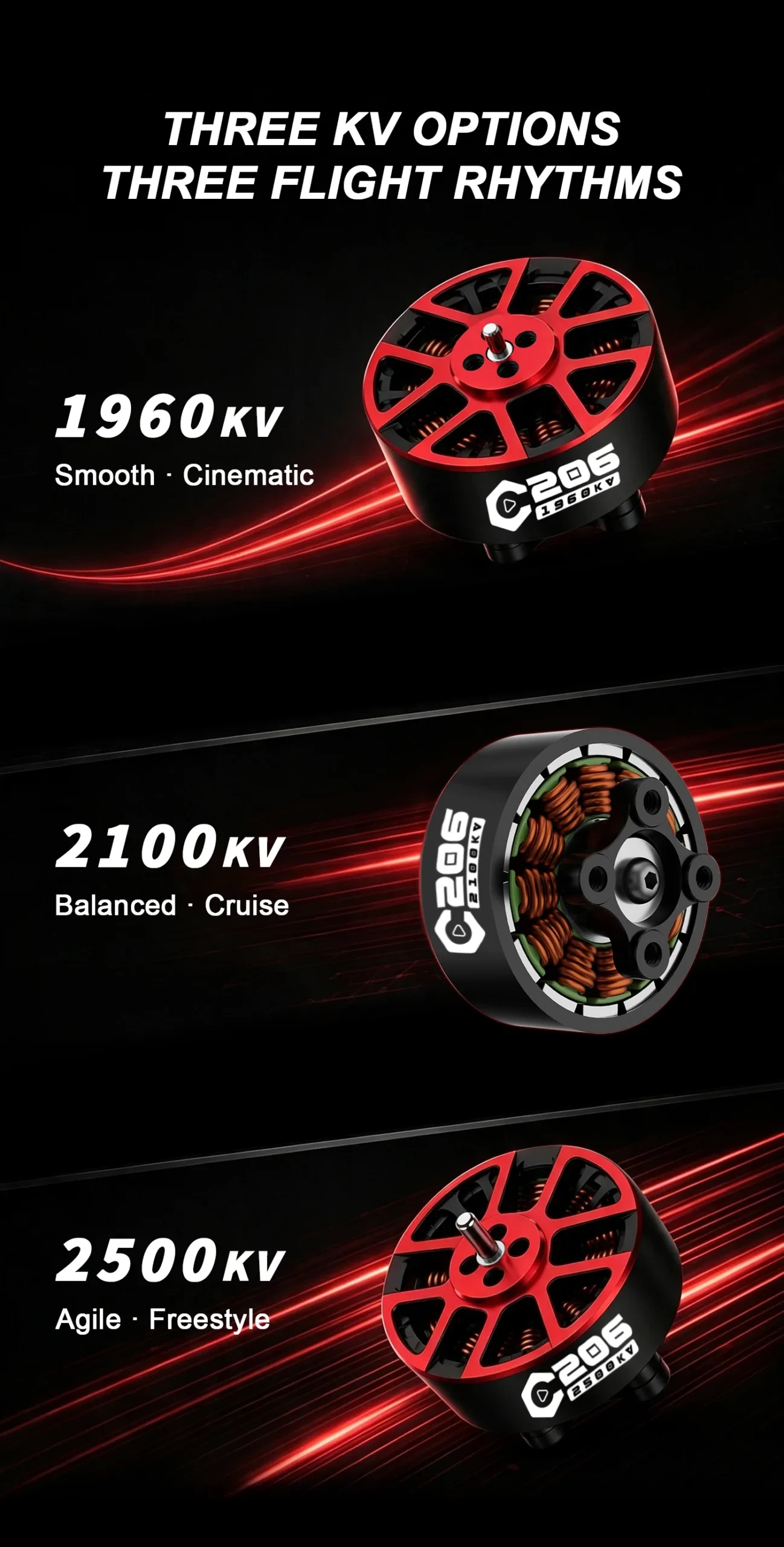

KV: 1960KV / 2500KV / 2750KV
Motor mount: 12 x 12mm
Weight: 22g
Fit four matched motors per quadcopter, use a 6S-rated ESC, and confirm motor order and rotation direction in the flight-controller software before flight.
| Stator Size | 2006 |
|---|---|
| KV | 1960 KV, 2750 KV, 2500 KV |
| Motor Mount | 12x12mm |
| Input Voltage | 6S |
| Weight | 22 g |
| Brand | Axisflying |
| Made in India | No |
