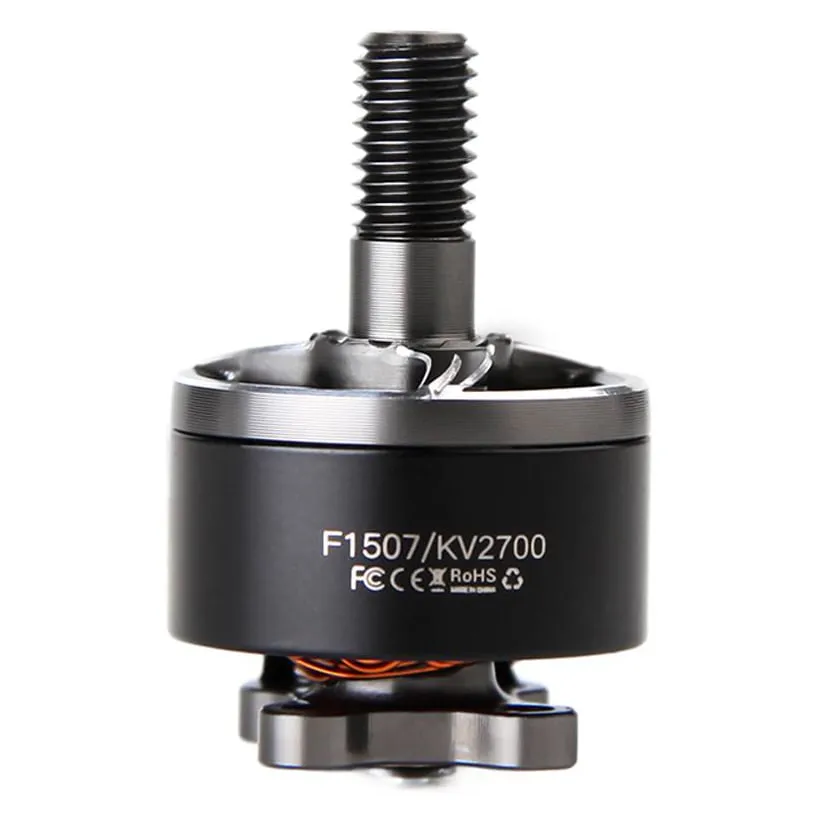

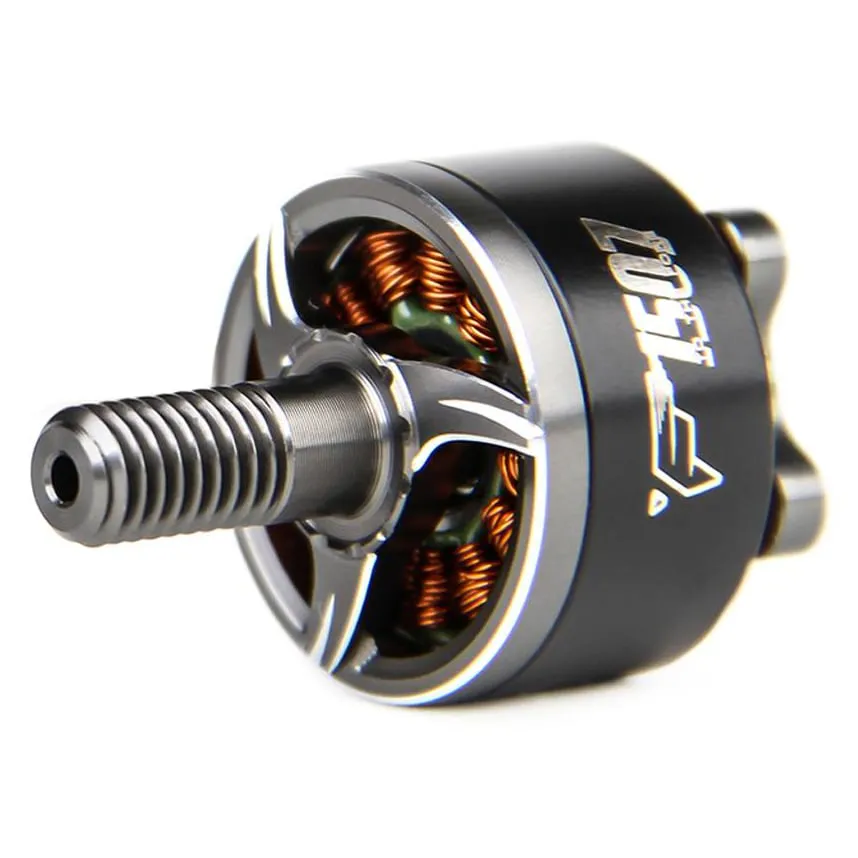

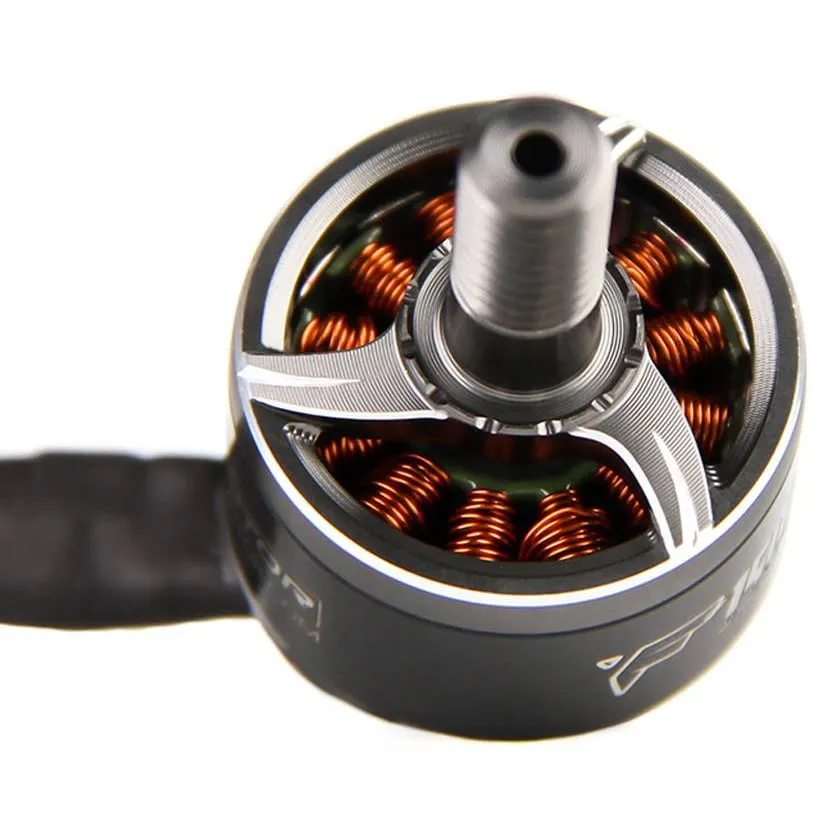

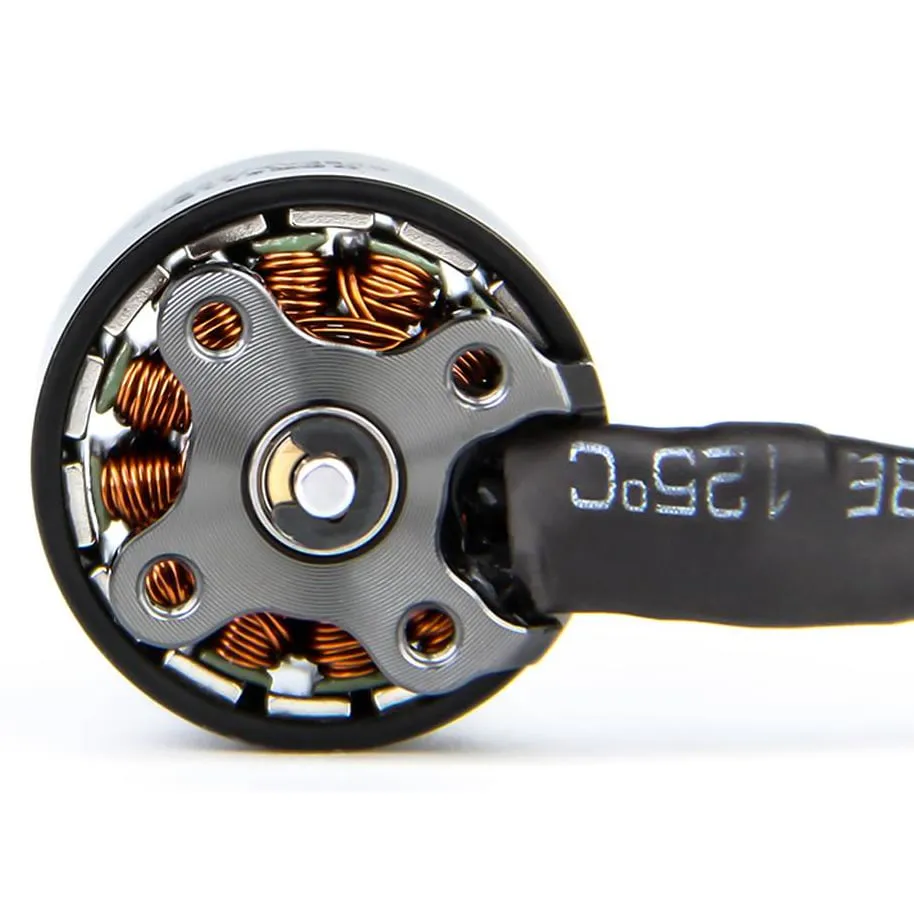

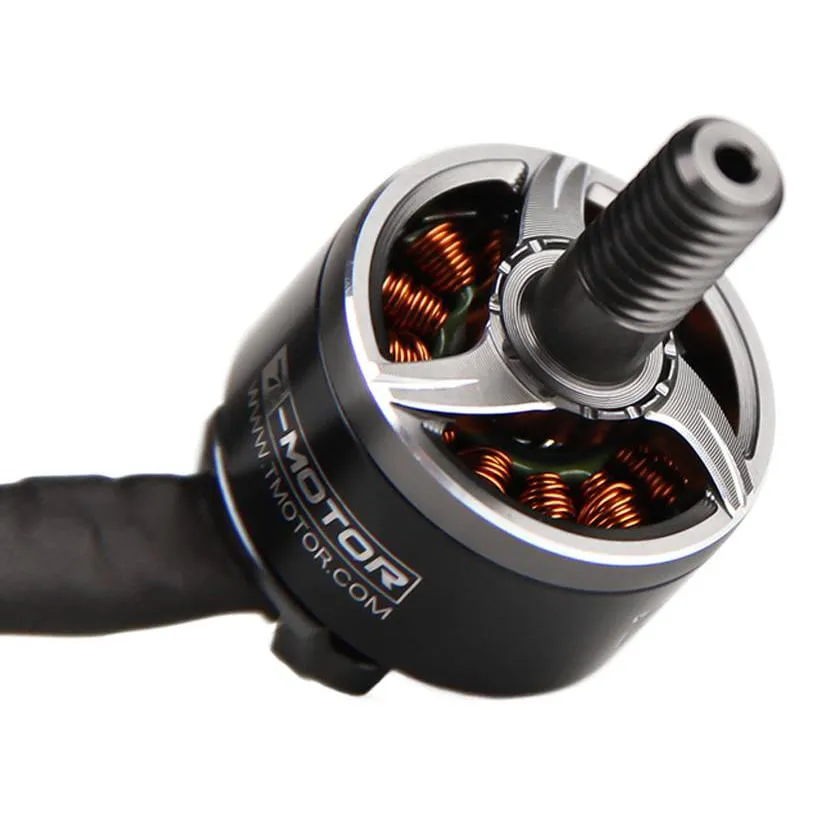

T-Motor F1507 V1 2700KV Motor

The T-Motor F1507 V1 2700KV is a compact cinewhoop and 3–3.5-inch race motor, tuned for smooth, high-torque flight on 3–6S packs while keeping weight down on tight, camera-carrying frames.

Key features

• 12N14P 1507 stator winding gives a thrust-to-weight ratio up to 52.8, enough authority to lift a 3-inch cinematic rig or push a 3.5-inch freestyle build hard
• Rated across 3–6S LiPo, suiting both punchy 4S freestyle setups and efficient 6S cruising
• 2mm shaft mounts directly to 3-inch and 3.5-inch tri-blade propellers without an adapter
• Pre-tinned 100mm 24AWG leads route cleanly to a 4-in-1 ESC or AIO board
• Ships with mounting screws, a self-locking nut, E-clip and washer, ready to bolt straight onto the frame

Specifications

• Stator size: 1507
• KV: 2700
• Configuration: 12N14P
• Input voltage: 3–6S LiPo
• Shaft diameter: 2mm
• Motor dimensions: Ø18.9 x 29.7mm
• Weight: 15.2g (incl. cable)
• Internal resistance: 131mΩ
• Max power (60s): 519W

Pair with a 20–30A ESC and 3-inch to 3.5-inch tri-blade propellers for stable tracking and fast recovery through prop wash on cinematic and freestyle builds.
