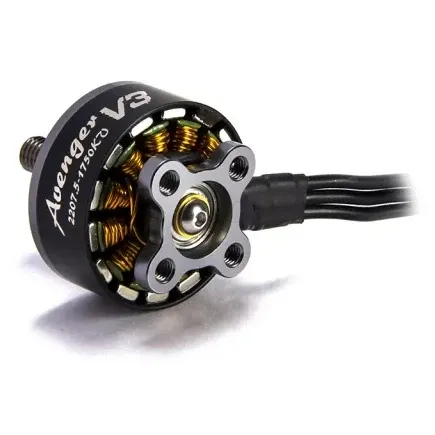

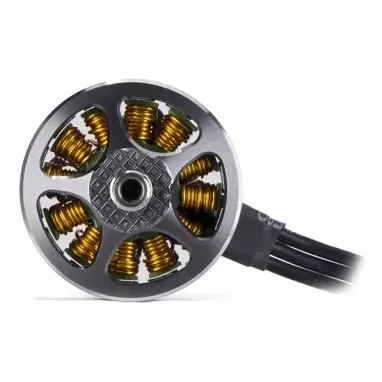

BrotherHobby Avenger 2207.5 V3 Motor

The BrotherHobby Avenger 2207.5 V3 is a 5-inch motor designed for 6S freestyle and cinematic FPV builds. The unique 2207.5 stator size strikes a deliberate balance between a standard 2207 and a wider 2306, offering increased low-end torque for heavy rigs without sacrificing high-RPM spool-up speed. This 1750KV variant is tuned for efficiency and responsive punch-outs on a 6S LiPo.

Key features

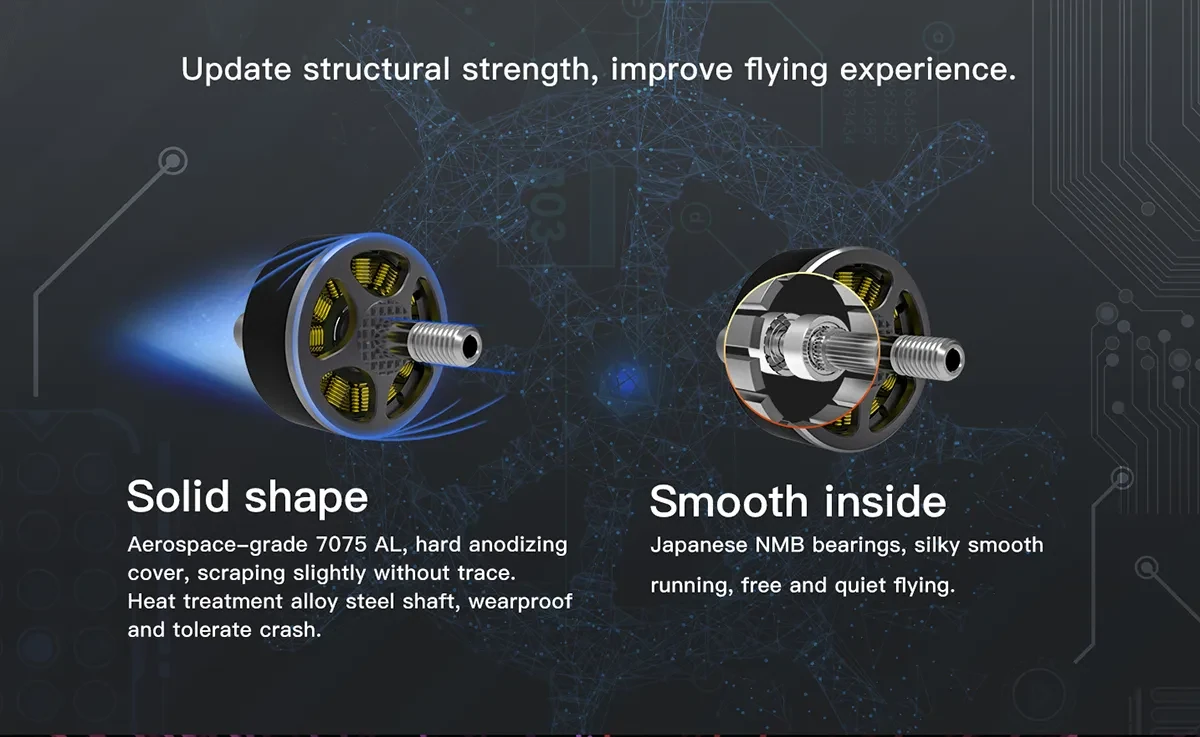

• Constructed with a machined AL7075 aluminium base casing and a durable hollow titanium alloy shaft to reduce rotational mass.

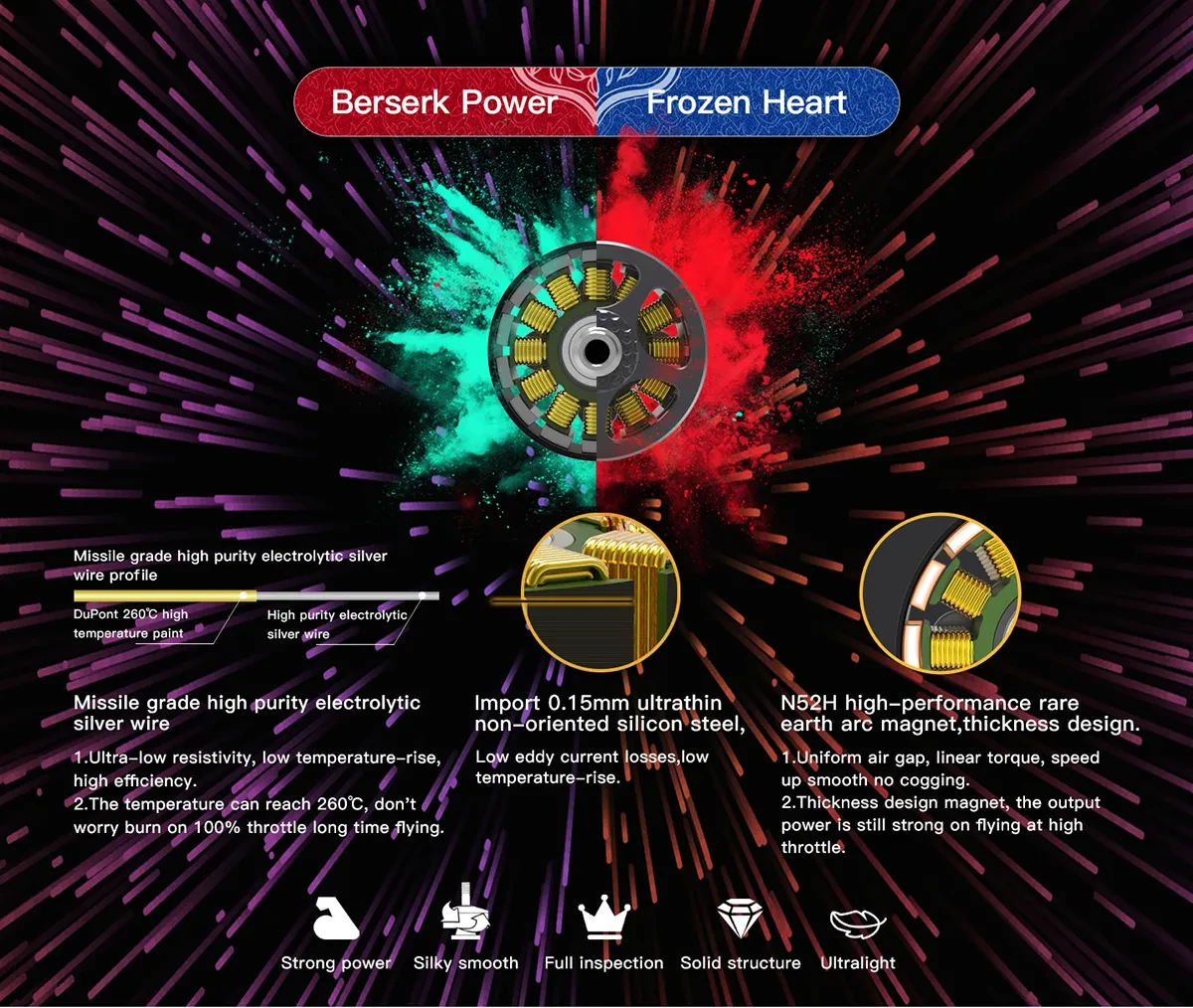

• Built with a 0.15mm Nippon silicon steel stator and high-temperature N52H arc magnets to maximise magnetic efficiency.

• Rides on robust Japanese NMB 9x4x4mm bearings for smooth rotation under heavy dynamic loads.

• Standard 16x16mm mounting footprint fits the majority of modern 5-inch and 6-inch frames.

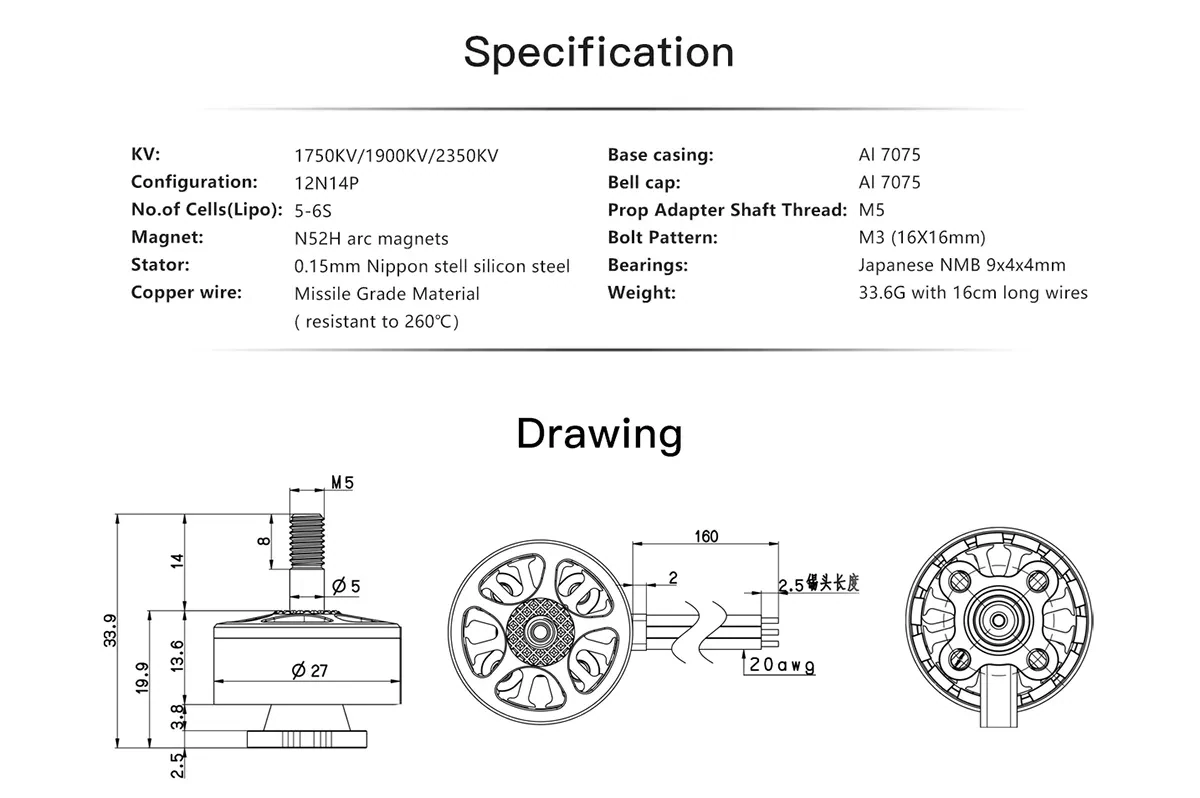

Specifications

• Stator volume: 2207.5

• KV: 1750

• Configuration: 12N14P

• Supported voltage: 5-6S LiPo

• Shaft material: Titanium alloy hollow shaft

• Propeller shaft: M5

• Magnets: N52H Arc

• Stator steel: 0.15mm Nippon silicon steel

• Bearings: NMB 9x4x4mm

• Wire: 20AWG, 160mm length

• Mounting pattern: 16x16mm, M3

• Weight: 33.6g (with 16cm wires)

Pair this 1750KV motor with a 45A to 50A ESC and aggressive 5-inch or light 6-inch propellers for optimal throttle control and freestyle torque.
