BetaFPV BT3.0 Connector / Wire Set

The BetaFPV BT3.0 connector system is engineered specifically for 2S whoops and micro drones, integrating power delivery and cell balancing into a single streamlined plug. By eliminating the need for a separate balance lead on your batteries, the BT3.0 standard saves critical weight and reduces cable clutter on ultra-light builds like the Pavo Pico.

Key features

• Innovative 3-pin design handles both main discharge and 2S balance charging through one unified connection.
• Sheds unnecessary flight weight by completely removing standard XH2.54 balance wires from the battery pack.
• Solid metal pins reduce internal resistance compared to traditional folded-metal connectors, minimising voltage sag under heavy throttle.

Specifications

• Connector format: BT3.0 (3-pin)
• Supported cell count: 2S
• Current rating: 12A continuous, 20A instantaneous
• Pins: Gold-plated copper; two 1.3 mm discharge pins plus one 1.0 mm balance pin
• Housing: PA9T
• Rated mating cycles: 1000

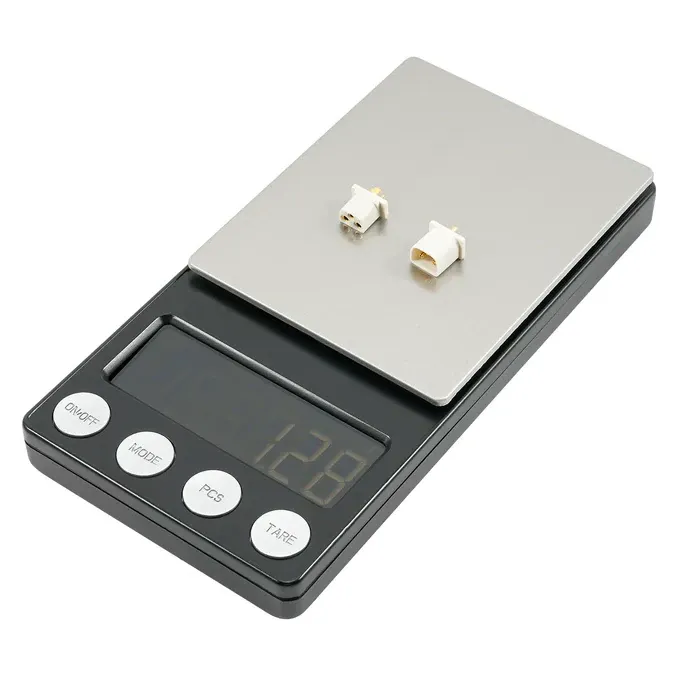

• Male connector: 0.6 g, 11.2 x 9.2 x 6.1 mm
• Female connector: 0.68 g, 10.1 x 9.1 x 5.4 mm
• XH2.54 adapter cable: 35 mm, 1.84 g
• 2S whoop cable pigtail: 30 mm, 1.39 g, 90-degree plug; blue wire positive, white wire negative

Select the 2S Whoop Cable Pigtail to wire your flight controller, the Male/Female Set (5 pairs) for terminating custom 2S packs, or the XH2.54 Adapter Cable for charging BT3.0 batteries on standard multi-chemistry hobby chargers.
