MT60 3.5mm 3-Pole Motor/ESC Bullet Connector Set (Male + Female)
MT60 3.5mm 3-Pole Motor/ESC Bullet Connector Set (Male + Female)
MT60 3.5mm 3-Pole Motor/ESC Bullet Connector Set (Male + Female)
MT60 3.5mm 3-Pole Motor/ESC Bullet Connector Set (Male + Female)
MT60 3.5mm 3-Pole Motor/ESC Bullet Connector Set (Male + Female)
Battery & Power Connectors

MT60 3.5mm 3-Pole Motor/ESC Bullet Connector Set (Male + Female)

₹139Incl. GST

SKU GEN-MT60-35MM-3P-SET

Made in India: NoBrand: GenericConnector Gender: Male + FemaleWire Gauge: 16AWG
Dispatched within 3–4 business days — quality-checked in Gurugram

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

Product details

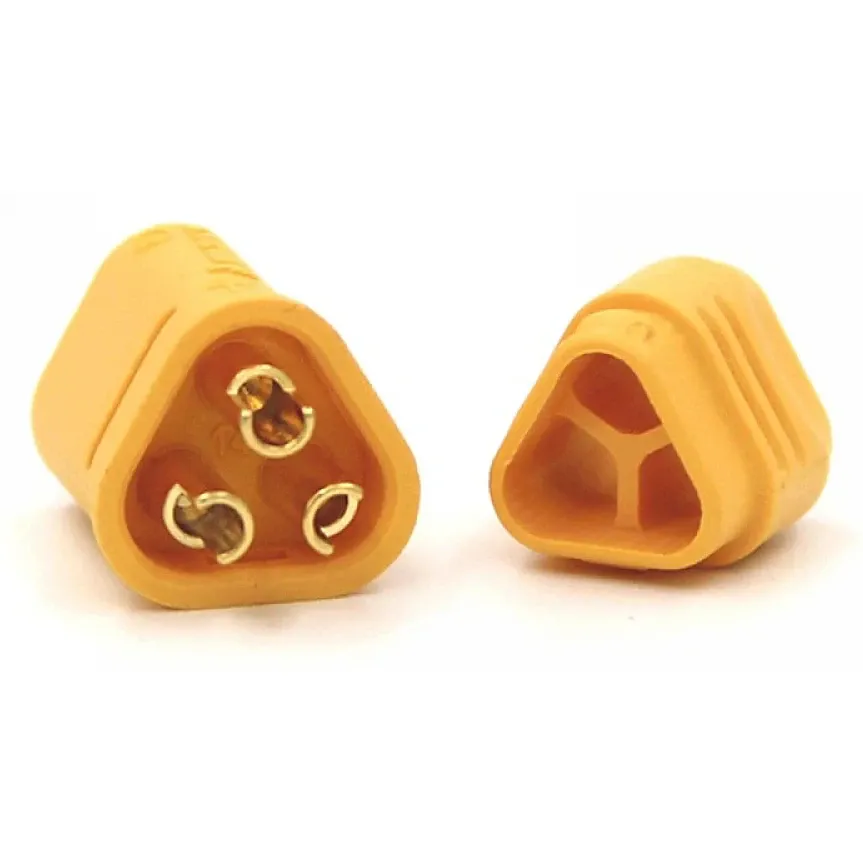

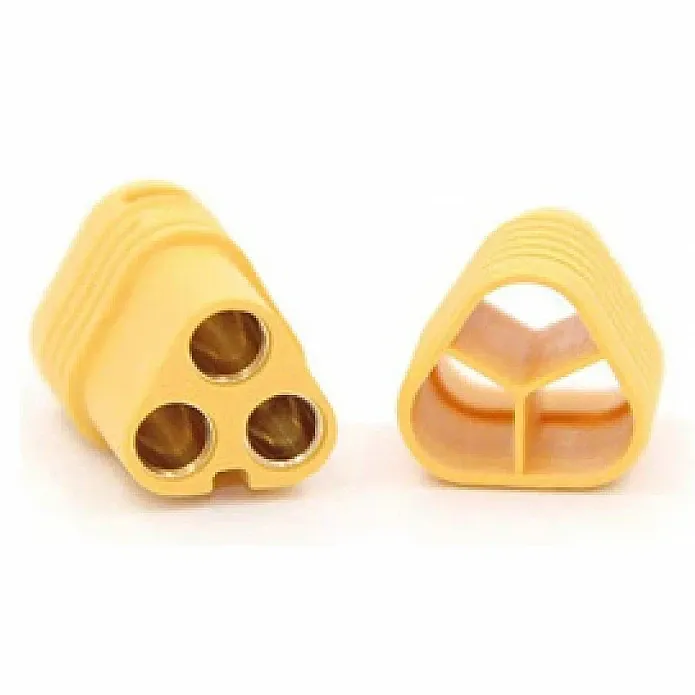

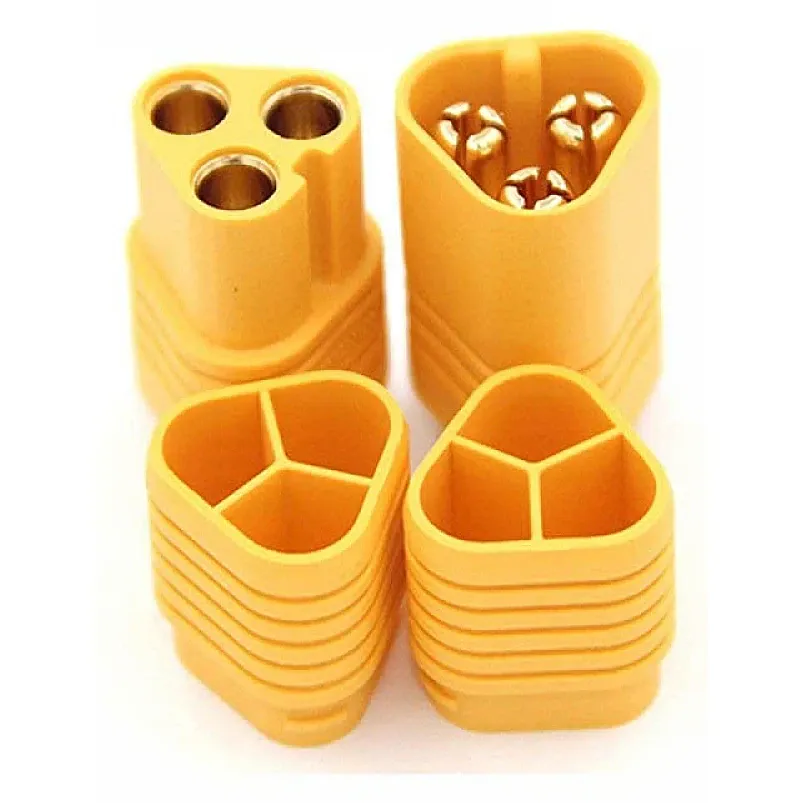

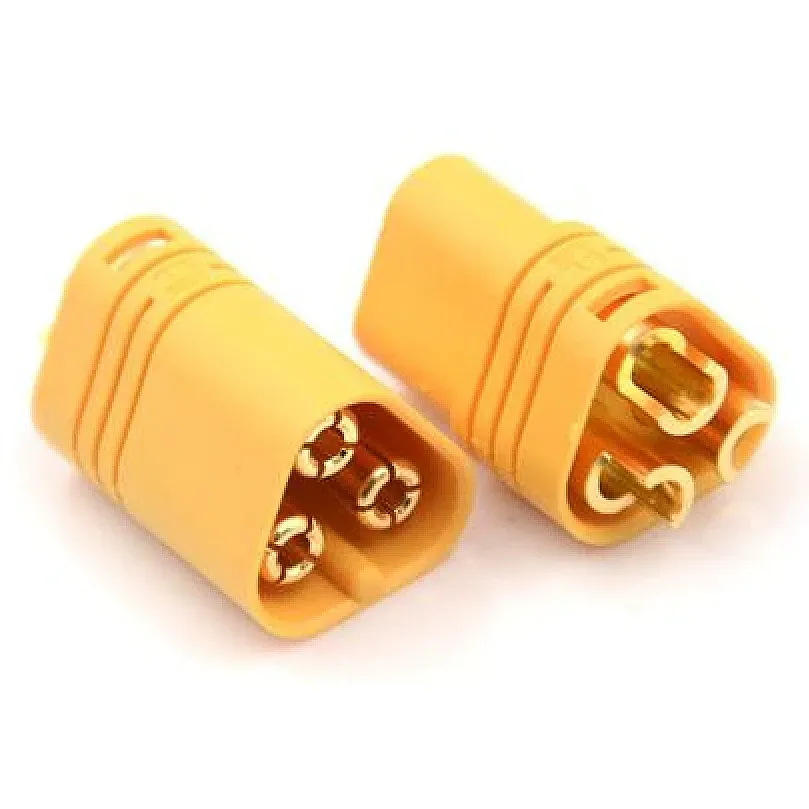

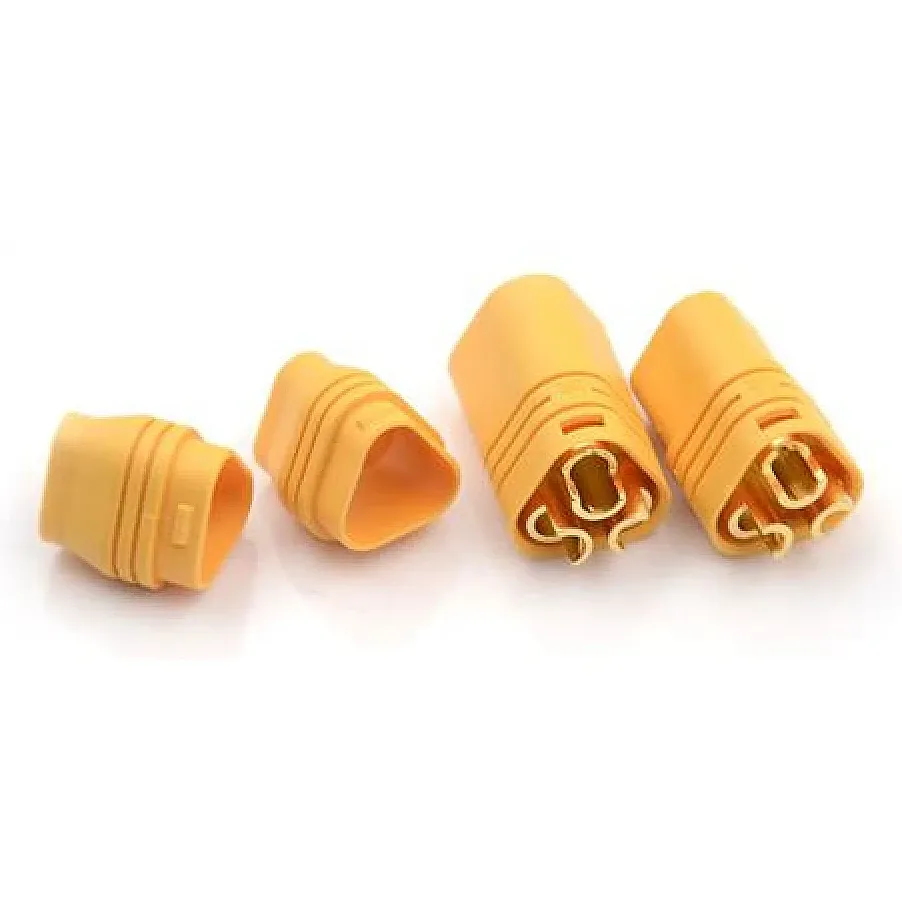

An MT60 plug joins a brushless motor's three phase wires to its ESC in one polarised housing instead of three loose bullets. This set carries the male and female halves for one motor-to-ESC joint, handy on planes and larger multirotors where a motor has to come off for repair without cutting and re-soldering wires.

Key features

  • Gold-plated 3.5mm bullet contacts inside a moulded three-pole housing
  • Keyed shape mates only one way round, so the phase order stays the same every time you reconnect
  • Takes wire up to 16AWG
  • Male and female connector supplied together as a matched pair

Specifications

  • Connector: MT60, 3-pole
  • Contacts: 3.5mm gold-plated bullets
  • Wire size: up to 16AWG
  • Contents: male and female connector

Solder the female half to the ESC leads and the male half to the motor, so the powered side carries the recessed contacts. If the motor spins the wrong way once connected, reverse it in the ESC settings where supported, or swap two phase wires at the solder joints.
