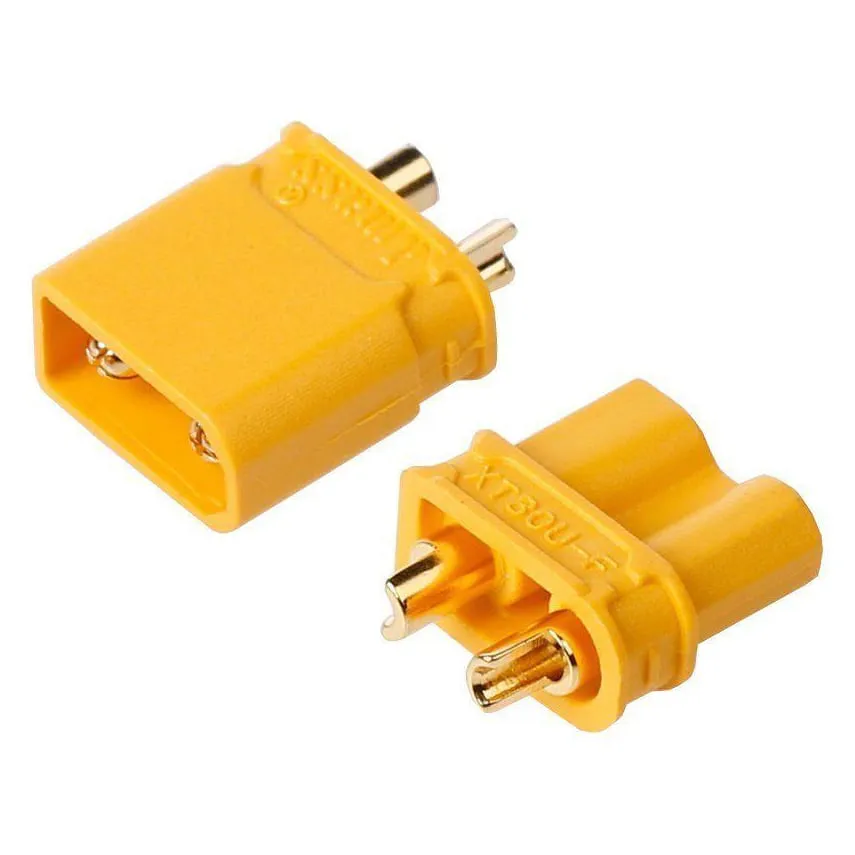

Amass XT30U Connector

The Amass XT30U is a low-profile power connector built for sub-250g micro drones, toothpicks, and 2S to 4S builds. The upgraded "U" design trims the nylon housing to save weight and space without sacrificing mating compatibility with standard XT30 plugs. Choose the male variant for your drone's flight controller or ESC power lead, and the female variant for terminating battery packs.

Key features

• Shorter, lightweight "U" profile saves space on tight micro builds

• Gold-plated brass contacts support 15A continuous and 30A burst loads

• Semicircular solder cups naturally seat 16AWG to 20AWG wire

• Heat-resistant nylon housing withstands high-temperature soldering

• Fully backward-compatible with standard XT30 connectors

Specifications

• Model: Amass XT30U

• Current rating: 15A continuous, 30A burst

• Voltage rating: 500V DC

• Contact resistance: 0.70mΩ

• Materials: Gold-plated brass contacts, Nylon / PA housing

• Recommended wire: 16–20AWG

• Weight: 1.1g (male)

When soldering thick gauge wires to the terminals, mate the connector with an opposing XT30 plug. This acts as a heat sink and prevents the brass pins from shifting if the housing softens under prolonged iron heat.
