Hobbywing X6-SE 6208 380KV Integrated Power System

The Hobbywing X6-SE is an integrated propulsion unit that pairs a 6208 380KV motor with a 60A ESC in one assembly, built as a low-cost, reliable power system for training and education quadcopters. Rated for 6S LiPo and 25 mm arm tubes, it suits aircraft of around 8 kg take-off weight flown for aerial photography, inspection and mapping.

Key features

• Motor and ESC in one unit: motor, 60A ESC and mount arrive matched, cutting wiring and set-up time on the build.

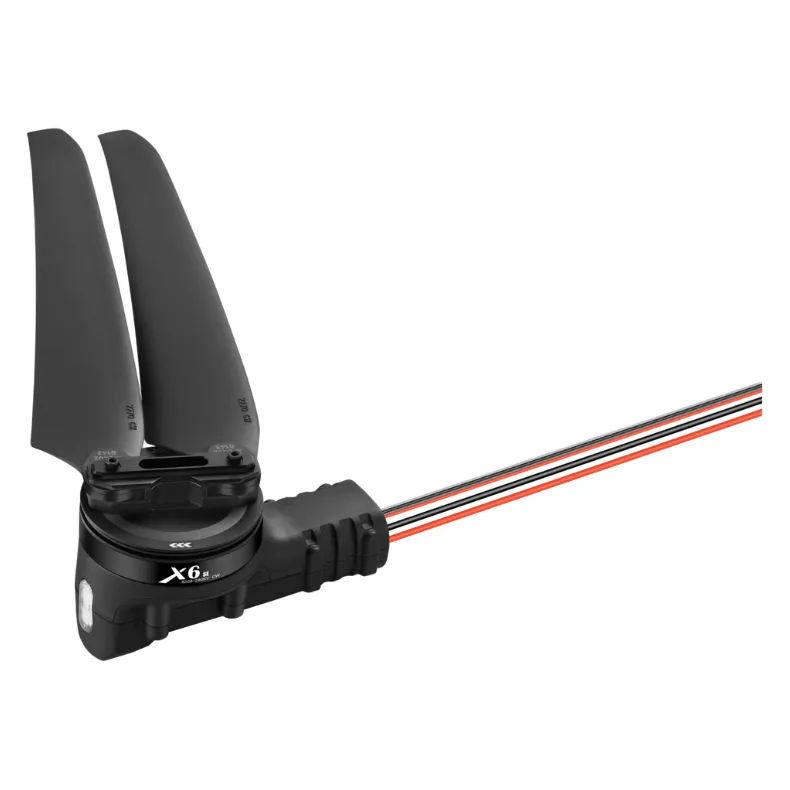

• Up to 5.5 kg thrust per rotor with the recommended 18 × 6.0 in propeller, and a recommended working load of 2 kg per rotor.
• CAN communication between the ESC and a compatible flight controller.

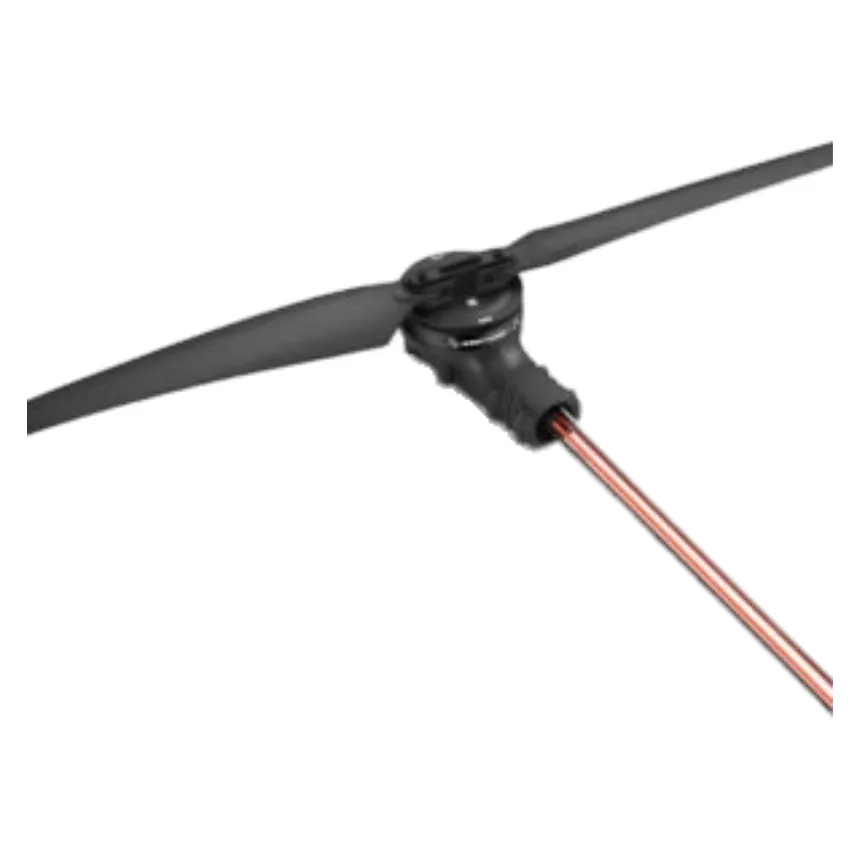

• Fits 25 mm arm tubes, the common size on 8 kg-class quad frames.

Specifications

• Motor: 6208, 380KV
• ESC: 60A
• Battery: 6S LiPo (22.2 V nominal)
• Max thrust: 5.5 kg per rotor
• Recommended thrust: 2 kg per rotor
• Max power: 1057 W

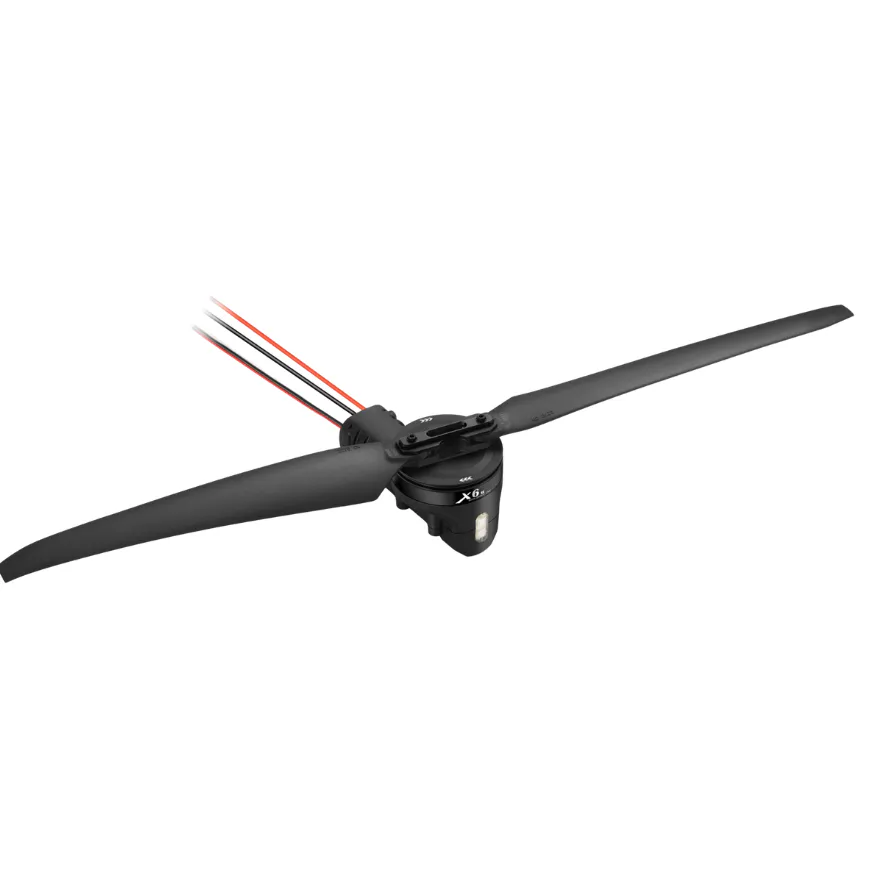

• Recommended propeller: 18 × 6.0 in
• Arm tube diameter: 25 mm
• Weight: 348 ± 5 g (with propeller)
• In the box: motor, ESC, mount, screw set

Size the aircraft so hover sits near the 2 kg-per-rotor recommendation; that keeps the margin up to 5.5 kg available for climbs, gusts and payload.
