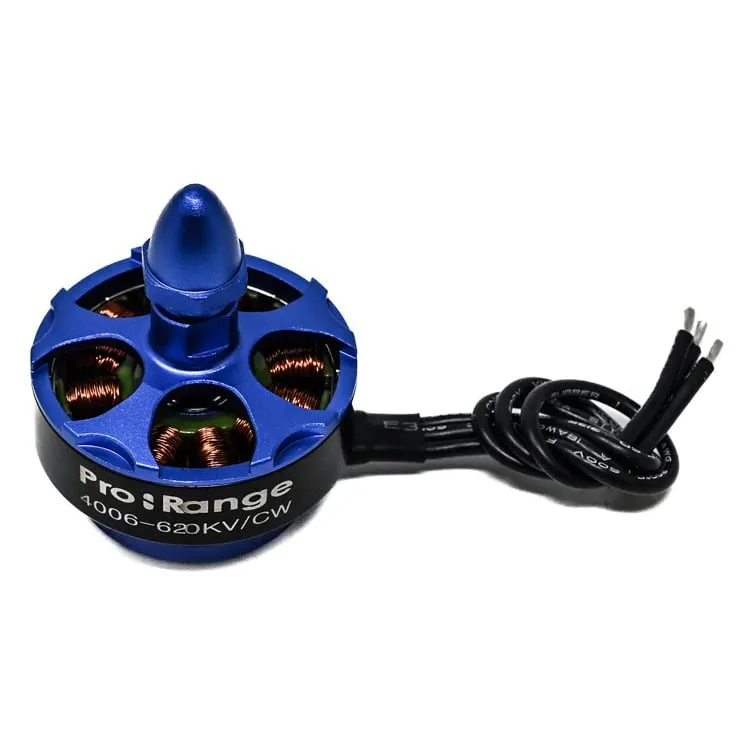

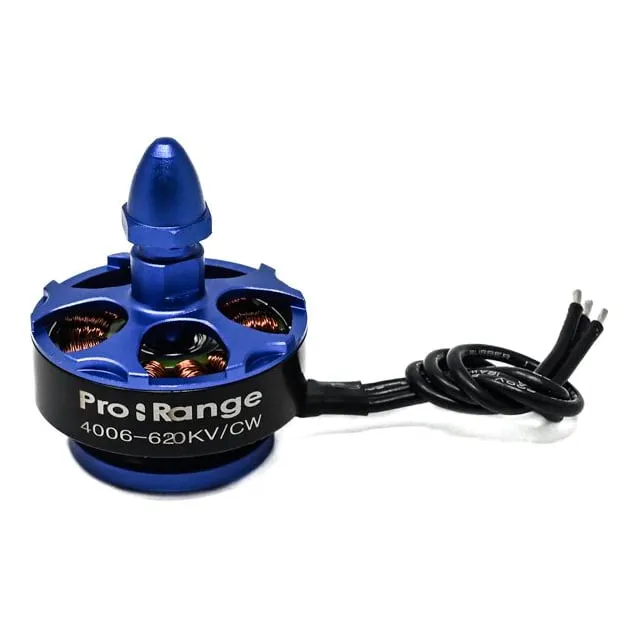

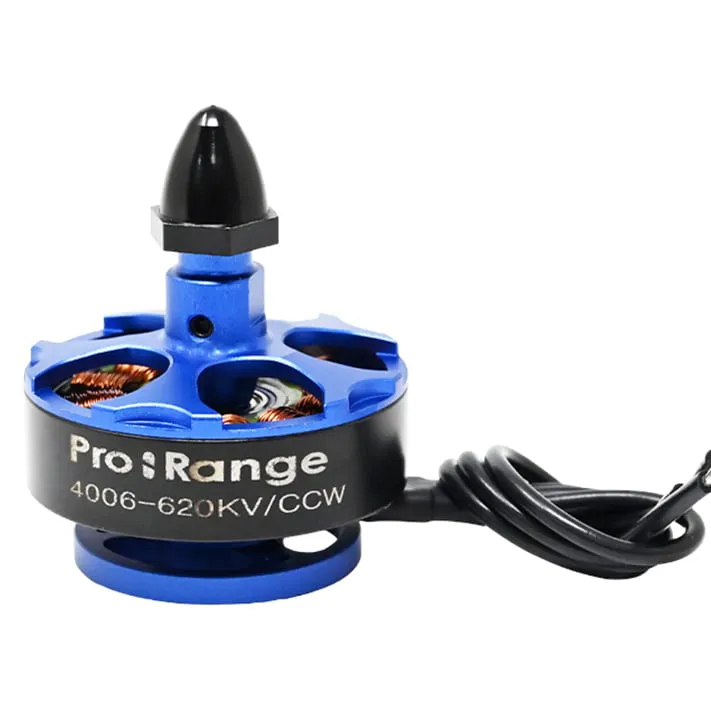

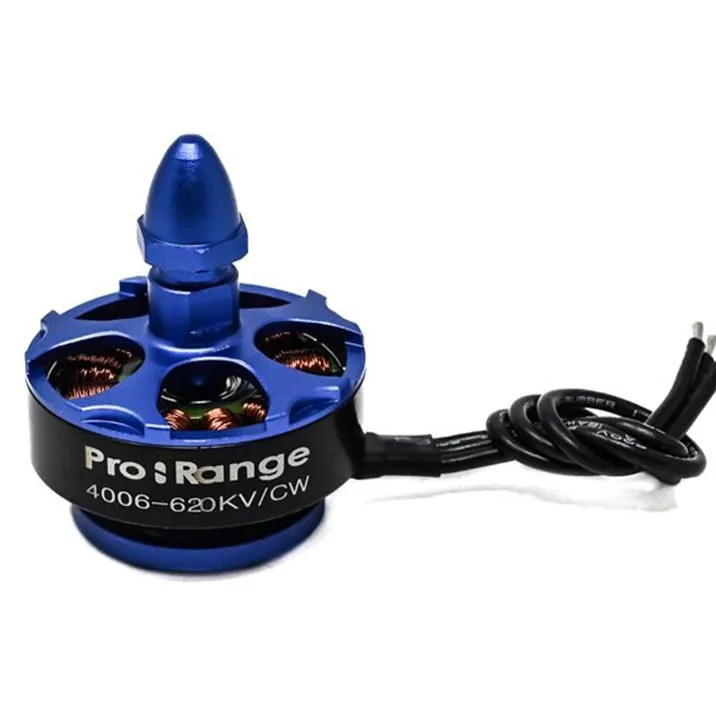

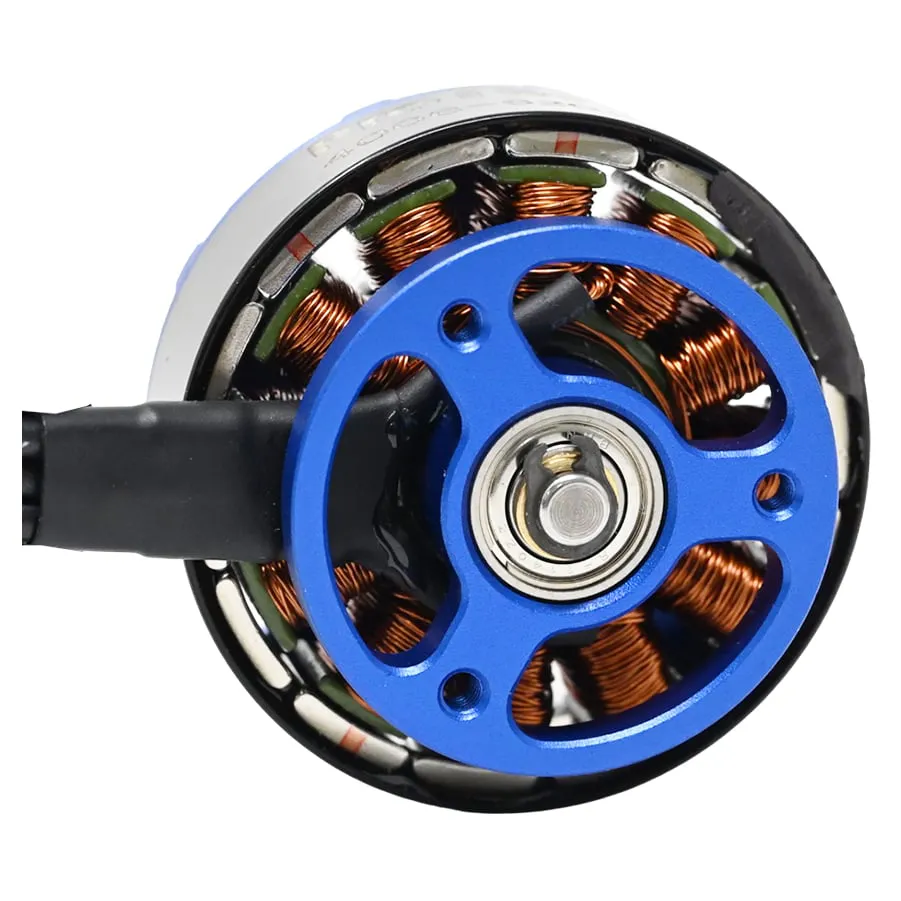

Pro-Range D4006 620KV Brushless Drone Motor

Pro-Range D4006 620KV brushless outrunner for multirotor UAVs swinging 12–13 inch propellers, such as camera platforms, survey quads and heavy DIY builds on 3S to 6S LiPo. It is sold in clockwise and counter-clockwise versions, so a quad needs two of each.

Key features

• Up to 1530 g thrust per motor on an APC 1238 or APC 1365 propeller
• Peak efficiency of up to 6.2 g/W for longer hover times
• 3–6S LiPo input (11.1–22.2 V nominal) leaves room to tune for thrust or endurance
• About 70 g per motor
• CW or CCW rotation to match each arm's spin direction

Specifications

• KV: 620KV
• Stator: 4006 (40 mm diameter × 6 mm height)
• Input voltage: 3–6S LiPo
• Max thrust: 1530 g (APC 1238 / APC 1365)
• Peak efficiency: 6.2 g/W
• Weight: approx. 70 g
• Rotation: CW or CCW

Four motors give about 6.1 kg of combined maximum thrust; keeping the usual 2:1 thrust-to-weight margin puts the all-up weight at around 3 kg. Choose ESCs rated for 6S if you plan to run the top of the voltage range.
