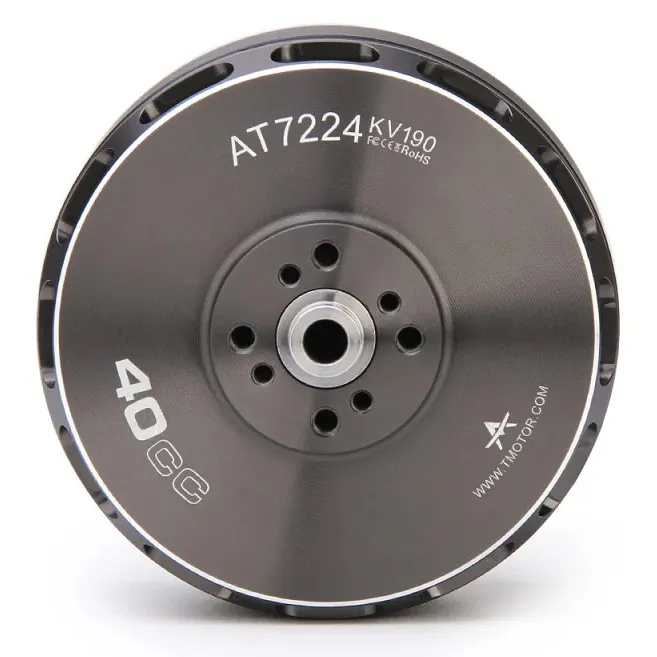

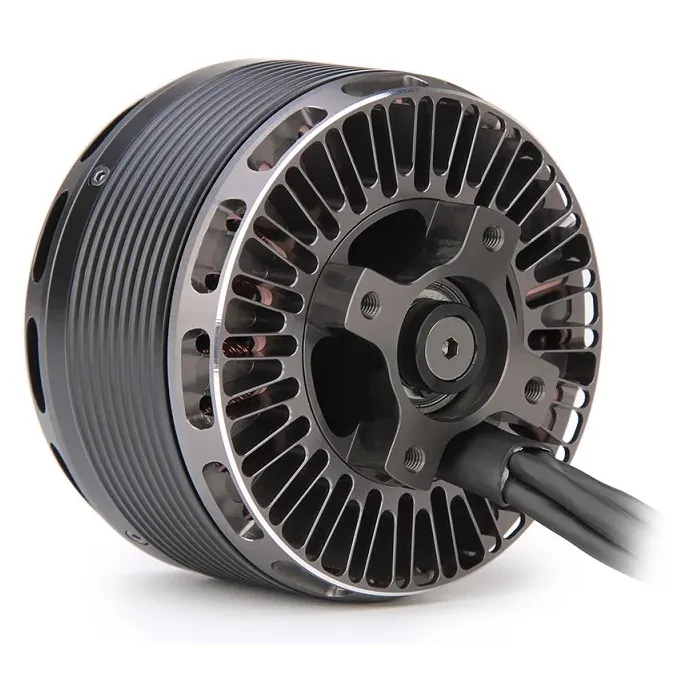

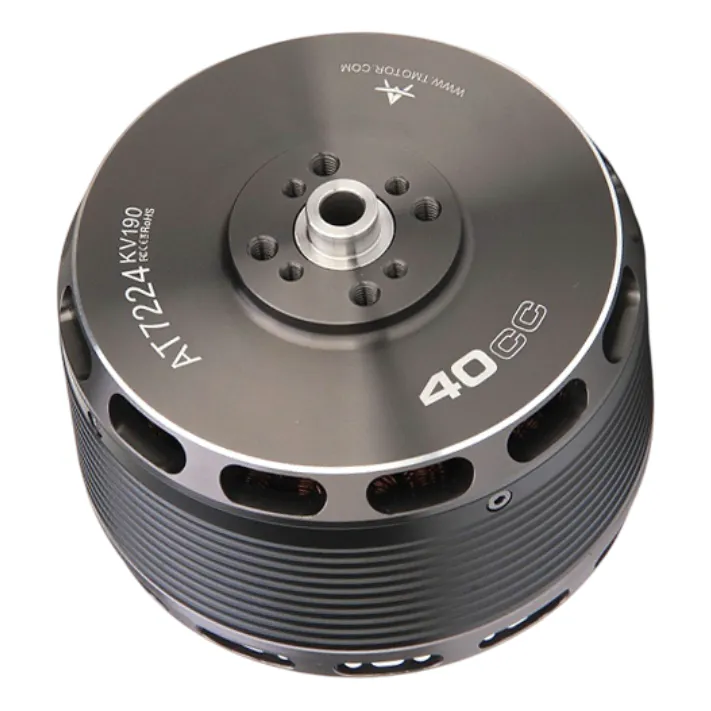

T-Motor AT7224 KV190 Long Shaft Brushless Motor

The T-Motor AT7224 KV190 is a long-shaft outrunner for large outdoor fixed-wing aircraft, VTOL cruise motors and heavy multirotors running 10-12S. T-Motor rates it at up to 6000 W and 17.72 kg of thrust, so it belongs on big airframes where a single motor has to carry serious weight.

Key features

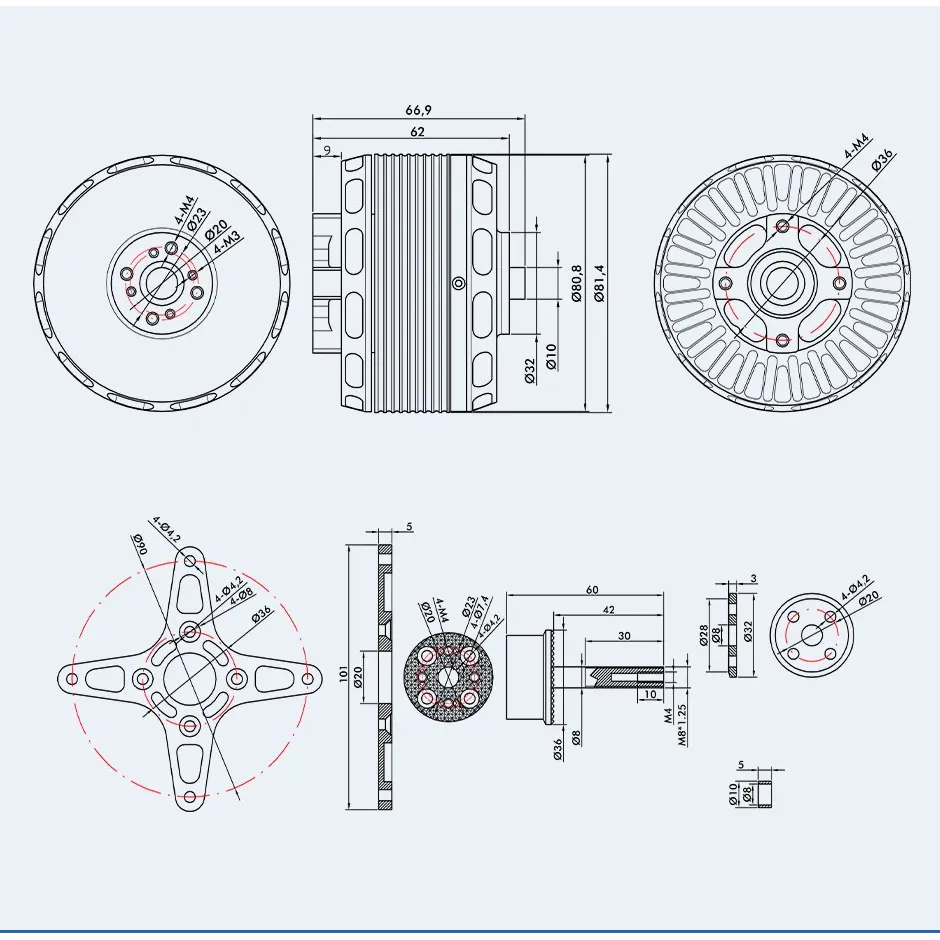

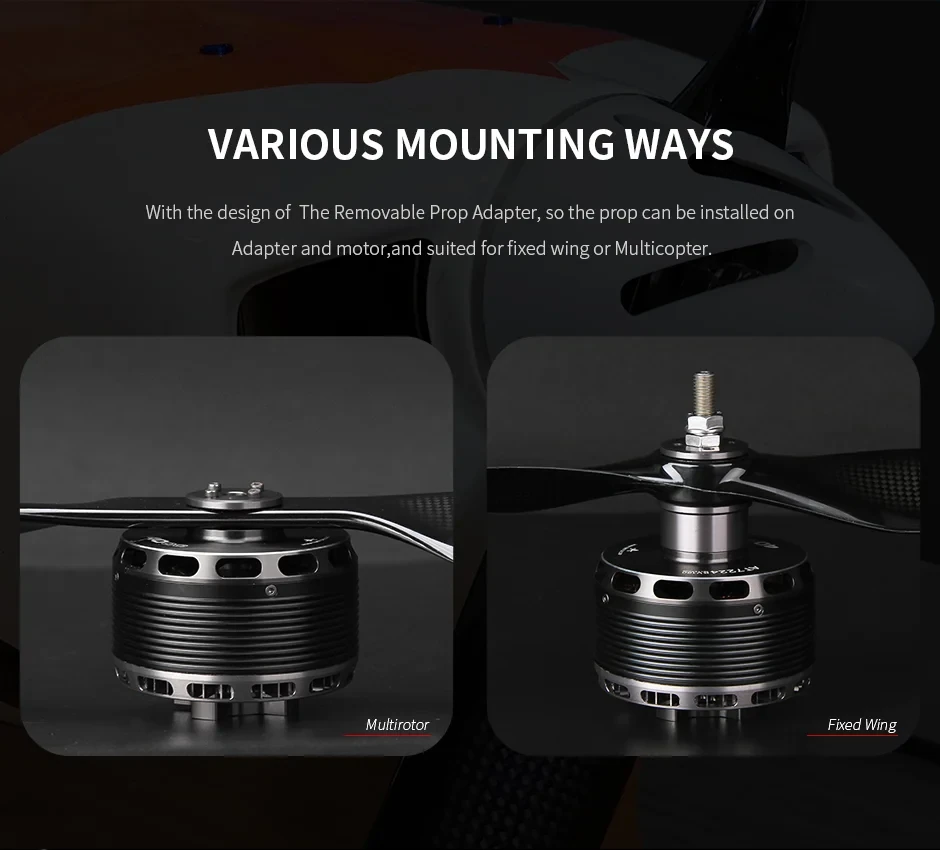

• Long 10 mm shaft and several mounting options for fixed-wing firewalls or multirotor arms

• 24N22P configuration with 16 mOhm internal resistance for efficient high-current running

• Peak 135 A and 6000 W for 180 seconds on 12S

• Enamelled 100 mm leads for direct soldering to the ESC

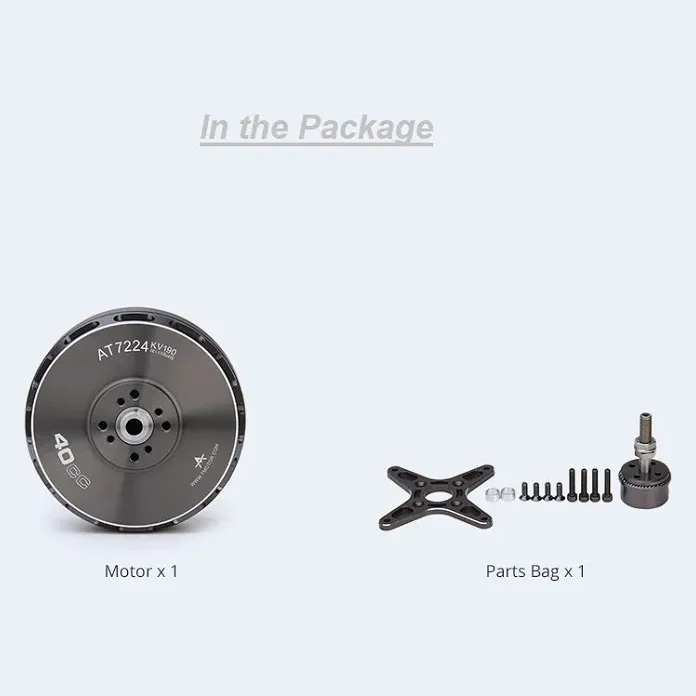

• Supplied with an accessory set of mounting hardware

Specifications

• KV: 190KV

• Configuration: 24N22P

• Rated voltage: 10-12S LiPo

• Peak current (180 s): 135 A

• Max power (180 s): 6000 W on 12S

• Max thrust: 17.72 kg

• Idle current (10 V): 3.5 A

• Internal resistance: 16 mOhm

• Shaft diameter: 10 mm

• Leads: Enamelled wire, 100 mm

• Weight: 780 g including leads

Pair it with a 12S-capable ESC comfortably above 135 A peak, and keep sustained power well below the 180-second ratings for long flights.
