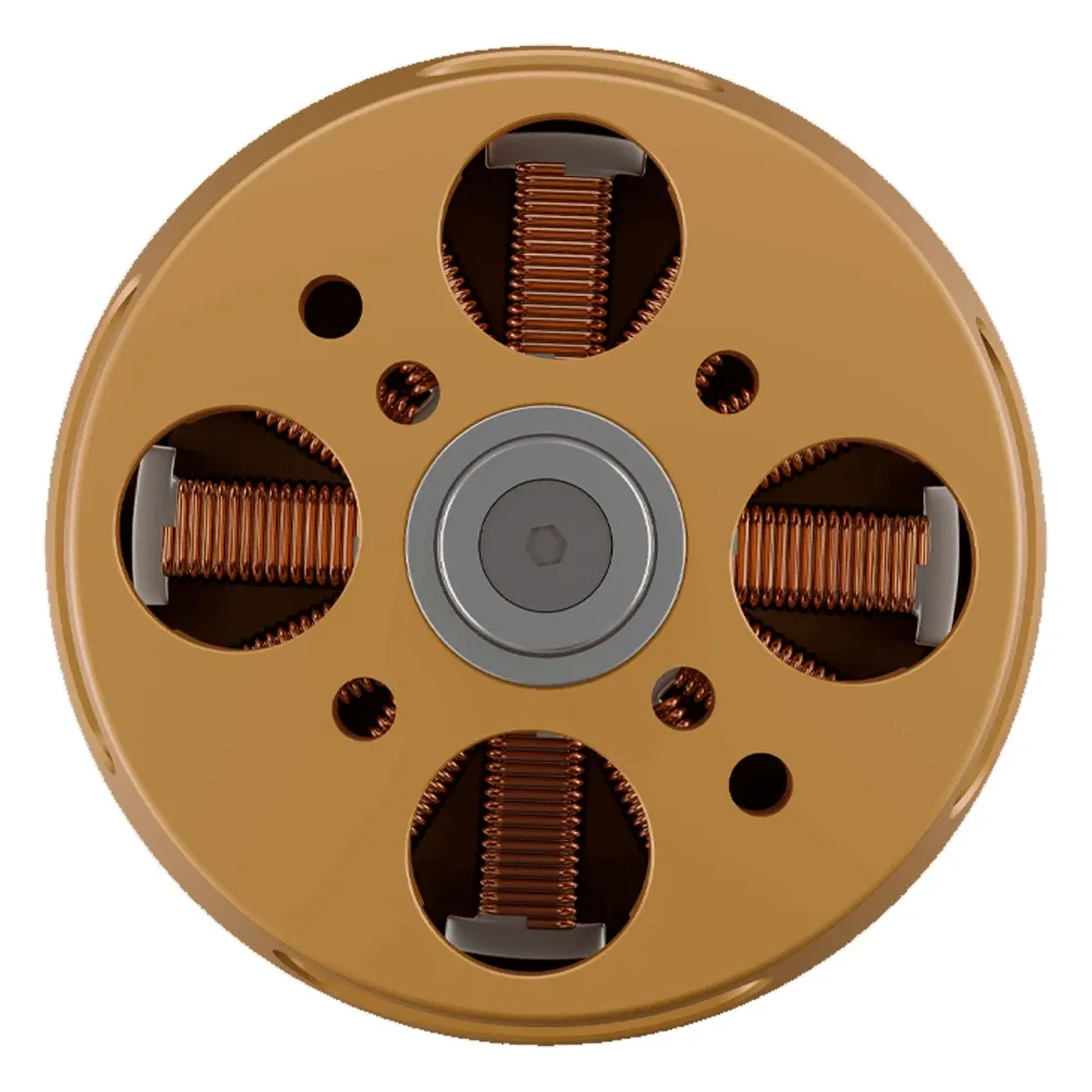

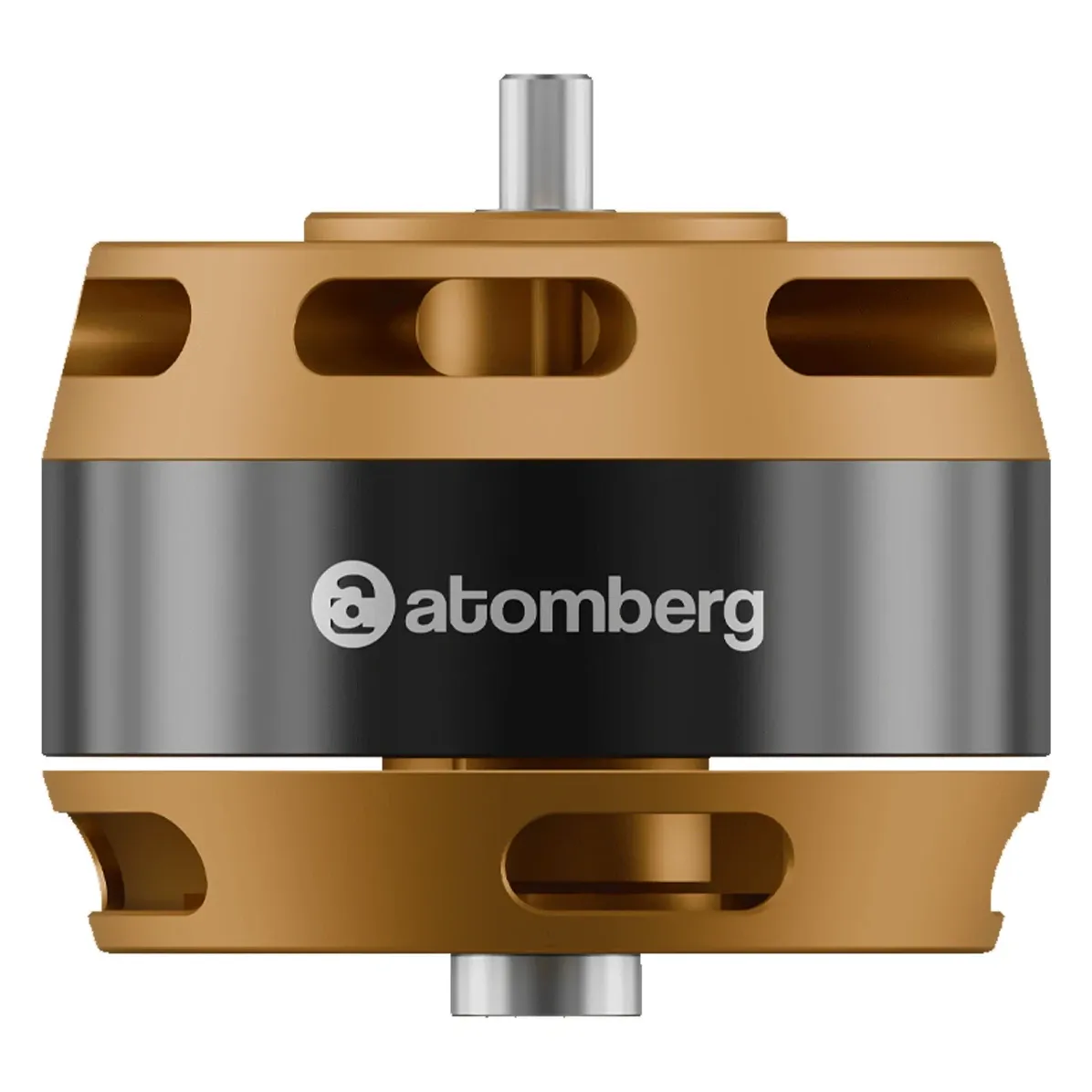

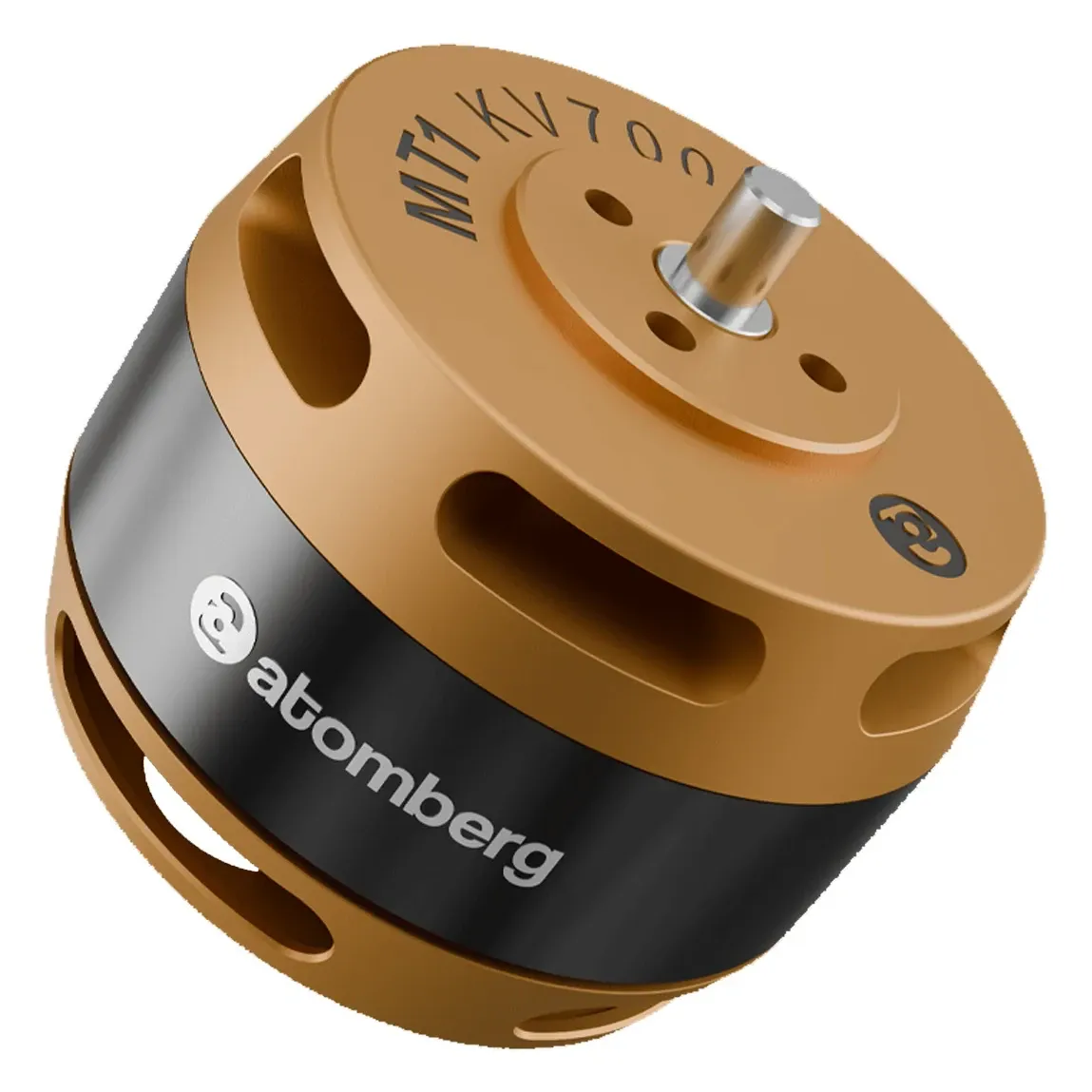

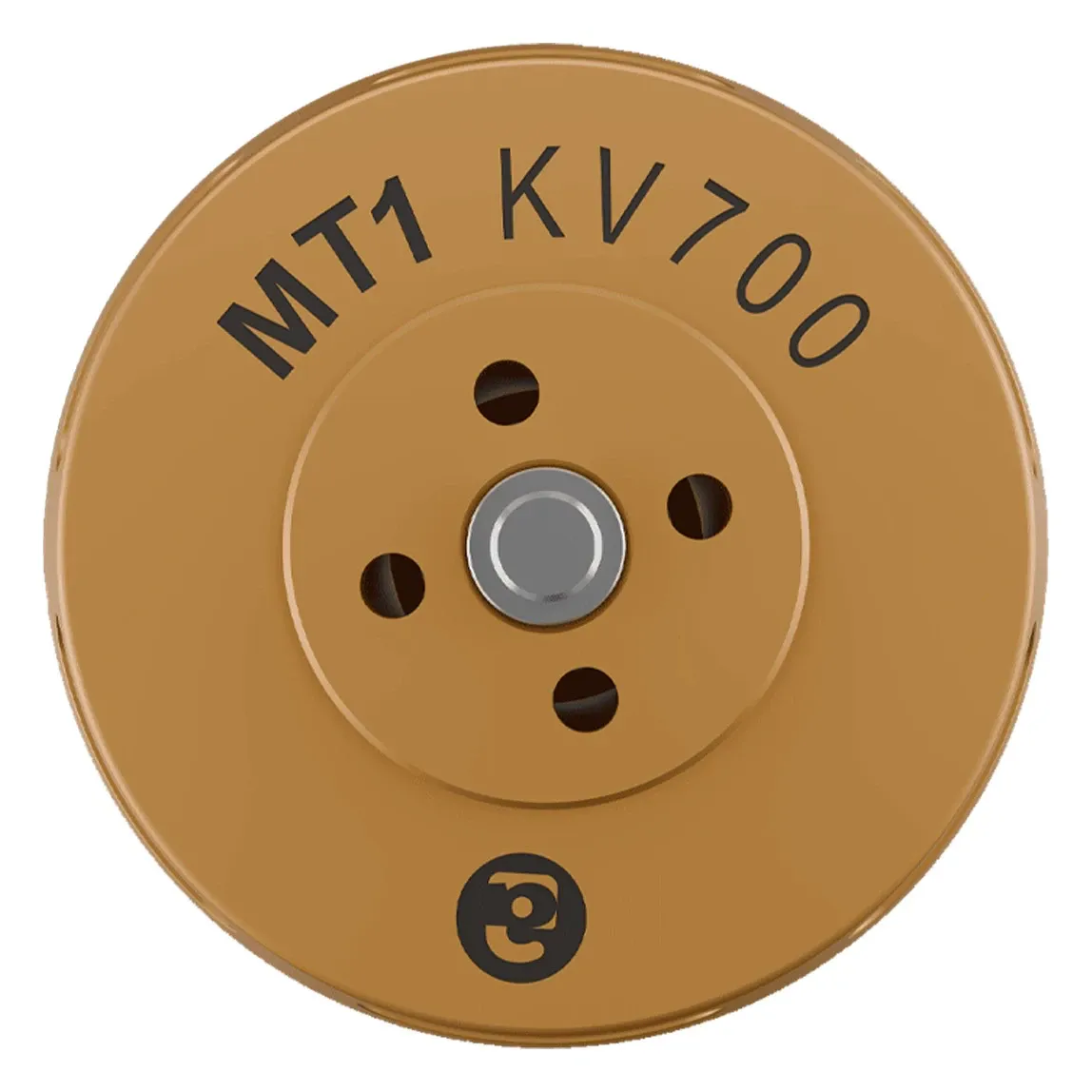

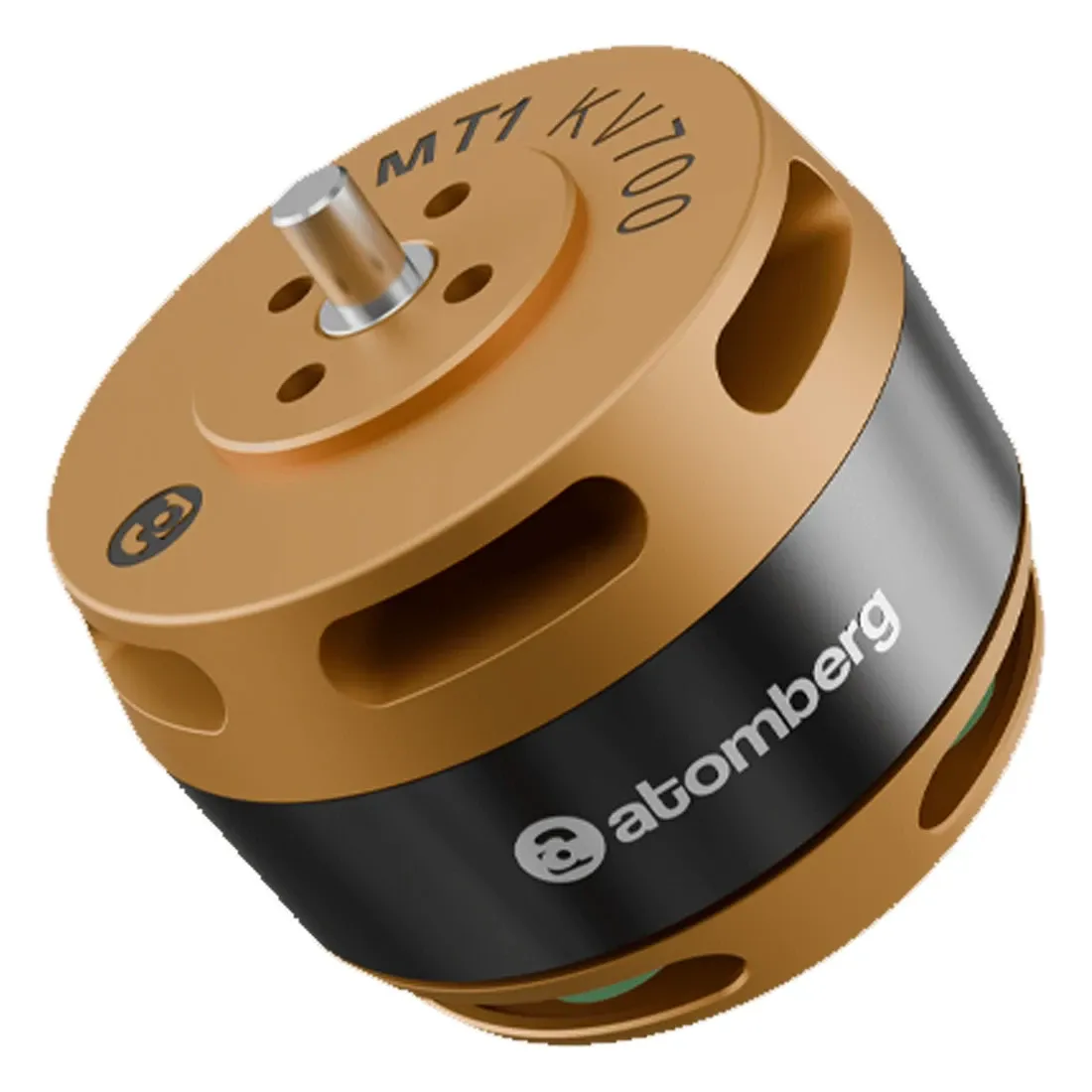

Atomberg - MT1 KV700 Drone motor - 2.30 kg thrust

The Atomberg MT1 700KV is an industrial-grade brushless drone motor engineered for high-endurance UAV applications. Delivering up to 2.30 kg of maximum thrust and weighing 97 grams, it provides a highly efficient power-to-weight ratio for demanding rigs. Its 12N14P configuration and high load capacity are tailored for commercial surveillance, high-altitude mapping, heavy-lift delivery platforms, and VTOL builds.

Key features

• Produces up to 2.30 kg of thrust for heavy-lift and VTOL applications

• Efficient 12N14P stator configuration supporting 3-7S LiPo power

• Rated for 25 A maximum continuous current and 500 W power for up to 180 seconds

• Weighs 97 g (excluding cables) to maximise payload capacity

Specifications

• Model: MT1

• KV: 700

• Configuration: 12N14P

• Input voltage: 3-7S LiPo

• Maximum continuous current: 25 A

• Maximum power (180s): 500 W

• Maximum thrust: 2300 g (2.30 kg)

• Shaft diameter: 4 mm

• Internal resistance: 50 mΩ

• Idle current (10V): 0.55 A

• Dimensions: 41.8x30.75 mm

• Weight: 97 g (excluding cables)

When selecting this motor for your platform, ensure your ESC is rated to handle at least 25 A continuous current and that your propellers match the 4 mm shaft. The wide 3-7S voltage compatibility allows for straightforward integration across custom heavy-lift or mapping airframes.
