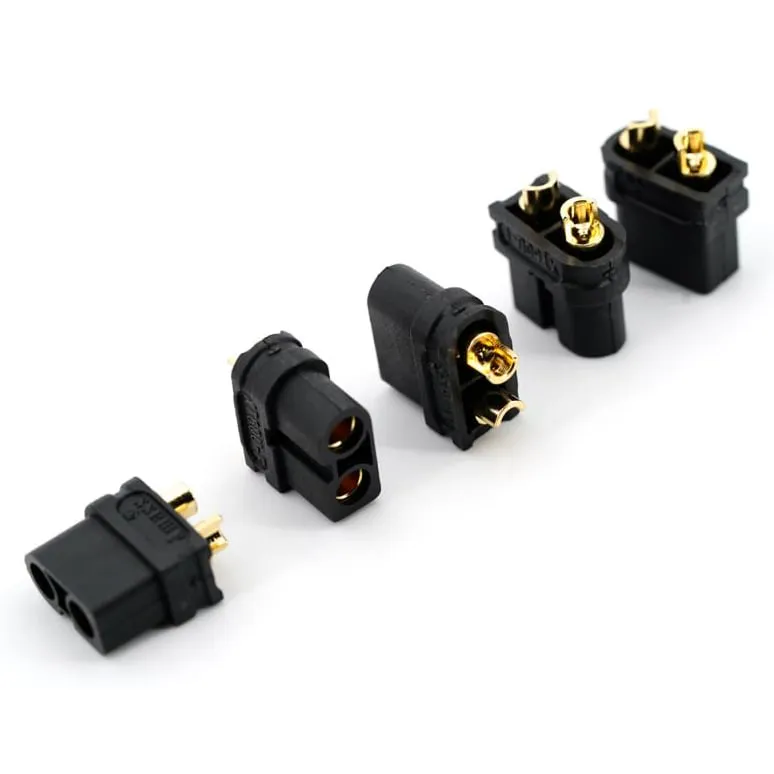

Amass XT60 Female Connector (5 Pack)

Genuine Amass XT60 female connectors are the industry-standard battery-side power plugs for 3-inch to 5-inch FPV drones and mid-sized RC aircraft. Sold in a pack of five, these receptacles are for building battery leads, making charging adapters, or repairing damaged packs.

Key features

• Manufactured by Amass in gold-plated copper with a nylon/PA housing that resists deforming during soldering
• Rated 60A continuous / 100A max current, with low internal resistance for a secure, low-loss connection
• Solder cups sized for wire up to 12AWG, with a recommended solder spec of 480°C for 4 seconds
• Rated for around 1,000 mating cycles and an operating range of -20°C to 120°C

Specifications

• Connector type: XT60 (female)
• Rated current: 60A continuous / 100A max
• Internal resistance: 0.8 mΩ
• Housing material: Nylon/PA
• Contact material: Gold-plated copper
• Recommended wire gauge: 12 AWG
• Weight: 3.5 g each
• Quantity: 5 pieces

Always mate the connector with a spare male plug while soldering, it acts as a heatsink and keeps the contacts aligned while the plastic is hot.
