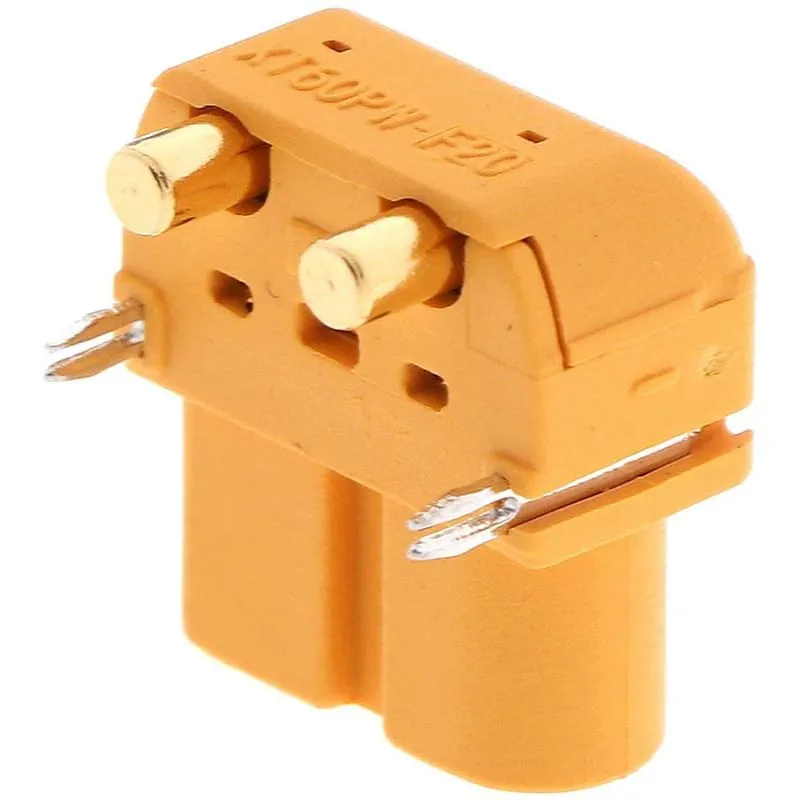

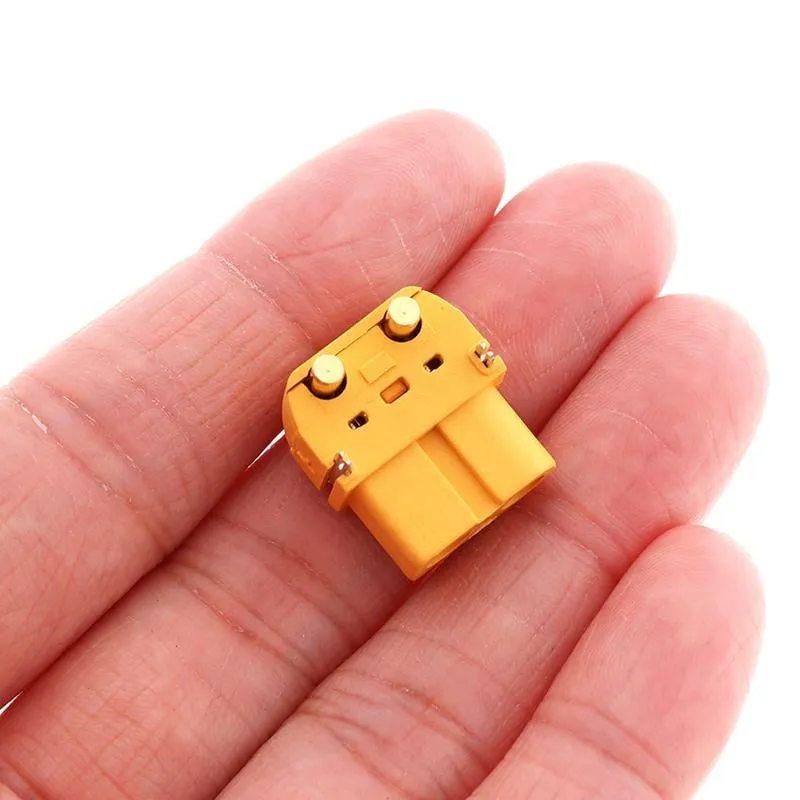

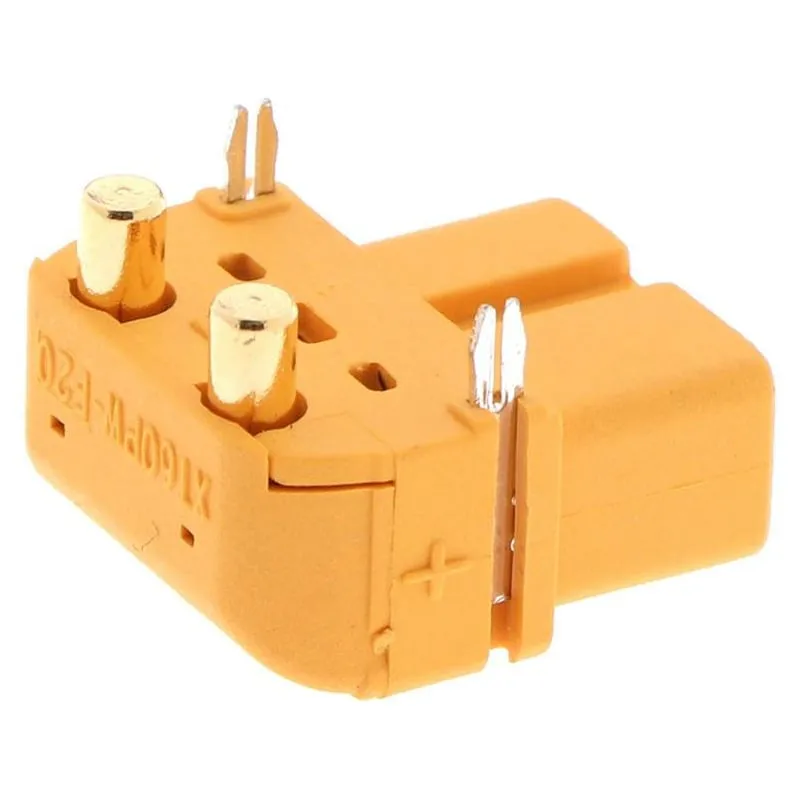

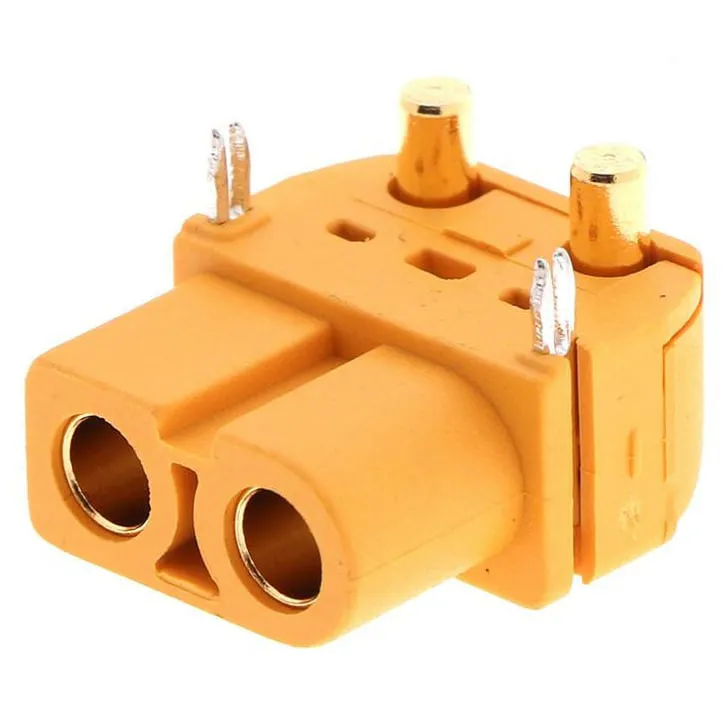

Amass XT60PW Female Connector

The Amass XT60PW Female is a genuine 90-degree PCB-mount connector designed for custom power distribution boards, charging docks, and ground station equipment. Engineered with a right-angle footprint, it mounts directly to a printed circuit board to maintain a low profile, making it highly useful for custom DIY projects requiring a standard XT60 interface rather than wire-splicing.

Key features

• Right-angle through-hole mounting pins for secure, low-profile PCB integration.

• Built-in plastic alignment pegs provide mechanical strain relief to the solder joints during mating cycles.

• Gold-plated brass contacts deliver consistent low-resistance power transfer.

• High-temperature nylon housing resists melting or deforming during heavy soldering.

Specifications

• Connector type: XT60PW Female (Socket contacts)

• Mounting style: 90-degree PCB through-hole

• Rated current: 30A continuous, 60A peak

• Rated voltage: 500V DC

• Contact resistance: 0.50mΩ

• Housing material: Polyamide (PA)

• Contact material: Gold-plated brass
